Default Bogging down while cruising. 9.5:1 AFR?

Ive been having issues recently with the car bogging down while cruising at a steady rpm. My wideband shows cruising around 13-14 then all of the sudden it will drop down to 9.5 10 to 1 and bog down a bunch. It literally throws you forward a little in your seat.

Other symptoms include:
Dying while idling
Engine cutting off from too low of an idle after revving and letting off


I am running a fuel management system and a timing controller. However this is under normal driving circumstances.

I was running the ecu off the widebands narrowband emulation, and I swapped it back to stock to see if it made any difference. It did not.

t25/28 turbo
only running 3lbs boost
1.6L - good compression 155 across the board
NB Injectors
JDM Sport FMU 12:1
MSD Ignition Unit







Anyone have a similar problem? Throttle position sensor? Vacuum leak?
Attached Thumbnails

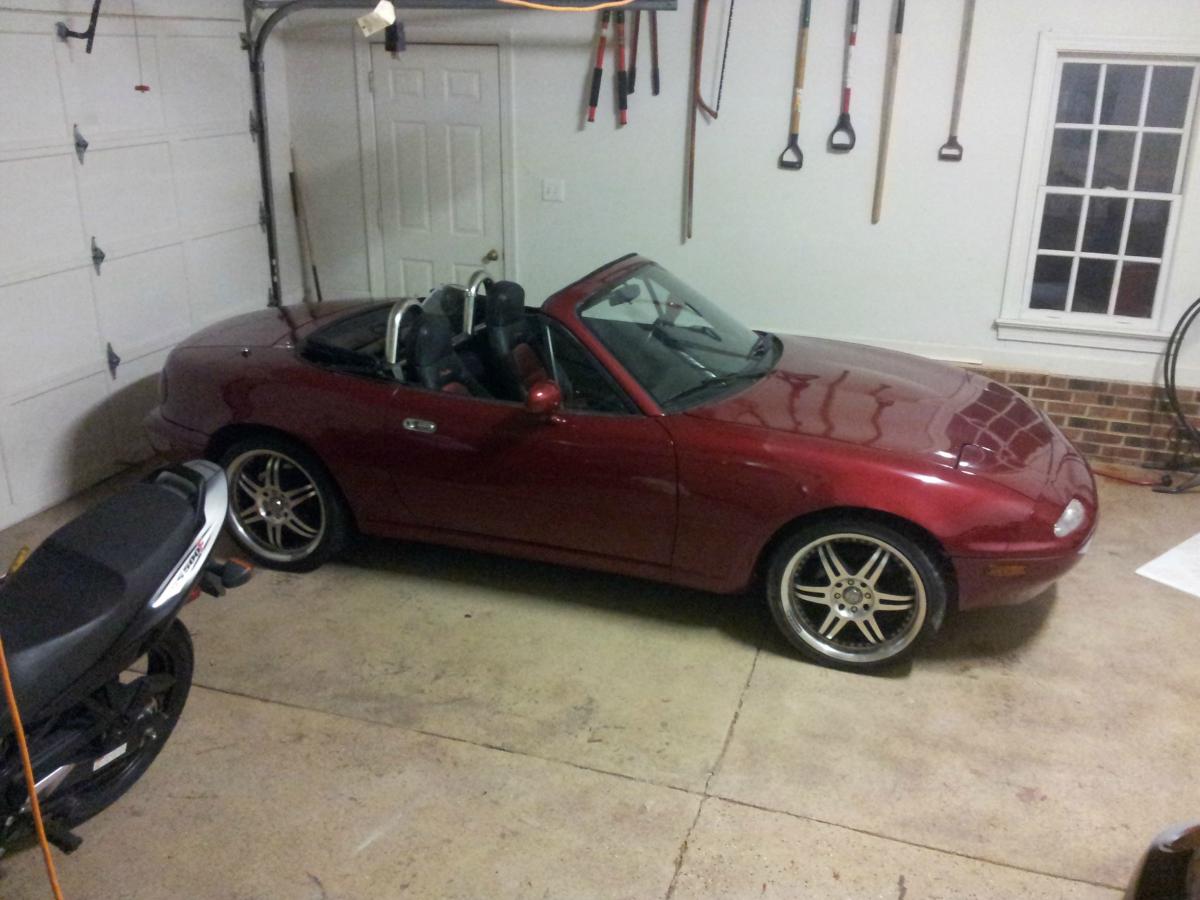

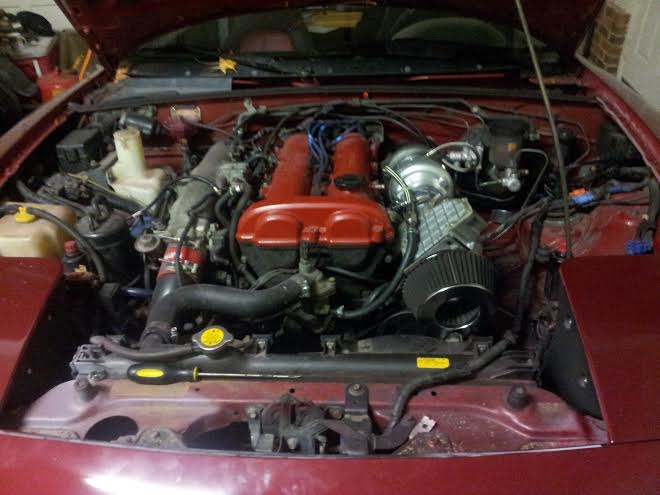

Bogging down while cruising. 9.5:1 AFR?-y7wpqt2.jpg   Bogging down while cruising. 9.5:1 AFR?-tgylpym.jpg

Last edited by racoonfrenzy; 11-28-2013 at 12:39 AM.
racoonfrenzy is offline   Reply With Quote
Old 11-28-2013, 12:27 AM   #2
Junior Member

Join Date: Jul 2011
Location: Vancouver, BC
Posts: 50
Total Cats: 0
Default

What fuel management system?
Screaming04 is offline   Reply With Quote
Old 11-28-2013, 12:31 AM   #3
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I'm having a hard time finding your intro thread. You know, the one where you tell us about your car and your mechanical abilities. Perhaps you can post pictures of your cat?
EO2K is offline   Reply With Quote
Old 11-28-2013, 12:32 AM   #4
Newb
Thread Starter

Join Date: Nov 2013
Location: cary, nc
Posts: 15
Total Cats: 0
Default

Quote:
Originally Posted by Screaming04 View Post
What fuel management system?
This one FMU 12 1 Turbo Fuel Regulator Management Unit Purple Toyota | eBay

12lbs for every 1lb of boost.
racoonfrenzy is offline   Reply With Quote
Old 11-28-2013, 12:37 AM   #5
Junior Member

Join Date: Jul 2011
Location: Vancouver, BC
Posts: 50
Total Cats: 0
Default

^ would be the problem.

You're welcome.
Screaming04 is offline   Reply With Quote
Old 11-28-2013, 12:42 AM   #6
Newb
Thread Starter

Join Date: Nov 2013
Location: cary, nc
Posts: 15
Total Cats: 0
Default

Quote:
Originally Posted by Screaming04 View Post
^ would be the problem.

You're welcome.
are you implying this?
https://www.miataturbo.net/diy-turbo...ger-fix-58692/

That does sound very similar. Im going to remove the fmu and see if that fixes the issue.

Last edited by racoonfrenzy; 11-28-2013 at 02:39 AM.
racoonfrenzy is offline   Reply With Quote
Old 11-28-2013, 11:41 AM   #7
Junior Member

Join Date: Mar 2012
Posts: 322
Total Cats: 23
Default

He's implying you have aids. And aids are not good.
M.Adamovits is offline   Reply With Quote
Old 11-28-2013, 12:28 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

Pretty sure it has something to do with you mounting a flapper-door AFM upside down.
Savington is offline   Reply With Quote
Old 11-28-2013, 12:34 PM   #9
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Classic AFM failure; upside down or not. Pull off the black cover, clean the area the brush rides on and push the brush down the shaft and tighten.
olderguy is offline   Reply With Quote
Old 11-28-2013, 03:43 PM   #10
Newb
Thread Starter

Join Date: Nov 2013
Location: cary, nc
Posts: 15
Total Cats: 0
Default

Forgot to mention that I already flipped the afm back over. I have an extra on so Ill throw that one on as well...
racoonfrenzy is offline   Reply With Quote
Old 11-30-2013, 03:00 PM   #11
Newb
Thread Starter

Join Date: Nov 2013
Location: cary, nc
Posts: 15
Total Cats: 0
Default

I took the FMU off completely and unhooked the wastegate. It still running into the 10's while cruising.
racoonfrenzy is offline   Reply With Quote
Old 11-30-2013, 06:56 PM   #12
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

If the AFM is defective and putting no signal or a low signal, the ECU is thinking that you are at WOT and adding fuel accordingly.

You would have that situation if the door is stuck open also.
olderguy is offline   Reply With Quote
Old 12-01-2013, 01:21 AM   #13
Newb
Thread Starter

Join Date: Nov 2013
Location: cary, nc
Posts: 15
Total Cats: 0
Default Solved

Boost pipe had a leak from a coupler.
