Default Broken steering rack?

While parking in the paddock for a recent track day, the steering wheel made a clunk and ended up 1/4 of a turn to the left while the wheels remained straight.

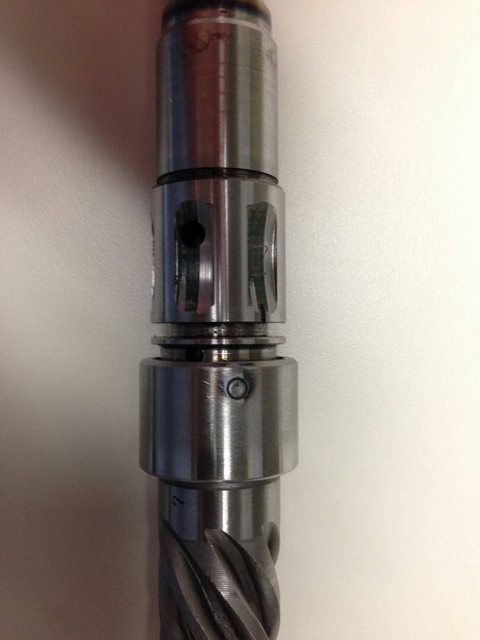

History is a fully depowered rack, seals removed and pinion gear pressed pinned, like so.



Superpro bushings, R tie rods. Works Bell hub adapter, NRG QR.

At a complete stop, the steering is very hard to turn until you start moving, this time I really forced it and something moved or jumped. We poked around, didn't see anything, Aidan's advice was RUN IT, I recentered the steering wheel with the QR and cautiously ran 2 conservative sessions with no problems.

Before I start tearing apart the rack, has anyone experienced this or have a guess what caused this? Did the pin snap? Can the rack slip in the bushings?
oregonmon is offline   Reply With Quote
Old 08-10-2016, 01:57 PM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,841
Total Cats: 1,256
Default

I looked at the splines on the ujoint on the steering shaft and they looked ok. Couldn't think of anywhere else it could have slipped. Most of the splined collections wouldnt have jumped, they would have just stripped out.
aidandj is offline   Reply With Quote
Old 08-10-2016, 02:54 PM   #3
Senior Member
iTrader: (3)

Join Date: Sep 2011
Location: Plano TX
Posts: 591
Total Cats: 1
Default Alignment bolts

Did ur alignment bolts slip maybe?
90 Turbo is offline   Reply With Quote
Old 08-10-2016, 05:11 PM   #4
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 173
Total Cats: 9
Default

Quote:
Originally Posted by 90 Turbo View Post
Did ur alignment bolts slip maybe?
So both wheels were turned the same direction. \ \

A good, maybe,15 degrees. So could they really be toed out/in that much?
oregonmon is offline   Reply With Quote
Old 08-10-2016, 08:21 PM   #5
Junior Member

Join Date: Feb 2015
Posts: 340
Total Cats: 45
Default

Do you have an aftermarket steering wheel? Most hubs are made of pot metal so you could have slipped that spline.
Bronson M is online now   Reply With Quote
Old 08-10-2016, 08:56 PM   #6
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 173
Total Cats: 9
Default

Quote:
Originally Posted by Bronson M View Post
Do you have an aftermarket steering wheel? Most hubs are made of pot metal so you could have slipped that spline.
Yes, Momo wheel, Works hub adapter and NRG qr.
oregonmon is offline   Reply With Quote
Old 08-10-2016, 09:22 PM   #7
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,841
Total Cats: 1,256
Default

I highly doubt it could jump splines like that and then work fine again. If the splines let go they should have all stripped.

Alignment bolts might make sense. Thats still a lot to slip though.
aidandj is offline   Reply With Quote
Old 08-10-2016, 10:46 PM   #8
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 173
Total Cats: 9
Default

Quote:
Originally Posted by aidandj View Post
I highly doubt it could jump splines like that and then work fine again. If the splines let go they should have all stripped.

Alignment bolts might make sense. Thats still a lot to slip though.
Curly will probably be looking at it tomorrow at AR, 3pm appt.
oregonmon is offline   Reply With Quote
Old 08-12-2016, 02:03 PM   #9
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 281
Total Cats: -25
Default

When you turn the wheels--regardless of the steering wheel centering--do they turn angularly more in one direction than the other?
huesmann is offline   Reply With Quote
Old 08-12-2016, 05:46 PM   #10
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,429
Total Cats: 469
Default

"Tomorrow" was yesterday, que paso?
turbofan is offline   Reply With Quote
Old 08-12-2016, 05:48 PM   #11
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,841
Total Cats: 1,256
Default

They couldn't find anything wrong with it
aidandj is offline   Reply With Quote
Old 08-12-2016, 05:59 PM   #12
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,972
Total Cats: 145
Default

I have taken my rack apart twice to weld the pinion, because internet. I don't see anything to weld, it looks like one machined piece. Do I haz a dum, or is there such a thing?
ryansmoneypit is offline   Reply With Quote
Old 08-12-2016, 06:02 PM   #13
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,841
Total Cats: 1,256
Default

You haz the dumb



aidandj is offline   Reply With Quote
Old 08-12-2016, 06:04 PM   #14
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 1,972
Total Cats: 145
Default

Well crap. I hate this game sometimes. I hate taking the rack out of this thing.

Potato likes Better Homes and Gardens more than your welds.
ryansmoneypit is offline   Reply With Quote
