Old 01-10-2012, 02:16 AM   #21
Elite Member
iTrader: (2)
Mobius's Avatar
Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261

I have replaced my bulbs with LED's as well. They work fine with the dimmer. In my opinion the stock NB red lighting is not bright enough, which is why I replaced them. The new LED's are still not as bright as I would like but they are better.
Mobius is offline   Reply With Quote
Old 01-10-2012, 11:20 AM   #22
Junior Member
iTrader: (1)
Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18

Originally Posted by Track View Post
As you can see, this is my only hotspot (at 1k rpm) and its currently not fixable as the LED is just slightly off the dispersion plastic on the gauge:
Get some clear acetate sheet to fit under the gauge face and experiment with laser printing half-tones in those hot spots.
BarbyCar is offline   Reply With Quote
Old 01-10-2012, 11:50 AM   #23
Elite Member
iTrader: (5)
Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49

I have thought about it Barby, but its not that noticeable on the street. The camera tends to exaggerate brightness under low light conditions. I think it has to do with the ISO setting, but I don't really know how to mess with that ----.
Seefo is offline   Reply With Quote
Old 01-10-2012, 12:01 PM   #24
Senior Member
iTrader: (1)
revlimiter's Avatar
Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92

^ Yup. Your eyes have a much harder time picking out the bright spots when you're looking at your gauges. The camera makes them easy to pick out.

For those thinking of sanding the green off your stock gauges: don't. The high-powered LED option is much better.
WLED-HP5 is what you want. (I hope this link works)
revlimiter is offline   Reply With Quote
Old 01-12-2012, 04:19 PM   #25
Senior Member
iTrader: (9)
Join Date: Jun 2007
Location: NH
Posts: 981
Total Cats: 20

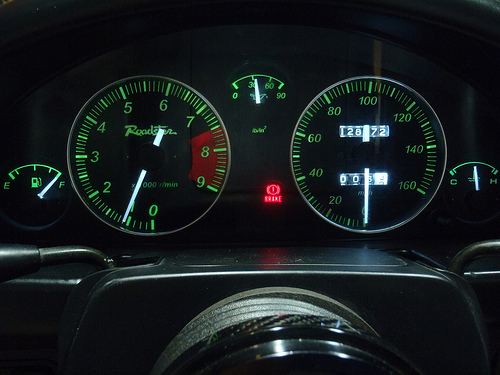

I ended up using the WLED-x5 (194s) in cool white from

They are plenty bright; I have the dimmer set around the 1/2 way point when I'm driving (it was cranked it up to full for the pic). Anything brighter I feel would just be overkill and blinding.

Gauges are custom and were made by Rev.
Attached Thumbnails
Changing gauge cluster lighting-6151849914_e2a72997b0.jpg
mighty mouse is offline   Reply With Quote
