Default Coolant leak -- from where?

My MSM is loosing coolant at an alarming rate.

I haven't found any puddles, so today I brought the engine to operating temp, waited until the fans went on, and gave it throttle with a big piece of cardboard under the engine bay (the undertray is long gone) ... sure enough, there were significant coolant drips on the cardboard, coming from the middle/back of the passenger side.

What should I check next? I'm not familiar with where the coolant is routed through the engine. Are any specific parts in that side/corner of the engine prone to leakage?

(Had the head gasket done by a Miata specialist last summer, so I'm not terribly worried about an internal leak.)
evank is offline   Reply With Quote
Old 05-22-2013, 04:12 PM   #2
Junior Member
iTrader: (3)

Join Date: Mar 2008
Posts: 124
Total Cats: 2
Default

I recently had to replace my water pump due to it leaking. There is a weep hole on the front/radiator side where coolant will escape when the seals are going bad. This drips down around and inside the timing belt covers, and can sometimes make finding the source a bit difficult. I was at 54K after I'd done the last timing belt service, so I bit the bullet and re-did the timing belt service a little early as you have to get all those pieces out of the way to do the water pump anyhow.
fwman1 is offline   Reply With Quote
Old 05-22-2013, 05:04 PM   #3
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

You have a water-cooled oil cooler.

Buy a complete hose kit from Rosenthal or some other OEM outfit and get things up to snuff. While you're at it, get a replacement undertray.
hornetball is offline   Reply With Quote
Old 05-22-2013, 05:06 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Instead of holding up a piece of cardboard, you should actually trace the leak to the source. Get all up in there with a flashlight and whatnot and you should see it. My green miata was purchased with a freshly re-done head. Brand new hg and everything. well it actually leaked coolant at the hg on the passenger/rear of the engine. Removed head, replaced gasket, cleaned everything up and re-installed with proper torque and torquing procedure. Good as new.

Before you get into tearing off the head though, you need to actually find the leak. If you can't put some dye in the cooling system and do the black light method. 100% will find the actual spot its leaking from.
18psi is offline   Reply With Quote
Old 05-22-2013, 06:58 PM   #5
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
Before you get into tearing off the head
That task is WAAAY over my head (pun intended).

Quote:
Originally Posted by 18psi View Post
If you can't put some dye in the cooling system and do the black light method. 100% will find the actual spot its leaking from.
Google search indicates that green 50/50 is already UV-sensitive. Whilst I wondered where to buy a decent blacklight, my girlfriend suggested the pet store -- said she bought one there many years ago to find where her cat peed (!!!) on the carpet. Apparently cat pee is * also * UV-sensitive.

I'll give the blacklight method a try later this week. Supposed to rain from tonight until Friday morning.
evank is offline   Reply With Quote
Old 05-22-2013, 09:00 PM   #6
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

I'm with hornetball. I'd suspect something around the oil cooler. There's a small water line coming off the throttle body that goes to just above the oil filter, then leaves the oil filter and goes to the back of the block. You should be able to jack the car up and look under the alternator and see if one of those lines are cracked.
pdexta is offline   Reply With Quote
Old 05-23-2013, 09:46 AM   #7
Senior Member
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

You have a few more hoses than this diagram and there are some to turbo, but I believe all the passenger side items are the same. Start checking hoses.

Tekel is offline   Reply With Quote
Old 05-23-2013, 09:48 AM   #8
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Most likely the small hoses going to the oil cooler.
Leafy is offline   Reply With Quote
Old 05-23-2013, 03:19 PM   #9
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

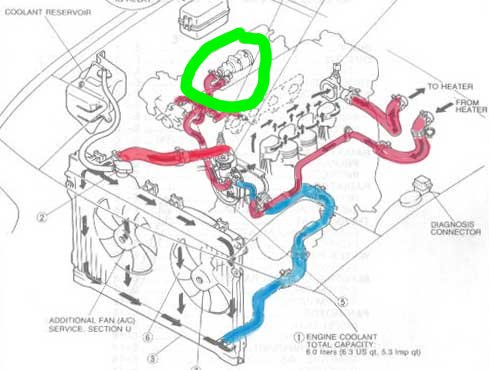

Is the oil cooler the part circled in green?

Attached Thumbnails
Coolant leak -- from where?-coolantrouting2.jpg
evank is offline   Reply With Quote
Old 05-23-2013, 05:15 PM   #10
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

Quote:
Originally Posted by evank View Post
Is the oil cooler the part circled in green?

No, thats a 1.6 motor diagram.
MicaCeli is offline   Reply With Quote
Old 05-23-2013, 05:29 PM   #11
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

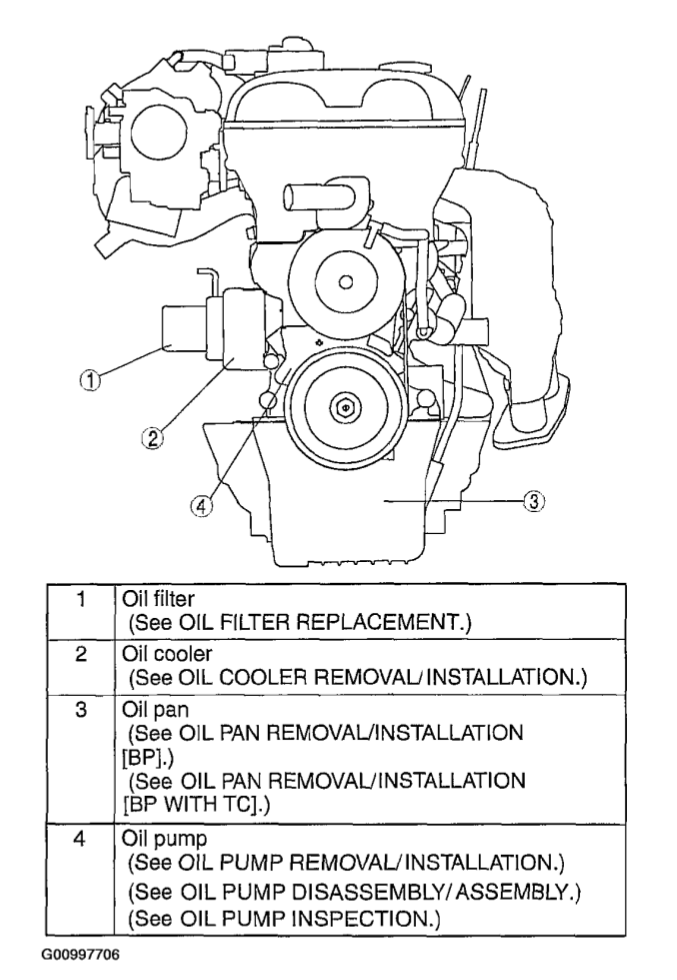

Ah I found a diagram in the MSM service manual:



Along with a drawing showing the in/out prongs. That should help me find it.
evank is offline   Reply With Quote
Old 05-24-2013, 09:02 AM   #12
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

That little "L" shaped piece between the oil cooler and oil filter is where the coolant line connects.
pdexta is offline   Reply With Quote
Old 05-24-2013, 12:39 PM   #13
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

Quote:
Originally Posted by pdexta View Post
That little "L" shaped piece between the oil cooler and oil filter is where the coolant line connects.
Thanks .... I'm not that clueless, but you meant well.
evank is offline   Reply With Quote
Old 05-31-2013, 03:49 PM   #14
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

Great news: mechanic says my car only needs a $17 hose.

I was afraid I'd have to sell a kidney to finance major engine surgery.

Mildly annoying news: he won't have the part until Tuesday.
evank is offline   Reply With Quote
Old 06-04-2013, 06:33 PM   #15
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

So! Everyone got it correct. The bum hose was the one from the back of the head into the oil cooler. Mechanic replaced the hose from the oil cooler to the throttle body while he was at it.
evank is offline   Reply With Quote
