Old 02-22-2008, 09:56 PM   #61
I'm Miserable!
Thread Starter

Join Date: Jan 2008
Location: wilbraham, ma
Posts: 219
Total Cats: 0
Default

Paul, I just got off the phone with my dad and i told him i dont care what he has to say, Paul says to put in a thermostat so we are going to. so we are going to put in a thermostat with 2 1/8" holes like you have.

My fans are the stock fans, which i believe are pull fans, not push. ps, i dont apprieciate the stab in the back.
1fastmiata is offline   Reply With Quote
Old 02-22-2008, 10:22 PM   #62
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by 1fastmiata View Post
Paul, I just got off the phone with my dad and i told him i dont care what he has to say, Paul says to put in a thermostat so we are going to. so we are going to put in a thermostat with 2 1/8" holes like you have.

My fans are the stock fans, which i believe are pull fans, not push. ps, i dont apprieciate the stab in the back.
i didn't realize you turned around.


if you aren't doing the reroute there is no need for the holes drilled through the t-stat. if you are doing the reroute like mine try 1 hole first. i am gonna change my t-stat as soon as i get a chance and i am drilling 1 hole this time. hopefully i can ditch the shield after that.

stock fans can flow either way depending on how they are wired. mine are stock and were flowing the wrong way even though the wiring harness seemed not to be tampered with.
paul is offline   Reply With Quote
Old 02-23-2008, 08:15 PM   #63
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Here is a picture of the coolant re-route I had in my old 1990 iata. I used to run this with a Fluidyne Civic Rad. The T-State was a stocker with a few holes drilled in it!



Enjoy!
M-Tuned is offline   Reply With Quote
Old 02-24-2008, 07:03 PM   #64
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

it blinds me!!
UrbanSoot is offline   Reply With Quote
Old 03-01-2008, 07:08 PM   #65
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

I was at ETD Racing today and got an opportunity to see some initial drawings of their Coolant Re-Route. It should be a very good piece, and priced very well. I ended up towing my car (2000 SE with EGR/Air/AC/FM2) to them today and they are going to use it to mock up this part as well as some other items.
M-Tuned is offline   Reply With Quote
Old 03-02-2008, 04:55 AM   #66
I'm Miserable!
Thread Starter

Join Date: Jan 2008
Location: wilbraham, ma
Posts: 219
Total Cats: 0
Default

alright guys, i started my re-route today, unfortunately i forgot my camera at home.. so heres my custom job... spacer at the back of the head to go to the heater core, turning to the intake side with the front housing, modifying the mixing manifold to be inline behind the motor or on the side of it,tubing of course would be parallel to coolant hoses. *quick question* does it matter if the mixing manifold is before or after the thermostat?
then continue to run 1.25" piping to the rad and use a 1.8L housing to go into the motor.
*second question* How do you use a freeze plug in the fron of the head? its not threaded or are you guys tapping so you can insert a freeze plug... would it be sufficient to just block it off with a cover and gasket or o-ring seal?
1fastmiata is offline   Reply With Quote
Old 03-02-2008, 09:21 AM   #67
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

freeze plug gets press fit in. then you can put something across to make sure it doesn't move.

but the 2nd idea works too, if you make a blocking plate that just bolts there.
paul is offline   Reply With Quote
Old 03-02-2008, 03:11 PM   #68
I'm Miserable!
Thread Starter

Join Date: Jan 2008
Location: wilbraham, ma
Posts: 219
Total Cats: 0
Thumbs up

Quote:
Originally Posted by paul View Post
freeze plug gets press fit in. then you can put something across to make sure it doesn't move.

but the 2nd idea works too, if you make a blocking plate that just bolts there.
Paul, just out of curiousity, did you paint your stripes? or where did you get them... also i read up on the big red button install.. links are missing for the s2000 start button(light up) .. im assuming you did this one... what else do i have to do?
1fastmiata is offline   Reply With Quote
Old 03-03-2008, 10:02 AM   #69
Newb

Join Date: Feb 2008
Posts: 6
Total Cats: 0
Default

you guys should really check out the kia BP head for coolant reroute parts. if you remove the stock oil cooler and remove the coolant lines that run through the TB you will be good to go. running it on the coldside would need the JR coolant neck spacer though
Noah is offline   Reply With Quote
Old 03-05-2008, 11:47 AM   #70
I'm Miserable!
Thread Starter

Join Date: Jan 2008
Location: wilbraham, ma
Posts: 219
Total Cats: 0
Default

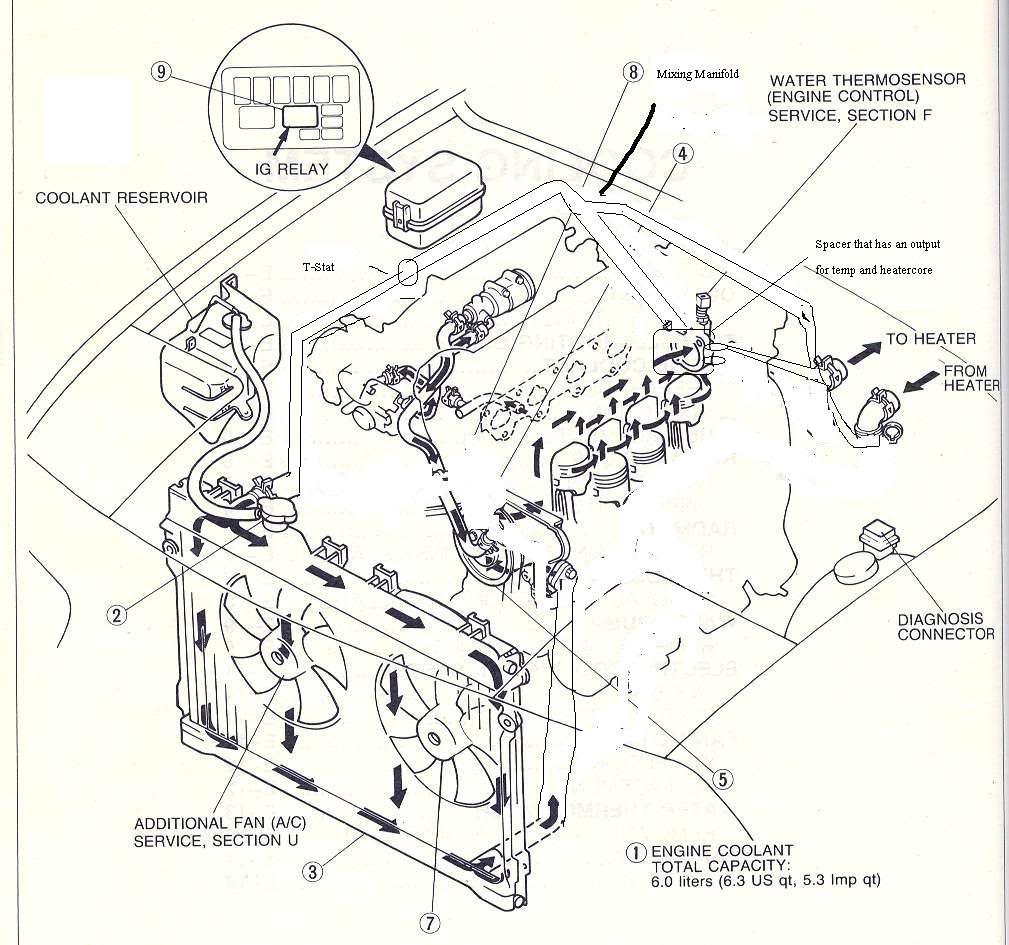

*quick question* does it matter if the mixing manifold is before or after the thermostat?
Name:  coolantroute.jpg
Views: 5
Size:  144.9 KB
1fastmiata is offline   Reply With Quote
Old 03-05-2008, 11:50 AM   #71
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

I'd put it after the thermostat, so that the thermostat would act as a little restriction to flow, so you get some flow thru the heater core. Also, that way when the thermostat is closed (engine cold) you will have a bunch of flow thru the heater core. This may cause the engine to warm up much slower though.

If you have the heater core return hose blended into the main line before the thermostat at a shallow angle, then the flow of coolant in the main line should produce enough suction to suck the coolant thru the heater core. I think.
TurboTim is offline   Reply With Quote
Old 03-05-2008, 11:59 AM   #72
I'm Miserable!
Thread Starter

Join Date: Jan 2008
Location: wilbraham, ma
Posts: 219
Total Cats: 0
Default

ok, The heater core would only be used on the track to defrost the windshield, so it will rarely be used, and MAYBE if she wants to have some street time... mostly for the track... I am also trying to make the engine compartment as asthetically appealing as possible(i guess i could have 2 alluminum pipes welded at a shallow angle like you suggested) thats why I wanted to put the mixing manifold behind the engine...
1fastmiata is offline   Reply With Quote
Old 03-05-2008, 12:01 PM   #73
I'm Miserable!
Thread Starter

Join Date: Jan 2008
Location: wilbraham, ma
Posts: 219
Total Cats: 0
Default

also, since I would barely be using the heater core... i thought about downsizing the diameter of pipe in and out.... to be just a small dribble in case i need to use the defroster...

If i put the mixing manifold after the t-stat do i need holes in my t-stat?
1fastmiata is offline   Reply With Quote
