Old 12-31-2007, 06:46 AM   #1
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default Cop....

So like, I cooked a coil today. My get out of jail free card (it *was* my spare. Now I don't have one!)....

I know a lot of folks run "some sort of toyota coil on plug" - but all the ones I've seen are like the miata ones, one coil for two cylenders - but all the ones I've seen in pics on this board are individual.

Where do I find these? I've heard people getting into it for like $50, if I could do that, especially ultra quick (no drivey till I fixey), I'd be super greatful.

Any hints on what to use and how to use it, and I'll be your best friend or something. Thanks!
-Abe.
AbeFM is offline   Reply With Quote
Old 12-31-2007, 11:18 AM   #2
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by AbeFM View Post
So like, I cooked a coil today. My get out of jail free card (it *was* my spare. Now I don't have one!)....

I know a lot of folks run "some sort of toyota coil on plug" - but all the ones I've seen are like the miata ones, one coil for two cylenders - but all the ones I've seen in pics on this board are individual.

Where do I find these? I've heard people getting into it for like $50, if I could do that, especially ultra quick (no drivey till I fixey), I'd be super greatful.

Any hints on what to use and how to use it, and I'll be your best friend or something. Thanks!
-Abe.

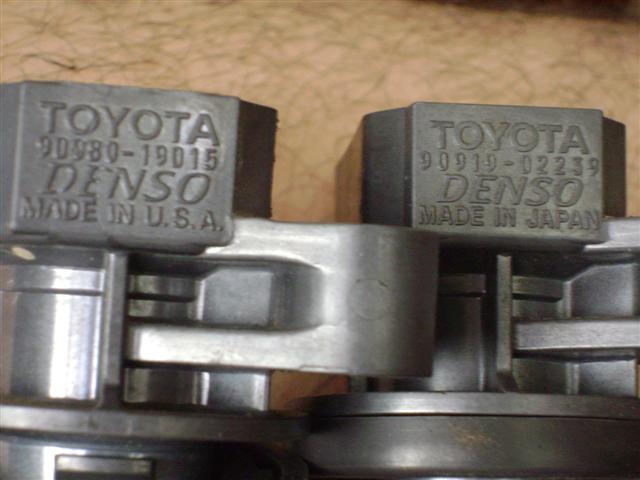

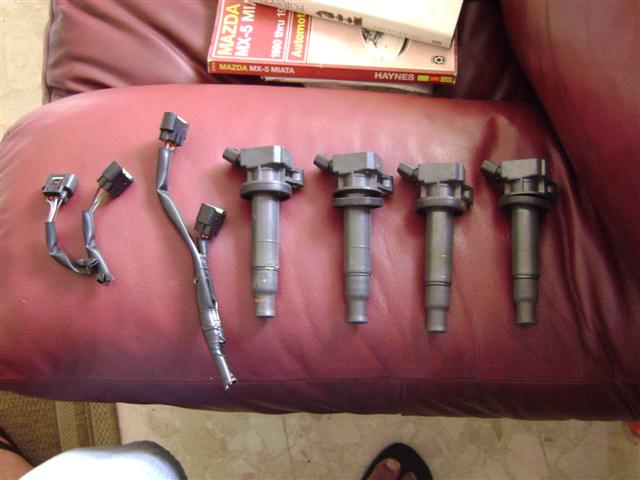

Ok Abe, time to help you out. Go out and get either of these 2:(attached pic) and the thing is you need to get the 4 connector plugs which for what I read in past posts was the real hassle.

Hit me with your questions. I have additional pics. You can also email me at: [email protected] at any time you need. Even though we're both very far away from each other I can check about the connectors (since they are rather small and I had no problem finding them) and UPS them to you.

Rafa
Attached Thumbnails
Cop....-dsc00225-small-.jpg   Cop....-dsc00226-small-.jpg
Rafa is offline   Reply With Quote
Old 12-31-2007, 11:21 AM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

all the info you need is contained in the archives
Ben is offline   Reply With Quote
Old 12-31-2007, 11:22 AM   #4
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

I'll start looking on ebay. The coils are for 2000 and newer Corollas and I think Camrys.

I had to pay through the nose for mines locally but I think you can get them for around $70 all.
Rafa is offline   Reply With Quote
Old 12-31-2007, 11:24 AM   #5
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Ben View Post
all the info you need is contained in the archives
Yes Ben but he's been ultra-helpful to me with my MS issues so if I can save him some time I sure will make the effort.
Rafa is offline   Reply With Quote
Old 12-31-2007, 11:26 AM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Spaniard View Post
Yes Ben but he's been ultra-helpful to me with my MS issues so if I can save him some time I sure will make the effort.
Not knockin' ya man.

shameless youtube plug
Ben is offline   Reply With Quote
Old 12-31-2007, 11:29 AM   #7
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Ben View Post
Not knockin' ya man.
On the contrary, many thanks!

Rafa
Rafa is offline   Reply With Quote
Old 12-31-2007, 01:35 PM   #8
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Indeed, many thanks! So it looks like you're getting two "sets" of coils - they make very similar ones (in sets of three) for their V-6's.

I'll get digging, and thanks for all the help - knowing too much is better than knowing too little. And COP all I know is... I couldn't find it in the first few pages of posts. :-P
AbeFM is offline   Reply With Quote
Old 12-31-2007, 01:41 PM   #9
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

i have a few old busted COP's from my sr20...im gunna check to see if they fit just for *****.
240_to_miata is offline   Reply With Quote
Old 12-31-2007, 01:41 PM   #10
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

AbeFM is offline   Reply With Quote
Old 12-31-2007, 02:11 PM   #11
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I don't know what's different about that part number of coil besides mounting tab and ribs on the shaft but it might work.
cjernigan is offline   Reply With Quote
Old 12-31-2007, 02:35 PM   #12
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

http://cgi.ebay.com/ebaymotors/Ford-...spagenameZWD1V

Uh oh, now I'm getting desperate/silly. I imagine this is the same coil from the new miatas.... But that doesn't mean it'll fit.
AbeFM is offline   Reply With Quote
Old 12-31-2007, 03:19 PM   #13
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by AbeFM View Post
I asked at the COP thread about those numbers but couldn't get any answers. If I were you I'd jump on those. I don't think you'll face any issues with those. Do it, not too much time left in that auction. + If I'm correct you'll pay less than $60.

Let me know if you want me to try to get you the connectors; one thing though, all local stores already closed and won't open till the day after tomorrow. Sorry man.
Rafa is offline   Reply With Quote
Old 12-31-2007, 03:23 PM   #14
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by AbeFM View Post
Indeed, many thanks! So it looks like you're getting two "sets" of coils - they make very similar ones (in sets of three) for their V-6's.

I'll get digging, and thanks for all the help - knowing too much is better than knowing too little. And COP all I know is... I couldn't find it in the first few pages of posts. :-P
I also see that your car is a 2000, so we're going to need the input from someone with a similar one. I know in my case it was as simple as could be. Just the fact that I was able to do it on my own should tell you that! :gay:

BTW, you already have your car's wiring diagram right?
Rafa is offline   Reply With Quote
Old 12-31-2007, 04:37 PM   #15
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Quote:
Originally Posted by Spaniard View Post
I asked at the COP thread about those numbers but couldn't get any answers. If I were you I'd jump on those. I don't think you'll face any issues with those. Do it, not too much time left in that auction. + If I'm correct you'll pay less than $60.

Let me know if you want me to try to get you the connectors; one thing though, all local stores already closed and won't open till the day after tomorrow. Sorry man.
That's what I thought, but then it's really 19/coil + 5.50 shipping per ends up being ~25/coil or $100.

Still not terrible, but... :-)

I don't have the salvage yards here on speed dial. :-( Have to bug my buddy if he knows which are good.
AbeFM is offline   Reply With Quote
Old 12-31-2007, 05:29 PM   #16
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by AbeFM View Post
That's what I thought, but then it's really 19/coil + 5.50 shipping per ends up being ~25/coil or $100.

Still not terrible, but... :-)

I don't have the salvage yards here on speed dial. :-( Have to bug my buddy if he knows which are good.
I'll let you in on a secret. I paid $200 for mine down here.

Abe, don't forget you also need those 4 connectors. The thing is the date doesn't help at all.

Sorry man
Rafa is offline   Reply With Quote
Old 12-31-2007, 05:32 PM   #17
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Just checked the fleabay page. You can just send the vendor a much lower amount. If you don't get them then on to some others.
Rafa is offline   Reply With Quote
Old 12-31-2007, 05:35 PM   #18
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Abe, contact that guy first. He's trying to sell each individually. If I were you I would make him a $60 offer for all 4 and only for the 4 as a group. You don't do anything with just one.
Rafa is offline   Reply With Quote
Old 12-31-2007, 07:11 PM   #19
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Man I waited long enough I scored a set for 32$ shipped from some guy in Canada Eh? Sorry you smoked your coil. :(

How did it happen? Inverted spark too? lol.
elesjuan is offline   Reply With Quote
Old 12-31-2007, 07:27 PM   #20
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

No, it was awesome. Flashed the rom, and had a weird issue where it left one coil high after one of the reboots.

Turns out, I think, that it's cause I didn't select "first spark output" or some such drivel. I think. Anyway, the fan stopped working, and while testing that, I smelled burning.


Oh, and he already sold three of the coils, only one left. I could try to piece together a set of 4 from a few singles and doubles, but... I dunno. Just waiting, I guess. Maybe I can find a junkyard.
<edit>
Oh, I burned my first coil because of inverted spark. But I had a spare. Now, I toasted my spare. FM will sell me a set for $100. Then I'll have another spare. :-) But I'd rather do COP than that.
AbeFM is offline   Reply With Quote
