Default CX racing radiator with FM TB spacer?

my rad is leaking so im trying to decide if i want to get a stock replacement or a thicker aluminum unit off ebay. my only concern with the thicker radiator is that i have a flyin miata throttle body adapter, and it's already fairly tight with the stock rad....


anyone have a 1.8 swapped car, with a thicker radiator?
DrewLGT is offline   Reply With Quote
Old 06-27-2010, 03:02 PM   #2
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Pictures of your engine bay? do you have stock fans?
buffon01 is offline   Reply With Quote
Old 06-27-2010, 04:26 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

i think i could make the thicker radiator work. i dont have AC, so if i go that route i'm going to put one big-ish slim fan in the middle of the rad...

here's what i'm working with right now. why is the stock fan 2x as thick as the radiator???

DrewLGT is offline   Reply With Quote
Old 06-27-2010, 05:03 PM   #4
I'm Miserable!
iTrader: (11)

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Stupid question, why do you need the spacer?
chicksdigmiatas is offline   Reply With Quote
Old 06-27-2010, 05:05 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by chicksdigmiatas View Post
Stupid question, why do you need the spacer?
So I could use my 1.6 throttle body with the 1.8 intake manifold
DrewLGT is offline   Reply With Quote
Old 06-27-2010, 07:39 PM   #6
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Hmmm get a 1.8 TB, or you could go with slim fans; which ever one suits your pocket better.
buffon01 is offline   Reply With Quote
Old 06-27-2010, 09:00 PM   #7
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Go with slim fans, but two side by side would be a lot better than just one and not much more money. On the upper radiator hose, shorten the section between the radiator and the first bend and that will give you some more clearance. My two cents.
ZX-Tex is offline   Reply With Quote
Old 06-27-2010, 09:20 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by ZX-Tex View Post
Go with slim fans, but two side by side would be a lot better than just one and not much more money. On the upper radiator hose, shorten the section between the radiator and the first bend and that will give you some more clearance. My two cents.
the neck on the radiator there is ridiculously long. i dont think i could free up much more room there without actually trimming the rad. if money weren't an issue i'd have a custom rad made with the outlet on the other side....
DrewLGT is offline   Reply With Quote
Old 06-28-2010, 12:48 AM   #9
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I remember now I had that same problem with my old inlet hose setup before I did the v-mount thing and the reroute. There was a hose I found that curved back towards the radiator tank then back towards the water neck on the front of the engine. It gave me a bit more room. I do not know what car it was from. I found it while browsing through the hoses behind the counter at Auto Zone.

Just throwing ideas out there.
ZX-Tex is offline   Reply With Quote
Old 06-28-2010, 10:25 AM   #10
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

I have the same setup as you and running a CX Racing radiator. I had to cut the radiator hose short and fit it in there. I also trimmed the elbow a little.
redrider706 is offline   Reply With Quote
Old 06-28-2010, 10:43 AM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by redrider706 View Post
I have the same setup as you and running a CX Racing radiator. I had to cut the radiator hose short and fit it in there. I also trimmed the elbow a little.
Could you post some pics please?
DrewLGT is offline   Reply With Quote
Old 06-28-2010, 02:09 PM   #12
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

I will. It might take a day or two. The car is parked in its home away from home.
redrider706 is offline   Reply With Quote
Old 06-28-2010, 03:28 PM   #13
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

ill sell you a 1.8l tb.
Pen2_the_penguin is offline   Reply With Quote
Old 06-28-2010, 03:40 PM   #14
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
ill sell you a 1.8l tb.
Probably the best solution. Get the right throttle body and ditch the spacer.
ZX-Tex is offline   Reply With Quote
Old 06-28-2010, 04:24 PM   #15
Junior Member
iTrader: (1)

Join Date: Oct 2008
Location: Palm Harbor FL
Posts: 332
Total Cats: 4
Default

if he has a stock ecu 1.8 tb is not an option. the iac is different and wont work properly with the 1.6 ecu. he would have to go megasquirt.
1slowna is offline   Reply With Quote
Old 06-28-2010, 06:27 PM   #16
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Quote:
Originally Posted by 1slowna View Post
if he has a stock ecu 1.8 tb is not an option. the iac is different and wont work properly with the 1.6 ecu. he would have to go megasquirt.
dont you need the 1.8l ecu anyways to run the engine?
Pen2_the_penguin is offline   Reply With Quote
Old 06-28-2010, 09:10 PM   #17
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
dont you need the 1.8l ecu anyways to run the engine?

no it runs on the 1.6 ECU, i do have a megasquirt that i'm getting ready to install however.
DrewLGT is offline   Reply With Quote
Old 06-28-2010, 09:10 PM   #18
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by Pen2_the_penguin View Post
ill sell you a 1.8l tb.
pm me with a price
DrewLGT is offline   Reply With Quote
Old 07-18-2010, 12:44 PM   #19
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Quote:
Originally Posted by redrider706 View Post
I will. It might take a day or two. The car is parked in its home away from home.

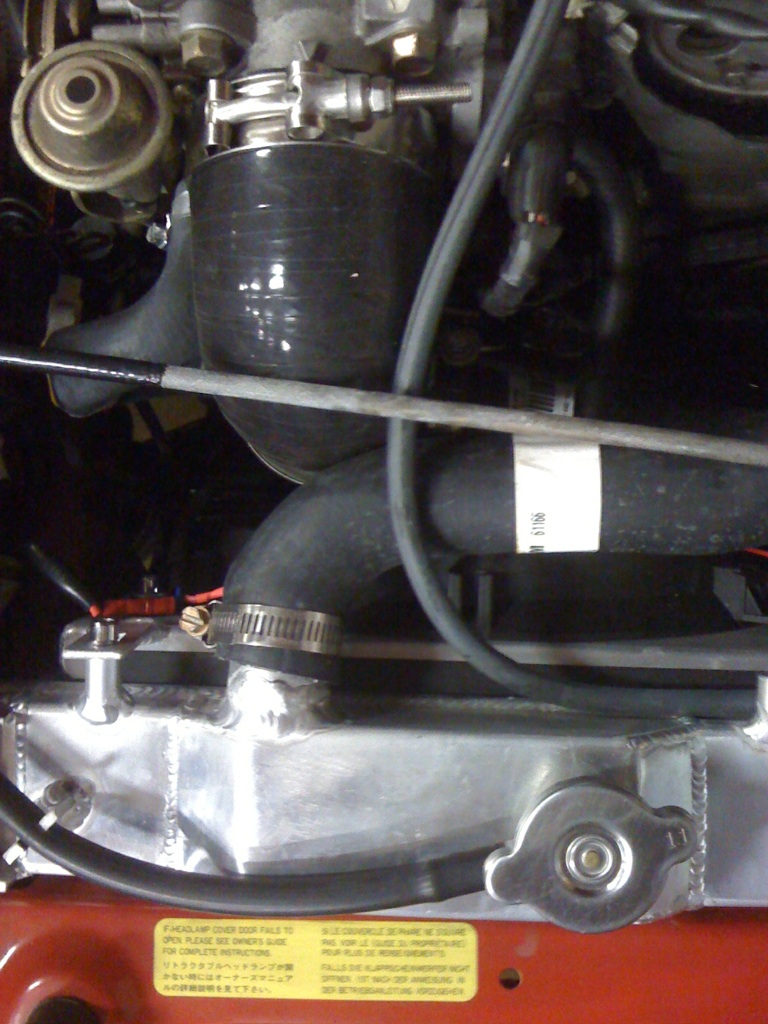

Here is a picture...
Attached Thumbnails
CX racing radiator with FM TB spacer?-img_0115.jpg
redrider706 is offline   Reply With Quote
Old 07-18-2010, 01:19 PM   #20
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

still have another good 1.8l tb... just sayin...
