Default Dead battery, can't get into trunk

Short question: Can you jump start a miata via the 12v source post by the fuse box under the hood? If not, and all those amps would fry something (which I'm assuming is the case), can you at least trickle charge it with say a 12v/2A charger?

Long explaination:

Dropped my NA off for an alignment, and the -20F here killed the battery.

The tumbler on the trunk has never matched my key, but that was never an issue as there's a release cable inside.. Well, the release cable isn't working right now. It's like there's no resistance when I pull it, and nothing happens. I took the center console apart and the cable is hooked to the lever, so I'm assuming maybe it snapped off somewhere?

It's in a fairly small, fairly slippery parking lot right now, and we got 4 guys to try to push start it, no luck (too slippery to get it going, and the tires don't grip enough to start the engine at the slowish speeds we CAN get it going).

Last time I needed to get it going and couldn't get it jumped we pulled it behind my girlfriend's saturn with a tow rope and "push" started it that way.. so I'm thinking we could do that again, but I need to figure out a way of getting it fully charged up after that.
mlev is offline   Reply With Quote
Old 01-27-2014, 07:37 PM   #2
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Search Miata.net for how to get into the trunk.

In a nutshell, remove rear plate. Drill 1/2" hole in dimple at top right. Use needle nose pliers to pull cable, releasing trunk.
rleete is offline   Reply With Quote
Old 01-27-2014, 07:49 PM   #3
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Starter terminal/ ground??
thirdgen is offline   Reply With Quote
Old 01-27-2014, 07:54 PM   #4
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

You sir (ma'am?) are a gentle(wo)man and a scholar. I have been browsing around there about charging the battery from under the hood, but didn't think to check how to actually get into the trunk.

Only thing is, I think if anything the whole latch is totally frozen... I can pull the cable from in teh cockpit and it doensnt do anything.

Blah.
mlev is offline   Reply With Quote
Old 01-27-2014, 07:57 PM   #5
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Faeflora knows how you can get in that trunk.

Attached Thumbnails
Dead battery, can't get into trunk-638c5f25-9f5d-45f0-a555-0de556c413b0_300.jpg
mgeoffriau is offline   Reply With Quote
Old 01-27-2014, 10:10 PM   #6
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

That hot cable should run unfused from the battery to the main fuse in the bay.
fooger03 is offline   Reply With Quote
Old 01-28-2014, 01:26 AM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

You should be able to jumpstart it directly at the starter if you're really, really careful with the cables.
Savington is offline   Reply With Quote
Old 01-28-2014, 04:29 AM   #8
Elite Member
iTrader: (2)

Join Date: Dec 2011
Posts: 1,511
Total Cats: 142
Default

Quote:
Originally Posted by mlev View Post
...

Only thing is, I think if anything the whole latch is totally frozen... I can pull the cable from in teh cockpit and it doensnt do anything.

Blah.
Hmm... if it's just a frozen latch, have you tried a hairdryer ?

OH damn, is yours in the trunk?
good2go is offline   Reply With Quote
Old 01-28-2014, 07:17 AM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by Savington View Post
You should be able to jumpstart it directly at the starter if you're really, really careful with the cables.
Emphasis on *REALLY* careful. There's so much metal in that area that I'd only try this if I were going to be killed by lava spewing out of an active volcano (or similar) if I didn't get my car running in the next 60 seconds.

Do NBs have the little aux power connector under the hood on the left fender? If so, you could try charging the battery through that at, say 10-20 amps or so for a few hours (key must be ON), then disconnect it and try starting again. If they don't have that connector, you can do the same through the cigarette lighter (key in ACC).

But no wire in the whole car is capable of carrying enough current to run the starter with a dead battery aside from the starter cable. Try doing it across any other circuit, and at best you'll just pop a fuse. At worst, you'll melt the relevant wires inside the harness.
Joe Perez is online now   Reply With Quote
Old 01-28-2014, 09:02 AM   #10
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Quote:
Originally Posted by Joe Perez View Post
Emphasis on *REALLY* careful. There's so much metal in that area that I'd only try this if I were going to be killed by lava spewing out of an active volcano (or similar) if I didn't get my car running in the next 60 seconds.

Do NBs have the little aux power connector under the hood on the left fender? If so, you could try charging the battery through that at, say 10-20 amps or so for a few hours (key must be ON), then disconnect it and try starting again. If they don't have that connector, you can do the same through the cigarette lighter (key in ACC).

But no wire in the whole car is capable of carrying enough current to run the starter with a dead battery aside from the starter cable. Try doing it across any other circuit, and at best you'll just pop a fuse. At worst, you'll melt the relevant wires inside the harness.
This is actually my NA (winter beater) miata that's having this issue, and it has the blue connector, but the thing has never worked for me (I think it's just too corroded to work) but I have a 2A charger, so I can give it a shot, and also the 12v source post in the fuse box.
mlev is offline   Reply With Quote
Old 01-28-2014, 09:36 AM   #11
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by Savington View Post
You should be able to jumpstart it directly at the starter if you're really, really careful with the cables.
If you take another minute, couldn't you trace the thick cable from the starter to the main fuse and clamp it on there? Less risk of sparky.
Oscar is offline   Reply With Quote
Old 01-28-2014, 09:40 AM   #12
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Quote:
Originally Posted by Oscar View Post
If you take another minute, couldn't you trace the thick cable from the starter to the main fuse and clamp it on there? Less risk of sparky.

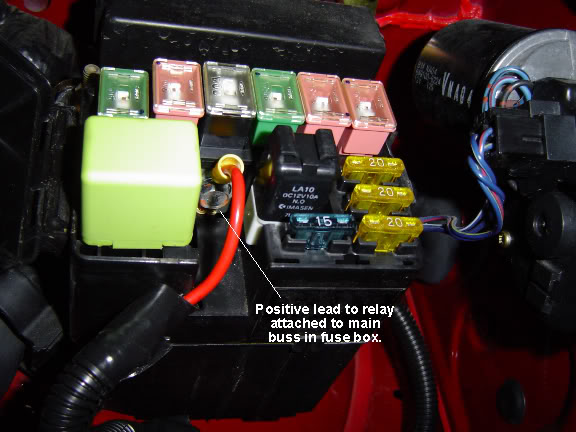

This is the post I was planning on using. Not sure if that's what it looks like on an NA or not.. That's exactly what it looked like on my NB tho.

I'm working from home today, and Ill get out there in the cold later today to check it out.. :(
Attached Thumbnails
Dead battery, can't get into trunk-horn_relay3.jpg
mlev is offline   Reply With Quote
Old 01-28-2014, 09:44 AM   #13
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

That's the one I meant.
Oscar is offline   Reply With Quote
Old 01-28-2014, 09:57 AM   #14
Junior Member
iTrader: (2)

Join Date: Sep 2013
Location: Pittsburgh PA
Posts: 276
Total Cats: 6
Default

you could try to make a jumper cable with a ring terminal on one end and alligator clip for the donor car side. Looks like there is enough thread on the starter you could put one more ring terminal on just to get the car started.
Davezorz is offline   Reply With Quote
Old 01-28-2014, 10:02 AM   #15
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

Quote:
Originally Posted by Davezorz View Post
you could try to make a jumper cable with a ring terminal on one end and alligator clip for the donor car side. Looks like there is enough thread on the starter you could put one more ring terminal on just to get the car started.
I don't think I'd want to put cranking amps to it.. I'm sure it would *probably* be okay, but electrical stuff just makes me nervous on cars..

I got it pop started and it's in my garage with my trickle charger now. And the alligator clips on my trickle are small enough to fit in there.
mlev is offline   Reply With Quote
Old 01-28-2014, 10:08 AM   #16
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,654
Total Cats: 1,559
Default

Connect charger leads to the hot terminal on the alternator and the engine block. It is easier.
sixshooter is online now   Reply With Quote
Old 01-28-2014, 10:11 AM   #17
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

It would be this (5) terminal on the back of the alternator, right?



EDIT: Found this. Thanks for the help everyone.

Attached Thumbnails
Dead battery, can't get into trunk-125424l.gif

Last edited by mlev; 01-28-2014 at 10:43 AM.
mlev is offline   Reply With Quote
Old 01-28-2014, 01:05 PM   #18
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,654
Total Cats: 1,559
Default

Yes, item #5, which is the heavy gauge electrical cable.
sixshooter is online now   Reply With Quote
Old 01-28-2014, 05:43 PM   #19
Senior Member
Thread Starter
iTrader: (5)

Join Date: Nov 2013
Location: Wisconsin
Posts: 659
Total Cats: 66
Default

**** everything about this situation.

I got the car charged, got it into my (unheated) garage. And it is cold here. I mean, REALLY cold. Got the license plate off (although my plate frame shattered from trying to remove it in the cold, which isn't really a big deal but added to my frustration) got the hold drilled and then realized my needle nose is IN MY TRUNK.

:'(
mlev is offline   Reply With Quote
Old 01-28-2014, 11:11 PM   #20
Junior Member
iTrader: (4)

Join Date: Jun 2008
Location: Colorado
Posts: 345
Total Cats: 8
Default

Edit - dumb suggestion, srry

Last edited by 05pearl; 01-29-2014 at 11:00 AM.
05pearl is offline   Reply With Quote
