Default depowered my rack

Finally got around depowering my steering rack. The bottom bolt on the PS pump bracket was a bitch and half to get out, but I managed without any screw ups
I looped the two lines on the rack and it looks decent.
Never thought the hotside could look so clean without the crossover tube and PS pump
pics soon
Oscar is offline   Reply With Quote
Old 04-11-2008, 04:11 PM   #2
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

FM style depower? or just the looped lines?
Splitime is offline   Reply With Quote
Old 04-11-2008, 04:17 PM   #3
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

just looped, couldn't be arsed to take the whole rack out
Oscar is offline   Reply With Quote
Old 04-11-2008, 05:29 PM   #4
Junior Member
iTrader: (2)

Join Date: Dec 2007
Location: Québec, Canada
Posts: 407
Total Cats: -1
Default

I read the tutorial on the FM website, but is there any advantage to make the depower process like they do it instead of just looping?
Dark Wanderer is offline   Reply With Quote
Old 04-11-2008, 05:32 PM   #5
Junior Member
iTrader: (1)

Join Date: Oct 2005
Location: Charlotte, NC
Posts: 467
Total Cats: 0
Default

looking forward to pictures. Currently mine is drained with no belt.
JDMAflac is offline   Reply With Quote
Old 04-11-2008, 06:14 PM   #6
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

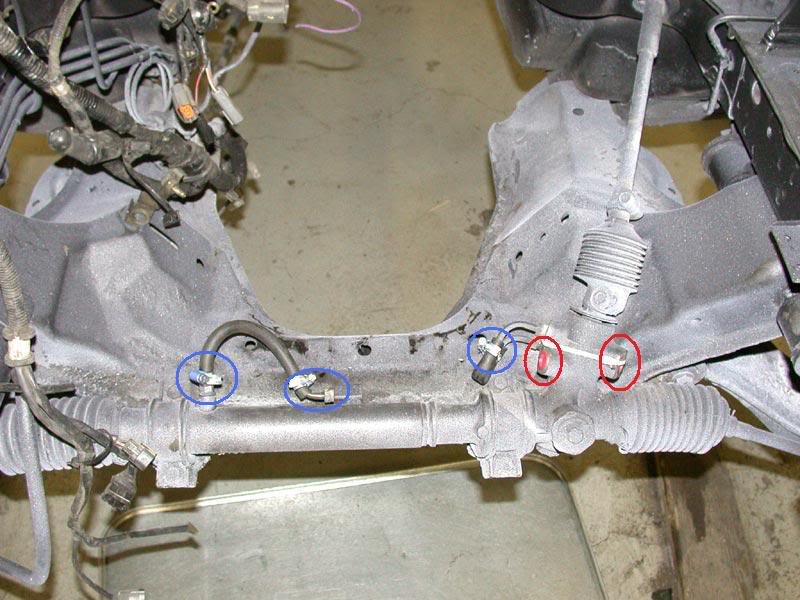

so for I just looped the lines in the red circles, didn't have time for the blue ones as it was getting dark. do these need to be done too or can I leave them like that? they seem more of a PITA than the ones I already did.

Name:  OTC_steering_rack_1.jpg
Views: 20
Size:  86.1 KB
Oscar is offline   Reply With Quote
Old 04-11-2008, 06:33 PM   #7
Newb

Join Date: Jan 2007
Location: Knoxville, TN
Posts: 27
Total Cats: 0
Default

Looping the blue lines is very important because if you don't preasure will build on either side of the middle seal and adversely affect effort and feel. Someone correct me if I'm wrong.



Nate
downtavern is offline   Reply With Quote
Old 04-12-2008, 08:50 AM   #8
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

almost with the 'blue' lines, will take pics afterwards
Oscar is offline   Reply With Quote
Old 04-12-2008, 10:00 AM   #9
Newb

Join Date: Aug 2006
Location: Indianapolis, IN
Posts: 11
Total Cats: 0
Default

Guys
I did mine the FM way after driving it looped for a while. The FM way removes the piston and PS fluid from the rack and this makes it easier to turn the wheels because the friction of the piston is missing. It took a few hours and I got PS removal plugs from a spec miata company on the net somewhere. I'm glad I did it that way. I also got the pulley assembly for a non PS miata from a dealer.
Best Always
Alden
alden77 is offline   Reply With Quote
Old 04-12-2008, 01:14 PM   #10
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

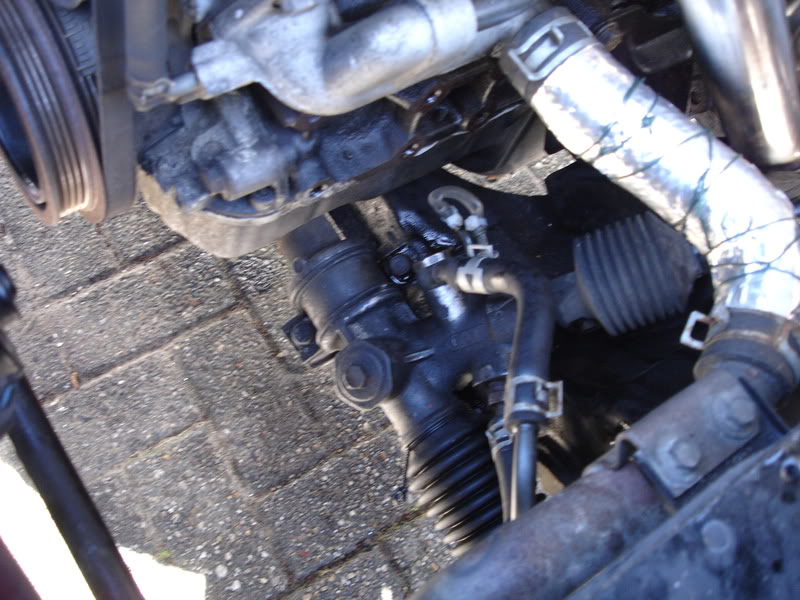

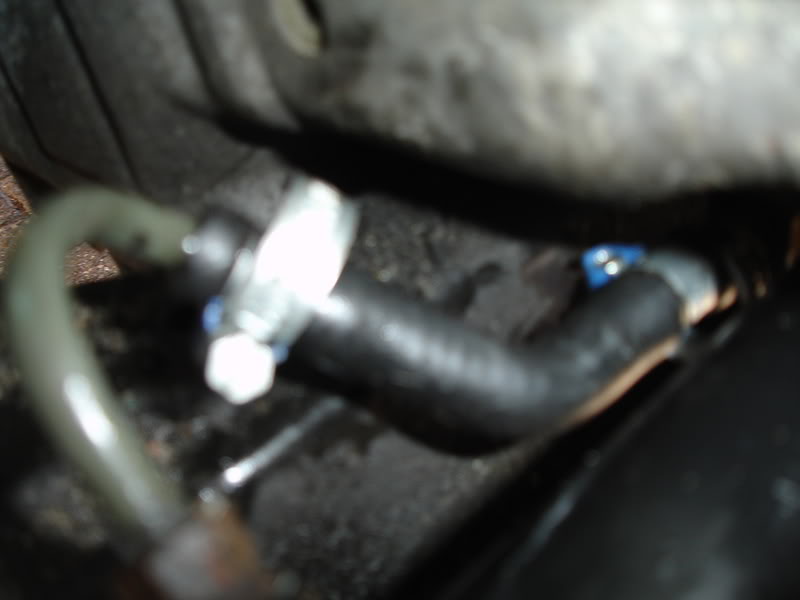

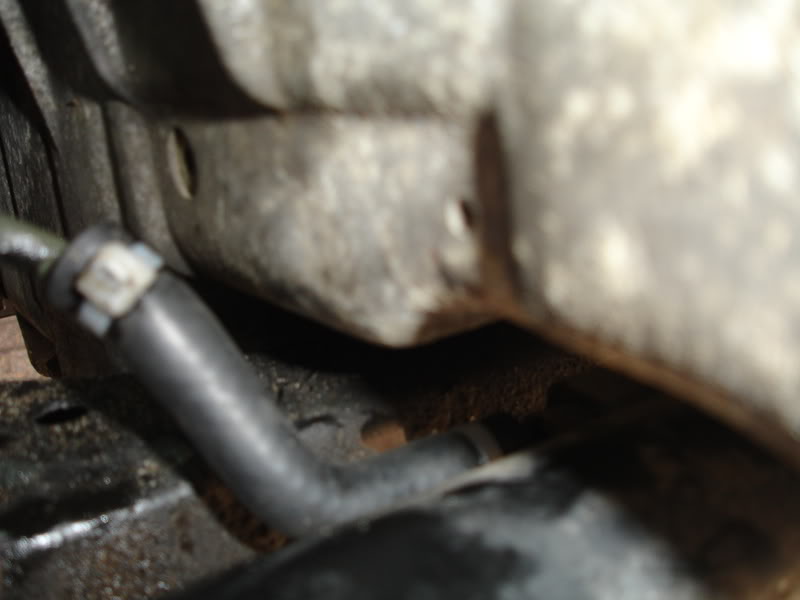

finished looping the rest of the lines, belly pan is back in it's place too. getting that cooler line for the PS fluid in the bumper out was a bitch too, but got it done in the end
pics:
Name:  DSC00925.jpg
Views: 20
Size:  97.2 KB
Name:  DSC00926.jpg
Views: 20
Size:  36.7 KB
Name:  DSC00929.jpg
Views: 17
Size:  33.1 KB
Oscar is offline   Reply With Quote
Old 04-12-2008, 01:17 PM   #11
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

So... How do you like it.
cjernigan is offline   Reply With Quote
Old 04-12-2008, 01:24 PM   #12
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

I wouldn't know car's not running yet, still need to do LC-1, IAT and knocksense.
Oscar is offline   Reply With Quote
Old 04-12-2008, 01:44 PM   #13
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

FWIW, both my current miatas are depowered. The lines were just drained and looped on one, and the other was depowered the FM way. Drained and looped is livable, and I was very happy with it until I drove the one with the "properly" depowered rack. IMHO, after comparing the two back to back, I think the extra effort to remove the inner seals makes a significant enough difference to be worth it.
brgracer is offline   Reply With Quote
Old 04-13-2008, 03:20 PM   #14
I'm Miserable!

Join Date: Apr 2008
Location: versailles Ky,
Posts: 92
Total Cats: 0
Default

sorry if i seal your thread. but whats the reason people depower there miatas?
wouldnt it make the car harder to steer?
boostinboy is offline   Reply With Quote
Old 04-13-2008, 03:21 PM   #15
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by boostinboy View Post
sorry if i seal your thread. but whats the reason people depower there miatas?
wouldnt it make the car harder to steer?

That's the whole idea. The Miata's PS is overboosted, in the opinion of many here, so removing the PS gives the steering some weight and tons more feedback.
kotomile is offline   Reply With Quote
Old 04-13-2008, 03:30 PM   #16
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

Quote:
Originally Posted by boostinboy View Post
sorry if i seal your thread. but whats the reason people depower there miatas?
wouldnt it make the car harder to steer?
so you can actually tell how much grip the front wheels have
johndoe is offline   Reply With Quote
Old 04-13-2008, 03:47 PM   #17
Junior Member
iTrader: (2)

Join Date: Dec 2007
Location: Québec, Canada
Posts: 407
Total Cats: -1
Default

When you depower the rack, do you get out the pump and the belt of the car? In that case, this make the routing for IC piping easier?
Dark Wanderer is offline   Reply With Quote
Old 04-13-2008, 03:47 PM   #18
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

i have mine lines cut and half-assed looped. because when i did it couldn't find the right hoses. i'm not sure what difference it will make because it still feels exactly the same as before i cut the metal lines. but i will say you can feel EVERYTHING now, i can feel the car slipping about 3mm on the tiny amount of gravel as i turn into my neighborhood.
Mach929 is offline   Reply With Quote
Old 04-13-2008, 04:33 PM   #19
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by Dark Wanderer View Post
When you depower the rack, do you get out the pump and the belt of the car? In that case, this make the routing for IC piping easier?
yes, should be. hotside looks a lot cleaner without pump and belt.

Quote:
Originally Posted by Mach929 View Post
i have mine lines cut and half-assed looped. because when i did it couldn't find the right hoses. i'm not sure what difference it will make because it still feels exactly the same as before i cut the metal lines. but i will say you can feel EVERYTHING now, i can feel the car slipping about 3mm on the tiny amount of gravel as i turn into my neighborhood.
I cut my lines too, used some rubber hose I had from my scooter and looped them, ghetto as hell, but if it works, who cares

can't wait to feel the difference in feedback, curious what I'll notice on track. Didn't feel the front wheels lose grip until I noticed I was 2 meters of the ideal line
Oscar is offline   Reply With Quote
Old 04-13-2008, 09:10 PM   #20
I'm Miserable!

Join Date: Apr 2008
Location: versailles Ky,
Posts: 92
Total Cats: 0
Default

do you have to pull the engine to loop the lines?
