Old 02-09-2009, 03:03 AM   #21
Senior Member
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

I couldnt tell a difference at all..
My rack that was depowered the FM way took a **** all over itself.
When I put a new one in I was too lazy to tear it apart to get the seal out.
the difference was minimal to none.
Then again I also have huge popeye forearms
nicacus is offline   Reply With Quote
Old 02-09-2009, 03:06 AM   #22
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

I thought looping the lines was more about plugging up two holes with 1 piece of hose, reducing having to find caps and whatnot. Id still much rather fill the rack and plug it with a proper kit like Bill sells.
NA6C-Guy is offline   Reply With Quote
Old 02-09-2009, 04:55 AM   #23
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Los Alamos/Las Crues New Mexico
Posts: 101
Total Cats: 0
Default

Is a de-powered rack as good as swapping in a stock manual rack or is the ratio different?
AlexandertheOk is offline   Reply With Quote
Old 02-09-2009, 05:02 AM   #24
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Power rack has a tighter ratio.

I didn't plug or loop anything except the two circled fittings in that photo. You basically take the pump and reservoir out of the equation and loop those lines. Drain all the fluid, cut one fitting, one hoseclamp, done.
Savington is offline   Reply With Quote
Old 02-09-2009, 09:51 PM   #25
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

If you do the full depower and cut the piece inside the rack make sure you follow all the tourqe specs that FM has listed. Especially the one for 43in-lbs. I orginially did that bolt to tight and it made my steering way to hard. I then loosened it some and it got alot better.
shuiend is offline   Reply With Quote
Old 02-09-2009, 11:14 PM   #26
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
Power rack has a tighter ratio.

I didn't plug or loop anything except the two circled fittings in that photo. You basically take the pump and reservoir out of the equation and loop those lines. Drain all the fluid, cut one fitting, one hoseclamp, done.
drain all the fluid out of the lines or the rack too (somehow)? I would think what little was left in the rack could be lube?
mazda/nissan is offline   Reply With Quote
Old 02-09-2009, 11:17 PM   #27
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by mazda/nissan View Post
drain all the fluid out of the lines or the rack too (somehow)? I would think what little was left in the rack could be lube?
yep. You turn the wheel back and forth to pump what you can out of the rack, and whatever is left lubricates the rack forever.
Savington is offline   Reply With Quote
Old 02-09-2009, 11:50 PM   #28
Senior Member
iTrader: (3)

Join Date: Jan 2008
Location: Plano,TX
Posts: 674
Total Cats: 3
Default

mazda/nissan: Are you talking about the wire that fits over the tiny shaft on the p/s pump?

I did this last September. One of the best mods for the track that costs basically nothing!

I bought the depowered rack kit from miataroadster. I couldn't get the smaller bolts off of the line, so I just looped the lines. I now have a "correctly" depowered rack that needs to be installed one day. I need to figure out the thread pitch on the big bolts.
Attached Thumbnails

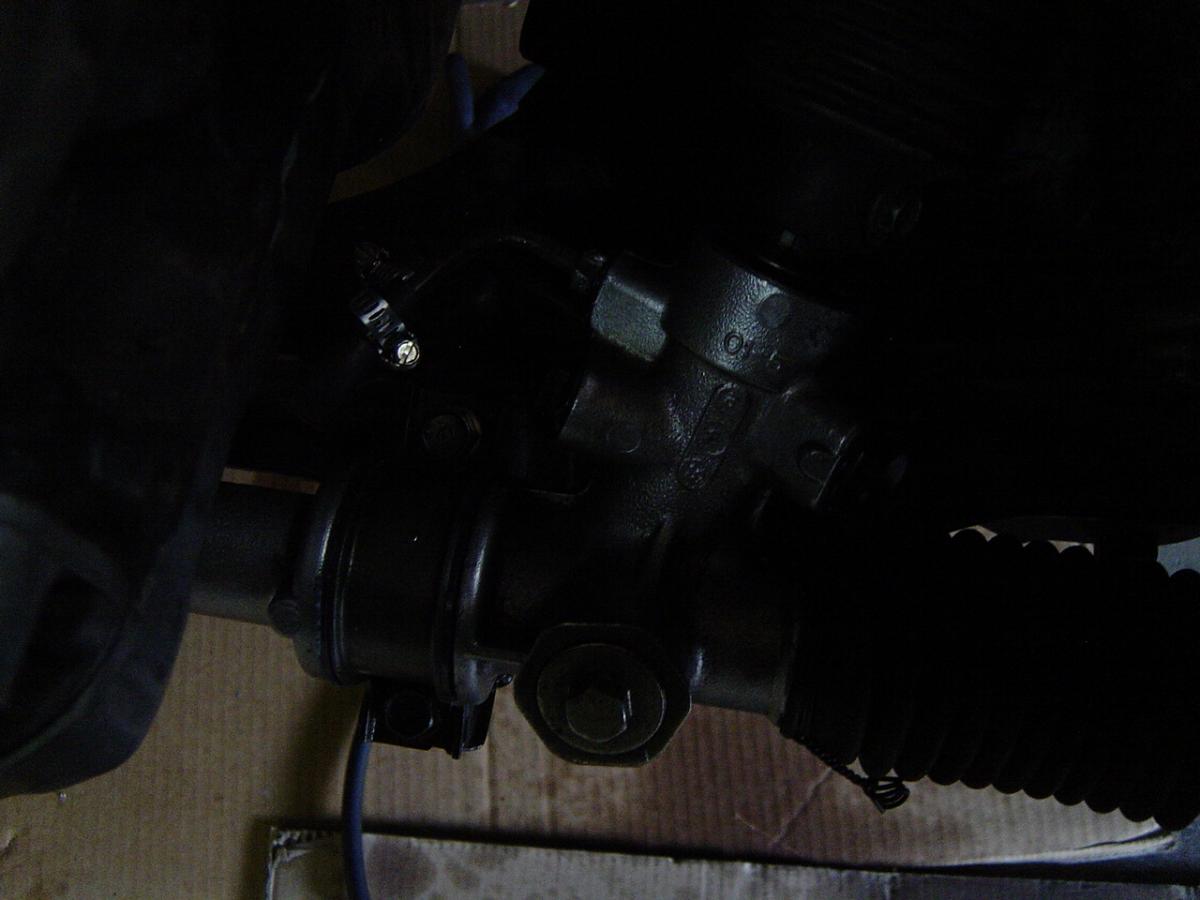

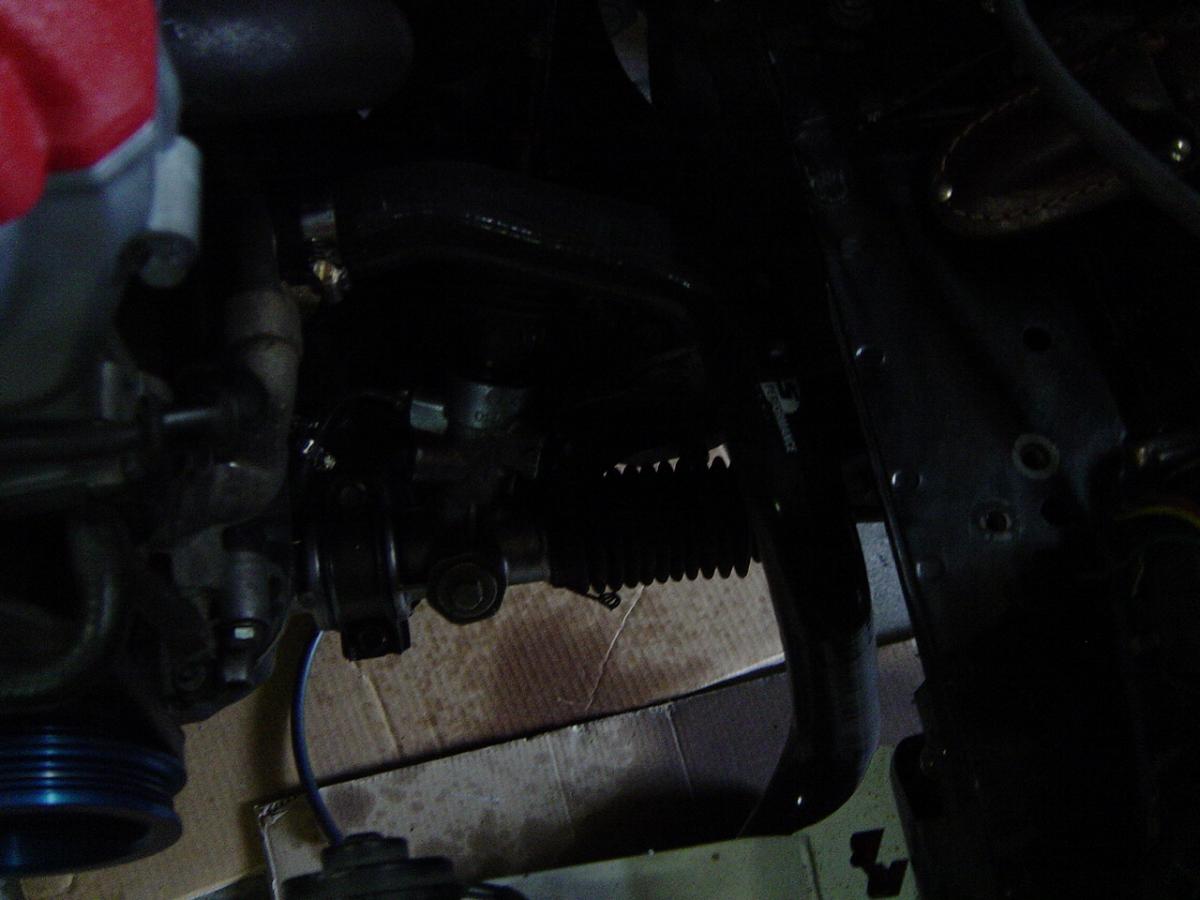

Depowering my steering.-dsc06714.jpg   Depowering my steering.-dsc06716.jpg   Depowering my steering.-dsc06717.jpg   Depowering my steering.-dsc06711.jpg
johnwag is offline   Reply With Quote
Old 02-09-2009, 11:54 PM   #29
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

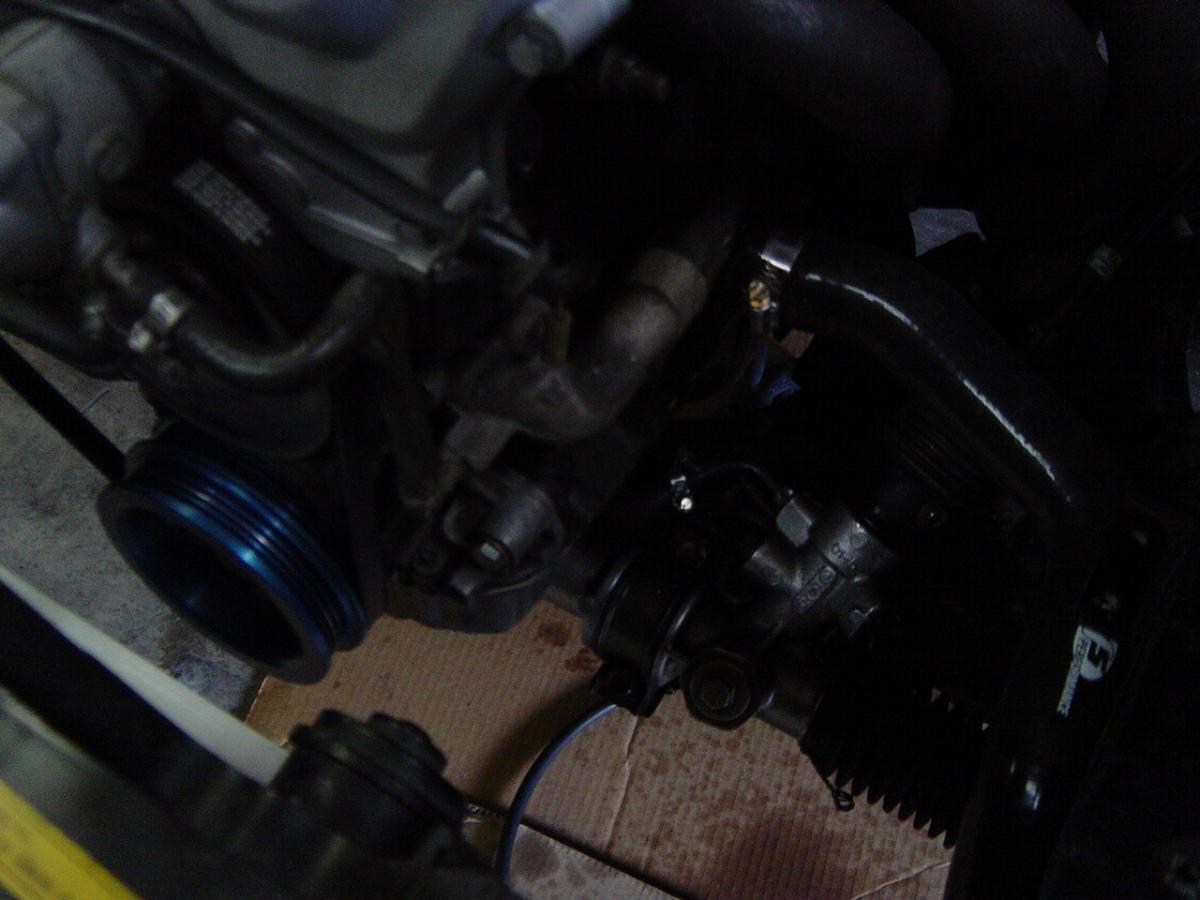

Name:  DSC06716.jpg
Views: 1
Size:  54.3 KB

yeah, I found out it just slides off
mazda/nissan is offline   Reply With Quote
Old 02-09-2009, 11:59 PM   #30
Senior Member
iTrader: (3)

Join Date: Jan 2008
Location: Plano,TX
Posts: 674
Total Cats: 3
Default

haha. yeah, that's it. I think I just followed the wiring back a few feet and cut it off.
johnwag is offline   Reply With Quote
Old 02-10-2009, 12:12 AM   #31
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

lets see your wife's ****.



how's the manual steering club? I'll never go back.
hustler is offline   Reply With Quote
Old 02-10-2009, 12:17 AM   #32
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
lets see your wife's ****.
not married

Quote:
Originally Posted by hustler View Post
how's the manual steering club? I'll never go back.
don't know yet, I am removing the PS to help with the hot side pipes. I am hoping to get it done before March (I started in May)
mazda/nissan is offline   Reply With Quote
Old 02-10-2009, 02:07 AM   #33
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

There are poly rack bushings? I want!
kotomile is offline   Reply With Quote
Old 02-10-2009, 08:46 AM   #34
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

So do you guys who depower, remove the pump and high pressure line too? I'm looking for a HP line for the steering. I need to mod it for my swap.

Sorry to hijack. Might put up an WTB.

Frank
fmowry is offline   Reply With Quote
Old 02-10-2009, 09:36 PM   #35
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by fmowry View Post
So do you guys who depower, remove the pump and high pressure line too? I'm looking for a HP line for the steering. I need to mod it for my swap.

Sorry to hijack. Might put up an WTB.

Frank
Which line are you exactly looking for? Send me a pm. I just took all my lines out and might have what you need.
shuiend is offline   Reply With Quote
