Default Do your castle bushings/washers touch the bottom of your diff ears?

Did a little cursory searching but was unable to find the answer I was looking for, but I'm curious if the peaks of the rubber "castle bushings"/washers that bolt to the subframe, directly under the differential ears, should be touching the differential or not. For clarification, I've attached a page from the parts manual, and the part I'm referring to is 28-880A, called simply: washer/stop.

In my case, they do not touch. There's probably 1/2" or so when the car's on the ground, and maybe 1" or so when the car is on jacks.

Thanks for any insight, and thanks to anyone in advance, should you go so far as to take a look under your own car in the quest for an answer
Attached Files
File Type: pdf Pages from 91-92 engine chassis.pdf (58.9 KB, 114 views)
bripab007 is offline   Reply With Quote
Old 01-27-2009, 10:14 PM   #2
Senior Member
Thread Starter

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Just coming back to humbly ask if anyone's got any ideas on this. Any of you got any old and forgotten install/project pics laying around that might have the angle we need to answer this question?
bripab007 is offline   Reply With Quote
Old 01-27-2009, 10:46 PM   #3
Junior Member
iTrader: (3)

Join Date: Nov 2006
Location: Omaha,NE
Posts: 46
Total Cats: 0
Default

Edit : I thought I had an answer, but I don't... Sorry :(

Last edited by SHOthang; 01-27-2009 at 10:58 PM.
SHOthang is offline   Reply With Quote
Old 01-28-2009, 09:58 AM   #4
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

my car's on stands now, let me take a look

edit, hope this helps.

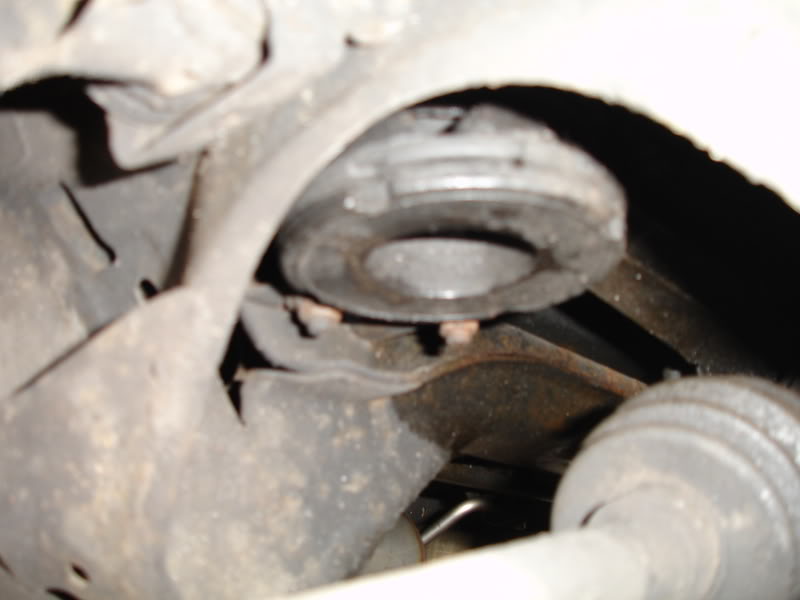

Name:  DSC01544.jpg
Views: 1
Size:  38.9 KB

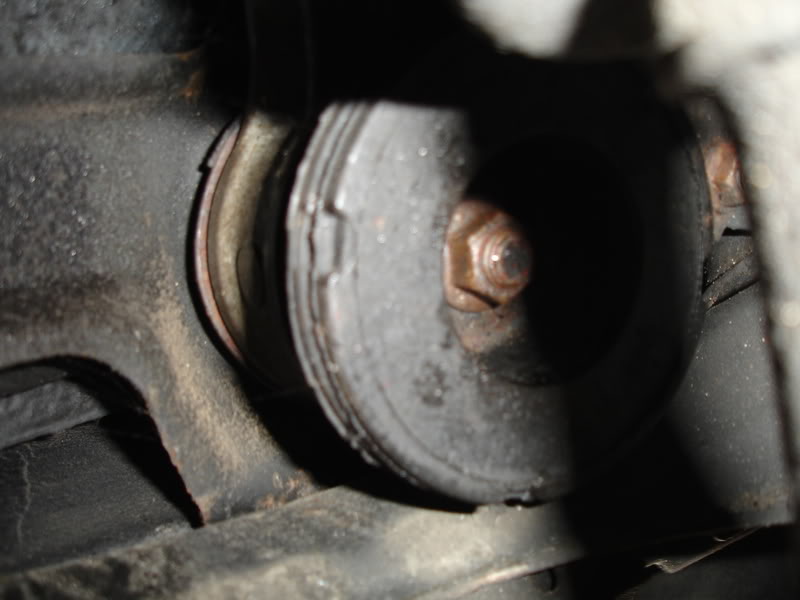

Name:  DSC01545.jpg
Views: 1
Size:  47.0 KB

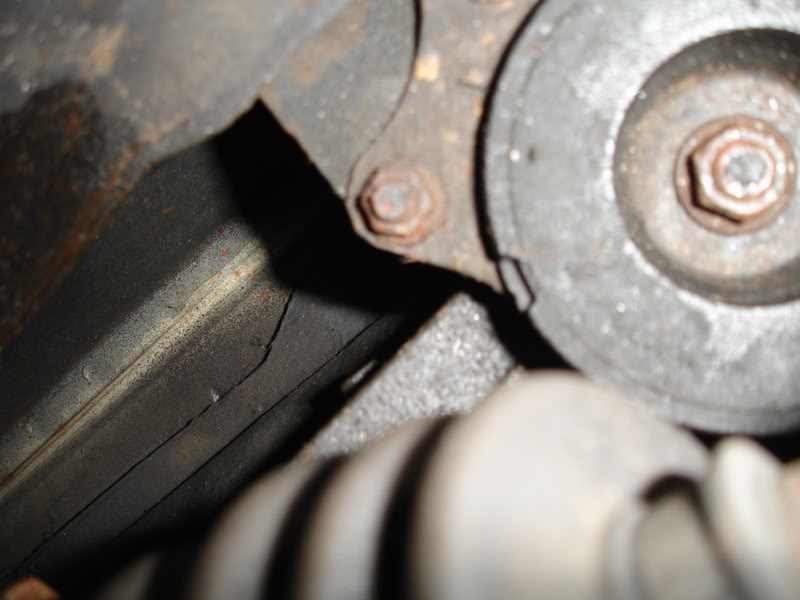

Name:  DSC01546.jpg
Views: 1
Size:  52.7 KB

Last edited by Oscar; 01-28-2009 at 10:10 AM.
Oscar is offline   Reply With Quote
Old 01-28-2009, 11:36 PM   #5
Senior Member
Thread Starter

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Thanks, Oscar. It does sort of appear that, in the first photo, the castle bushing's peaks do not touch the bottom of the diff. ears. The second photo doesn't show anything concrete, but it does look like quite a bit of empty vertical space above the bushing.
bripab007 is offline   Reply With Quote
Old 06-04-2009, 10:37 AM   #6
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I just noticed this last weekend at the track when I jacked up the SM I was driving by the diff case and watch the diff rise a good 3/8" before the car started moving. I then went over to the 95 street Miata and it did something similar, but not nearly as much. I couldn't see what it would hurt to have this issue on a street car- though on a race car you would think that the diff might get unloaded there when jumping curbs. And that's got to be hard on the case ears when it's reloaded.
m2cupcar is offline   Reply With Quote
Old 06-05-2009, 02:27 AM   #7
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Quote:
Originally Posted by m2cupcar View Post
I just noticed this last weekend at the track when I jacked up the SM I was driving by the diff case and watch the diff rise a good 3/8" before the car started moving. I then went over to the 95 street Miata and it did something similar, but not nearly as much. I couldn't see what it would hurt to have this issue on a street car- though on a race car you would think that the diff might get unloaded there when jumping curbs. And that's got to be hard on the case ears when it's reloaded.

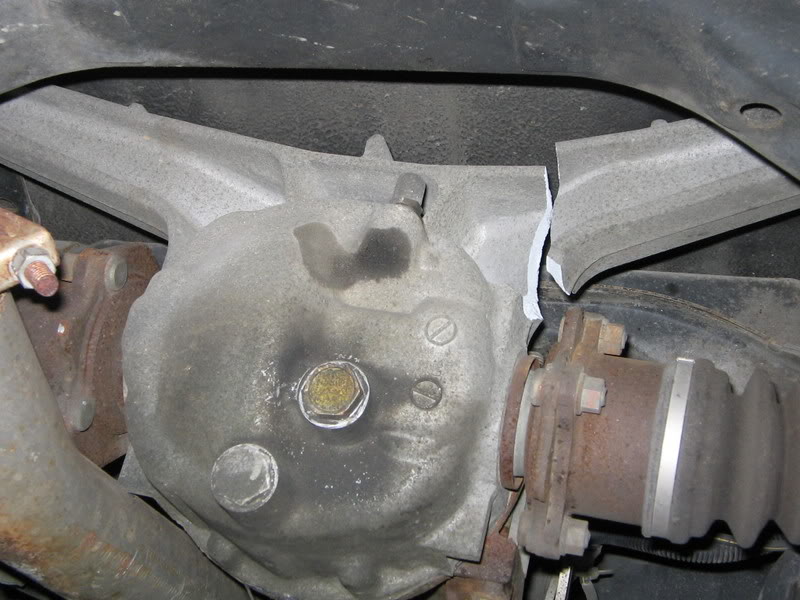

Truth:

Name:  IMG_0431.jpg
Views: 2
Size:  84.4 KB
miatamania is offline   Reply With Quote
Old 06-05-2009, 03:30 PM   #8
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Yo Brian I noticed this on my diff when I did the solid diff bushings, I ended up reinstalling the oem mounts then urethaning the mounts then adding some extra urethane on top to fill in the gap abit. Its not totally filled so there's alittle gap.

So far so good. Also I am running an rx7 housing.


-Dean
