Default Ducting and paneling thoughts.

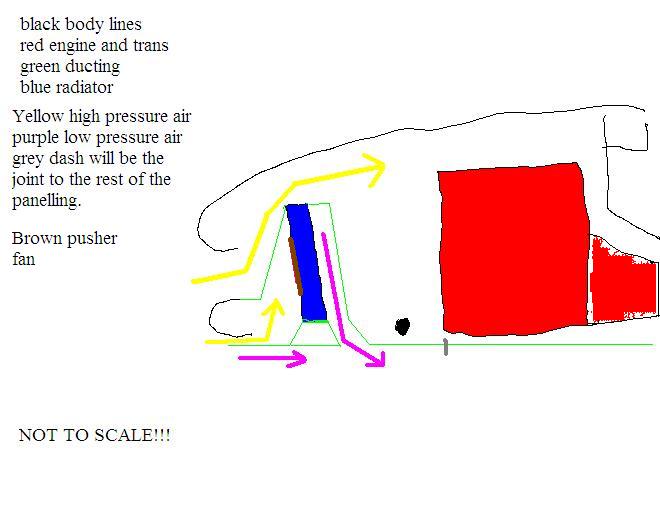

So on the new car i got it has the FM cross flow radiator but has this ford torus fan on it. YIKEs!!!! So i have ordered 2 small fans to go on the front of the radiator as pusher fans to help clean up the engine bay. I also wanted to panel the whole under side with some 5052 aluminum seeing as we have tons of it at my school and teacher said take what i need. Only thing that sucks is i wont be back at school till the fall. The other thing i wanted to do was duct air into my rad and then have it duct the heated air back under the car to help keep engine bay and intake temps down. I want to do it in a way that i could force cool fresh air into the engine bay and the same for the radiator so this is what i have come up with.

With the way i want to do it it should make the engine bay and radiator inlet area high pressure air flow so there will be little chance for the heated air to come back in the engine bay. The outlet of the radiator should be low pressure but not lower then the air moving under the car.

So any thoughts on what i have come up with so far??
Attached Thumbnails
Ducting and paneling thoughts.-miata-ducting.jpg
miatamike203 is offline   Reply With Quote
Old 07-12-2011, 09:46 PM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

You want to pull air between the splitter and bottom of the bumper? I know we've said smaller openings are better, but that might be a little too small.
curly is offline   Reply With Quote
Old 07-12-2011, 09:48 PM   #3
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Quote:
Originally Posted by curly View Post
You want to pull air between the splitter and bottom of the bumper? I know we've said smaller openings are better, but that might be a little too small.
Im looking to make the opening 1"-1.75" big and i want to try and make it the full length of the bumper.
miatamike203 is offline   Reply With Quote
Old 07-12-2011, 10:01 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Why not just do a traditional design like so many of us who've gotten the job done?
hustler is offline   Reply With Quote
Old 07-12-2011, 10:18 PM   #5
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

I agree that the opening you're planning for the radiator seems pretty small. Also, the air coming out of the radiator is much much cooler than the air the turbo is heating up. If you're doing this type of setup you need to look into an extractor hood setup a's well.
wittyworks is offline   Reply With Quote
Old 07-12-2011, 10:34 PM   #6
Senior Member
Thread Starter

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Quote:
Originally Posted by hustler View Post
Why not just do a traditional design like so many of us who've gotten the job done?
Want to be different!! Plus from what i have learned at Aviation repair school this should work well.

Quote:
Originally Posted by wittyworks View Post
I agree that the opening you're planning for the radiator seems pretty small. Also, the air coming out of the radiator is much much cooler than the air the turbo is heating up. If you're doing this type of setup you need to look into an extractor hood setup a's well.
Im not running a turbo setup on this car but i might later on. If i do end up doing turbo im going to water to air cooler it. I have found a heat exchanger that will fit in the ducting before the radiator.
miatamike203 is offline   Reply With Quote
Old 07-12-2011, 10:34 PM   #7
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Through vast amounts of R&D, engineering sources and advanced CAD design I come up with this visual display of the proper ducting design.

Name:  airflow.jpg
Views: 13
Size:  14.7 KB
viperormiata is offline   Reply With Quote
Old 07-13-2011, 05:14 AM   #8
Junior Member
iTrader: (1)

Join Date: Aug 2007
Posts: 387
Total Cats: 10
Default

imho.

1. you are assuming the bottom of the engine is a low pressure area. that is likely to be a high pressure area (bottom is not exactly flat, even if you plan to flat bottom it, there still are suspensions, tires and exhaust that's not covered), air exit happens to be where the suspension/tire is, which is probably the most turbulent area. then you won't have pressure delta for effective cooling of radiator.

2. pusher fan is not as effective as puller fan. it loses about 20% efficiency.

3. like other said. that opening is tad a bit too small.

4. cool fresh air to cool off the engine ? that's what radiator do.

5. shroud around the rear of radiator is un-aerodynamic (due to curvature). that will create high pressure, making radiator ineffective.

6. you said the radiator intake is the width of the car. but the radiator exhaust is 1/2 that (you have suspension and tires in the way), that creates high pressure at exit.

in stock config. most air in the engine bay exit through transmission tunnel area anyway, which is to the bottom. so you are designing a complicated system that does the same thing as stock, you are just moving air exit from rear to front. why bother ?
bellwilliam is offline   Reply With Quote
Old 07-13-2011, 05:45 AM   #9
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

That **** is gonna get ripped off in a heartbeat.
Bond is offline   Reply With Quote
Old 07-13-2011, 05:54 AM   #10
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Springfield IL
Posts: 2,750
Total Cats: 24
Default

What's wrong with the Taurus fan? Aside from being a power hog, they move some SERIOUS air. Yesterday was nearly 100 and "feels like" 113. My car idled in traffic with the ac cranked at 195 degrees with only the low speed fan running. Never heard the high speed kick in.
chpmnsws6 is offline   Reply With Quote
Old 07-13-2011, 08:15 AM   #11
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Patent you design and sell it to Hyper...laugh.
