Old 11-20-2008, 05:34 PM   #81
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

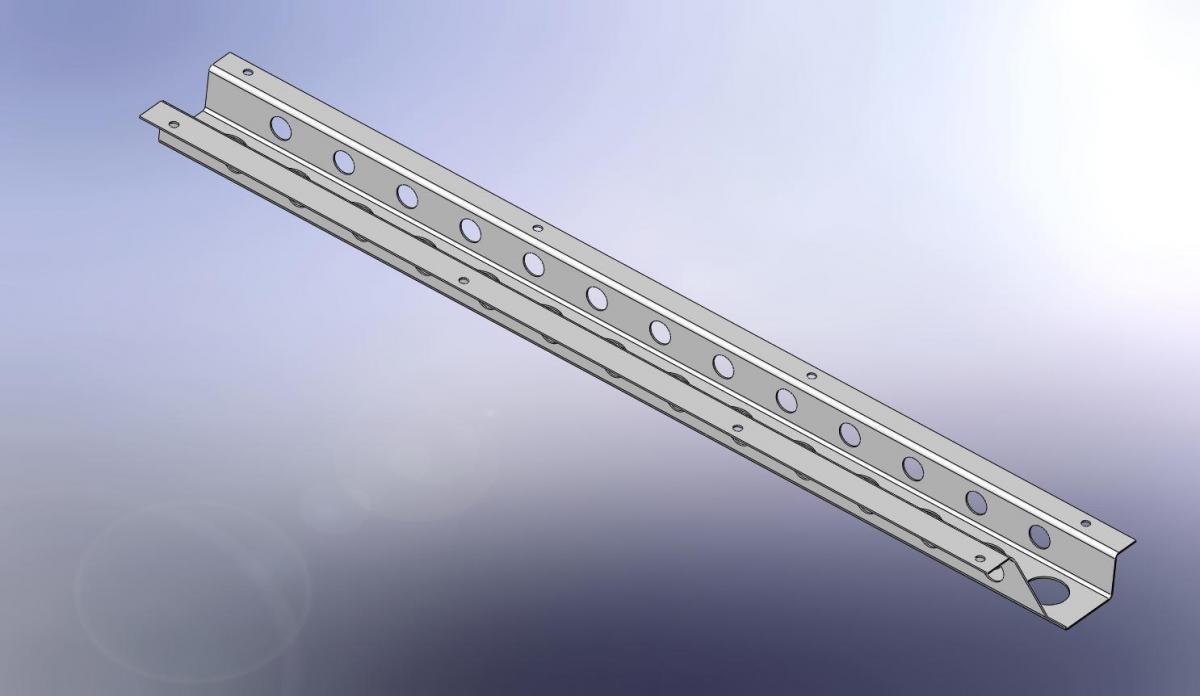

Prints and models are done (Thanks, Chad) and the prints have been sent out for quotes. Any feedback on the design?

It would be slightly cheaper to go without lightening holes, but probably not enough to matter. Might be $5.00/set. I calculated the weight savings as 1.15 lbs per side, 2.3 total for the set.

What do you think? Lightening holes or no?
Attached Thumbnails
Economy Frame Rail Feeler-framerailleft.jpg
Stein is offline   Reply With Quote
Old 11-20-2008, 05:50 PM   #82
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

In the intrest of saving time and considering it dosent really save much weight I say NO holes.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-20-2008, 06:00 PM   #83
N3v
Junior Member

Join Date: May 2008
Location: Nashville/Knoxville, TN
Posts: 318
Total Cats: 1
Default

I want one of these, but for me its extremely important that these things hug the original frame rails as closely as possible to avoid adding any ride height issues.
N3v is offline   Reply With Quote
Old 11-20-2008, 06:02 PM   #84
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by N3v View Post
I want one of these, but for me its extremely important that these things hug the original frame rails as closely as possible to avoid adding any ride height issues.
Including air gap and material thickness, the bottoms should be about 1/4" lower than the existing rail.
Stein is offline   Reply With Quote
Old 11-20-2008, 06:03 PM   #85
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Definitely lightening NO holes. And definitely MORE mounting holes to fasten them so that they actually do something for rigidity. I'd like to see 10 holes to mount them per side vs. 4. I'll drill my own if others think it's not needed, but IMO, it is.
patsmx5 is offline   Reply With Quote
Old 11-20-2008, 06:11 PM   #86
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by patsmx5 View Post
Definitely lightening NO holes. And definitely MORE mounting holes to fasten them so that they actually do something for rigidity. I'd like to see 10 holes to mount them per side vs. 4. I'll drill my own if others think it's not needed, but IMO, it is.

I see your point. I will lay out the car, hopefully tonight, to see where I can add holes and hit good flat metal and miss anything that will get in the way. The BRG is in the shop and I can pull my 99 in to make sure that there aren't any differences between the NA's and NB's.
Stein is offline   Reply With Quote
Old 11-20-2008, 06:39 PM   #87
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
Definitely lightening NO holes. And definitely MORE mounting holes to fasten them so that they actually do something for rigidity. I'd like to see 10 holes to mount them per side vs. 4. I'll drill my own if others think it's not needed, but IMO, it is.
Are you saying you do or donot want them.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-20-2008, 06:42 PM   #88
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

I typed the words bassackwards. I do NOT want any lightening holes in them. To me, they would kill the rigidity.
patsmx5 is offline   Reply With Quote
Old 11-20-2008, 06:46 PM   #89
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

I knew what you meant Pat. I have been thinking about it and I have updated my quote request to both options, with and without lightening holes. I am now erring on the side of without holes, considering the small reduction in weight and they are bound to be at least a bit less expensive. The estimator is out until Monday, so it will be next week before I see a quote.
Stein is offline   Reply With Quote
Old 11-20-2008, 06:49 PM   #90
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by patsmx5 View Post
i typed the words bassackwards. I do not want any lightening holes in them. To me, they would kill the rigidity.


+1
BenR is offline   Reply With Quote
Old 11-20-2008, 07:31 PM   #91
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Tomorrow I will measure the weight of a rail with holes and without holes using the solidworks function. Let you know what I find out. These things are so thing though I doubt we'll be saving all that much. The strength of these rails comes from the bent edges not necessarily the material between the bends necessarily. I'll get my friend to run it through Cosmos for a little FEA with and without holes. Who knows without holes might be stiffer.
Get you guys some hard data tomorrow.
cjernigan is offline   Reply With Quote
Old 11-20-2008, 07:42 PM   #92
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

if I get a profile and length I'll FEA it up on catia and get a weight within a half hour

and pat, making holes in the rails does not necessarily decrease its rigidity, in fact taking away material can often strengthen an object (although I do not believe that applies to these)
curly is offline   Reply With Quote
Old 11-20-2008, 07:45 PM   #93
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

I'm a structural engineer, and now that design issues have come up, I'll pipe up and offer what I can. Holes/no holes is a cost and weight issue only. The difference in rigidity is close to negligible. We're simply not going to be transferring enough load to these rails to notice any slight difference in stiffness between with/without holes. As for the number of mounting holes, 4 per side is likely enough, but Pat's intuition is right that more will stiffen the connection. However, 10 is way overkill; it's diminishing returns real quickly. I assume the current placement is a copy of FM's bolt placement? If there are some good spots to add a couple more bolts, go for it, but don't lose sleep over it. If you're concerned about the absolute ultimate stiffened chassis, I'd look to stitch-welding the seams, especially the sills, etc.

It's not a complex part. There has been great success reported with the FM part, and you're not likely to improve on those any noticeable amount with slight tweaks. We're doing this for a more economical solution to the same issue, no? I'm excited about buying these! Thanks Stein!
Atlanta93LE is offline   Reply With Quote
Old 11-21-2008, 12:36 AM   #94
Senior Member
iTrader: (14)

Join Date: Jan 2007
Location: Murfreesboro,TN
Posts: 1,279
Total Cats: 53
Default

I work for a sheetmetal fabrication company. We do a lot of "soft tool" work and from what I've seen from your other post, it could easily be ran that way. I could get a quote together pretty quick if you're interested.
Midtenn is offline   Reply With Quote
Old 11-21-2008, 02:46 AM   #95
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Omaha, NE
Posts: 619
Total Cats: 0
Default

Quote:
Originally Posted by N3v View Post
I want one of these, but for me its extremely important that these things hug the original frame rails as closely as possible to avoid adding any ride height issues.
+1 Minimize lowering impacts as much as possible. Personally, I would like the holes. Also, if you can punch out the holes first, then bend the part, if you can get the holes to 'flange' toward the outside, you can actually increase the rigidity. But as one of the other structural engineers said, it will be negligible and probably just hold more dirt anyway.
posidon42 is offline   Reply With Quote
Old 11-21-2008, 09:24 AM   #96
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

I looked last night and refined the hole locations a bit and added two per side. They are approximately 8" centers now. Any more than that and I started running into seat mount locations.

So, new design will be 6 bolt holes per side, no lightening holes.
Stein is offline   Reply With Quote
Old 11-21-2008, 10:58 AM   #97
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Only a 1.15 lb difference without the lightening holes per rail. Pointless to remove that material for the sake of weight savings, dollar per pound it just doesn't make sense.
cjernigan is offline   Reply With Quote
Old 11-21-2008, 06:58 PM   #98
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

I agree, but would go either way with or without holes.
elesjuan is offline   Reply With Quote
Old 11-21-2008, 08:15 PM   #99
Junior Member
iTrader: (3)

Join Date: May 2008
Location: palm beach florida
Posts: 134
Total Cats: 0
Default

i'm down for a set
Brian-bbc is offline   Reply With Quote
Old 12-01-2008, 10:37 AM   #100
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Any updates?
Atlanta93LE is offline   Reply With Quote
