Angry engine cranks but doesn't start

So problem #2 of the day haha, cant figure this out, engine cranks fine, and sounds strong, but it does not start

I understand this has to do with either spark or fuel.

I recently pulled the motor, and changed the timing belt and all that jazz.

First I removed the valve cover and checked the timing belt

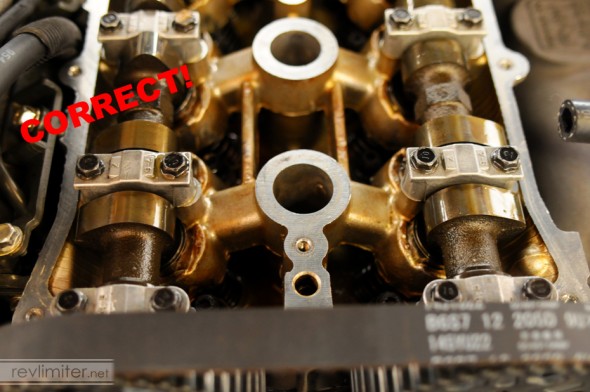

gonna borrow revlimiters pic

looks just like this:



So I'm guessing thats correct.

-Next I pulled the fuel line, and fuel leaked out, so I'm getting fuel.

Next pulled the spark plugs, and they seemed fine.

-Went to autozone and exchanged my ngk wires with new sparkplug wires, and changed that, also bought new ngk plugs.

-Changed to new plugs and wires and that seems fine.

-The ground strap broke while I pulled the motor, and I replaced with with 4 gauge wire, check that to make sure that's good, and it was.

Then I tried to crank up the motor again, still the same thing.

-check all the fueses, all of them were fine

It cranks fine, but never starts. Sounds completely normally, and doesn't do anything weird other than not starting.

I'm pretty sure its got to be somethings stupid, but I can't seem to figure it out.

Also used the adaptronic ems to take a log of the start process (attaching it to this).

Any ideas?
Attached Thumbnails
engine cranks but doesn't start-dsc_2359-590x392.jpg
Attached Files
File Type: csv start.csv (9.6 KB, 86 views)
imput1234 is offline   Reply With Quote
Old 03-17-2012, 10:03 PM   #2
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

Coils hooked up backwards? If you switch the leads, it won't start. Try changing them.
rleete is offline   Reply With Quote
Old 03-17-2012, 10:35 PM   #3
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by rleete View Post
Coils hooked up backwards? If you switch the leads, it won't start. Try changing them.

Checked it. It's proper.
imput1234 is offline   Reply With Quote
Old 03-17-2012, 11:09 PM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

I want actual pics of your crank at TDC and cam gears lined up correctly.
shuiend is offline   Reply With Quote
Old 03-17-2012, 11:24 PM   #5
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by imput1234 View Post
-Next I pulled the fuel line, and fuel leaked out, so I'm getting fuel.
The presence of fuel in the fuel line doesn't mean the fuel pump is working. Can you hear it? Try jumpering it. Do you have a timing light? If so, hook it up and see if the coils are firing. In other words, the first step is to confirm the presence of fuel and spark. Once you have that, figure out why you don't have the correct fuel and spark.
mr_hyde is offline   Reply With Quote
Old 03-17-2012, 11:57 PM   #6
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by shuiend View Post
I want actual pics of your crank at TDC and cam gears lined up correctly.

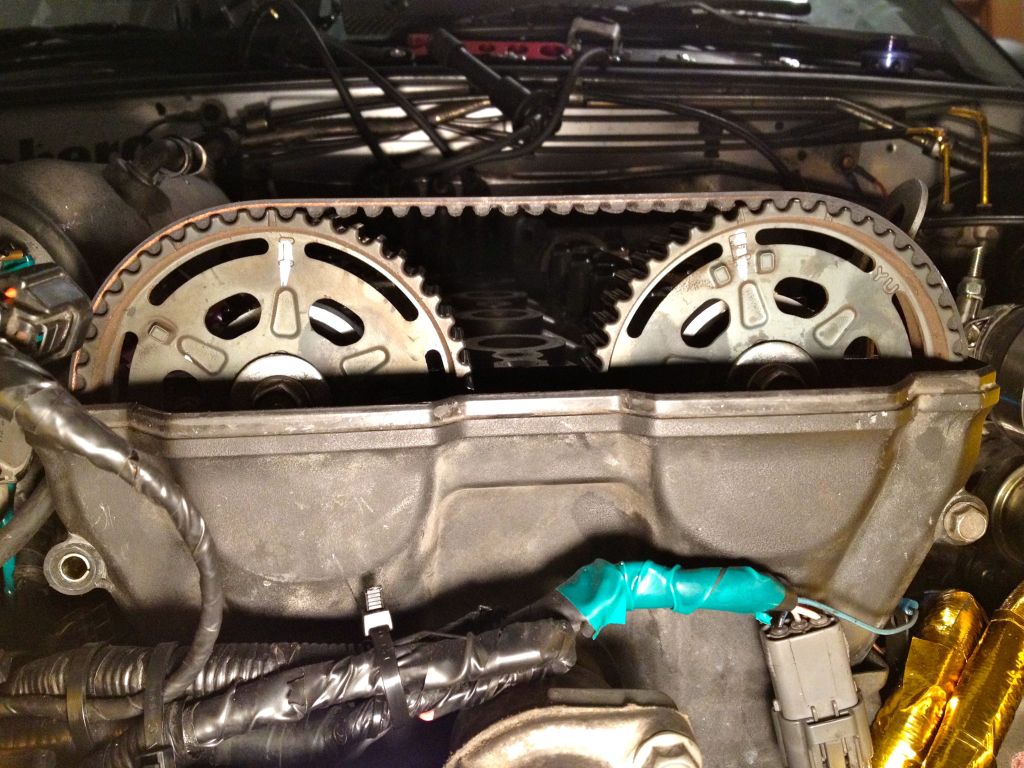

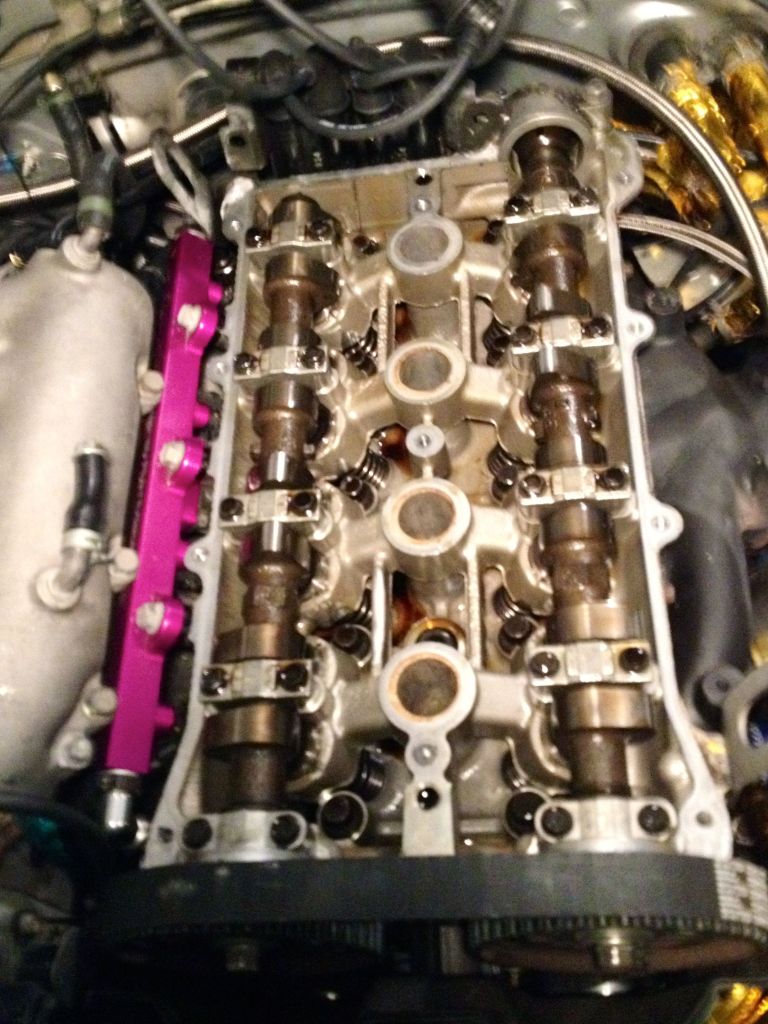

Does this look correct:





Quote:
Originally Posted by mr_hyde View Post
The presence of fuel in the fuel line doesn't mean the fuel pump is working. Can you hear it? Try jumpering it. Do you have a timing light? If so, hook it up and see if the coils are firing. In other words, the first step is to confirm the presence of fuel and spark. Once you have that, figure out why you don't have the correct fuel and spark.
No, but I think I can rent one to check at most stores.
Attached Thumbnails
engine cranks but doesn't start-img_0369-1.jpg   engine cranks but doesn't start-img_0370-1.jpg
imput1234 is offline   Reply With Quote
Old 03-18-2012, 12:09 AM   #7
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by imput1234 View Post
Does this look correct:

Your exhaust cam looks 2 teeth off. I only count 17 little bumps between the "I" and "E" lines. It should be 19 bumps. I would check that again and fix it if it is off.
shuiend is offline   Reply With Quote
Old 03-18-2012, 12:14 AM   #8
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by shuiend View Post
Your exhaust cam looks 2 teeth off. I only count 17 little bumps between the "I" and "E" lines. It should be 19 bumps. I would check that again and fix it if it is off.
Ok, thanks. I was counting the wrong thing , hope it's that simple!
imput1234 is offline   Reply With Quote
Old 03-18-2012, 12:33 AM   #9
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

The lobe on the exhaust cam looks a little high in the bird's eye view so I think you're onto something. I've never counted teeth - I line up the marks on the cover behind the gears after finding TDC on the crank.
mr_hyde is offline   Reply With Quote
Old 03-18-2012, 11:43 AM   #10
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Pop out your main fuel injection relay and jump it.
BenR is offline   Reply With Quote
Old 03-18-2012, 06:05 PM   #11
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by mr_hyde View Post
The lobe on the exhaust cam looks a little high in the bird's eye view so I think you're onto something. I've never counted teeth - I line up the marks on the cover behind the gears after finding TDC on the crank.

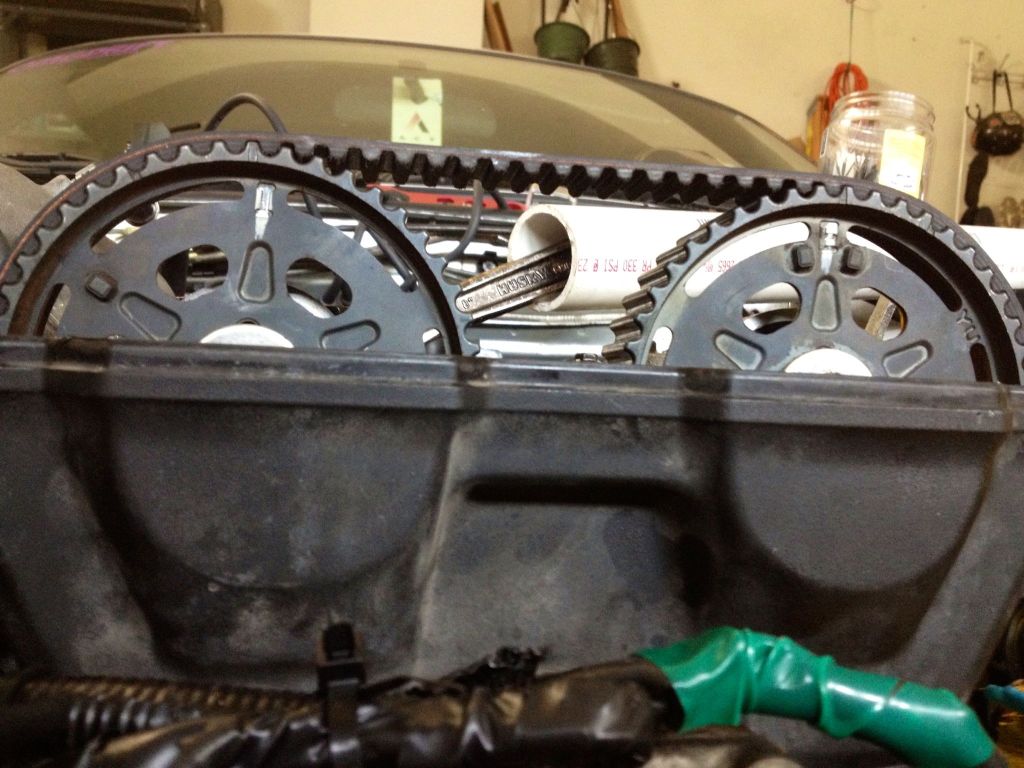

So I took the valvecover off, and managed to reallign the cam without ------- with anything else:



but it still doesn't start.

Just gonna start taking everything apart again, to see what I'm missing. Hopefully it'll be something obvious.

Quote:
Originally Posted by BenR View Post
Pop out your main fuel injection relay and jump it.
I'm really sure its not the fuel. I tired the starter fluid method, that didn't do squat.
Attached Thumbnails
engine cranks but doesn't start-cha.jpg
imput1234 is offline   Reply With Quote
Old 03-18-2012, 06:08 PM   #12
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by imput1234 View Post
So I took the valvecover off, and managed to reallign the cam without ------- with anything else:



but it still doesn't start.

Just gonna start taking everything apart again, to see what I'm missing. Hopefully it'll be something obvious.

I'm really sure its not the fuel. I tired the starter fluid method, that didn't do squat.
That picture looks correct.

You can try jumping the fuel pump in the diagnostic box. You jump F/P to ground and it will stay running.
shuiend is offline   Reply With Quote
Old 03-18-2012, 06:20 PM   #13
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by shuiend View Post
That picture looks correct.

You can try jumping the fuel pump in the diagnostic box. You jump F/P to ground and it will stay running.
The fuel pump turns on, but the car still does the same thing :(

34ef3633.jpg?t=1332105763
imput1234 is offline   Reply With Quote
Old 03-18-2012, 09:42 PM   #14
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

took everything apart and the the crank was off by a bit.

Can you guys check this real quick to make sure its right so i don't ---- it up again and can close it up haha:

3826420f.jpg?t=1332117522

85003a19.jpg?t=1332117520

f42c899c.jpg?t=1332117525
imput1234 is offline   Reply With Quote
Old 03-18-2012, 10:04 PM   #15
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by imput1234 View Post
took everything apart and the the crank was off by a bit.

Can you guys check this real quick to make sure its right so i don't ---- it up again and can close it up haha:





Looks good. How far off was the crank?
shuiend is offline   Reply With Quote
Old 03-18-2012, 10:10 PM   #16
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by shuiend View Post
Looks good. How far off was the crank?
Awesome, hopefully it starts this time.

About 1-2 teeth.

Thanks for all the help!
imput1234 is offline   Reply With Quote
Old 03-19-2012, 08:33 AM   #17
Junior Member

Join Date: Oct 2010
Location: Central Florida, Land of the Giant Rat.
Posts: 123
Total Cats: 2
Default

If your injectors aren't firing and you have no spark I would suspect a crank angle or cam position sensor signal not getting to the ecu.

As Mr Hyde above posted, you need to establish that you do for fact have fuel and spark. First I would check for spark at the plugs. Will need to ground the plug to the head and have someone turn it over. It would be advisable to have the fuel pump OFF in this test.
RattleTrap is offline   Reply With Quote
Old 03-19-2012, 04:49 PM   #18
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by RattleTrap View Post
If your injectors aren't firing and you have no spark I would suspect a crank angle or cam position sensor signal not getting to the ecu.

As Mr Hyde above posted, you need to establish that you do for fact have fuel and spark. First I would check for spark at the plugs. Will need to ground the plug to the head and have someone turn it over. It would be advisable to have the fuel pump OFF in this test.
I checked the wiring in both the sensors they both seem fine, how would u know if they are bad?

This is so frustrating, damn thing still doesn't start, I know for sure the cam timing is correct now tho.

Here is a link to what it sounds like if it helps

http://i223.photobucket.com/albums/d...4/cb84eef6.mp4
imput1234 is offline   Reply With Quote
Old 03-19-2012, 05:26 PM   #19
Junior Member

Join Date: Oct 2010
Location: Central Florida, Land of the Giant Rat.
Posts: 123
Total Cats: 2
Default

It's not firing any mixture.
So, you've got to establish spark first. If it exists, then you've got no fuel.
If needed, we'll diag fuel as soon as we establish spark.
Both are dependent on the ecu 'knowing' where the engine is at in its cycle.

A quick check for fuel is to crank for a fair bit, then pull a plug and see if it's wet. Or reeks of gas.
RattleTrap is offline   Reply With Quote
Old 03-19-2012, 06:45 PM   #20
Junior Member
Thread Starter
iTrader: (3)

Join Date: May 2010
Posts: 282
Total Cats: -4
Default

Quote:
Originally Posted by RattleTrap View Post
It's not firing any mixture.
So, you've got to establish spark first. If it exists, then you've got no fuel.
If needed, we'll diag fuel as soon as we establish spark.
Both are dependent on the ecu 'knowing' where the engine is at in its cycle.

A quick check for fuel is to crank for a fair bit, then pull a plug and see if it's wet. Or reeks of gas.
Thanks.

I did the spark test:

no spark:

video:

http://s223.photobucket.com/albums/d...t=60d6ebef.mp4

Pulled the plugs, they are not wet.

Does this mean its the sensor?
