Old 11-10-2007, 09:24 PM   #1
Junior Member
Thread Starter

Join Date: Jul 2006
Location: Huntsville/Auburn, AL
Posts: 114
Total Cats: 0
Default FM Sways

Wimpy, wimpy, wimpy

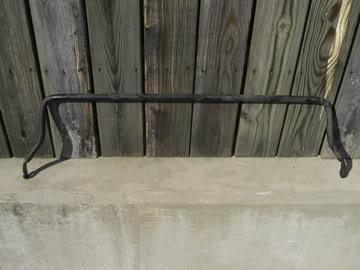

Name:  CIMG2881.jpg
Views: 2
Size:  18.2 KB


HEFTY HEFTY HEFTY

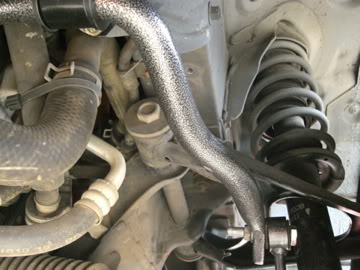

Name:  CIMG2878.jpg
Views: 1
Size:  25.1 KB


Wimpy, wimpy wimpy

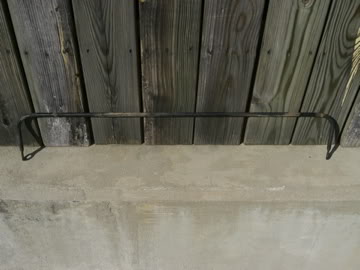

Name:  CIMG2882.jpg
Views: 1
Size:  16.9 KB


HEFTY HEFTY HEFTY

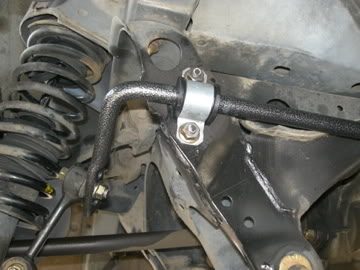

Name:  CIMG2864.jpg
Views: 1
Size:  23.2 KB

I placed the endlink bolts to give me a little understeer... cause I ain't no hardcore drifter yo

Anyway, I was torquing down the nuts on the rear bar brackets and... BAM

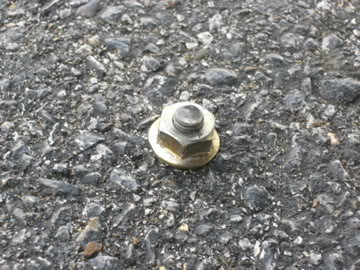

Name:  CIMG2874.jpg
Views: 1
Size:  40.1 KB

Sheared the end of the bolt right off. The recommended tq is 20 ft-lb and if ANYTHING I might have twisted the handle on the tq wrench to 25 at most, but I'm pretty sure it was set at 20 since I had torqued the rest of the nuts and checked the handle to make sure it was still set correctly. This is my luck


So today I had to run an errand for my boss, came back and jacked the car up to replace the radiator and found the result of driving with 3 bolts instead of 4 holding the sway bar mounts in place. The bracket bent and the bar is now rubbing against the frame.

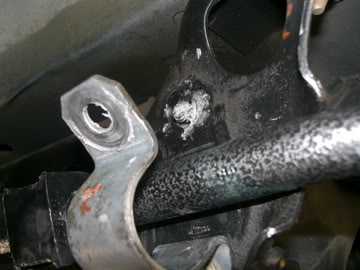

Name:  CIMG2886.jpg
Views: 1
Size:  20.0 KB

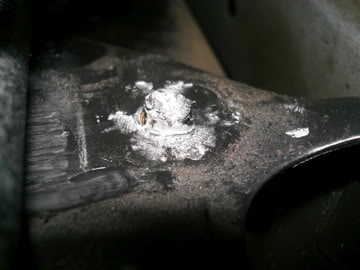

Name:  CIMG2872.jpg
Views: 1
Size:  16.5 KB

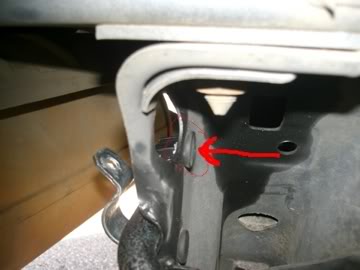

Name:  Sheared1.jpg
Views: 1
Size:  14.1 KB


In that last picture you can see the other side of the bolt.... My plan is to drill the rest of the bolt out, buy a normal bolt and weld it in. Looks like I'm gonna have to drop the exhaust to fit a drill up there though.
RickA is offline   Reply With Quote
Old 11-10-2007, 09:48 PM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Not sure but those bolts may just be pressed in. That's how ford does it. You can just tap them out and intall new ones. I doubt they were welded in place.
patsmx5 is offline   Reply With Quote
Old 11-10-2007, 09:49 PM   #3
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

When I was installing my Racing Beat swaybars,the same **** happened to me with the rear bolts,except I managed to snap two of them(my Snap-on techwrench was set to 15 ft-lbs).Fixing it was easy,it's just removing the freshly installed sway bar and the exhaust that was a pain.
spike is offline   Reply With Quote
Old 11-10-2007, 09:53 PM   #4
Junior Member
Thread Starter

Join Date: Jul 2006
Location: Huntsville/Auburn, AL
Posts: 114
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
Not sure but those bolts may just be pressed in. That's how ford does it. You can just tap them out and intall new ones. I doubt they were welded in place.
I'll give that a shot... didn't really occur to me so I never tried bangin on em
RickA is offline   Reply With Quote
Old 11-10-2007, 09:54 PM   #5
Junior Member
Thread Starter

Join Date: Jul 2006
Location: Huntsville/Auburn, AL
Posts: 114
Total Cats: 0
Default

Quote:
Originally Posted by spike View Post
When I was installing my Racing Beat swaybars,the same **** happened to me with the rear bolts,except I managed to snap two of them(my Snap-on techwrench was set to 15 ft-lbs).Fixing it was easy,it's just removing the freshly installed sway bar and the exhaust that was a pain.
Did you have to drill them out or just punch them out?
RickA is offline   Reply With Quote
Old 11-10-2007, 10:17 PM   #6
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

By pressed in he is saying they're like wheel studs. You might be able to just hammer them out with a punch.
cjernigan is offline   Reply With Quote
Old 11-10-2007, 10:18 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

one heim joint on each bar made a noticable difference at the track.
hustler is offline   Reply With Quote
Old 11-10-2007, 10:19 PM   #8
Junior Member
Thread Starter

Join Date: Jul 2006
Location: Huntsville/Auburn, AL
Posts: 114
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
By pressed in he is saying they're like wheel studs. You might be able to just hammer them out with a punch.
Lol and by punch them out I meant using a hammer :gay:
RickA is offline   Reply With Quote
Old 11-10-2007, 10:22 PM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by hustler View Post
one heim joint on each bar made a noticable difference at the track.
Just for the sake of adjustability?
cjernigan is offline   Reply With Quote
Old 11-10-2007, 10:56 PM   #10
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Quote:
Originally Posted by RickA View Post
Did you have to drill them out or just punch them out?
I tried to "punch" them out using a 2 pound mini sledge(big ******* hammer) and it would not budge,so I broke out the grinder,ground the stud flush and drilled a hole for a stud.
spike is offline   Reply With Quote
Old 11-11-2007, 11:06 AM   #11
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

they are spot welded in place. broke one 6 years ago on the driver side then a few months ago i broke another on the passenger side, same car. cut stud flat with dremel and drilled out. replaced with nut and bolt.
paul is offline   Reply With Quote
Old 11-11-2007, 11:43 AM   #12
Junior Member
iTrader: (1)

Join Date: Mar 2007
Location: illinoisssss
Posts: 123
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
Just for the sake of adjustability?
it lets you relieve any preload on the bar.

hustler - what endlinks did you get? I want to do the same (just buy a pair for the whole car) so I obviously want some that are close to the same length as stock.
marty_uiuc is offline   Reply With Quote
Old 11-11-2007, 11:52 AM   #13
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

Antiseize is your friend. Besides the adjustability, the heim joint endlinks remove the preload and reduce the binding effects of the rubber, or poly, endlinks.
soflarick is offline   Reply With Quote
Old 11-11-2007, 12:03 PM   #14
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by marty_uiuc View Post
it lets you relieve any preload on the bar.

hustler - what endlinks did you get? I want to do the same (just buy a pair for the whole car) so I obviously want some that are close to the same length as stock.
If you've lowered the car any significant amount, you'll want shorter endlinks. Some vendors sell short versions of their endlinks because of this. I had to dremel a portion of my RB links so the swaybar would have enough clearance.
kotomile is offline   Reply With Quote
Old 11-14-2007, 01:01 AM   #15
Junior Member
iTrader: (1)

Join Date: Oct 2007
Location: San Diego, Ca
Posts: 209
Total Cats: -1
Default

Rick, how did you like the performance of them?
I JUST installed mine, i was less then SUPER enthused about them initially,
then the harder i took turns the more i became impressed, but i kind of expected more,
iunno
what did you think?
EDIT: Forgot, i mean the sways, not the links

Last edited by TeamPLUR; 11-14-2007 at 01:07 AM. Reason: lack of specificity
TeamPLUR is offline   Reply With Quote
Old 11-14-2007, 09:54 AM   #16
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by marty_uiuc View Post
it lets you relieve any preload on the bar.

hustler - what endlinks did you get? I want to do the same (just buy a pair for the whole car) so I obviously want some that are close to the same length as stock.
I bought a pair of them from TDR. You only need one for each bar, regardless of what anyone tells you. The car was most stable over bumps judging from back-to-back sessions on the track. Its not a big deal, just nice to have the adjustability. You'll probably never notice the change. Its proably good for .00000001 seconds.
hustler is offline   Reply With Quote
Old 11-14-2007, 03:31 PM   #17
Guest
iTrader: (1)

ray_sir_6's Avatar

Join Date: Dec 2006
Location: DFW, TX
Posts: 714
Total Cats: 0
Default

I have the FM bars on my Miata. Set on soft in front, and medium in the rear. It's perfectly neutral.

Quote:
Originally Posted by hustler View Post
I bought a pair of them from TDR. You only need one for each bar, regardless of what anyone tells you. The car was most stable over bumps judging from back-to-back sessions on the track. Its not a big deal, just nice to have the adjustability. You'll probably never notice the change. Its proably good for .00000001 seconds.
What kind of times do you run on the 3.1? My buddy took my car out there and ran a 2:39.8 on SM Hoosiers. He ran faster (caught an Evo8 that was running 2:36-2:37s), but didn't get the times for them.
ray_sir_6 is offline   Reply With Quote
Old 11-14-2007, 09:10 PM   #18
Junior Member
Thread Starter

Join Date: Jul 2006
Location: Huntsville/Auburn, AL
Posts: 114
Total Cats: 0
Default

Quote:
Originally Posted by TeamPLUR View Post
Rick, how did you like the performance of them?
I JUST installed mine, i was less then SUPER enthused about them initially,
then the harder i took turns the more i became impressed, but i kind of expected more,
iunno
what did you think?
EDIT: Forgot, i mean the sways, not the links
I never had great expectations for them, but I picked them up because FM was having their moving sale and I felt I should do something to stiffen the car a bit before I effectively double the horsepower... I want to keep it looking stock so I don't want to slam it just yet. I haven't had the chance to push the car much yet, but from the few quick turns I've taken the car does respond better and is a bit flatter around corners. I'm satisfied with my purchase

PS ~ I ground down the bolt and drilled a new hole so all is well

Last edited by RickA; 11-14-2007 at 10:10 PM.
RickA is offline   Reply With Quote
Old 11-14-2007, 09:53 PM   #19
Senior Member

Join Date: May 2006
Posts: 884
Total Cats: 0
Default

Your stock front sway bar is worth money to the Factory Five Cobra kit car owners. It uses all mustang **** except for that one teeny factor.
firedog25 is offline   Reply With Quote
Old 11-14-2007, 10:14 PM   #20
Junior Member
Thread Starter

Join Date: Jul 2006
Location: Huntsville/Auburn, AL
Posts: 114
Total Cats: 0
Default

Quote:
Originally Posted by firedog25 View Post
Your stock front sway bar is worth money to the Factory Five Cobra kit car owners. It uses all mustang **** except for that one teeny factor.
How much are they worth? What are some boards I can sell them on?
