Default Got an aluminum flywheel? Come in...

Just installed and Ebay F1 racing stage 3 clutch with a Flyin Miata aluminum flywheel on my DD 2000. I like the clutch seems lighter than stock and works well. Little chattery but its new so I'll let it break in.

Question is now the car idles, choppy. Not smooth. Its not bad and I have put 400 miles on it and it works great I can only bet its due to the lack of rotating mass. Anyone else have this issue?

Thanks!
IcantDo55 is offline   Reply With Quote
Old 04-04-2010, 06:55 PM   #2
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

If nothing else has changed I could see it happening, MAYBE. I don't have that issue.
I don't think FM's flywheels are made of aluminum, btw. Just sayin.
MartinezA92 is offline   Reply With Quote
Old 04-04-2010, 07:02 PM   #3
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by MartinezA92 View Post
If nothing else has changed I could see it happening, MAYBE. I don't have that issue.
I don't think FM's flywheels are made of aluminum, btw. Just sayin.

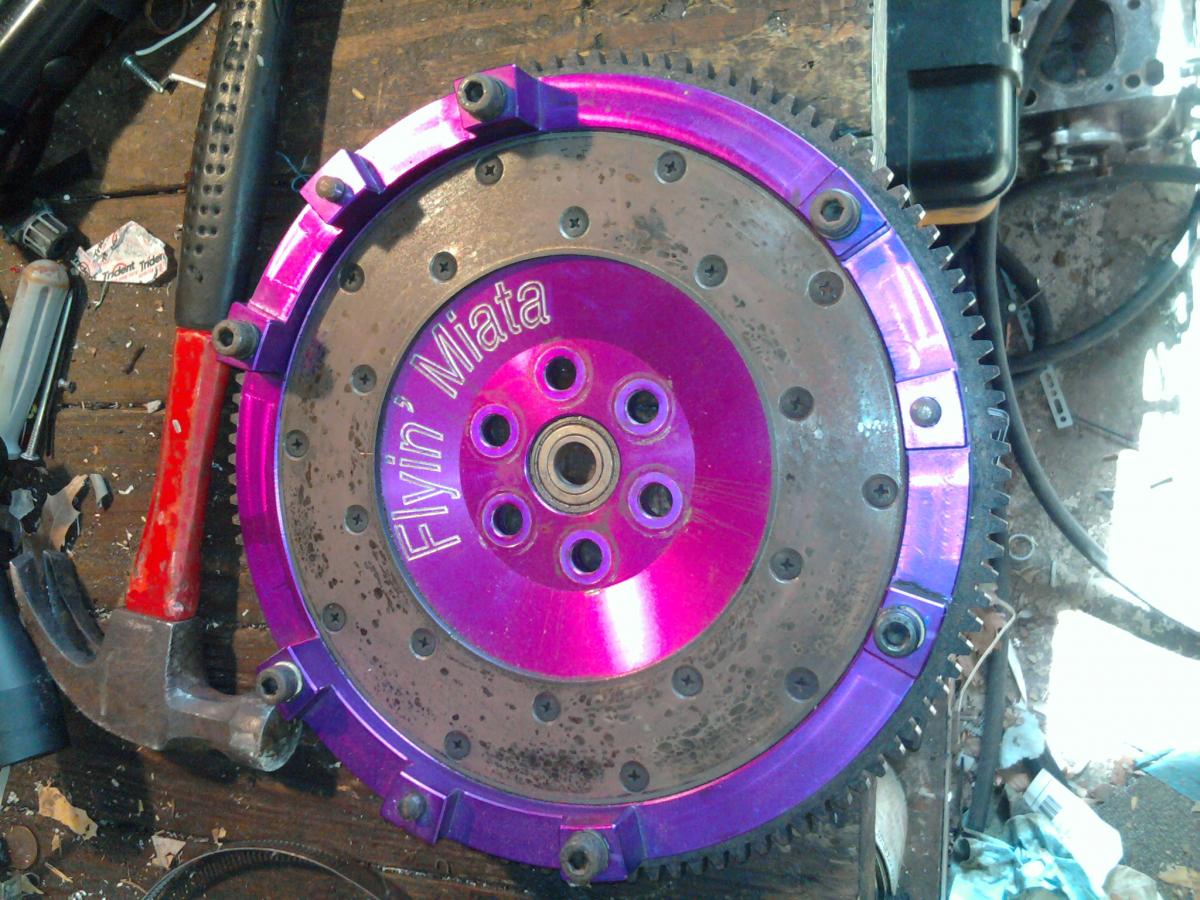

Its def an FM flywheel.
Attached Thumbnails
Got an aluminum flywheel?  Come in...-2010-03-24-16.30.31.jpg
IcantDo55 is offline   Reply With Quote
Old 04-04-2010, 08:06 PM   #4
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I have that flywheel with a different clutch and I had no problems after that. I think it wouldn't **** with the idle at all unless something isn't balanced and your crank is freaking out and your timing is getting fuxored somehow.

I say it's coincidental fuckage..
Faeflora is offline   Reply With Quote
Old 04-04-2010, 08:09 PM   #5
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

ACT Pro-Lite, no idle problems here, caused by the flywheel at least.
Oscar is offline   Reply With Quote
Old 04-04-2010, 10:01 PM   #6
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by faeflora View Post
I have that flywheel with a different clutch and I had no problems after that. I think it wouldn't **** with the idle at all unless something isn't balanced and your crank is freaking out and your timing is getting fuxored somehow.

I say it's coincidental fuckage..
Hmmmm. It only has an issue at idle. I heard of this before with light flywheels. I'll call FM monday.
IcantDo55 is offline   Reply With Quote
Old 04-05-2010, 08:55 PM   #7
Junior Member

Join Date: Aug 2007
Location: England
Posts: 124
Total Cats: 0
Default

I've heard of people talking about this too. When I fitted a lightweight flywheel the only issue I had was the quicker drop in revs occasionally meant the engine would stall when approaching traffic lights, a small adjustment of the idle screw cured that.

what's your idle speed like?
jim-NA is offline   Reply With Quote
Old 04-06-2010, 11:19 AM   #8
Senior Member
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

I do not have an aluminum one, instead 5 pounds were removed from the stock steel FW.

The complete assembly, flywheel, disc, pressure plate were taken to a machine shop and everything was re-balanced just in case.

With the steel one with only 5 pounds off the revs do go down when approaching a traffic light, nothing crazy.

Like others say, its a matter of adjusting the idle.
mazpr is offline   Reply With Quote
Old 04-06-2010, 11:28 AM   #9
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

750-850 1K with AC on
IcantDo55 is offline   Reply With Quote
Old 04-06-2010, 11:28 AM   #10
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

I've got the 1.6L 7lb Fidanza flywheel. I had to adjust my base idle (diag connector jumpered) up to 1000rpm. After that, no more stalling problems.

I'm in a heap of trouble now with the 2.0L. I've got the idle screw fully open and it idles just at 750rpm now.

Check your idle with GND and TEN jumpered in the diagnostic box.
Bryce is offline   Reply With Quote
Old 04-06-2010, 11:29 AM   #11
Senior Member
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

On mine I took the FW to a machine shop for balancing, did you take yours to check before the install?
mazpr is offline   Reply With Quote
Old 04-06-2010, 11:36 AM   #12
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by mazpr View Post
On mine I took the FW to a machine shop for balancing, did you take yours to check before the install?
No, flywheel can from a member car and had no issues there and the clutch kit was new.
IcantDo55 is offline   Reply With Quote
Old 04-09-2010, 09:44 PM   #13
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Ok so thinking about it I did install the head and the coolant reroute during the clutch install so to make sure I was not something I did I pulled off the timing belt and reset it. Seems better now, a little choppy but not what it was....so I'm going with the timing being off a little My bad.
IcantDo55 is offline   Reply With Quote
Old 04-09-2010, 09:49 PM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

John and I put a 949 15lb clutch and it idles fine. Something could be out of balance and I suspect the ebay crap.
hustler is offline   Reply With Quote
Old 04-09-2010, 10:18 PM   #15
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

either that, or you didnt tighten your FW bolts enough and its vibrating like mad.

a friend of mine did that.
shlammed is offline   Reply With Quote
Old 04-12-2010, 08:14 PM   #16
efe
Newb

Join Date: Jun 2009
Location: Avon Lake, OH
Posts: 35
Total Cats: 0
Default

Just another data point, I have that exact same flywheel w/ an ACT xtreme clutch. Absolutely no chatter, noise or any idle issues related to it.
efe is offline   Reply With Quote
Old 04-12-2010, 08:17 PM   #17
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

It won't cause idle problems, but it WILL make any idle problems you had before more obvious. Mine did the same thing, went from pretty smooth to now having slight bumps at idle, feels like a misfire (but isn't). I can't find anything obviously wrong over the time I have had it rebuilt. I've also had this "issue" with other cars with light flywheels. Not really an issue, just a change in how it feels. You will get used to it. Makes you feel things you didn't feel before, normal or not.
NA6C-Guy is offline   Reply With Quote
Old 04-12-2010, 09:32 PM   #18
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

I have a fidanza with spec puck clutch on a 1.8 that has no chatter and idled properly before and after turboing.
astroboy is offline   Reply With Quote
Old 04-12-2010, 10:05 PM   #19
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

adjust your aic man it was set for more laod from the heavier flywheel probly and a few other parasitic losses you have remedied. If this doesnt work i call vacuum leak.
magnamx-5 is offline   Reply With Quote
