I've seen a lot of talk about gutting the 99/00 intake manifolds and not all that much as far as testing/numbers. Figured I would post up my results, incase anyone is interested.

First off, it's a massive pain in the *** to gut this thing. I can't even imagine how many hours have gone into this thing and it's really not done, I just couldn't take it anymore. We gutted the top and bottom, and deleted the VICS butterflies. I dremmeled off the casting bumps the last inch or so before the head, but the runners are otherwise untouched (I just didn't have anything I could get to them with).

Weight comparisons, the stock manifold weighted 16.25lbs the gutted manifold weighed 12.96lbs. So we removed a little over 3.25 pounds of aluminum from the thing.

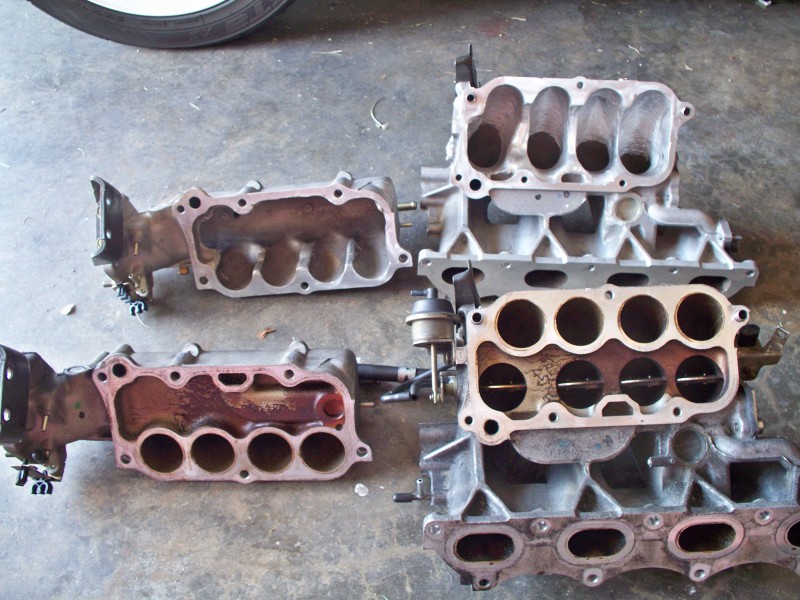

Both:

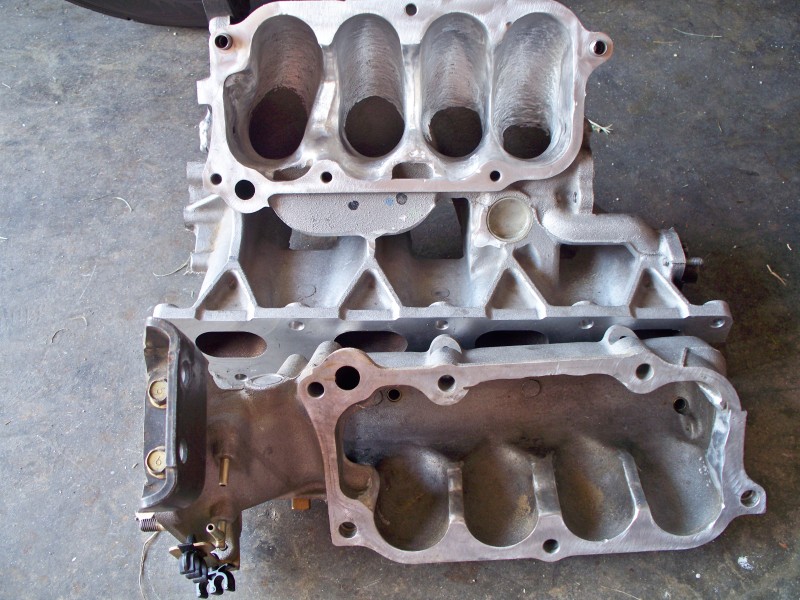

Gutted:

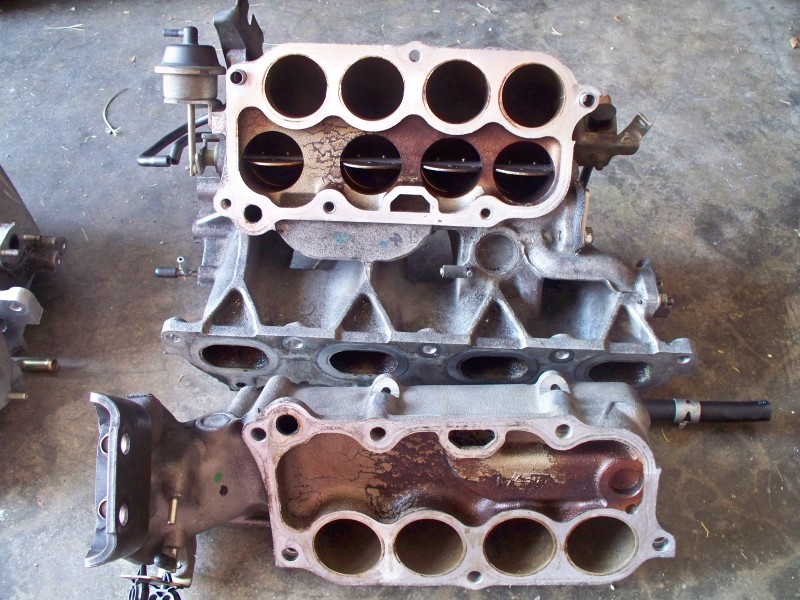

Stock:

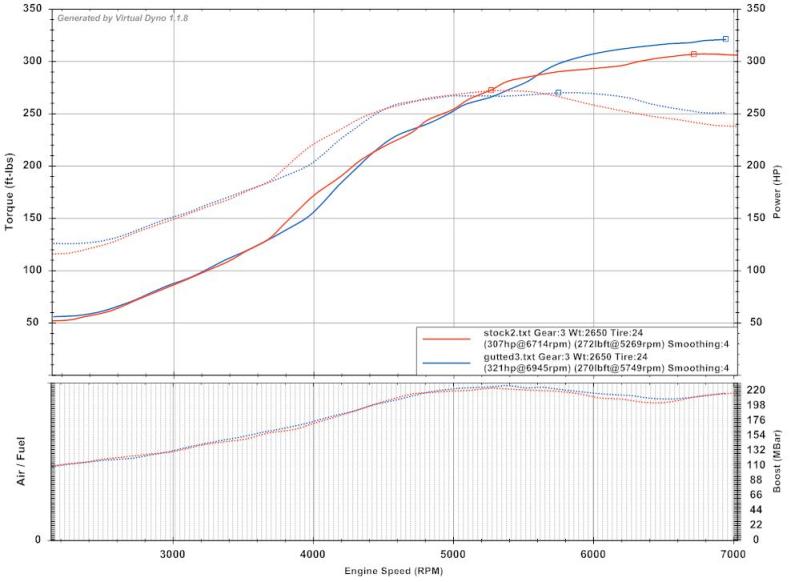

I took 3 datalogs of each, all 3rd gear pulls, all in similar conditions on the same day and loaded them in virtual dyno. These were the most representative runs of the 3 pulls with each setup. Stock manifold with VICS working (red) vs Gutted Manifold (blue)



Overall, I'm really happy with the top end gains and very little loss on the low end. It's a great $/hp if you've got the time and means to do it yourself, but if you factor in the labor it's pretty horrible.
