Default Heater hose leaking coolant

The coolant hose that starts at the firewall and disappears between the engine and the firewall has sprung a leak. And by leak I mean it is wet with coolant, and when I touch it coolant comes pouring out. I can't see what exactly is leaking as it's in that space between the engine and the firewall.

How hard is it going to be to replace that hose? Will I have to pull the engine? I really don't want to be pulling the engine on a car I'm trying to get ready for sale. This is really going to push my schedule back if I do.

Also, I did search, and I was a little surprised I didn't find this out there somewhere.
skidude is offline   Reply With Quote
Old 05-21-2010, 05:54 PM   #2
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Uhh me and someone else made threads about this in the past 2-3 weeks. I do not need the heater core and will be removing these lines. As for how much work it will be... I'll tell you in a few weeks when I remove them
FRT_Fun is offline   Reply With Quote
Old 05-21-2010, 05:54 PM   #3
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Not at all just loosen up the worm clamps and pull. No need to take the engine out for that.
buffon01 is offline   Reply With Quote
Old 05-21-2010, 06:22 PM   #4
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

The heater core feed hose just connects at the back of the head. You can probably reach the squeeze clamp thingy by getting under the CAS with some long nose pliers.
ScottFW is offline   Reply With Quote
Old 05-21-2010, 07:33 PM   #5
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Remove coilpacks and bracket if you still can't reach from the top. You can cut the old one off or pry with a screwdriver and lube it up with WD40 and then pull it towards the brake MC.
Oscar is offline   Reply With Quote
Old 05-21-2010, 07:34 PM   #6
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I got mine off while the engine was in. I pulled it off the engine so I could pull it because removing that hose from the firewall is a pain.

Its tight but you can do it. Bonus if the split is real close to the end of the hose, pull it off, cut the hose and put it back on. Free fix!
wayne_curr is offline   Reply With Quote
Old 05-21-2010, 07:53 PM   #7
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

You may wind up having to order the hose bend rather than just using a length of proper sized hose.

I used a regular hose, and the tight bend causes it to kink. Not a big deal, since I do not need a heater for a while. But if you are selling your car...
94mx5red is offline   Reply With Quote
Old 05-21-2010, 09:18 PM   #8
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Sounds like the break is close to the firewall (which happened to me) so you'll have to cut and reinstall. Careful to not damage the heater core inlet/outlet pipe. Mine is a little bent/pitted/scratched and it is almost impossible to seal.
astroboy is offline   Reply With Quote
Old 05-21-2010, 10:10 PM   #9
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,324
Default

Quote:
Originally Posted by astroboy View Post
Sounds like the break is close to the firewall (which happened to me) so you'll have to cut and reinstall. Careful to not damage the heater core inlet/outlet pipe. Mine is a little bent/pitted/scratched and it is almost impossible to seal.

You must cut the old hoses off the heater core fittings. Every single time I've tried to remove them, they leak afterwards. Once they leak, you need to pound a 7/16" or an 11mm socket through them to round them out, and then use worm clamps to seal them up completely, or else they will leak forever.
Savington is online now   Reply With Quote
Old 05-21-2010, 10:25 PM   #10
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

I used a 1/2" ratchet extension piece and rotated that a few times. Rounded out the copper pretty good as the oem clamps are still holding without leaking.
Oscar is offline   Reply With Quote
Old 05-21-2010, 10:49 PM   #11
Junior Member
iTrader: (1)

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 433
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
You must cut the old hoses off the heater core fittings. Every single time I've tried to remove them, they leak afterwards. Once they leak, you need to pound a 7/16" or an 11mm socket through them to round them out, and then use worm clamps to seal them up completely, or else they will leak forever.
+1 to that...there a bitch. I think mine are starting to leak again, I just noticed yesterday when i turn a corner a get a few drips on my foot I look and i see orange coolant...FML.
stranges12712 is offline   Reply With Quote
Old 05-21-2010, 11:01 PM   #12
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Lol I had leaks too. I covered the fittings in black RTV and shoved the hoses on

Been leak free for 2+ years but I know that something clever is going to have to happen when I need to replace those hoses.

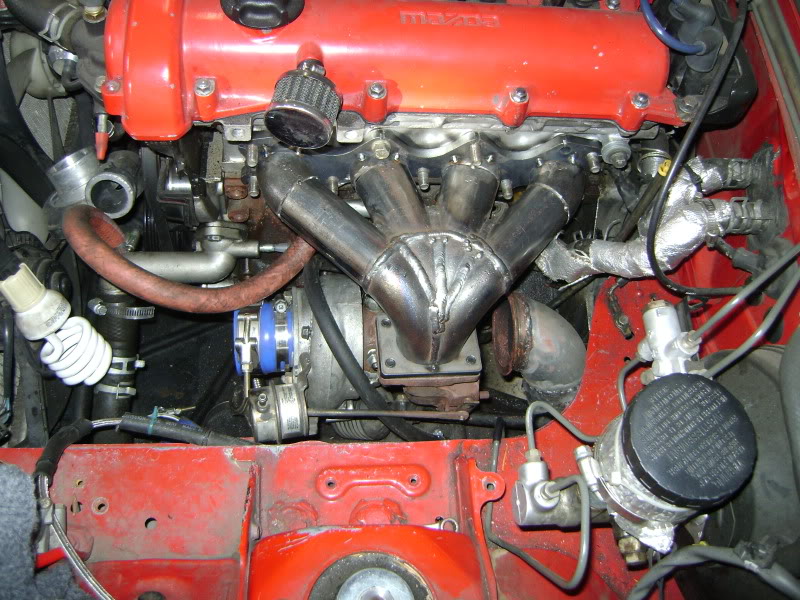

Name:  DSC01766.jpg
Views: 573
Size:  151.7 KB
wayne_curr is offline   Reply With Quote
Old 05-21-2010, 11:16 PM   #13
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

That's a nice manifold. You made one for yourself??
buffon01 is offline   Reply With Quote
Old 05-21-2010, 11:17 PM   #14
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

No thats Phil's. Just the quickest pic I could find of my heater lines.
wayne_curr is offline   Reply With Quote
