Default Help me find that bolt!

Apparently I lost a caliper bolt sometime ago on my 1992 Mazda Miata. After hearing a nice grinding sound, I decided to take a look at the brakes and I noticed I was missing a bolt on the DRIVER's side caliper.

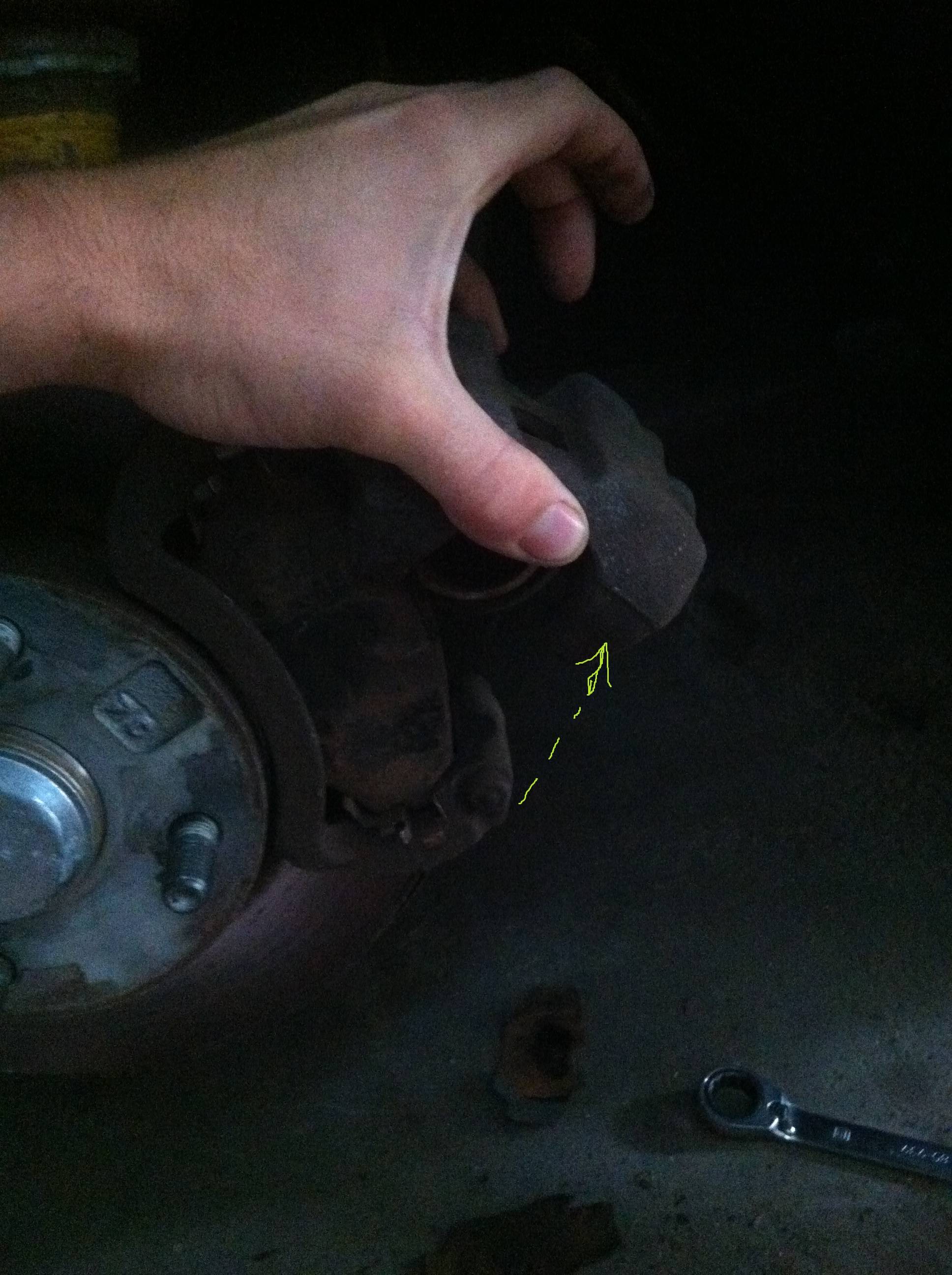

For some reason, I could do this with the caliper no problem:

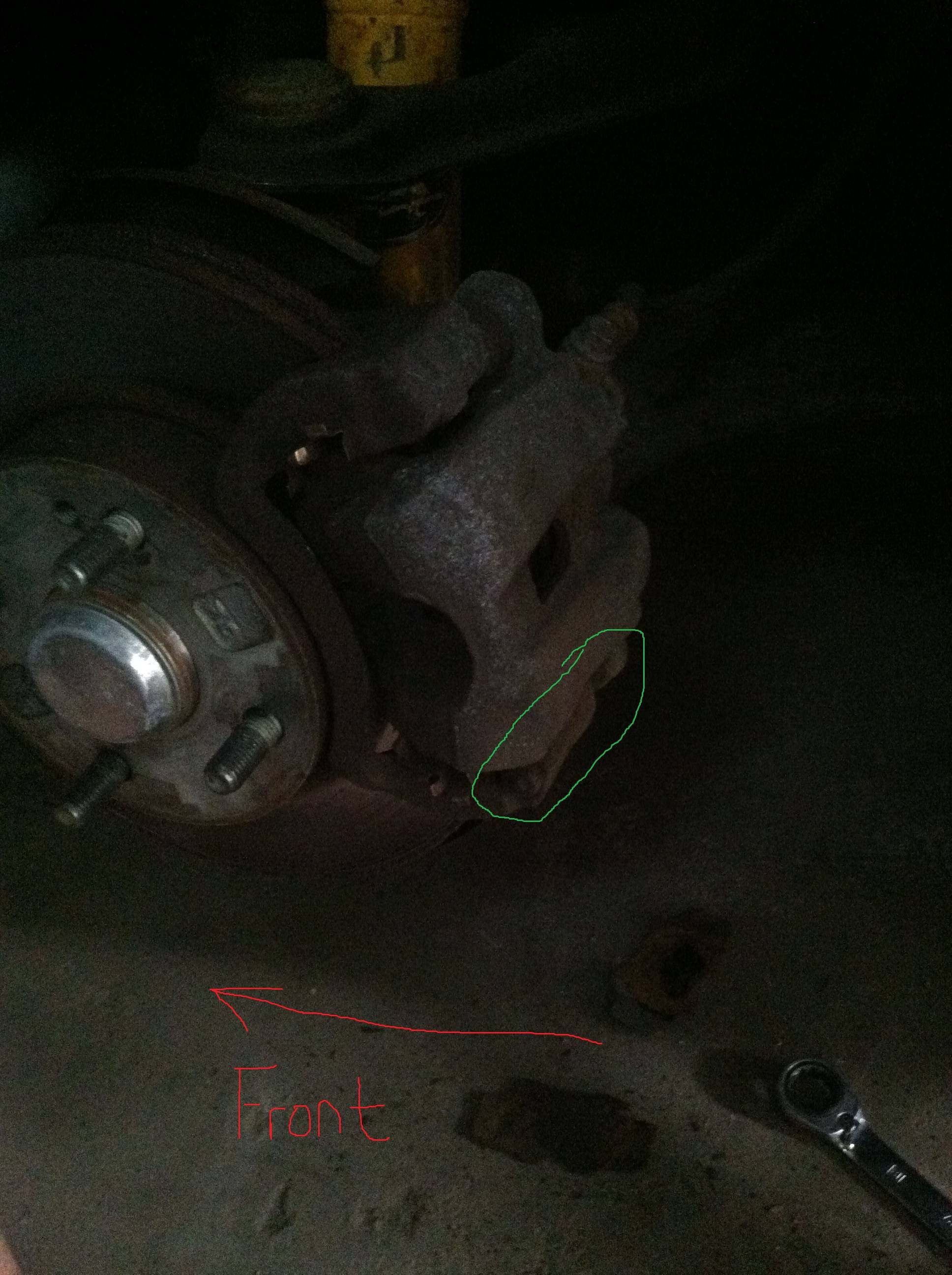

After a simple check, it looks like the bolt in green is missing:



Does anyone know what size/shape/thread/part number this bolt is?

Its on the drivers side front caliper, lower bolt of 2.

I tried grabbing an M10 1.25 but it seems to be way too big, and everything online says its a pin/slider bolt. I just need confirmation so I can get this bad boy fixed.

Thanks
gompers is offline   Reply With Quote
Old 07-25-2014, 06:30 PM   #2
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

hornetball is offline   Reply With Quote
Old 07-25-2014, 07:19 PM   #3
Junior Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: Hampton Roads, VA
Posts: 398
Total Cats: 0
Default

Thanks. I've ordered the bolts and I'll post up on Monday if it was the right size (according to Amazon's shipping estimate). After what I've read, I think I'm expecting it to be the 14mm headed slide bolt. The 17mm one appears fine.

It just seems strange to me that the caliper utilized two slide bolts only to hold itself on. I expected some sort of thread to be on the end.
gompers is offline   Reply With Quote
Old 07-25-2014, 07:57 PM   #4
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Dude, its a slider pin, just buy a slider pin kit.
Leafy is offline   Reply With Quote
Old 07-26-2014, 11:54 AM   #5
Junior Member
Thread Starter
iTrader: (4)

Join Date: Sep 2007
Location: Hampton Roads, VA
Posts: 398
Total Cats: 0
Default

Yeah, thanks.
gompers is offline   Reply With Quote
Old 07-26-2014, 12:52 PM   #6
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by gompers View Post
It just seems strange to me that the caliper utilized two slide bolts only to hold itself on.
Hence the term "floating" caliper.
