Default Help me identify a torsen

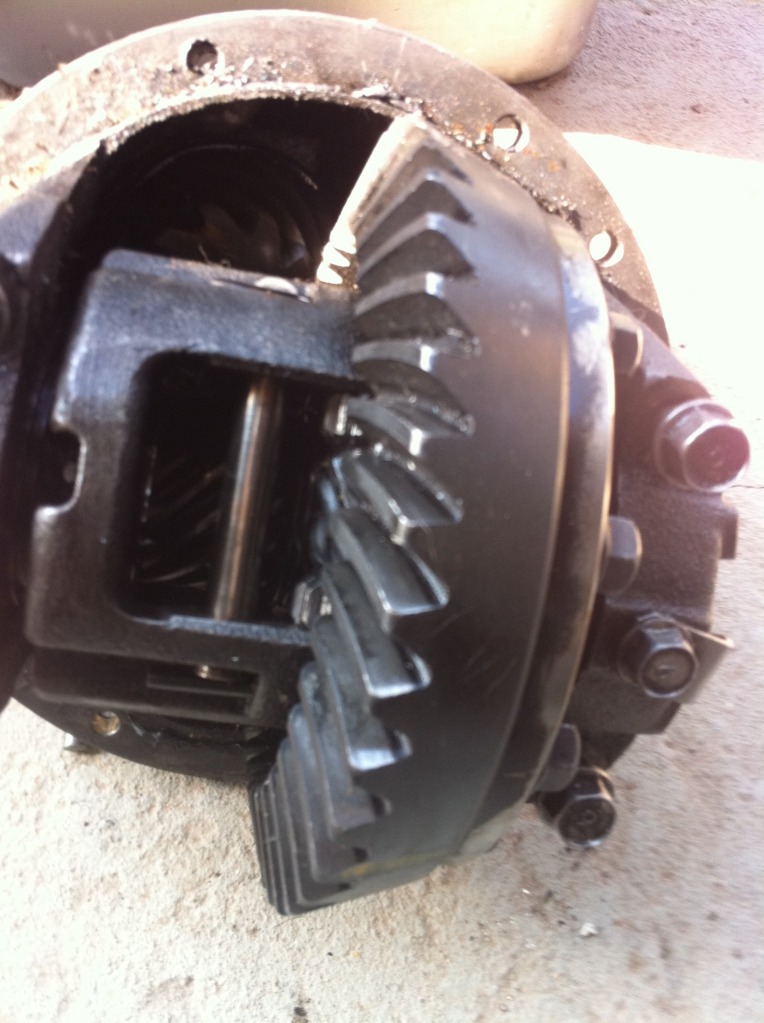

Hey guys, i have the opportunity to buy this diff for 250, and i'm pretty sure it is a torsen, but it appears to be missing half of the helical gears. Can someone confirm that there are missing parts and that is a torsen? I also have pictures straight through the axle, with no bar. Would it be worth 250 to pick this up, or is it worthless because its missing parts?



Thanks
Attached Thumbnails
Help me identify a torsen-53e948d4.jpg
wittyworks is offline   Reply With Quote
Old 10-27-2011, 06:07 PM   #2
Elite Member
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

It looks like a Torsen with missing parts. Because of the missing parts, I'd pass on it.
MartinezA92 is offline   Reply With Quote
Old 10-28-2011, 02:20 PM   #3
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Looks like an open diff to me.
dustinb is offline   Reply With Quote
Old 10-28-2011, 02:31 PM   #4
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

$250 for a broken diff? Pass,
Bond is offline   Reply With Quote
Old 10-28-2011, 02:45 PM   #5
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

looks like an open diff to me too.
rharris19 is offline   Reply With Quote
Old 10-28-2011, 05:15 PM   #6
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Open
jacob300zx is offline   Reply With Quote
Old 10-29-2011, 09:08 PM   #7
Newb

Join Date: Oct 2010
Posts: 16
Total Cats: 1
Default

100% is a torsen. It's an incomplete one though. Don't buy it. There's a reason it's taken apart and whatever that reason is, it is not worth $250 to find out.
sakana is offline   Reply With Quote
Old 10-29-2011, 09:38 PM   #8
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by sakana View Post
100% is a torsen. It's an incomplete one though. Don't buy it. There's a reason it's taken apart and whatever that reason is, it is not worth $250 to find out.
You have no idea what you are talking about.
dustinb is offline   Reply With Quote
Old 10-29-2011, 09:49 PM   #9
Senior Member
Thread Starter
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

From every picture I've looked at to compare it I'm pretty sure it is a torsen with gears missing from that bar in the picture. Like I said in the original post, I have several pictures straight through where the axles go, and theres no bar which indicates torsen. But I'm going to pass on it, I don't have the time or money to deal with trying to put a torsen back together.
wittyworks is offline   Reply With Quote
Old 10-29-2011, 09:59 PM   #10
Newb

Join Date: Oct 2010
Posts: 16
Total Cats: 1
Default

Quote:
Originally Posted by dustinb View Post
You have no idea what you are talking about.
go look at a picture of a T1 torsen.

Having fucked with the '07 FSAE car's T1-based diff as much as I did back in the day, I actually do know what I'm talking about.
sakana is offline   Reply With Quote
Old 10-30-2011, 10:41 AM   #11
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

I thought that bar indicated that it wasn't a Torsen.
http://www.miata.net/garage/vlsd.html

either way, this is not worth it. Torsen+missing parts or just an open diff. doesn't ****** matter, its not $250 worth of your money thats for sure.
Seefo is offline   Reply With Quote
Old 10-30-2011, 04:16 PM   #12
Newb

Join Date: Oct 2010
Posts: 16
Total Cats: 1
Default

http://www.torsen.com/products/T-1.htm

T1 torsens have 6 shafts actually. Each shaft has a combined helical/spur gear on it. The OP's diff is missing one of those helical/spur gears and that's why you can see one of the shafts.
sakana is offline   Reply With Quote
Old 10-30-2011, 04:48 PM   #13
Junior Member
iTrader: (3)

Join Date: Mar 2008
Location: Murphy, Tx
Posts: 182
Total Cats: 6
Default

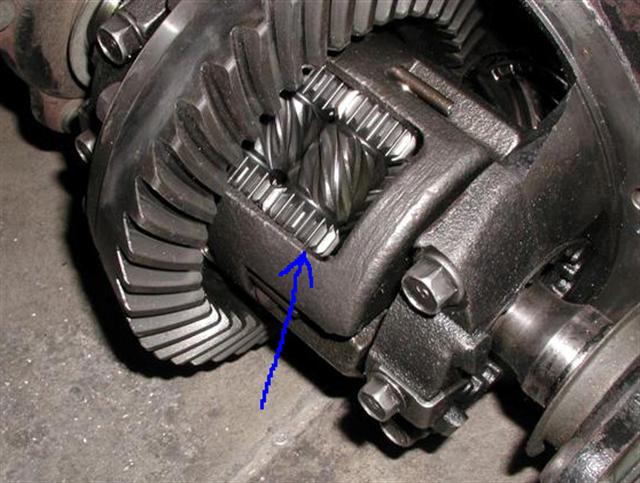

It's definitely a T1 torsen but it's missing at least one of its worm gears.
The blue arrow points to the missing piece.
It's not worth it.
Attached Thumbnails
Help me identify a torsen-02.jpg
Fidgitk is offline   Reply With Quote
Old 10-30-2011, 05:33 PM   #14
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by sakana View Post
http://www.torsen.com/products/T-1.htm

T1 torsens have 6 shafts actually. Each shaft has a combined helical/spur gear on it. The OP's diff is missing one of those helical/spur gears and that's why you can see one of the shafts.
makes perfect sense! Thanks for identifying.
Seefo is offline   Reply With Quote
