Default The Holy Grail Re-route is Realized

Sorry if this is a repost, but I thought you all might appreciate it.

ClubRoadster.net


Discuss amongst yourselves. Check out the custom water pump action there.
Newbsauce is offline   Reply With Quote
Old 03-30-2010, 12:27 PM   #2
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Do not want at all. At least he ditched a bunch of the random routings he had before.... apparently we were right in the end... because he did accept advice on his Holy Grail.
Splitime is offline   Reply With Quote
Old 03-30-2010, 12:31 PM   #3
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Dibs on the turbo blanket.
Jeff_Ciesielski is offline   Reply With Quote
Old 03-30-2010, 12:33 PM   #4
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

Quote:
Originally Posted by Newbsauce View Post
Sorry if this is a repost, but I thought you all might appreciate it.

ClubRoadster.net


Discuss amongst yourselves. Check out the custom water pump action there.
I guess I had to register over there to check it out, so I did. Now I hate you and myself, thanks.
webby459 is offline   Reply With Quote
Old 03-30-2010, 01:01 PM   #5
Elite Member
Thread Starter
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

This is becoming rag on Hyper day... he is now attempting to source a 90mm tb to accomodate his 4" i/c piping.

ClubRoadster.net
Newbsauce is offline   Reply With Quote
Old 03-30-2010, 01:09 PM   #6
Senior Member
iTrader: (5)

Join Date: Apr 2008
Location: VA
Posts: 828
Total Cats: -2
Default

Quote:
Originally Posted by Newbsauce View Post
This is becoming rag on Hyper day... he is now attempting to source a 90mm tb to accomodate his 4" i/c piping.

ClubRoadster.net
Isn't that pretty much every day?
thymer is offline   Reply With Quote
Old 03-30-2010, 03:15 PM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

lol at billy zane

y8s is offline   Reply With Quote
Old 03-30-2010, 03:26 PM   #8
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Wtf
hes poured tons of money into retarded ****

What is up with the TB and IM spacers?

And is that nitrous he has plumbed into the TB spacer?
what a ****** n00b
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-31-2010, 03:27 PM   #9
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

Ok, I finally got my CR membership and viewed the thread. Is it just me, or does this reroute either deadhead the flow entirely or reroute the water completely AROUND the head? Either way, blown engine results. What think?
webby459 is offline   Reply With Quote
Old 03-31-2010, 03:39 PM   #10
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

He basically has the stock thermostat housing in place, but it doesnt connect into the head anymore. At least thats what it looks like to me.
and then hes got that giant *** aluminum thing over the exhaust manifold, god knows what that does, but I can guarantee its an epic waste of time, money, weight, etc.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-31-2010, 03:50 PM   #11
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

He tied both ends of the head together.

Not sure why...and everything else is kinda strange, including random line from back of lower driver's side of block to mixing manifold.
gospeed81 is offline   Reply With Quote
Old 03-31-2010, 03:52 PM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
and then hes got that giant *** aluminum thing over the exhaust manifold, god knows what that does, but I can guarantee its an epic waste of time, money, weight, etc.
Looks like a laminar-flow oil cooler, positioned so as to receive the hottest coolant in the entire system.

Laminar flow Oil Cooler

Laminova water to oil cooler

A&A Performance - Oil Cooler
Joe Perez is offline   Reply With Quote
Old 03-31-2010, 04:40 PM   #13
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

I just get the biggest kick out of the coolant lines fro mthe oil cooler to the radiator that have no flow because of a little thing called no pressure difference
Doppelgänger is offline   Reply With Quote
Old 03-31-2010, 04:49 PM   #14
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by Doppelgänger View Post
I just get the biggest kick out of the coolant lines fro mthe oil cooler to the radiator that have no flow because of a little thing called no pressure difference
Oh wow...and I do mean wow.

Missed that on the installed pics.
gospeed81 is offline   Reply With Quote
Old 03-31-2010, 04:52 PM   #15
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Quote:
Originally Posted by y8s View Post
lol at billy zane

i lol'd too
leatherface24 is offline   Reply With Quote
Old 03-31-2010, 05:58 PM   #16
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Quote:
Originally Posted by Doppelgänger View Post
I just get the biggest kick out of the coolant lines fro mthe oil cooler to the radiator that have no flow because of a little thing called no pressure difference
Are we sure about that?

Consider the design schematically:



Q: Which one of the two paths through the engine has zero flow?

A: Neither. They both have flow equal to 1/2 of the total flow.

Ok, this is a simplified illustration. Both of those paths have some restriction in them. The question then becomes, is the restriction greater across one than the other?

The biggest restriction is probably the head gasket. The holes in it are pretty small, compared to the passages in the head. The block itself is not much of a restriction, even though it does make the path longer.

I'm pretty sure that water follows the same basic rules as electricity in a parallel resistance circuit. Namely, that the current flow across any one resistor is a fractional multiple of the total current in the circuit and that resistor's value relative to the value of the other resistor.

If you have 1 amp total coming out of the pump, and two resistors which are, respectively, 5 ohms and 10 ohms, you'll get 666ma going through the 5 ohms part, and 333ma going through the 10 ohm part.


I hate fluids...
Joe Perez is offline   Reply With Quote
Old 03-31-2010, 06:23 PM   #17
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

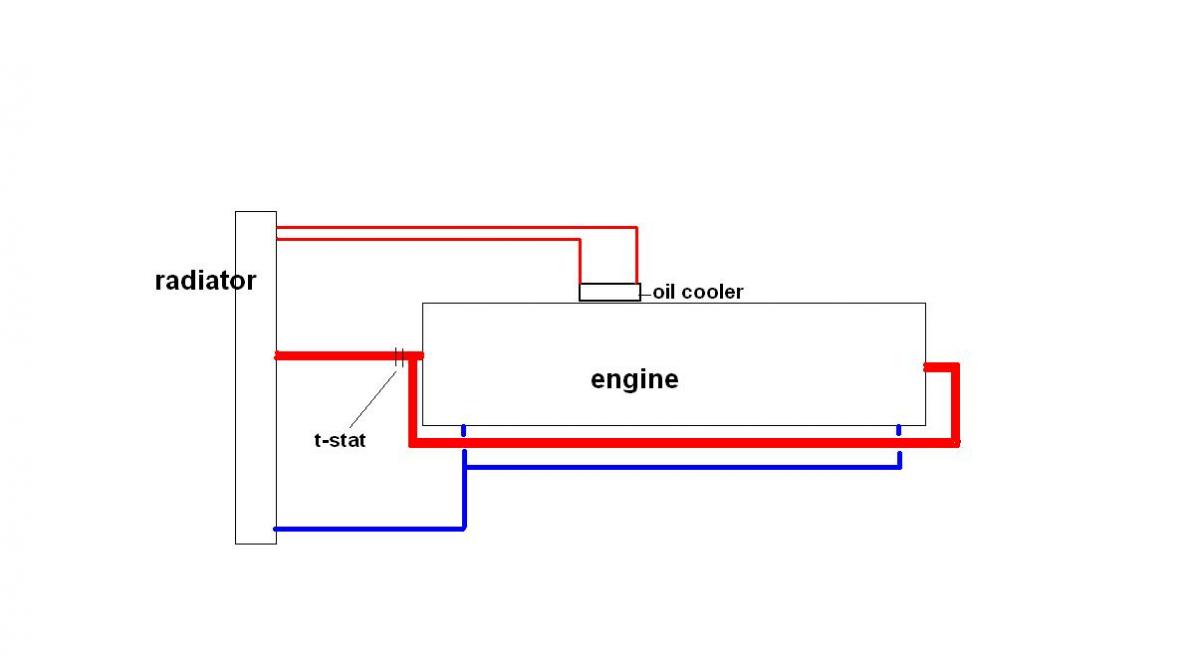

As far as I can tell, this is how he has everything routed.... so Joe, how does flow work with the oil cooler in this situation?
Attached Thumbnails
The Holy Grail Re-route is Realized-hyperized.jpg
Doppelgänger is offline   Reply With Quote
Old 03-31-2010, 07:03 PM   #18
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

Quote:
Originally Posted by Doppelgänger View Post
As far as I can tell, this is how he has everything routed.... so Joe, how does flow work with the oil cooler in this situation?
I think those lines actually have oil in them going to an oil cooler that he must have incorporated right next to the radiator, sort of like FM's twin cooler or whatever they called it. In one of the pics you can see how the top header tank of the radiator is divided right where those lines go.

I am still unsure how that oil/water cooler sitting on top of the valve cover comes into play, if that's in fact what it even is as I didn't see any oil lines going to it.

Oh, he went all out and is using those one time use heat-shrink hose clamp thingies.

--Ferdi
ftjandra is offline   Reply With Quote
Old 03-31-2010, 07:22 PM   #19
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Well, if indeed there is oil in there.....
But in the pics, I don't see any provision for oil lines coming from the oil cooler...i.e. a sandwich plate.

What's up with the oil lines (?) and the t-fitting and junk up in the driver's corner area?
Doppelgänger is offline   Reply With Quote
Old 03-31-2010, 07:41 PM   #20
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

He's using a laminova oil cooler, as Joe has already mentioned. This in and of itself isn't a bad idea. I've noodled with the idea of using one. On a standard re-route, replacing the straight hose from the rear of the head to the radiator with an inline laminova oil cooler would provide very effective oil cooling without requiring any frontal airflow real estate. Downside is that oil warmup would be slightly longer since the oil will be losing heat into that cooler until the thermostat opens and 190 coolant starts flowing through it.


But ... someone explain to me how there is any significant coolant flow through that oil cooler ? One end connects to the back of the head. The other end connects to the front of the head.

One end connects to the back of the head and one end connects to the front of the head. ??

If the thermostat is in the front of the head ... I don't see how it's effective.

If the thermostat is in the back of the head ... why does it plumb into the front water neck? Why doesn't he just run that directly into the radiator?


Edit: Looking at the very first picture, is there a coolant passage there into the head? Or is that just a plumbing fixture in front of a blockoff plate? I can't tell. If flow into the head is blocked off there, then this actually makes sense to me. The thermostat's in the back, the oil-to-coolant heat exchanger routes to this, and from this to the radiator. Kind of convoluted, but it keeps the radiator hoses manageable and solidly mounted. No weird Z-bend in front of the motor to flex around and stuff.
