Default Hood Pins! Need advice

My hoods rattles and its really becoming annoying. So i am thinking about getting some hood pins. Not sure which to get and how to actually install them without f-ing up the paint.

Can someone give me an advice to how best to install them.

Pictures of miata hoods with pins would be nice.


Thanks, Taras
Rushin is offline   Reply With Quote
Old 06-14-2009, 11:27 PM   #2
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

When I first put my FM hood on I had issues with it flopping about on the highway. I actually thought it was going to fly off one day! lol

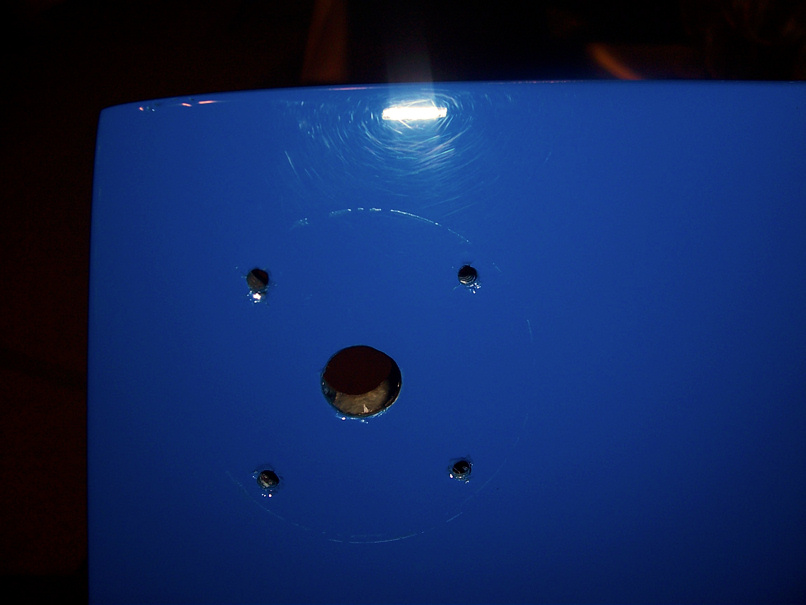

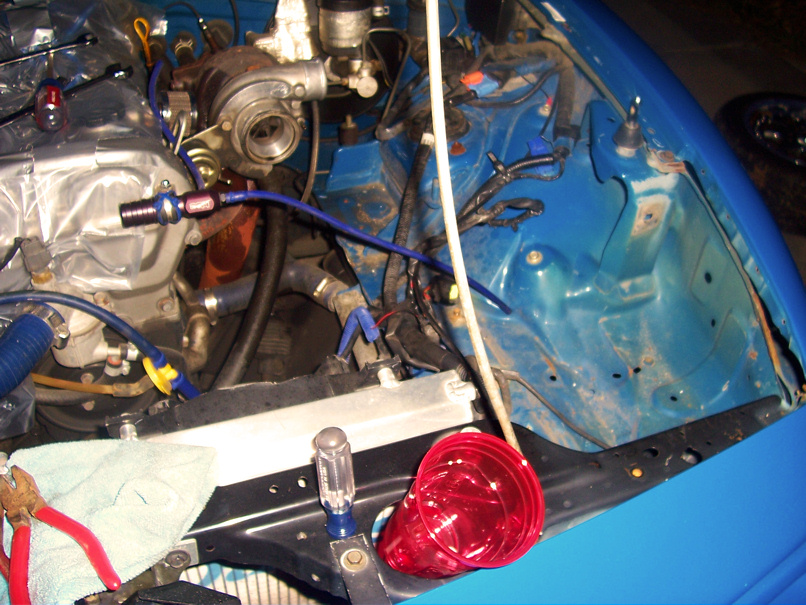

I used regular "Sparco" like hood pins. I used an existing hole on the fender to bolt the pin itself to and then just drilled accordingly in through the hood.

Now for my Autokonexion hood I have a set of Aerocatch hood pins and they look like they are going to be a bitch to do.
Attached Thumbnails
Hood Pins! Need advice-pins01.jpg   Hood Pins! Need advice-pins02.jpg
Vashthestampede is offline   Reply With Quote
Old 06-14-2009, 11:31 PM   #3
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

yeah i was thinking about Aerocatch but they look like a ton of work. Can you take a pic of where you mounted the pins?
Rushin is offline   Reply With Quote
Old 06-14-2009, 11:33 PM   #4
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

I made my own,and let my dad put them in.Bad mistake,he fucked up my paint.I would use a UnibitTo drill the hood and would put masking tape on the spot first.
-G-
Reverend Greg is offline   Reply With Quote
Old 06-14-2009, 11:39 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

They're a bitch, I don't see why anyone would use them on the street. I bought some generic $20 ones which included rivets from summit racing I think. The rivet holes are easy, as they're just 1/8" holes, for the actual pin, which was oval for mine, I drill two holes side by side and enlarged them as necessary to make them fit. Any paint that you F up should be covered by the plate. G'luck.
curly is offline   Reply With Quote
Old 06-14-2009, 11:41 PM   #6
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by Rushin View Post
yeah i was thinking about Aerocatch but they look like a ton of work. Can you take a pic of where you mounted the pins?
The pics I have with the Sparco type pins are old, I took them out of the FM hood before I sold it. And I have yet to attack the Aerocatch pins, I'm thinking that I'll probably just have my bodyshop guy do it, seeing he still has the car.

I was planning on putting the Areocatch ones either in the same spot I had the old ones, (see pics above) or on the sides of the headlights right in the front of the hood. Then use the front radiator support to mount the pins to.
Vashthestampede is offline   Reply With Quote
Old 06-15-2009, 10:52 PM   #7
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

You should ask newbsauce for some advice on hood pins. The dyno day I went to in NOVA was quite memorable due to his pins.
KPLAFIN is offline   Reply With Quote
Old 06-16-2009, 01:06 AM   #8
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

The snowboarder has some aerocatches IIRC and likes them as far as I know.
kotomile is offline   Reply With Quote
Old 06-16-2009, 01:58 AM   #9
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

I've installed a couple of aerocatches, and they're wicked. They come with or without locks, quick to operate, and latch the hood down really tight. They aren't really any harder to do then a regular hood pin. You still mount the pin like the other ones, and you are given a template to cut out your hood to fit the aerocatch.

dustinb is offline   Reply With Quote
Old 06-16-2009, 02:00 AM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I guess I probably need to get pins for my fm hood too...that could be a bad day.
hustler is offline   Reply With Quote
Old 06-16-2009, 02:18 AM   #11
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

i think i am going to stick with regular style pins
Rushin is offline   Reply With Quote
Old 06-16-2009, 10:30 AM   #12
G2B
Newb

Join Date: May 2008
Location: Greater Seattle Area
Posts: 27
Total Cats: 0
Default

Aerocatches FTW! spendy but worth every dime. clean look, smooth operation if your going pins i'd go that route.
G2B is offline   Reply With Quote
Old 06-16-2009, 01:05 PM   #13
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,687
Total Cats: 560
Default

If you're just looking to eliminate rattles, why not just adjust it? It may need new bumpers, but those should be dirt cheap and easily found used.
rleete is offline   Reply With Quote
Old 06-16-2009, 01:44 PM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Make sure the pins themselves are not cast pieces. They can crack. It happened to me going through a turn at a high rate of speed.
m2cupcar is offline   Reply With Quote
Old 06-16-2009, 01:46 PM   #15
Elite Member
iTrader: (5)

Join Date: Jan 2007
Location: Freehold, NJ
Posts: 1,577
Total Cats: -2
Default

i have aerocatch pins and love em
disturbedfan121 is offline   Reply With Quote
Old 06-16-2009, 01:58 PM   #16
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Hey those are cool! I was looking for a way to get rid of the hood latch and I like those a lot, much nicer looking than regular hood pins, and lockable. ~$100 with shipping on EBay.
ZX-Tex is offline   Reply With Quote
Old 06-16-2009, 03:17 PM   #17
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

If your getting Aerocatch, get the real ****, not the ebay knock offs. I can tell you first hand the ebay knock off ones fail to close, have rusting hardware, and just generally fail.
Newbsauce is offline   Reply With Quote
Old 06-16-2009, 03:48 PM   #18
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

The ones I looked at were not knockoffs, but the real thing, or at least advertised as such.
Aerocatch Locking hood latch pin flush mount Lock:eBay Motors (item 370215840023 end time Jun-25-09 10:36:54 PDT)

I agree about not taking a chance on a hood latch. Too much of a safety issue, and too much damage potential. If you have never had a rear-hinged hood come open on you at speed, trust me, it sucks very much, and it happens FAST.
ZX-Tex is offline   Reply With Quote
Old 06-16-2009, 05:20 PM   #19
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Quote:
Originally Posted by ZX-Tex View Post
The ones I looked at were not knockoffs, but the real thing, or at least advertised as such.
Aerocatch Locking hood latch pin flush mount Lock:eBay Motors (item 370215840023 end time Jun-25-09 10:36:54 PDT)

I agree about not taking a chance on a hood latch. Too much of a safety issue, and too much damage potential. If you have never had a rear-hinged hood come open on you at speed, trust me, it sucks very much, and it happens FAST.
I've had that experience. The knock off aerocatches failed.
Newbsauce is offline   Reply With Quote
Old 06-16-2009, 10:19 PM   #20
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Quote:
Originally Posted by Newbsauce View Post
I've had that experience. The knock off aerocatches failed.
Quote:
Originally Posted by Newbsauce View Post
If your getting Aerocatch, get the real ****, not the ebay knock offs. I can tell you first hand the ebay knock off ones fail to close, have rusting hardware, and just generally fail.
Quote:
Originally Posted by KPLAFIN View Post
You should ask newbsauce for some advice on hood pins. The dyno day I went to in NOVA was quite memorable due to his pins.
He speaks the truth..I know.
KPLAFIN is offline   Reply With Quote
