Default How do YOU mount your racing harness

I need ideas. I want to use the stock seatbelt mounting points for the lap belt, but I want to keep the stock belt for daily use as well. I may end up fabricating some sort of mounting tab. Also I need to figure out the best way to use a sub belt with the stock seat.

Strangely enough, the stock lap belt mount is a 7/16-20 x 1-1/2" bolt. I don't know why these four bolts on the car would be SAE while the rest of the car is metric.
bryanlow is offline   Reply With Quote
Old 05-07-2009, 03:46 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I just put my passenger side harness in this morning. I wrap at the harness bar and then use the stock lap-belt hardware with several washers removed. I haven't done the nutstraps yet but its going to be a hasp with a bolt through the floor.

Use google if you have questions about wrapping because its too difficult to type out here.
hustler is offline   Reply With Quote
Old 05-07-2009, 04:56 PM   #3
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

+1 on the wrappinp: check instructions. You dont want to do that wrong.
Mine are mounted using the OEM point too (lap) and the nut straps are on the front mounting points of the seat.
Laur3ns is offline   Reply With Quote
Old 05-07-2009, 05:15 PM   #4
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Ive got mine wraped on the harness bar of my roll bar. Side belts are using the stock bolts, and for my nut straps i drilled through the floor board and used a backing plate.

Bryan, you can swing by my place and check it all out if you like.
thesnowboarder is offline   Reply With Quote
Old 05-07-2009, 05:43 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by thesnowboarder View Post
Ive got mine wraped on the harness bar of my roll bar. Side belts are using the stock bolts, and for my nut straps i drilled through the floor board and used a backing plate.

Bryan, you can swing by my place and check it all out if you like.
lol at swinging from your nutstrap.

What do you guys to do clean the nut-strap because mine have a remarkable odor.
hustler is offline   Reply With Quote
Old 05-07-2009, 05:45 PM   #6
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by hustler View Post

What do you guys to do clean the nut-strap because mine have a remarkable odor.
Do they happen to smell like 1990miata1.6's chin?
gospeed81 is offline   Reply With Quote
Old 05-07-2009, 05:46 PM   #7
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Sounds like you want to keep the stock belts in place and also use a racing harness without having to swap back and forth. I don't know if there are any strong enough but you could look for a 7/16 20 shoulder eye bolt. Something in a high strength forged alloy. That way you could keep the stock belts in place and use snap ring ends on the harness.



With a stock seat the nut strap is tough. You can't really come up through the seat without cutting holes and lining it. I've seen Corvette guys come up over the front of the seat with the anti sub. Not the safest but better than nothing. Fab a 1/4 x 1 1/2" steel bar that you can bolt to the two bolts holding the front of the seat. You can then wrap the strap around that bar or again, use an eye bolt in the middle of it and snap end the sub.

Last edited by cueball1; 05-07-2009 at 05:57 PM.
cueball1 is offline   Reply With Quote
Old 05-07-2009, 05:47 PM   #8
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by hustler View Post
What do you guys to do clean the nut-strap because mine have a remarkable odor.
We buy ours new and shower daily so dont have that issue...
Laur3ns is offline   Reply With Quote
Old 05-07-2009, 05:47 PM   #9
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

On topic:


I got a harness bar (from OP actually) and am shopping for harness. Some of the one's I've seen (cheap) have mounting plates on the ends of the shoulder straps.

Can I just bolt those into the harness bar?

Should I be looking for ones that just wrap around the bar?

I'm new to the safety equipment, but want to do it right...
gospeed81 is offline   Reply With Quote
Old 05-07-2009, 05:52 PM   #10
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by hustler View Post
lol at swinging from your nutstrap.

What do you guys to do clean the nut-strap because mine have a remarkable odor.


lol, mine are still like new. The nut strap only goes on for track events. Otherwise i just sit on it. We also dont have 100+ days everyday here in CA. I also dont DD my miata either so im sure that helps.
thesnowboarder is offline   Reply With Quote
Old 05-07-2009, 05:53 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Hasps/tabs and wrapping at the bar are equally safe. I tuck my straps behind the seats when not at the track.

Do yourself a favor and get 3" cam-lock versions because its worth it in the long-run. I bought simpson because they have a really nice cam-lock, for the money.

You're going to love them on the track.
hustler is offline   Reply With Quote
Old 05-07-2009, 05:56 PM   #12
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Why are cam-locks so much better. Just by looking I almost prefer the latch locks.
gospeed81 is offline   Reply With Quote
Old 05-07-2009, 06:00 PM   #13
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by hustler View Post
What do you guys to do clean the nut-strap because mine have a remarkable odor.

Might help to wear underwear when you race in a skirt.


Cam locks are the way to go if you aren't incredibly cheap. Cam takes 5 seconds to latch everything. Not much thought involved. Latch just takes longer and more thinking. Both are safe, cam is just a lot easier and quicker to use. You can get RCI, G-force, Corbeau, etc. camlocks for around $130. About the same price as latch/link sets from higher end companies like Simpson. If you don't care about convenience latch link sets from those same companies are more like $70.


Edit: oh yeah. Dont' bolt to the harness bar. Just wrap it. The cheaper harness sets all can be done with wrap options. Don't know of any brand that only makes bolt it for the shoulders.

Last edited by cueball1; 05-07-2009 at 06:16 PM.
cueball1 is offline   Reply With Quote
Old 05-07-2009, 06:06 PM   #14
Senior Member

Join Date: Sep 2007
Location: Alamo City, Tejas
Posts: 774
Total Cats: 1
Default

+1 on wrapping for the shoulder belts.

+1 on the cam-locks.

+1 on the snap rings.

The Willans harness kit replaces the stock seat belt bolts with eye-bolts. Then I used eye-bolts with washers on top, backing plate at the bottom for the T-subs. Hit it with a touch of undercoating or other sealant for good measure. (Both due to the snap rings...)

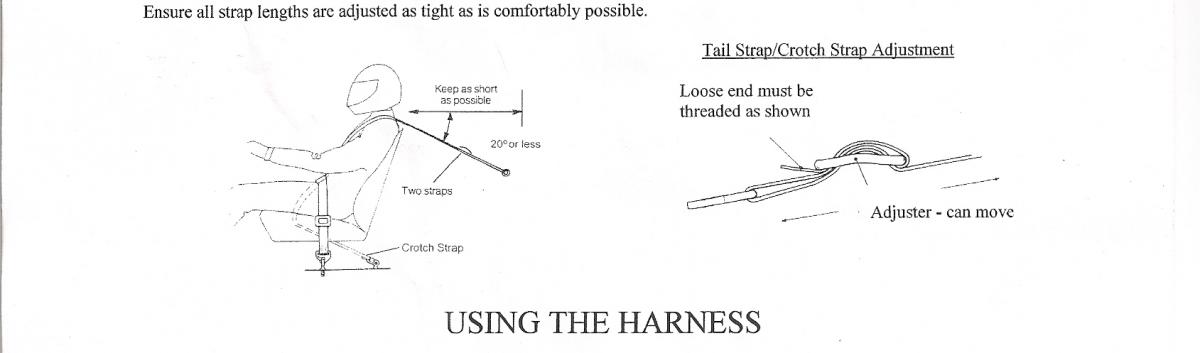

Here's how Willans wants you to wrap the harness:
Attached Thumbnails
How do YOU mount your racing harness-shoulder-harness-how-.jpg
l_bader is offline   Reply With Quote
Old 05-07-2009, 06:40 PM   #15
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: SF Bay Area
Posts: 291
Total Cats: 0
Default

I guess RTFM would be in order. Looks like I need to order up some of these:



I'm gonna get rid of my single point sub belt and get a double. IMO the rear seat mounting bolts are the best mounting spot, although it's clearly discouraged by Schroth:

LOL. Oh well, I suppose it's better than a 4-point.

Quote:
Originally Posted by thesnowboarder View Post
Bryan, you can swing by my place and check it all out if you like.
Thanks Nick, I'll take you up on that when I get my **** together.

Quote:
Originally Posted by gospeed81 View Post
Should I be looking for ones that just wrap around the bar?
Damon, don't get the shoulder straps with mounting plates. With that bar you'll want shoulder belts that wrap the bar.
bryanlow is offline   Reply With Quote
Old 05-07-2009, 06:47 PM   #16
Senior Member
iTrader: (15)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Quote:
Originally Posted by gospeed81 View Post
Why are cam-locks so much better. Just by looking I almost prefer the latch locks.
I had a latch-type harness before I bought my Simpson camlock harnesses. The latch works great, but it takes longer to strap yourself in. The camlock is nice because you can attach the belts one at a time.
99mx5 is offline   Reply With Quote
Old 05-07-2009, 07:23 PM   #17
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

with latch-locking you have to put all 4 or 5 harness hasps in, in order, then flip the latch over. With cam lock you just stab stab stab and go. Its also half the size.
hustler is offline   Reply With Quote
Old 05-07-2009, 07:52 PM   #18
Senior Member

Join Date: Nov 2005
Location: Austin, TX yall
Posts: 849
Total Cats: 0
Default

I'm also researching harness mounting; the best info is via Schroth:
http://www.schrothracing.com/sdocs/2...structions.pdf
Schroth Racing Harnesses

When mounting a 6 pointer, are you supposed to be sitting on the sub-belts or do they go straight down with two seperate mounting points on the floor? It's hard to tell in the above mentioned PDF.

Chris
Miatamaniac92 is offline   Reply With Quote
Old 05-07-2009, 08:41 PM   #19
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: SF Bay Area
Posts: 291
Total Cats: 0
Default

You should not be sitting on the belts. They should be routed to a mounting point 20deg rear of your groin.
bryanlow is offline   Reply With Quote
Old 05-07-2009, 08:48 PM   #20
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Simpsons diagram of 6 pt install.



There are several types of 6pt systems. The ones you sit on that wrap around under your leg and mounts with the lap belts are the Formula style harnesses. They are used in cockpit style formula cars where you have no option to come up through the seat. More common are ones that mount under the seat like the simpson shows. They would come up through the hole in the seat just as a 5 pt would.
