Old 10-05-2010, 11:03 PM   #21
Senior Member

Join Date: Aug 2010
Location: San Luis Obispo, CA
Posts: 505
Total Cats: 0
Default

:wtf: Came out of a known working car?
scottyd is offline   Reply With Quote
Old 10-05-2010, 11:17 PM   #22
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

I think its my wiring, The previous owner had a 1.8 and extended the coil pack loom and i think one of the solders broke or some ****.
SKMetalworks is offline   Reply With Quote
Old 10-05-2010, 11:18 PM   #23
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by scottyd View Post
:wtf: Came out of a known working car?
Yes it came out of a known working car.
SKMetalworks is offline   Reply With Quote
Old 10-05-2010, 11:29 PM   #24
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by SKMetalworks View Post
Changed the coil pack just to make sure and still same symptoms.
When you say you changed the coil pack, did you just unplug it and plug a new SET in, or did you swap individual coils? Plug the one that's firing into the wiring for the one that's not. If it doesn't work it's almost certainly the extended wiring, as you've replaced everything else. Or just tear apart the wiring and check it.
curly is offline   Reply With Quote
Old 10-05-2010, 11:48 PM   #25
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by SKMetalworks View Post
I think its my wiring, The previous owner had a 1.8 and extended the coil pack loom and i think one of the solders broke or some ****.
I said a while back to hook up a multimeter on continuity and check all the wires going back to the ECU. Will be a PITA but will figure out if it is wiring.
shuiend is offline   Reply With Quote
Old 10-05-2010, 11:55 PM   #26
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by curly View Post
When you say you changed the coil pack, did you just unplug it and plug a new SET in, or did you swap individual coils? Plug the one that's firing into the wiring for the one that's not. If it doesn't work it's almost certainly the extended wiring, as you've replaced everything else. Or just tear apart the wiring and check it.
Yes

Will do, Ill check that in a bit.
SKMetalworks is offline   Reply With Quote
Old 10-06-2010, 12:50 AM   #27
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Just flipped the wires in the coil and now 1 and 4 fire (which is still 2 and 3 but in a different coil) and 2 and 3 don't. So its my wiring i believe. I'm going to cut apart the solder joints and see if there's any cracks in the solder.
SKMetalworks is offline   Reply With Quote
Old 10-06-2010, 02:05 AM   #28
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

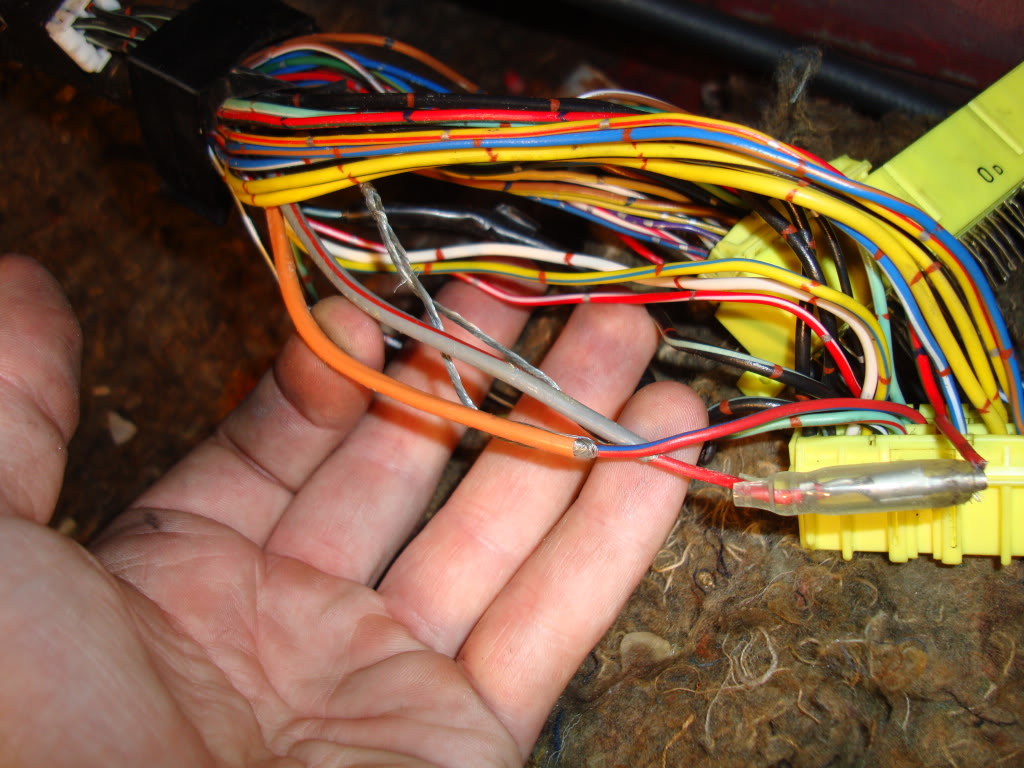

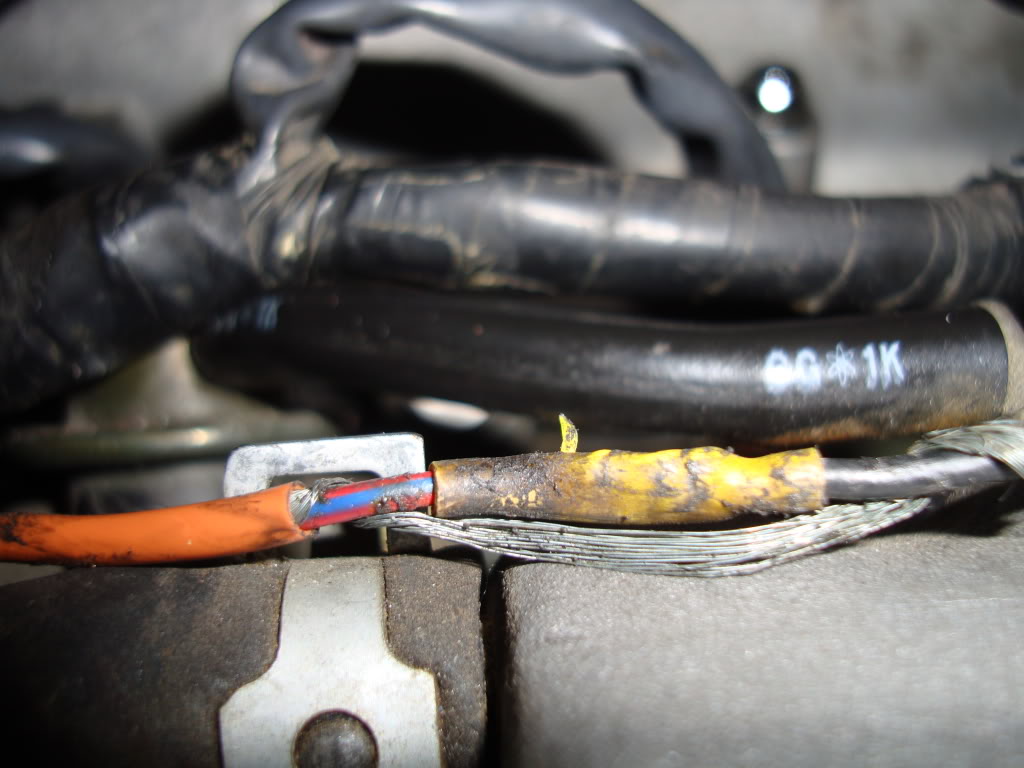

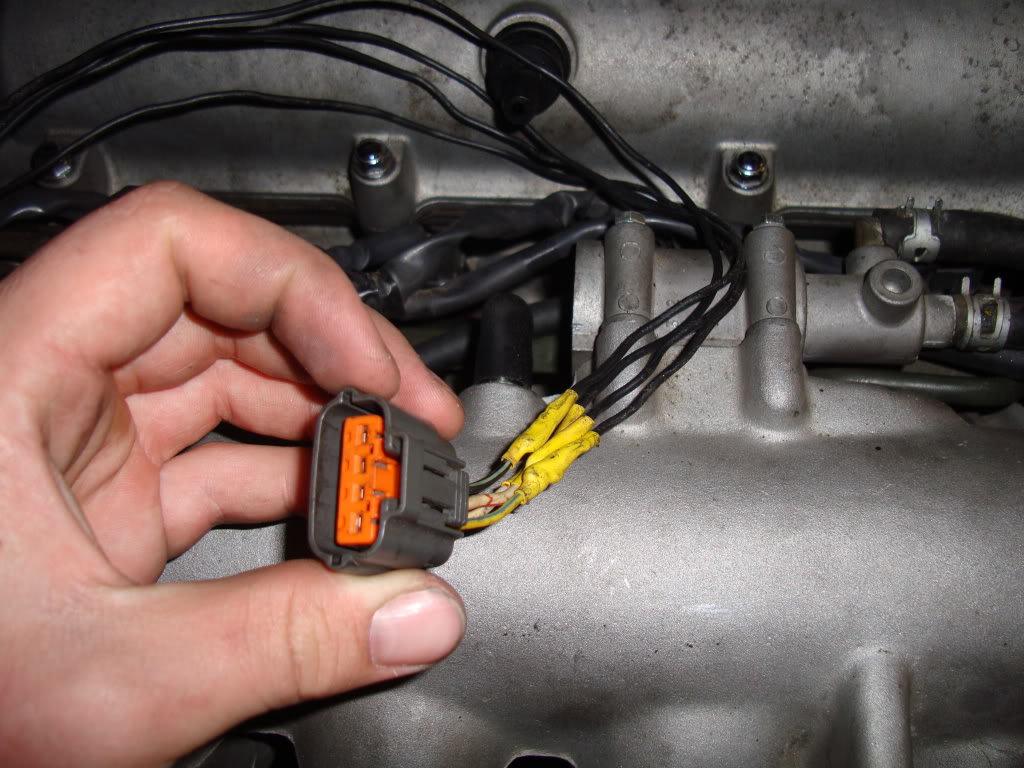

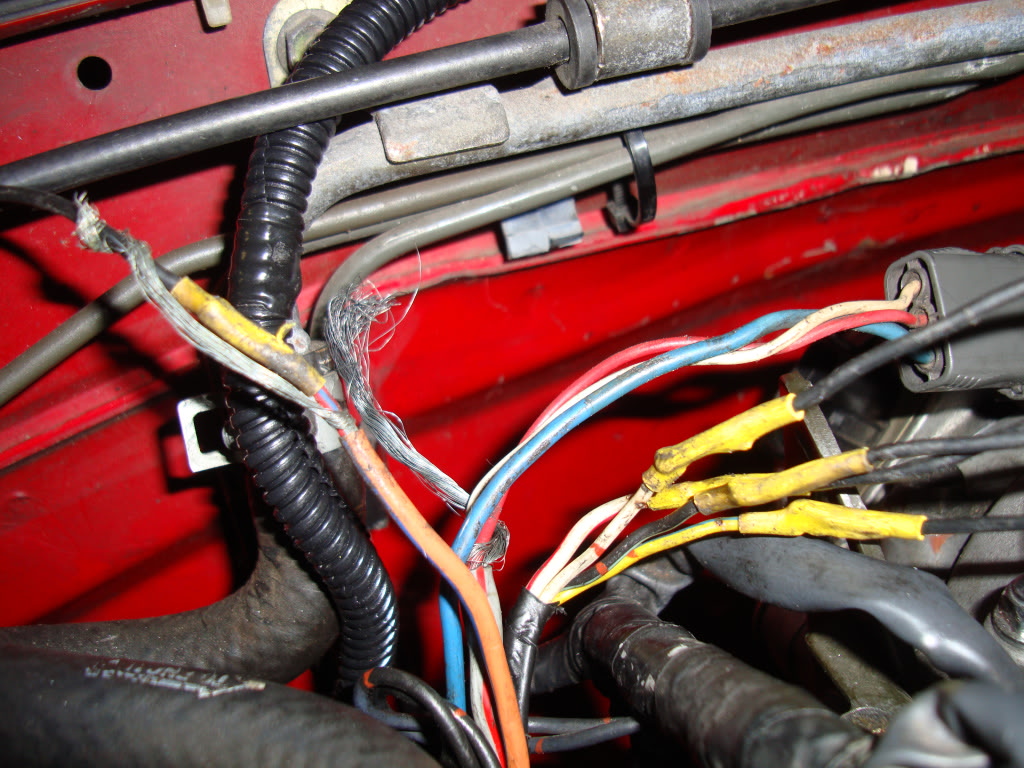

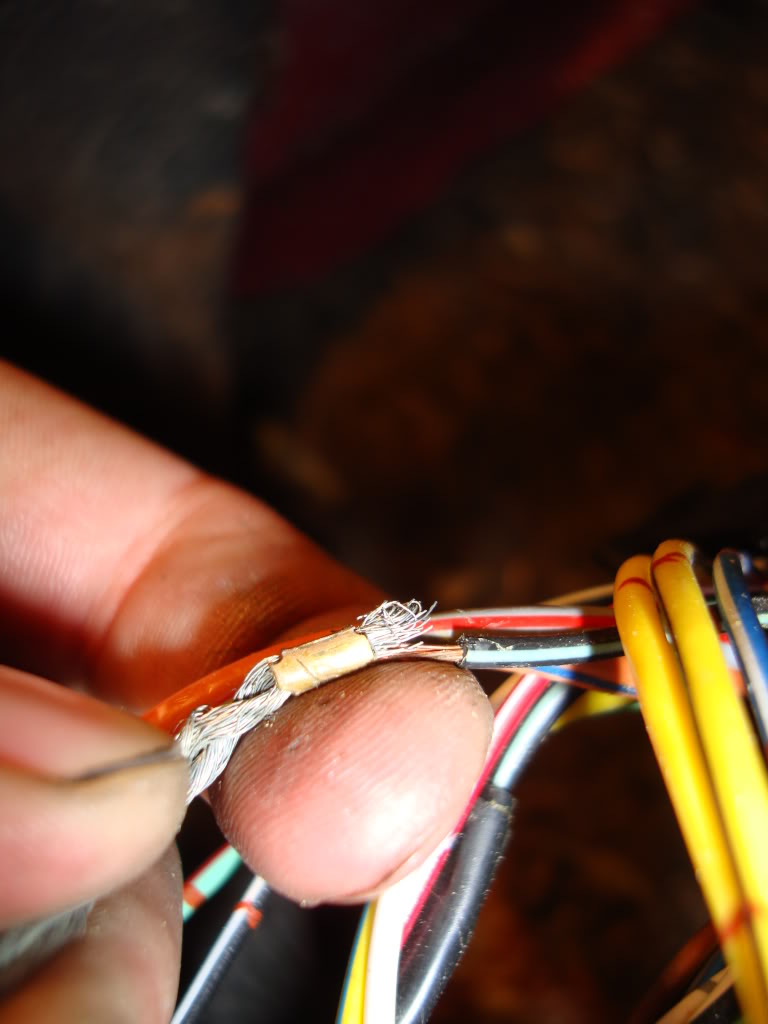

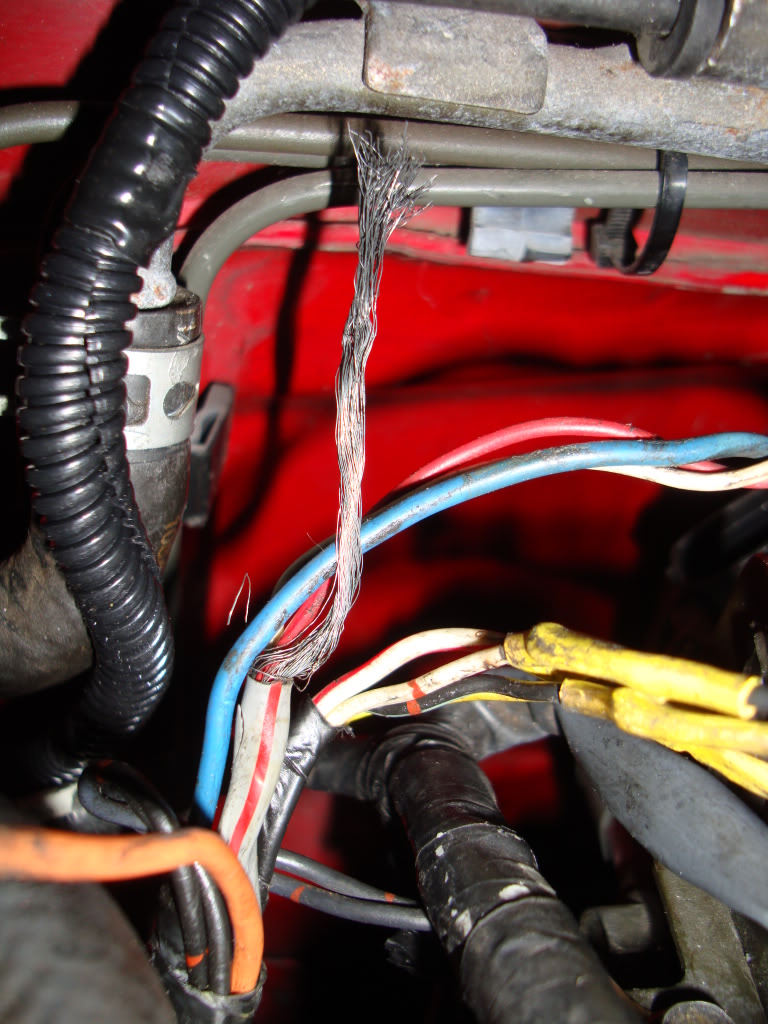

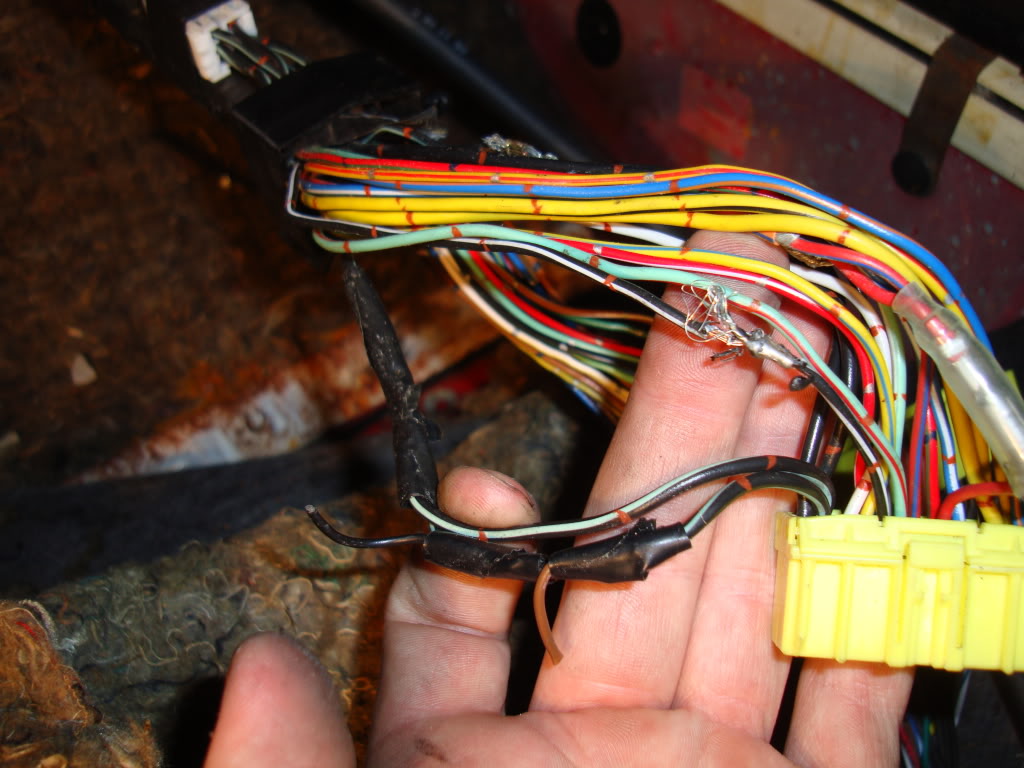

Here's the hack job i wound up with,

Name:  Miataforsellandwiring024.jpg
Views: 0
Size:  144.1 KB

Name:  Miataforsellandwiring025.jpg
Views: 0
Size:  218.6 KB

Name:  Miataforsellandwiring026.jpg
Views: 0
Size:  96.4 KB

Name:  Miataforsellandwiring027.jpg
Views: 0
Size:  187.9 KB

Name:  Miataforsellandwiring028.jpg
Views: 0
Size:  136.1 KB

Name:  Miataforsellandwiring029.jpg
Views: 0
Size:  201.5 KB

Name:  Miataforsellandwiring030.jpg
Views: 0
Size:  72.5 KB

Cant wait for this to be over.
SKMetalworks is offline   Reply With Quote
Old 10-06-2010, 02:08 AM   #29
Senior Member

Join Date: Aug 2010
Location: San Luis Obispo, CA
Posts: 505
Total Cats: 0
Default

That looks gorgeous.

By chance did the PO have a white cane with a red tip on it?
Or maybe a doggy with a harness on it?

edit://I thought only cheap bastards with Volvos did that...
scottyd is offline   Reply With Quote
Old 10-06-2010, 02:17 AM   #30
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

holly **** this guy makes my wiring skills look awesome that sucks man but atleast you found the problem.
magnamx-5 is offline   Reply With Quote
Old 10-06-2010, 04:25 AM   #31
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Is it over? I see a bunch of pictures of crappy wiring, but no broken wires/solder.
curly is offline   Reply With Quote
Old 10-06-2010, 08:24 AM   #32
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Didn't have time, i gotta go to work early.
SKMetalworks is offline   Reply With Quote
Old 10-06-2010, 12:25 PM   #33
Newb

Join Date: Sep 2009
Location: Renton
Posts: 32
Total Cats: 0
Default

I have a wiring harness out of my 90 if you need it. Let me know.
90GTK450 is offline   Reply With Quote
Old 10-06-2010, 12:37 PM   #34
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by 90GTK450 View Post
I have a wiring harness out of my 90 if you need it. Let me know.
I may take you up on that, Saturday jeffs comin over and if we can't figure it out I'm gonna pull it out.
SKMetalworks is offline   Reply With Quote
Old 10-06-2010, 12:43 PM   #35
Newb

Join Date: Sep 2009
Location: Renton
Posts: 32
Total Cats: 0
Default

I think I tried to give it to you a long time ago, but no you didn't want it. Now if it is the wiring harness. All I have to say is you TARD.
90GTK450 is offline   Reply With Quote
Old 10-06-2010, 12:44 PM   #36
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Or you could, you know, take the harness and save me a headache . I'm going to bring my stim to make sure that your MS is firing correctly. While your wiring is totally fucked, I still want to make sure everything is A-OK with the MS and harness.
Jeff_Ciesielski is offline   Reply With Quote
Old 10-06-2010, 03:26 PM   #37
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
Or you could, you know, take the harness and save me a headache . I'm going to bring my stim to make sure that your MS is firing correctly. While your wiring is totally fucked, I still want to make sure everything is A-OK with the MS and harness.
How long does it take to pull out and put in a harness?
SKMetalworks is offline   Reply With Quote
Old 10-06-2010, 07:58 PM   #38
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

as long as it takes you to gut the car and reassemble it.
dash and all.
shlammed is offline   Reply With Quote
Old 10-10-2010, 01:11 AM   #39
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Fixed it, ecu was set on stim wheel and couple of solder joints broke.
SKMetalworks is offline   Reply With Quote
