if any one needs any info about there miata or any car just let me know i have alldata acount that tells me every thing your car makers has or can get for in specs and every thing els so just ask and ill email it to you. so the system



ECU wiring diagram of a 01. motor torque specifications



here is what aldata had for the ecu wiring



What engine TQ specs you want?



valve cover

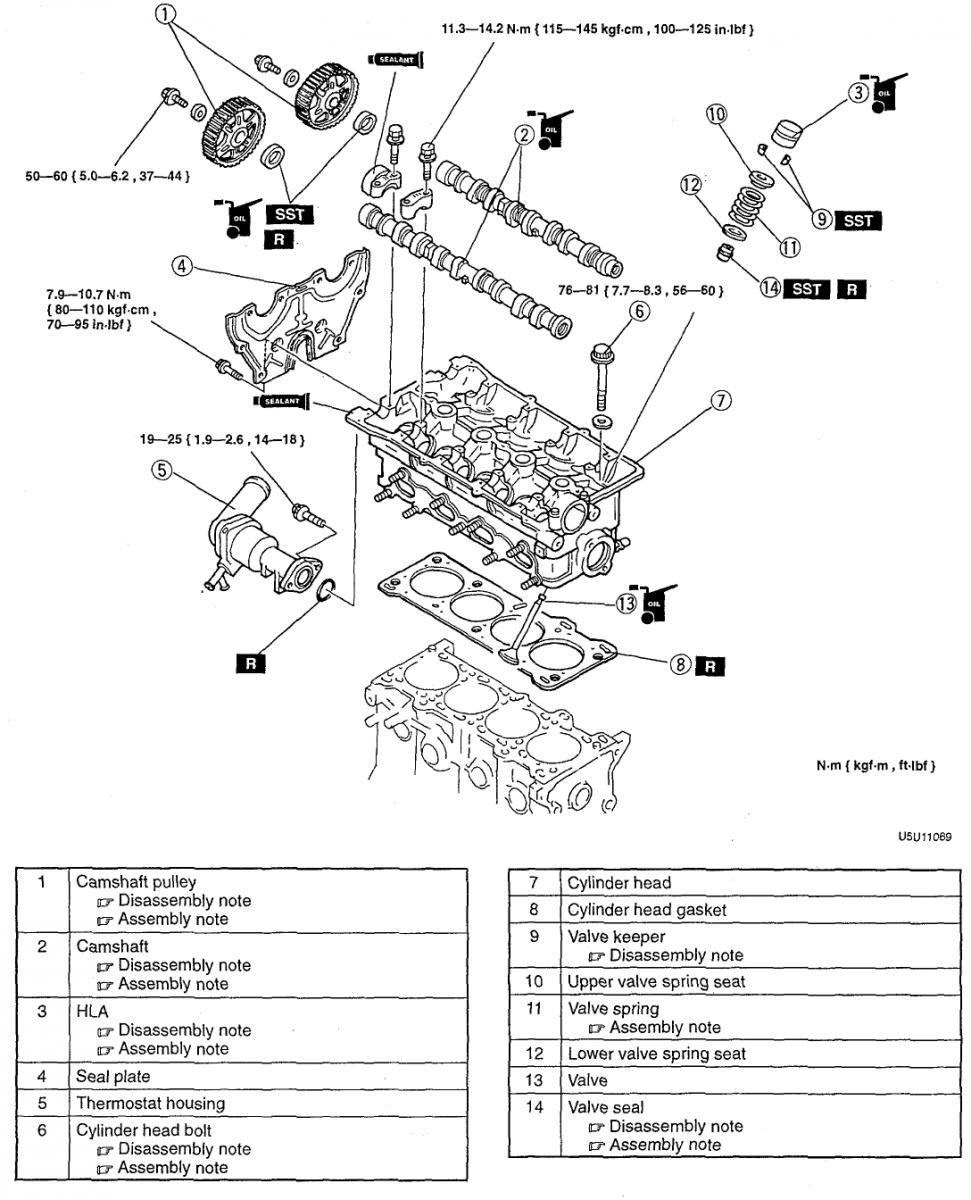

head
intake manifold
thanks for the info and fast response much appreciated.!!!!!



No problem any thing to help



I'd like the same! Thanks

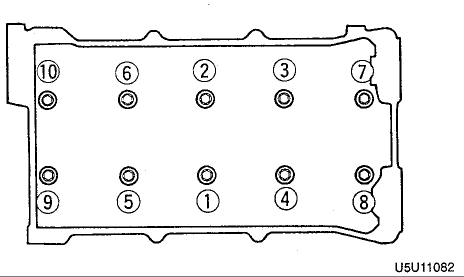

Tighten the cylinder head bolts in two or three steps in the order shown to achieve a final torque of 76-81 Nm (56-60 ft. lbs.)



lol i got u more the you asked but its all good there no such thing as know too much info



part number for the rubber bump stop for the headlights. the ones that adjust how far the headlights close. cars a 96 btw.

thx

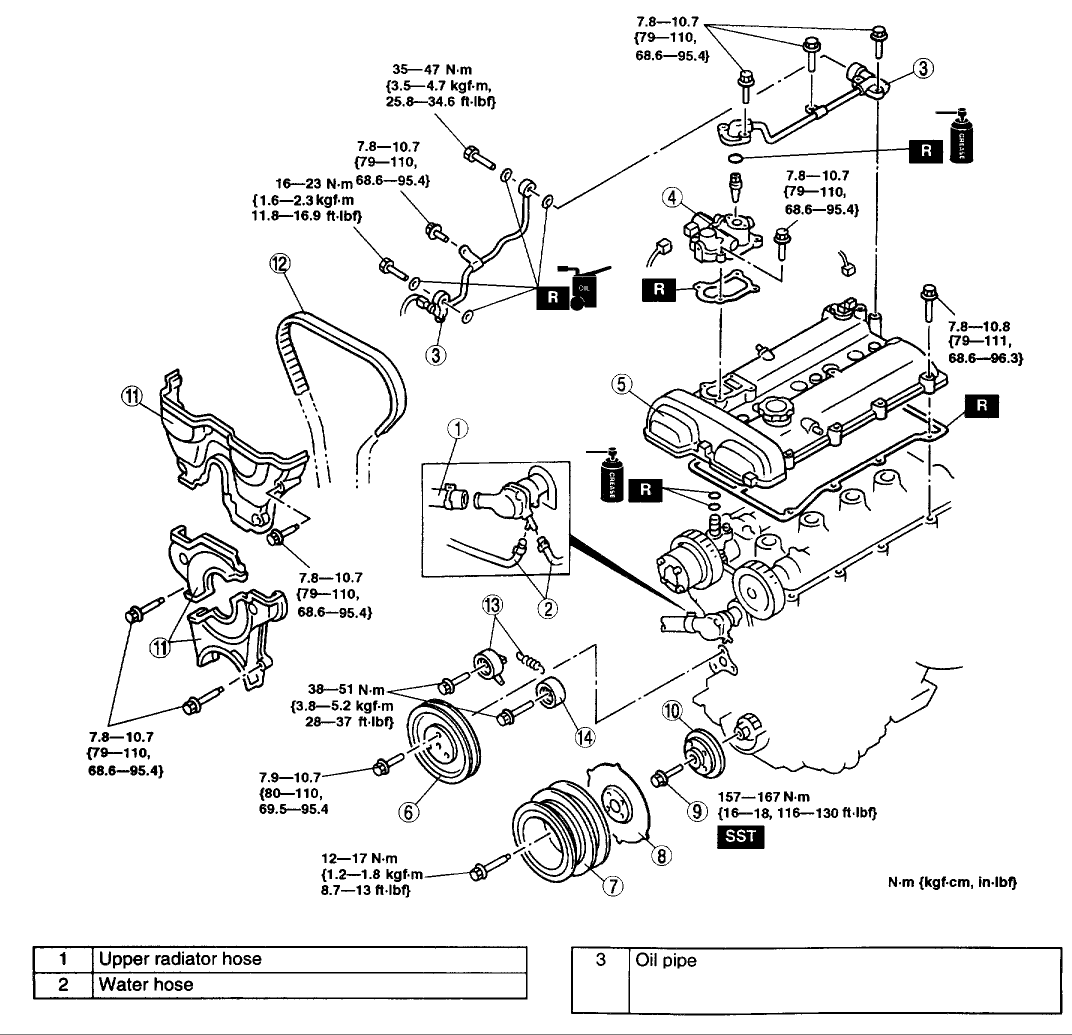

here is the valve cover specs



sorry i cant get that info for you. alldata gives me like 98% of every thing. wish i could help.



thanks a lot man great help



part number for the belt tensioner on a car that has AC but no PS?



Can you get TSBs? If so, I'm looking for a couple in regards to my other car, a Saturn Vue:

06-08-58-002 FEB 06 Body - Wind Rush/Rustle From Windshield Area
03-08-58-005B DEC 05 Body - A-Pillar Wind Noise Near VIN Plate

If you can, PM me. Thanks!



i will be able to get all info on at 8pm to 12pm east coast time



is it just specs? Or is there maintanence data. I could use testing instructions for the ignoror and CAS off a 1993.



You can find that at the Rosenthal site.
Finish Line / Rosenthal Mazda Parts & Accessories :: Miata / MX-5 :: Engine :: Idler Pulley



Well i was thinking and i will give you guess the password and user name for the alldata service please only use from 8pm to 6am east coast time that way when im at work i dont have to fight over the account with you guys.

link ALLDATA Online - Logon

user name 2033234500
password 2033234500

also when your done getting the info you need please clean out your cookies so that you do not hog the the account thanks.



^ Thanks man! I grabbed the TSB I needed, and it says exactly what I needed to hear!
