Default ID This Hard Dog Please!

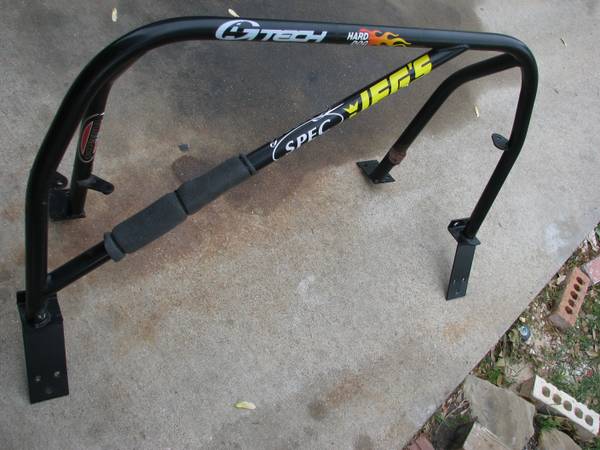

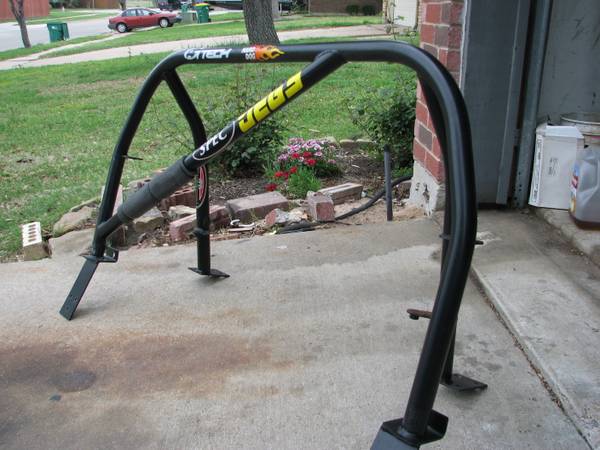

I'm considering buying a gently-used Hard Dog roll bar for a decent price, but can't really tell what model it is. It looks like it's full height with a single diagonal (i.e., not an Ace). The unusual thing is that the diagonal goes across the main hoop rather than to a rear brace. Obviously, this would inhibit passenger seat recline, but I don't really care about that.

Can anyone ID this bar? Any pros/cons to watch out for?
Attached Thumbnails
ID This Hard Dog Please!-hd1.jpg   ID This Hard Dog Please!-hd2.jpg
hornetball is offline   Reply With Quote
Old 04-09-2013, 09:25 PM   #2
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

I see it has harness tabs. I'm not sure what model that one is.
sixshooter is offline   Reply With Quote
Old 04-09-2013, 09:47 PM   #3
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I think it might be an early hardcore, but the diagonal location is throwing me off. Haven't had an opportunity yet to measure the tube diameter.
hornetball is offline   Reply With Quote
Old 04-10-2013, 12:28 AM   #4
Senior Member
iTrader: (1)

Join Date: Nov 2010
Posts: 951
Total Cats: -252
Default

It has bent rear supports like a M2
wannafbody is offline   Reply With Quote
Old 04-10-2013, 09:40 AM   #5
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

The bent rear supports are typically only found on M2 Sport bars and the harness tabs are an added M2 option. When ordering from Bethania, you can ask to have the diagonal put in the main hoop.
RotorNutFD3S is offline   Reply With Quote
Old 04-11-2013, 07:09 PM   #6
Junior Member
iTrader: (2)

Join Date: Nov 2010
Location: NoVa
Posts: 163
Total Cats: 0
Default

My eyes tell me its a Hard dog M2 single diagonal. Can't tell whether it is a Hard Core or not, that would take a tape measure, but if it has the under car mounting plates, you are a set of new hardware away from a good bar. I'm not a fan of the single diagonal, but that is a visibility thing.

-Greer
g_reichow is offline   Reply With Quote
Old 04-11-2013, 07:29 PM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

I'd call up Hard Dog and see if they ever had a design with the diagonal only on the main hoop. Kinda makes sense for rigidity, but what would I know. I guess going from the main hoop to one of the back braces would be more triangular for both upside down sideways force, and upside down forward forces.
curly is online now   Reply With Quote
Old 04-11-2013, 09:16 PM   #8
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Well, the guy isn't calling me back anyway.

I need to just call Bethania, order a bar and be done with it.
hornetball is offline   Reply With Quote
Old 04-12-2013, 11:18 AM   #9
Junior Member
iTrader: (2)

Join Date: Nov 2010
Location: NoVa
Posts: 163
Total Cats: 0
Default

Quote:
Originally Posted by curly View Post
I'd call up Hard Dog and see if they ever had a design with the diagonal only on the main hoop. Kinda makes sense for rigidity, but what would I know. I guess going from the main hoop to one of the back braces would be more triangular for both upside down sideways force, and upside down forward forces.
They did. That is the 2nd gen design. First gen single diagonals met the main hoop at the mounting plate and just killed passenger seat clearance. Second gen corrected that. I believe you could order the discussed version through 2003-2004 time frame. I sold a few of them at PBC back in 99-2001 timeframe but visibility sucked.
g_reichow is offline   Reply With Quote
