Default Ignition Coil 12V Shorted

It all started when I was not getting sync on start up after making a change on DIYPNP; I was continuous cranking the starter.

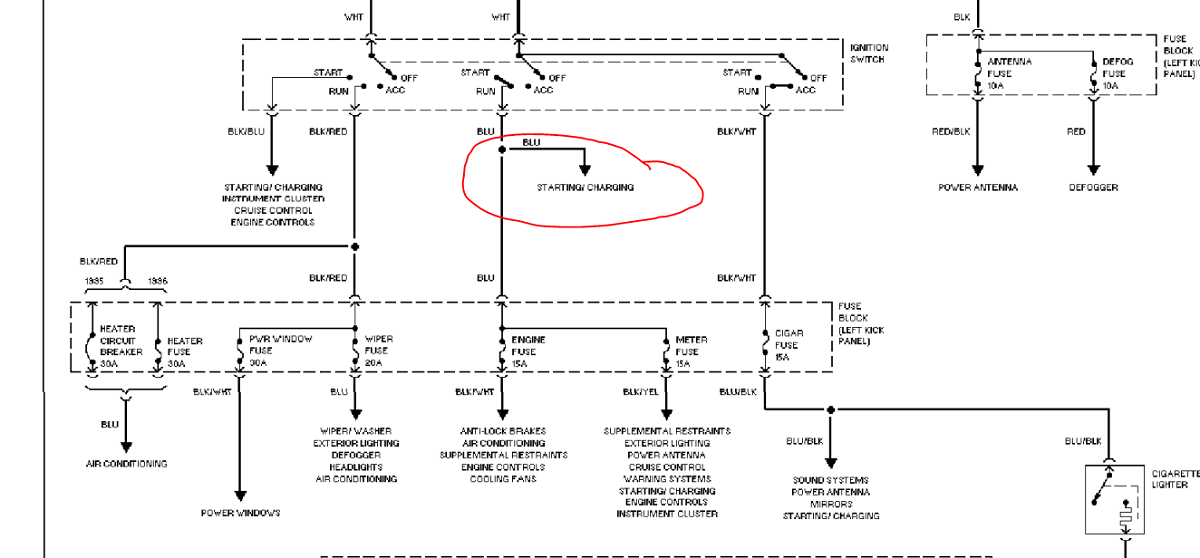

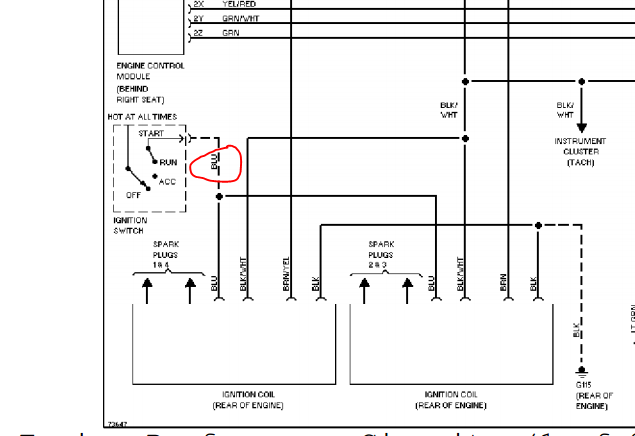

After that all power went out and the horn buzz slowly died off. After working my way checking all fuses and probing voltages around the car. I determined that the ignition coil 12V line in the attached diagram is shorted to the chassis. The killer part is this line only goes through the main fuse and is very hard to access.

This wire goes from the key switch to the driver side fuse box back to the passenger side glove box behind the heater out to the hood. Very hard to trouble shoot. Make it worst, it looks like the wire is wrapped. I checked the portion that is in the engine bay area already and it doesn't look like its shorted in that section. I am guessing what happened is there was a surge on that wire and it got heated. The insulation probably got melted on to some ground on the chassis. This weekend, I will be tearing my dash apart and try to find this point.

My question is, have anyone ran into similar problems with this ignition harness? Also what are the failure points on this harness and can they be reached without tearing the dash apart?
Attached Thumbnails
Ignition Coil 12V Shorted-capture.png   Ignition Coil 12V Shorted-capture2.png
Zhimin90 is offline   Reply With Quote
Old 04-10-2015, 03:30 PM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

My 2 cents is that if you know the section where the wire is shorted, you could just cut that section out and run a new wire, without pulling/reinstalling the dash. For one wire, there is NO WAY id' pull the dash! I did that once, it sucks!
patsmx5 is offline   Reply With Quote
Old 04-10-2015, 03:32 PM   #3
Newb
Thread Starter

Join Date: Jun 2014
Posts: 18
Total Cats: 0
Default

Lol, exactly what I was thinking to do. Seems ghetto thou, but definitely is one solution.
Zhimin90 is offline   Reply With Quote
Old 04-10-2015, 03:56 PM   #4
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

If you think running a wire is ghetto, then pull the dash and you're going to take the entire harness apart to replace one wire going through it??? That would be a nightmare, the harness is taped together, glued together where it goes through the firewall.

At best you can pull the dash and run a replacement wire alongside the factory harness, anything more is going to add a few hours to this.

Or just run a wire as best you can under the dash without pulling it. I've done this before, it's not that hard. I used a telescoping magnet thing to poke across the trans tunnel.
patsmx5 is offline   Reply With Quote
Old 04-10-2015, 04:15 PM   #5
Newb
Thread Starter

Join Date: Jun 2014
Posts: 18
Total Cats: 0
Default

You got a point. I'll save myself the trouble cut and run the extra 12V wire to the ignition.

Thanks for the advice.
Zhimin90 is offline   Reply With Quote
