Default I'm....... BOOSTED!!!

It's awesome. It spools pretty quickly seeing how I have the wastegate ports wrong so that it never opens. Gotta fix that. Hit overboost protection when I had it at 180 kPa and it's a 7 PSI gate. Put overboost to 200 kPa and hit it again, then I knew something was up. But wow, 200kPa on this turbo is uh, fun. Starts to spool around 4K, then it's like a rocket till it hits overboost around 4500.
patsmx5 is offline   Reply With Quote
Old 12-30-2008, 07:51 PM   #2
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Congrats, have fun with it.
BenR is offline   Reply With Quote
Old 12-30-2008, 07:58 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

vids please
18psi is offline   Reply With Quote
Old 12-30-2008, 08:06 PM   #4
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Having fun Pat?

Great to hear!
Rafa is offline   Reply With Quote
Old 12-30-2008, 08:26 PM   #5
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

awesome man! glad to see it up and running well. Hopefully here tomorrow i'll be starting my car too
viperormiata is offline   Reply With Quote
Old 12-30-2008, 08:43 PM   #6
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

sweet congrats
SloS13 is offline   Reply With Quote
Old 12-30-2008, 09:09 PM   #7
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by patsmx5 View Post
. Starts to spool around 4K, then it's like a rocket till it hits overboost around 4500.


That has got to be the ultimate tease. wait, wait, wait, wait, wait, WOOOHEEEE, oh crap.


Now that you've got a whiff of what that tease can do I bet you are a little more motivated to get her done and running right.
cueball1 is offline   Reply With Quote
Old 12-30-2008, 09:14 PM   #8
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

THATS GREAT MAN!

You will never want a nonturbo again
Man you will love it when you can go all the way through the gears.

Have Fun!
Toddcod is offline   Reply With Quote
Old 12-30-2008, 09:41 PM   #9
Senior Member
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

nice !!! now lets see it in action a bit at least 500 rpms that turbo must be sick once it spools.
musanovic is offline   Reply With Quote
Old 12-30-2008, 10:35 PM   #10
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,404
Total Cats: 263
Default

Congrats on your boostedness!
99mx5 is offline   Reply With Quote
Old 12-30-2008, 10:58 PM   #11
Senior Member

Join Date: Sep 2007
Location: Alamo City, Tejas
Posts: 774
Total Cats: 1
Default

Zoom friggin' Zoom Zoom!

(congrats!)

- L
l_bader is offline   Reply With Quote
Old 12-31-2008, 01:14 AM   #12
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Yeah, this is awesome. Put some miles on it and got the wastegate fixed. It's a beast for 7 PSI. Haven't got on it hard in 1st, but second is Saweeet! And third is too. Need to do some tuning though. That will come tomorrow. It's running ~12.5 in boost right now. I want it in the 11's though.
patsmx5 is offline   Reply With Quote
Old 12-31-2008, 01:25 AM   #13
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Congrats man!
kotomile is offline   Reply With Quote
Old 12-31-2008, 01:40 AM   #14
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

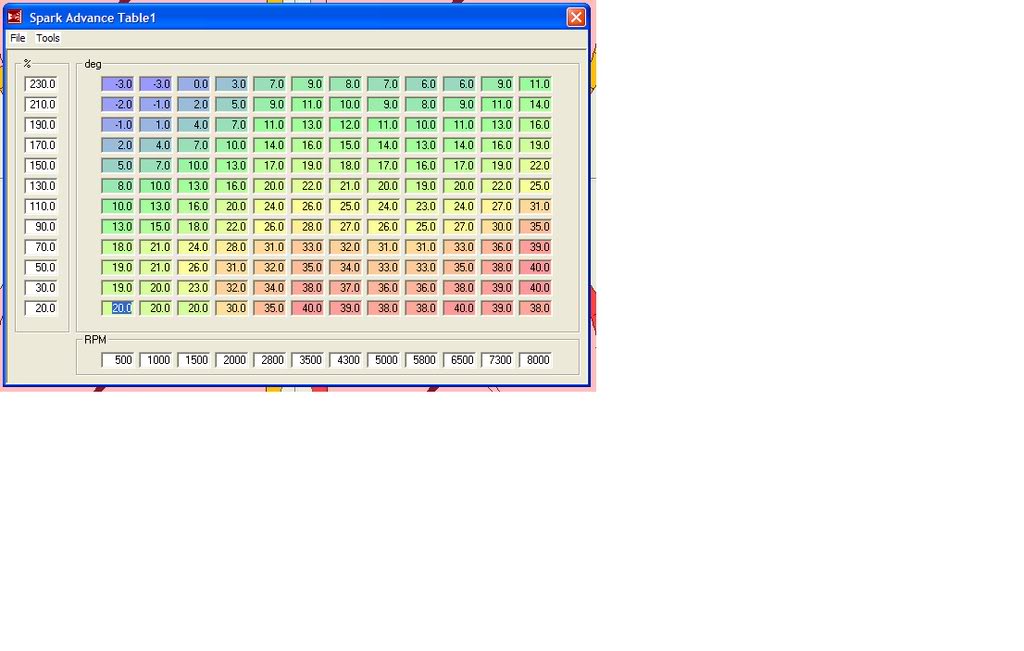

Here's the timing map I'm running. I made it on my own, but then I pulled a bunch of timing out. Pulled 4 degrees out of everything that's boosted, then a degree out of every cell above 5K in boost, then another degree out of every cell above 6K in boost, etc to 8K. Figured I'll get AFR's dialed rich, then get spark closer, then get AFR's back to 11.5 or so.
Name:  timingtable12-30-08.jpg
Views: 3
Size:  74.9 KB

ALSO: I still think it's funny that I posted pics of how I hooked the wastegate up and NOBODY ever mentioned that was wrong.....
patsmx5 is offline   Reply With Quote
Old 12-31-2008, 11:51 AM   #15
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Yah man, Congrats!!! Stay safe, tires aren't sticky this time of year.
TurboTim is offline   Reply With Quote
Old 12-31-2008, 12:03 PM   #16
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Congrats man. That is awesome.

It's very cool to see some of you guys getting close and getting there. It's definite motivation for those of us just starting down the long road to boost.

Can't wait to see vids once you get it all ironed out.
gospeed81 is offline   Reply With Quote
Old 12-31-2008, 02:24 PM   #17
Junior Member

Join Date: Sep 2005
Location: The Golden Triangle, Ontario
Posts: 283
Total Cats: 0
Default

congrats!
Mines boosted but I still need exhaust before she goes on the road...
blue89turbo is offline   Reply With Quote
Old 12-31-2008, 04:58 PM   #18
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Good job man, glad you finally realized the supercharger setup was bogus and went this route.
Isn't it better to be boosted then trying to figure out how you're going to rebuild an old shitty SC?
Congrats.
cjernigan is offline   Reply With Quote
Old 12-31-2008, 05:45 PM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

wow, that spark map has a ton more advance than mine ont eh 8.6:1 motor...which was totally untuned and my spark map represents no benchmark nor standard.
hustler is offline   Reply With Quote
Old 12-31-2008, 07:10 PM   #20
Former Vendor

Join Date: Oct 2008
Location: Oklahoma City
Posts: 395
Total Cats: 4
Default

its an addicting feeling, congrats
Deatschwerks is offline   Reply With Quote
