Default I'm not sure what this is

I just put on my begi s4 and now i have an oil leak and I'm not sure if its leaking from the oil feed line or this thing above it. what is the thing above the oil feed line and is it possible to leak oil or is the feed line spraying oil up on it. thanks

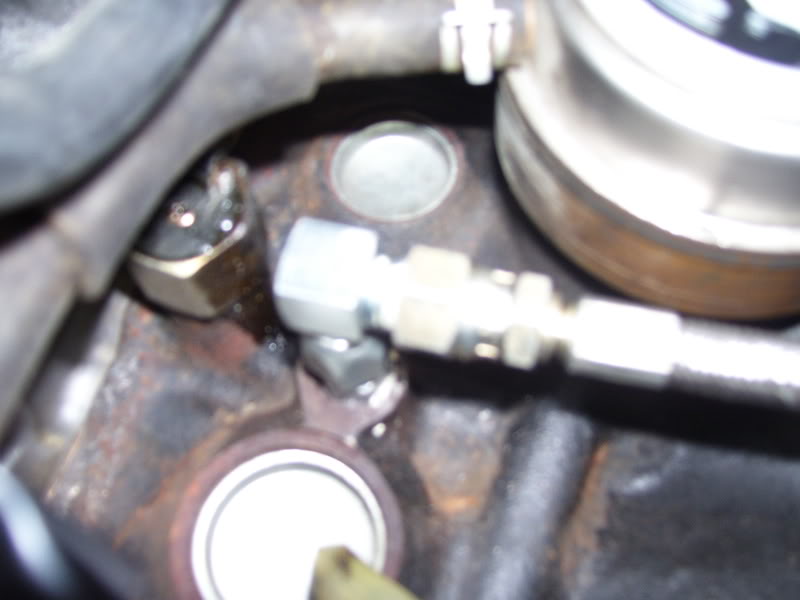

Name:  turbo075.jpg
Views: 2
Size:  45.4 KB

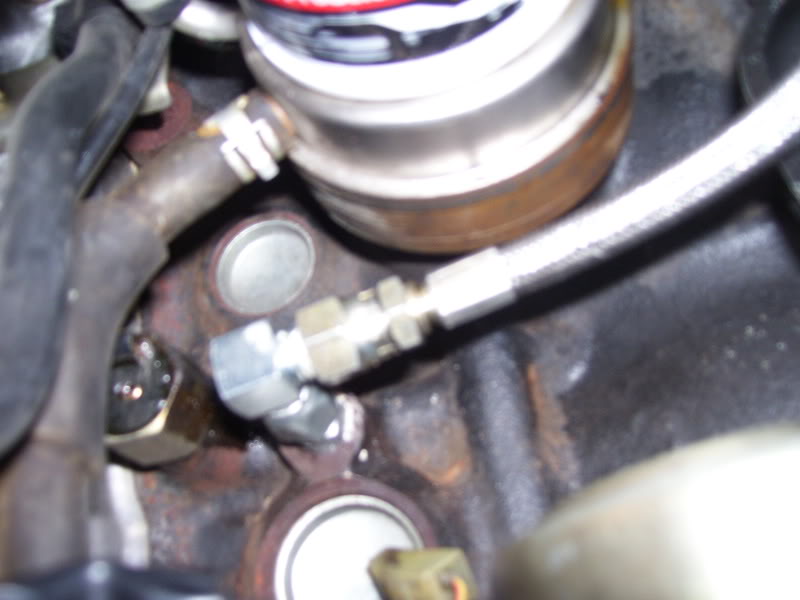

Name:  turbo071.jpg
Views: 2
Size:  51.2 KB

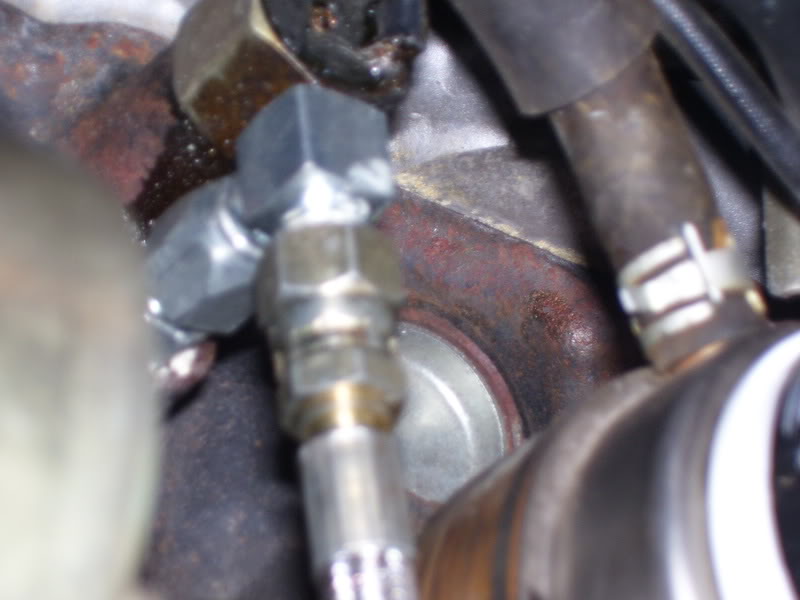

Name:  turbo072.jpg
Views: 2
Size:  51.4 KB
thegizzman is offline   Reply With Quote
Old 02-12-2009, 12:23 AM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

The big thing is the knock sensor. Mine looks just like that too. For some reason a spec of oil leaks out around where it goes and even through the sensor body itself. My sensor looked a lot worse though, and I chunked it. Doesn't look like an oil leak> If it was, it would be a lot messier.
patsmx5 is offline   Reply With Quote
Old 02-12-2009, 12:26 AM   #3
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

thats not an oil feed port? I am a bit disoriented in these pics
mazda/nissan is offline   Reply With Quote
Old 02-12-2009, 12:28 AM   #4
Junior Member
Thread Starter

Join Date: Sep 2008
Location: chicago
Posts: 49
Total Cats: 0
Default

Yea thats what I was thinking it was I just wasn't sure, so would that mean I most likely have a small oil leak from the oil feed line because i keep finding small oil drops on my garage floor there about two times the size of a quarter.
thegizzman is offline   Reply With Quote
Old 02-12-2009, 12:31 AM   #5
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

ensure the lines are snug, and it appears that it was JBwelded in there, maybe more JBweld is called for
mazda/nissan is offline   Reply With Quote
Old 02-12-2009, 12:32 AM   #6
Junior Member
Thread Starter

Join Date: Sep 2008
Location: chicago
Posts: 49
Total Cats: 0
Default

Quote:
Originally Posted by mazda/nissan View Post
thats not an oil feed port? I am a bit disoriented in these pics
So what your saying is the knock sensor is not exposed to any oil just just mounted on the side of the block.
thegizzman is offline   Reply With Quote
Old 02-12-2009, 12:34 AM   #7
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

I think the only thing the knock sensor has to do with this image is that it happened to be in it. Does that line run to the turbo?
mazda/nissan is offline   Reply With Quote
Old 02-12-2009, 12:34 AM   #8
Junior Member
Thread Starter

Join Date: Sep 2008
Location: chicago
Posts: 49
Total Cats: 0
Default

Quote:
Originally Posted by mazda/nissan View Post
ensure the lines are snug, and it appears that it was JBwelded in there, maybe more JBweld is called for
yea i know Ive taken it off two times and resealed it with thread sealant, but tonight I figured I would take a better look be for I pull it off again and try to reseal it.
thegizzman is offline   Reply With Quote
Old 02-12-2009, 12:35 AM   #9
Junior Member
Thread Starter

Join Date: Sep 2008
Location: chicago
Posts: 49
Total Cats: 0
Default

Quote:
Originally Posted by mazda/nissan View Post
I think the only thing the knock sensor has to do with this image is that it happened to be in it. Does that line run to the turbo?
Yea is runs to it.
thegizzman is offline   Reply With Quote
Old 02-12-2009, 12:36 AM   #10
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Your oil feed in the picture ain't leaking hoss. That's just the knock sensor with some weird **** leaking out. It's not oil. It's like sticky weird **** but not oil. I've got a 99', and I'm quite familiar with that area. If you have an oil leak, it's elsewhere. There's no JB-weld in the picture that I can see either.
patsmx5 is offline   Reply With Quote
Old 02-12-2009, 12:42 AM   #11
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

I may have to take a mulligan on this one, but

Name:  turbo075.jpg
Views: 2
Size:  47.5 KB
mazda/nissan is offline   Reply With Quote
Old 02-12-2009, 12:45 AM   #12
Junior Member
Thread Starter

Join Date: Sep 2008
Location: chicago
Posts: 49
Total Cats: 0
Default

So you think I should take the feed line off and put a lot of thread sealant on there, like cover the whole thing. Because I didn't have an oil leak before I put the turbo on.
thegizzman is offline   Reply With Quote
Old 02-12-2009, 12:48 AM   #13
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

I'm lost and looking for directions, it could be the knock sensor like pat was saying. Maybe it utilizes some sort of liquid since vibrations travel better the denser the medium. Lets diagnose this before you start plumber's taping everything
mazda/nissan is offline   Reply With Quote
Old 02-12-2009, 12:48 AM   #14
Junior Member
Thread Starter

Join Date: Sep 2008
Location: chicago
Posts: 49
Total Cats: 0
Default

Quote:
Originally Posted by mazda/nissan View Post
I may have to take a mulligan on this one, but

Yes that is thread sealant you see in the pic, and the direction of flow is right but the oil feed line is pointing down, so your down is really straight up.
thegizzman is offline   Reply With Quote
Old 02-12-2009, 01:03 PM   #15
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

If it is oil that is dripping on the floor, check the crimps around the stainless line.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 02-12-2009, 11:40 PM   #16
Junior Member
Thread Starter

Join Date: Sep 2008
Location: chicago
Posts: 49
Total Cats: 0
Default

Ill check them but if they are bad is there anything I can do besides replace the line.
thegizzman is offline   Reply With Quote
Old 02-12-2009, 11:48 PM   #17
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Use a good thread sealant and tighten that feed line again. I hate teflon tape to death.

Amazon.com: Permatex 56521 Hi-Performance Thread Sealant. 50 ml.: Automotive

I used some type of Permatex stuff on my dual feed fuel rail. The tape kept leaking, so after a couple times I used the sealant, and 10 minutes later no leaks.

EDIT: On second thought, the feed line looks dry. From the looks of the photo its whatever is above the feed line (knock sensor really?) that is leaking.

Vash-
Vashthestampede is offline   Reply With Quote
Old 02-12-2009, 11:56 PM   #18
Junior Member
Thread Starter

Join Date: Sep 2008
Location: chicago
Posts: 49
Total Cats: 0
Default

Thats what I used and Ive done it twice, does that stuff take a wile to cure all the way. I'm about to take it off and use the whole tube of permatex on there.
thegizzman is offline   Reply With Quote
Old 02-12-2009, 11:57 PM   #19
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

I thought the only fittings that were supposed to use teflon tape were NPT fittings?
mazda/nissan is offline   Reply With Quote
Old 02-12-2009, 11:58 PM   #20
Junior Member
Thread Starter

Join Date: Sep 2008
Location: chicago
Posts: 49
Total Cats: 0
Default

Quote:
Originally Posted by Vashthestampede View Post
Use a good thread sealant and tighten that feed line again. I hate teflon tape to death.

Amazon.com: Permatex 56521 Hi-Performance Thread Sealant. 50 ml.: Automotive

I used some type of Permatex stuff on my dual feed fuel rail. The tape kept leaking, so after a couple times I used the sealant, and 10 minutes later no leaks.

EDIT: On second thought, the feed line looks dry. From the looks of the photo its whatever is above the feed line (knock sensor really?) that is leaking.

Vash-
Thats what I was thinking because I feel a little oil on the oil feed line but it looks like to me its dripping down on there.
