Default Koni + 1st gen FM spring setup, opinions.

I have a set of Koni yellows, I just bought a set of first gen FM springs.

My car is way over budget, and I would like to only do rear upper mounts for now. The problem...FCM will only sell a set of 4.

What is my best option? I'm thinking NB mounts, but will they give me enough travel? Shaikh at FCM said I should just do the shorter bumpstops for the time being. I've read the ISC mounts are a bad idea for non coilovers because they don't have a spring catch.

I've been searching around for a bit. I did find a good thread on miata.net about the NB mounts, but all the pictures are gone. Anyone know of someone running a similar setup?
miataspeed1point6 is offline   Reply With Quote
Old 04-22-2008, 08:58 PM   #2
Junior Member
iTrader: (4)

Join Date: Jul 2007
Location: Indianapolis, IN
Posts: 113
Total Cats: 0
Default

I just put on some first gen FM springs and some AGX's on my car with the FCM bumpstops - so far I can't say I've bottomed out. A ton smoother ride actually than the stock ones - which surprised me.

I was going to go the NB mounts as well but I'd heard reports on just how low those springs would go and the possibility of it being too low and having the control arms (?) parallel to the ground or point slightly up made me think I'd do the FCM's by themselves first.

So far I think it's a good choice.
sotaku is offline   Reply With Quote
Old 04-22-2008, 09:00 PM   #3
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Fm sells the rear mounts...thats about all I can think of. I would NOT just run the springs and shocks, you will bottom out.

I'm running Koni yellows, FCM, 24mm bumps and early FM springs. It is low. Here are a few different angles.

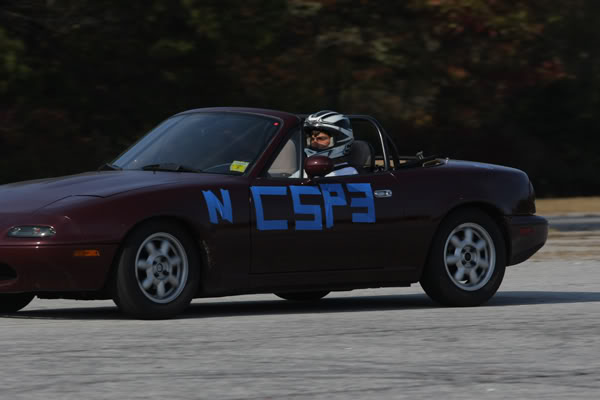

Name:  MeCCR2.jpg
Views: 9
Size:  28.2 KB

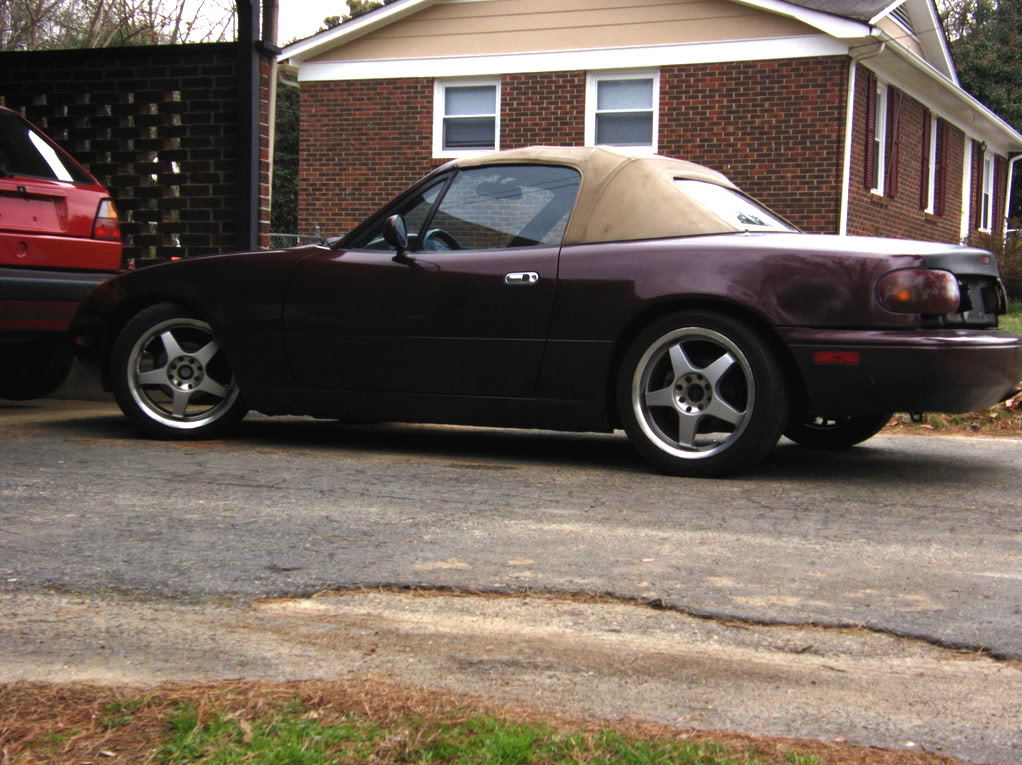

Name:  P3153421.jpg
Views: 31
Size:  165.4 KB

Last edited by miatamania; 04-22-2008 at 10:27 PM.
miatamania is offline   Reply With Quote
Old 04-22-2008, 09:43 PM   #4
Junior Member
iTrader: (4)

Join Date: Jul 2007
Location: Indianapolis, IN
Posts: 113
Total Cats: 0
Default

Quote:
Originally Posted by miatamania View Post
Fm sells the rear mounts...thats about all I can think of. I would NOT just run them, you will bottom out.

I'm running Koni yellows, FCM, 24mm bumps and early FM springs. It is low. Here are a few different angles.
I've only been running them for a few days so I may still bottom out. Train tracks and such so far have been a ton smoother though. That said, indeed, they are looooow. Much more than I expected. I like `em though.
sotaku is offline   Reply With Quote
Old 04-22-2008, 10:09 PM   #5
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

The FM rear mounts are the same price as all 4 FCM mounts. I know it will bottom out and I want to do this right, I'm just $450 over budget already. Do the fronts really help alot?

What perch do you have your konis on? I'm just a front sway bar away from some good handling....I hope.
miataspeed1point6 is offline   Reply With Quote
Old 04-22-2008, 10:26 PM   #6
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Quote:
Originally Posted by sotaku View Post
I've only been running them for a few days so I may still bottom out. Train tracks and such so far have been a ton smoother though. That said, indeed, they are looooow. Much more than I expected. I like `em though.
I'll rephrase, I meant do NOT run just springs and konis for bottoming out the shock. As far as bottoming at the car, only on uber high speed bumpers have I had problems.

Quote:
Originally Posted by miataspeed1point6 View Post
The FM rear mounts are the same price as all 4 FCM mounts. I know it will bottom out and I want to do this right, I'm just $450 over budget already. Do the fronts really help alot?

What perch do you have your konis on? I'm just a front sway bar away from some good handling....I hope.
It is on the highest perch, lol. I'm not sure if they help, but the do give it a nice stance I think, and the travel can't hurt.

I got a 99 sport bar cheap as crap and went with adjustable endlinks, I would however like to get a slightly larger one sooner or later.
miatamania is offline   Reply With Quote
Old 04-22-2008, 10:42 PM   #7
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

dc2696 had a set of FM mounts forsale a while ago.
jayc72 is offline   Reply With Quote
Old 04-22-2008, 11:12 PM   #8
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Quote:
Originally Posted by jayc72 View Post
dc2696 had a set of FM mounts forsale a while ago.
I sent him a PM. Thanks.
miataspeed1point6 is offline   Reply With Quote
Old 04-23-2008, 07:41 PM   #9
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Damn it! Right off the FM page

Quote:
Not for use with Koni Sport (yellow) shocks and lowering springs, as they can cause coil bind problems.
Is coil bind when the springs coils actually touch? Would using the highest perch negate that? I'm emailing FM now. I have the konis and springs, but I didn't buy the mounts yet. What should I do? Ebay sleeves?
miataspeed1point6 is offline   Reply With Quote
Old 04-23-2008, 07:57 PM   #10
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Save money for the FCM mounts...and just wait.
miatamania is offline   Reply With Quote
Old 04-23-2008, 08:09 PM   #11
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Quote:
Originally Posted by miatamania View Post
Save money for the FCM mounts...and just wait.
I have the money, I'd just like it to be cheaper (yeah, yeah I know). The more research I do the more I figure out the FCM are the only thing that will work.
miataspeed1point6 is offline   Reply With Quote
Old 04-23-2008, 08:11 PM   #12
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

I'm the same way, I came to those conclusions too, if I was right or not is a different story.
miatamania is offline   Reply With Quote
Old 04-23-2008, 09:13 PM   #13
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Miatamania, do you think I will rub with a 225/45/15 RS2 on 15x7 Kosei K1's with the FCM mounts and FM springs?

I seriously hope not. I'm tired of suspension already.
miataspeed1point6 is offline   Reply With Quote
Old 04-23-2008, 09:26 PM   #14
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

In the rear, I doubt it, especially if you have enough camber.

Fronts, maybe so. Mostly on the inner fender tabs is where I've had problems. Not a bad fix at all.

Last edited by miatamania; 04-23-2008 at 09:47 PM.
miatamania is offline   Reply With Quote
Old 04-23-2008, 09:30 PM   #15
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Ok good. Would you recomment the 36mm bump stop? I noticed you have a 24, did you cut it down? Would you recommend doing so?
miataspeed1point6 is offline   Reply With Quote
Old 04-23-2008, 09:53 PM   #16
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

I honestly wouldn't know what to tell you about bumpstops, I'm not sure I prefectly understand them. But here was my thinking:

He was offering 24mm linear and 46mm progressive IIRC, I chose the short bump because from what I understand is the shorter bump will allow for normal shock travel for a longer period and a rougher reaction from hitting the bumpstops rather than from hitting a slightly longer bumpstop which would hit sooner and be more of a progressive bottoming out?

IDK if I know what the ******* I'm talking about though. Call FCM, the guy is awesome and will be happy to answer questions...just a bit slow sometimes.
miatamania is offline   Reply With Quote
Old 04-23-2008, 10:04 PM   #17
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I'll be calling them soon, I'm sure they are closed now. I just wanted to check with someone running a similiar setup. Thanks for your help.
miataspeed1point6 is offline   Reply With Quote
Old 04-23-2008, 10:14 PM   #18
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

lol, hopefully thats all decent info, as I seem to be the only one posting x.X
miatamania is offline   Reply With Quote
Old 04-23-2008, 10:24 PM   #19
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I think the 1st gen FM springs are "rare" enough that not many people would post. Are they rare? I don't see them very often?
miataspeed1point6 is offline   Reply With Quote
Old 04-23-2008, 10:31 PM   #20
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

I'm really not sure, they seem to be somewhat hard to find. Unless people are upgrading to something stiffer they really don't get rid of them, its a good spring.
