Default Miata won't go into REVERSE, even when off!

Hi everyone,

Recently, my brother's 91 NA with 204k on the clock has not been wanting to go into reverse. It worked all summer, but as the weather dropped it started to get worse and worse. I've done as much research as I could with respect to reverse gear issues but I haven't found one that specifically deals with my situation and provided a clear-cut solution. I have, however, been able to run a couple of points through my head that I'd like to go over with you guys as well.

First things first:
-91 NA, manual, 204k miles. Purchased recently, all fluids have not yet been changed except motor oil/filter and coolant.
-Temperature has been 30-40 degrees outside. Cold.
-Transmission will shift into every other gear, including 5th. Just not reverse.
-Clutch has not been adjusted, nor has the master/slave cylinders been bled.
-Cannot shift into reverse at all (on or off). Even after the car has been running for several minutes.
-Torn upper boot, intact lower boot. Bushing on the bottom of the shifter is still intact. Turret oil is green-looking and thick.
-I've tried shifting through all gears before putting it back in reverse. Still no luck.
-I've tried putting it back in neutral, releasing the clutch, re-engaging the clutch and shifting into reverse. Still no luck.
-It is not stuck in any gear, because I'm able to push the car.

Points I'm THINKING can be ruled out, based on what i've read:
-If it were a bad synchro, I wouldn't be able to go into 5th either. Transmission should be fine.
-Car won't go into reverse even when the car is off, this checks off the slave/master cylinder being bad or needing to get bled.
-The only thing that's broken on the shifter assembly is the upper shift boot. Since the lower shift boot is still fine, I'm assuming nothing could have dropped into the turret to physically block the reverse gate. Lower bushing is still fine as well.
-Haven't checked the reverse switch that i've read can become faulty, but I do know that when the car was able to get into reverse, the reverse lights did turn on.

I just purchased some AMSOIL trans and diff fluid today. I'll be replacing them tomorrow along with the shift turret fluid. I'm not too sure if that alone will make much of a difference though. Other than that, I think that's pretty much everything I know, if there are any other suggestions/advice/questions I would greatly appreciate it. Thanks guys!
itskrees is offline   Reply With Quote
Old 11-15-2012, 01:26 AM   #2
Junior Member
iTrader: (5)
Join Date: Mar 2012
Location: Gilbert, Az
Posts: 337
Total Cats: 26

Maybe something related to the shift rail, as alluded to here:
It's a different issue, but maybe it's something similar? Grasping at straws, but it's the only thing I've heard of that's similar to what you're experiencing.
SJP0tato is offline   Reply With Quote
Old 11-15-2012, 05:08 AM   #3
Cpt. Slow
iTrader: (25)
curly's Avatar
Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518

Fyi the turret doesn't reach into the transmission, which is why you need to pull the turret oil out with a syringe to refill it, it doesn't drain with the rest. The oils just for the shifter.

No idea about the reverse issue. Will it go in if you push the car back with the clutch in?
curly is offline   Reply With Quote
Old 11-15-2012, 01:09 PM   #4
Elite Member
Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12

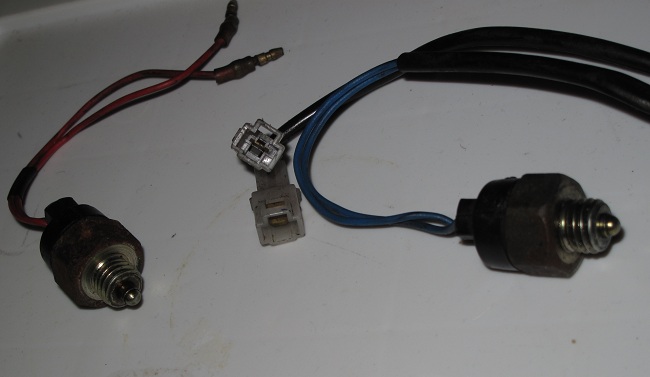

Get under the car and back out the reverse electrical switch. Crap just remove it for the moment and see if it shifts into reverse.
It'll look like this:

If that fixes it, then you need more washers or the stock washer is missing.

OH and to Curly, there is actually a drain plug specifically for the shifter turret reservoir, although I've never heard of anyone actually using it.
Attached Thumbnails
Miata won't go into REVERSE, even when off!-img_3816b.jpg
dustinb is offline   Reply With Quote
Old 11-23-2012, 08:27 PM   #5
Elite Member
iTrader: (12)
Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20

dustinb beat me to it. check the reverse switch. when it gets cold if there is a bunch of crap in it, it will not allow it to go into reverse.
Sean is offline   Reply With Quote
