Default Which is my A/C condenser? (01+)

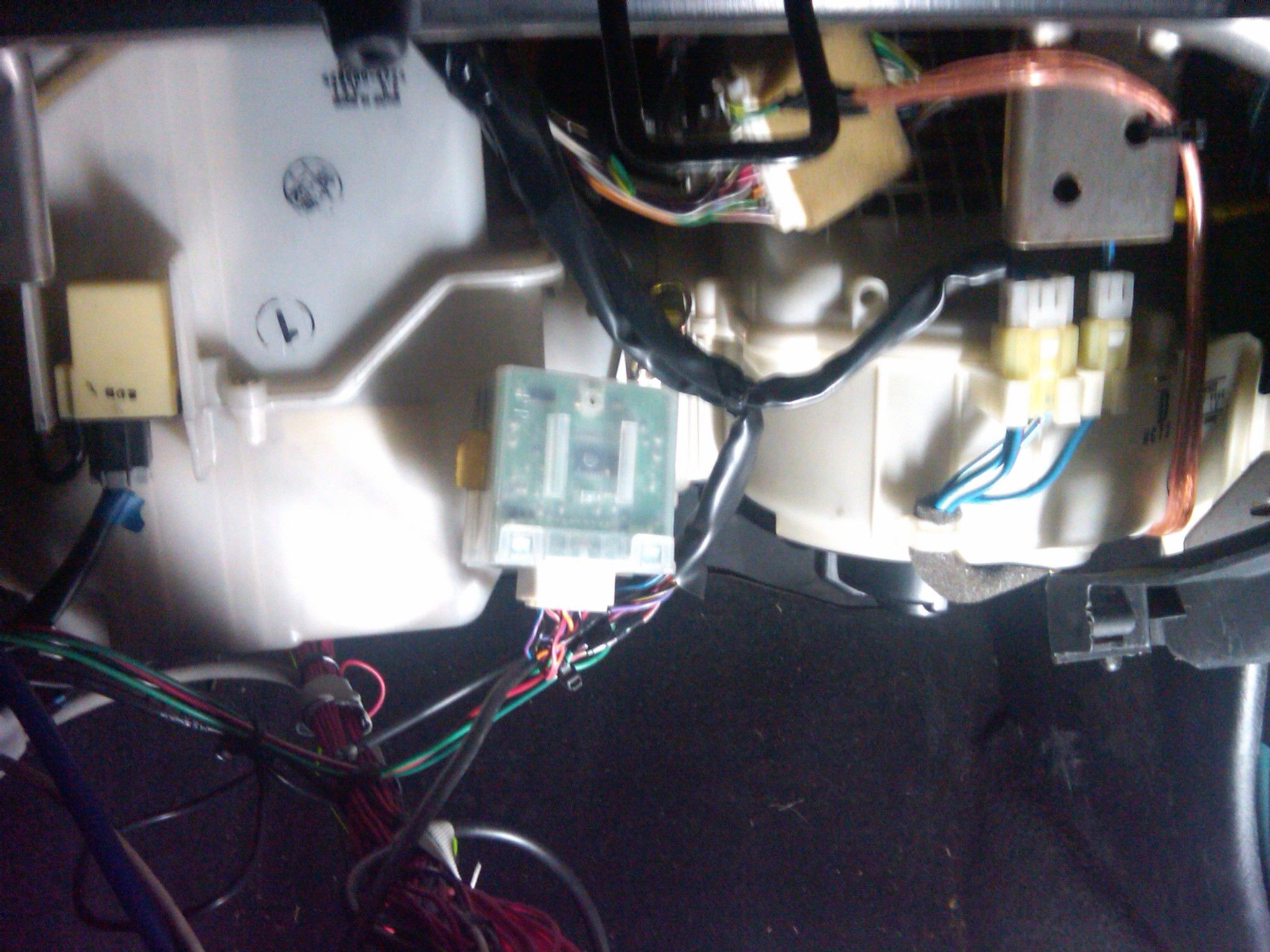

Which big white plastic thing is my A/C condenser? I am pretty sure it is the thing on the right.



Just want to make sure before I start ripping away at it.
Faeflora is offline   Reply With Quote
Old 02-06-2011, 07:53 PM   #2
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Oh and the view is "behind the glovebox"
Faeflora is offline   Reply With Quote
Old 02-06-2011, 08:03 PM   #3
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

The A/C condenser is under the hood just in front of the radiator.

The evaporator is inside the leftmost white box in that picture. The rightmost white box contains the blower motor and fan. In vehicles without A/C, there is a plastic tube which goes in the space where the evap box is, to connect the blower assembly to the heater box in the middle of the dash. (Were '01s available without A/C?)

Here's a diagram of the system. The evap box is the one labeled "Cooling Unit"

Joe Perez is offline   Reply With Quote
Old 02-06-2011, 08:13 PM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

The evaporator, as Joe suggested, is on the left. On the right is the blower fan.
Reverant is offline   Reply With Quote
Old 02-06-2011, 08:20 PM   #5
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Thank you! I did indeed mean the A/C evaporator.

Does anyone know if it possible to remove this without pulling the dash?
Faeflora is offline   Reply With Quote
Old 02-06-2011, 08:50 PM   #6
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Yes, it's quite easy. Having removed the glovebox and the little metal bar beneath it, unhook the electrical connections, unclip it from the blower and the heater assembly, unscrew the refrigerant tubes from under the hood, and remove the box.
Joe Perez is offline   Reply With Quote
Old 02-06-2011, 08:54 PM   #7
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Joe Perez is offline   Reply With Quote
Old 02-06-2011, 10:05 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

base model 01 has A/C...
y8s is offline   Reply With Quote
Old 02-06-2011, 10:31 PM   #9
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Thanks for all this info. I just came online to search for threads on how to remove the AC system. Which is the best way to discharge the system? Releasing the blue low pressure side?

Gayflora, are you removing AC? There's a local shop here that might be interested. They pay money. I've already signed mine over to him.
dgmorr is offline   Reply With Quote
Old 02-06-2011, 10:33 PM   #10
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

I just have one question... you seriously couldn't figure this out based on which one has electricity running to it and which one has AC lines running into it from the firewall?
baron340 is offline   Reply With Quote
Old 02-06-2011, 10:45 PM   #11
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default



Its dark back there under the dash. Scary. and once something bit me when I stuck my hand up in there.
Faeflora is offline   Reply With Quote
Old 02-06-2011, 10:45 PM   #12
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by baron340 View Post
I just have one question... you seriously couldn't figure this out based on which one has electricity running to it and which one has AC lines running into it from the firewall?
Have you not seen the sawzall or something?
dgmorr is offline   Reply With Quote
Old 02-06-2011, 11:00 PM   #13
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

Quote:
Originally Posted by dgmorr View Post
Which is the best way to discharge the system? Releasing the blue low pressure side?
By taking it to an A/C repair shop and having them evacuate it using their fancy machine. Otherwise, God will kill a kitten.
Joe Perez is offline   Reply With Quote
Old 02-07-2011, 02:36 PM   #14
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

AC shops don't discharge the system when front-end collisions occur...
dgmorr is offline   Reply With Quote
Old 02-08-2011, 02:10 PM   #15
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Quote:
Originally Posted by Joe Perez View Post
By taking it to an A/C repair shop and having them evacuate it using their fancy machine. Otherwise, God will kill a kitten.
Wait, you mean you can't just stick both ends of the AC line into a bucket?
fmowry is offline   Reply With Quote
Old 02-08-2011, 02:39 PM   #16
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Quote:
Originally Posted by Faeflora View Post

Its dark back there. Scary. and once something bit me when I stuck my hand up in there.
Has your boyfriends ---- cavity been checked for rodents lately? He may be cheating on you....


Doppelgänger is offline   Reply With Quote
