Default my first attempt at a fan shroud

Here are some pics of the fan shroud I made for the Godspeed radiator and ebay fans. I decided to use aluminum vs lexan because I could get away with a thinner sheet. Also the alu sheet was around $20. I didn't have a jig saw so I ended up using a dremel to cut everything :(

t.t.

Name:  Fan_Shroud2.jpg
Views: 2
Size:  86.3 KB

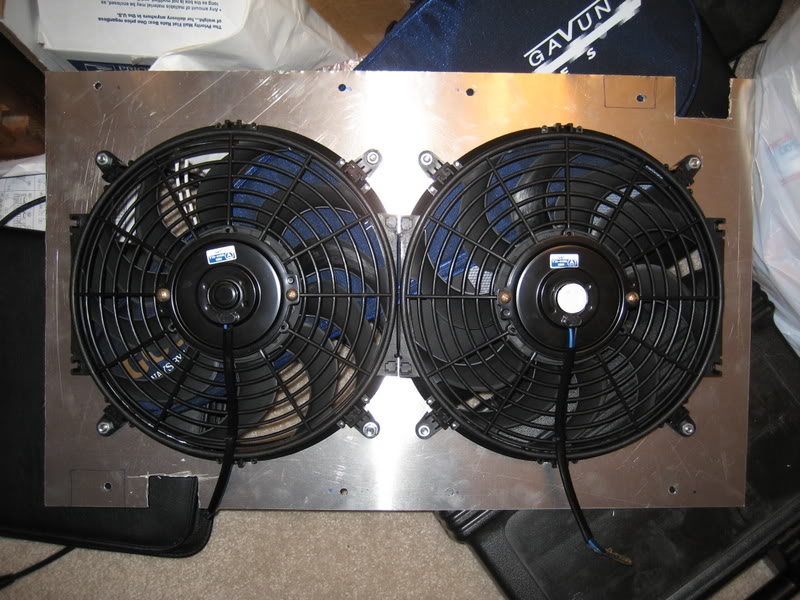

Name:  fan_Shroud1.jpg
Views: 2
Size:  105.4 KB
trito is offline   Reply With Quote
Old 12-09-2007, 08:09 AM   #2
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

Nice. What fans are those?
soflarick is offline   Reply With Quote
Old 12-09-2007, 08:32 AM   #3
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Don't you want the shroud to be spaced off the face of the rad like 1" (with the sides enclosed obviously)? Otherwise, how would air move through the rad anywhere other than the fan openings.

I've never have a shroud on a car rad, but I've watercooled MANY pcs and my shrouds there are always space the fan off of the surface.
neogenesis2004 is offline   Reply With Quote
Old 12-09-2007, 10:03 AM   #4
Junior Member

Join Date: May 2007
Location: NC
Posts: 246
Total Cats: 0
Default

Gotta say it - that's remarkably clean for dremel cutting such a large piece :-)
mtncrvr is offline   Reply With Quote
Old 12-09-2007, 10:33 AM   #5
Junior Member

Join Date: Oct 2004
Location: Leicestershire, UK
Posts: 57
Total Cats: 0
Default

Quote:
Originally Posted by soflarick View Post
Nice. What fans are those?
They look the same as mine from http://www.siliconeintakes.com/index.php?cPath=15.

Nice and cheap for 2x 10" fans and they shift the air like a twister!

I've just had my aluminum sheet arrive on Friday so I'll be making a very similar shroud very soon too!

Are you going to fold the sides in at all or leave them open? Looking at the PWR shroud there's is folded over so I might try and copy that if I can get it right - just need to get the old jigsaw out and get cutting next week at some point
lwindridge is offline   Reply With Quote
Old 12-09-2007, 11:43 AM   #6
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by mtncrvr View Post
Gotta say it - that's remarkably clean for dremel cutting such a large piece :-)
+1!
kotomile is offline   Reply With Quote
Old 12-09-2007, 01:10 PM   #7
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by neogenesis2004 View Post
Don't you want the shroud to be spaced off the face of the rad like 1" (with the sides enclosed obviously)? Otherwise, how would air move through the rad anywhere other than the fan openings.

I've never have a shroud on a car rad, but I've watercooled MANY pcs and my shrouds there are always space the fan off of the surface.
I think the standoffs on the GS rad are tall enough that this will be fine? I haven't seen one in person though.
cjernigan is offline   Reply With Quote
Old 12-09-2007, 01:25 PM   #8
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Oh, I didn't know there were standoffs. As long as he folds the sides over then he should be golden. I have a large Al sheet here at the apt, I think I'll take it home and fab this up during the motor swap as well.
neogenesis2004 is offline   Reply With Quote
Old 12-09-2007, 01:53 PM   #9
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

where do you all buy your sheetmetal? All I know of is homedepot but it's usually crap for selection.
kotomile is offline   Reply With Quote
Old 12-09-2007, 02:14 PM   #10
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Lowes has a pretty sweet selection of aluminum sheet. They're expensive as hell though. I get it for free from my schools lab. Otherwise you should go hit up some local sheet metal shops. HVAC places and things like that. Call them up and see if they're willing to sell scrap. A 3x3' piece of scrap isn't worth much to places like that. Even if it's not aluminum, you could just paint it.
cjernigan is offline   Reply With Quote
Old 12-09-2007, 02:23 PM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2005
Location: San Jose
Posts: 213
Total Cats: 0
Default

yeah the GS rad has about 1" standoffs. Actually I'm thinking about using insulation for the sides to keep the air from escaping from the sides.
trito is offline   Reply With Quote
Old 12-09-2007, 02:41 PM   #12
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

I second that, awesome cuts for a dremmel. Look better than my bandsaw cuts. :-P

I'm curious about the fans, though - the OEM's are pretty good, so it seems not worth upgrading unless I get something ridiculously good. And that means $400 on SPALS or something?
AbeFM is offline   Reply With Quote
Old 12-09-2007, 03:10 PM   #13
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

CJ - thanks I'll try Lowes

Abe - The OE fans are good, but BIG. The ebay fan seems to work perfect for everyone here who's using it.
kotomile is offline   Reply With Quote
Old 12-09-2007, 05:53 PM   #14
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

looks nice, my dremel cuts are never that good
Oscar is offline   Reply With Quote
Old 12-09-2007, 06:06 PM   #15
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Looks good man. Still don't believe you used a drem for those cuts though....
patsmx5 is offline   Reply With Quote
Old 12-09-2007, 06:31 PM   #16
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

No kidding. It takes soooo long to cut anything with a dremel. I'd have lost patience quickly with a dremel.
cjernigan is offline   Reply With Quote
Old 12-09-2007, 07:14 PM   #17
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

It's all about the air tools. A cut off wheel is like the world's best dremmel. And when you positively need to dremmel something, they make little air dremmels, very thin and good for getting in tight places.
AbeFM is offline   Reply With Quote
Old 12-09-2007, 10:07 PM   #18
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Loki047 is offline   Reply With Quote
Old 12-09-2007, 11:35 PM   #19
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

check your yellow pages for local metal scrap yards. I used to go to the same place the mythbusters use because it was across the street from my work (http://www.alcometals.com/). now I got nothin but mcmaster.com
y8s is offline   Reply With Quote
Old 12-09-2007, 11:44 PM   #20
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

I get my scrap on EBAY son! Seriously though, you can find some big pieces at great prices.
neogenesis2004 is offline   Reply With Quote
