Default Name of seals...

I'm in the middle of doing bodywork on the Miata. I've gotten most of the seals for replacement, but have been unable to locate a name (and as a result, a source) for the seal that goes in the front bumper, between the lip of the hood and the bumper.

Anyone got a name and/or part number?
blaen99 is offline   Reply With Quote
Old 05-29-2012, 03:48 AM   #2
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

While I'm at it, what is the name of the windshield fluid squirters on the hood? Gotta order a set of those too.
blaen99 is offline   Reply With Quote
Old 05-29-2012, 06:51 AM   #3
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

rleete is offline   Reply With Quote
Old 05-29-2012, 12:11 PM   #4
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I will seal your squirter blean.
Faeflora is offline   Reply With Quote
Old 05-29-2012, 02:55 PM   #5
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by rleete View Post
Many thanks on that, Rleete.

Now I just need to find the part number and/or name of the seal that goes between the bumper and the lip of the hood in front!

Quote:
Originally Posted by Faeflora View Post
I will seal your squirter blean.
Aww, and here I thought you'd never ask Faefae!
blaen99 is offline   Reply With Quote
Old 05-29-2012, 03:05 PM   #6
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

I searched, and couldn't find it. Maybe call partsgroup or someplace like that?
rleete is offline   Reply With Quote
Old 05-29-2012, 03:07 PM   #7
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by rleete View Post
I searched, and couldn't find it. Maybe call partsgroup or someplace like that?
Yeah, I'm having a lot of trouble finding it myself, but I need to replace it :(.
blaen99 is offline   Reply With Quote
Old 05-29-2012, 04:48 PM   #8
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

Possible that the rubber seal between the hood/bumper is only sold as part of the bumper?
fooger03 is offline   Reply With Quote
Old 05-29-2012, 04:52 PM   #9
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by fooger03 View Post
Possible that the rubber seal between the hood/bumper is only sold as part of the bumper?
Fuuu...I hope not.

I'm not buying a new damn bumper for this car.
blaen99 is offline   Reply With Quote
Old 05-29-2012, 04:54 PM   #10
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Isn't that rubber molded to the slotted bracket that holds the bumper?
Oscar is offline   Reply With Quote
Old 05-29-2012, 04:56 PM   #11
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

Quote:
Originally Posted by fooger03 View Post
Possible that the rubber seal between the hood/bumper is only sold as part of the bumper?
If you find out, let me know. I need to replace mine as well.

I second rleete's recommendation on the Tribute washer nozzles. They are a nice little upgrade if you use your washers at all.
Scrappy Jack is offline   Reply With Quote
Old 05-29-2012, 04:58 PM   #12
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by Oscar View Post
Isn't that rubber molded to the slotted bracket that holds the bumper?
I'll have to check later today. I hope not.
blaen99 is offline   Reply With Quote
Old 05-29-2012, 05:05 PM   #13
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Yeah, I'm 99% sure that's no separate rubber seal broham.
Vashthestampede is offline   Reply With Quote
Old 05-29-2012, 07:01 PM   #14
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

I *believe* the "official name" of the rubber seal you're looking for is:

NA01-50-1AYC

AND

NA01-50-2A0B

If I'm not mistaken, there are actually 2 seals, a left one and a right one, split right in the middle. This is for a '94, other years may vary.

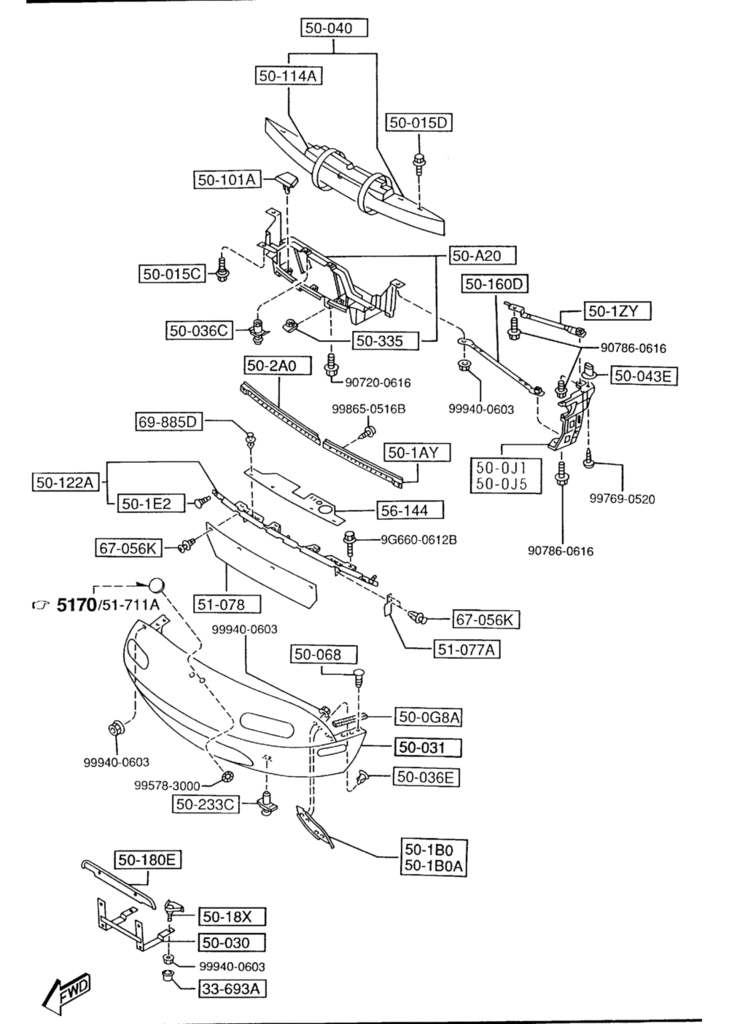

Identified in the mazda parts diagram as 50-2A0 and 50-1AY
Attached Thumbnails
Name of seals...-bn09081_1000.gif
fooger03 is offline   Reply With Quote
Old 05-29-2012, 07:35 PM   #15
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Holy ---- Foogy, that's exactly right. MEGA-props for you!
blaen99 is offline   Reply With Quote
Old 05-29-2012, 07:37 PM   #16
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Yup that's the one. I thought it was integrated with the bumper, glad to see it's not.
Oscar is offline   Reply With Quote
