Old 03-21-2013, 06:13 PM   #61
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,679
Total Cats: 1,561
Default

According to my calculations on this site

440cc injectors at ~60psi instead of 43.5psi flow 516cc
BSFC of .60
Duty cycle of .85 which is maximum safe level
=278 gross engine HP
15% drivetrain loss
=236 WHP
sixshooter is online now   Reply With Quote
Old 03-21-2013, 06:29 PM   #62
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Yeah I did a bit of math earlier but didn't post it. To get 300BHP out of the 440s, he needs 80ish PSI of fuel pressure.
thenuge26 is offline   Reply With Quote
Old 03-21-2013, 09:33 PM   #63
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by thenuge26 View Post
Doh, I read back over the $350 and thought "Gee that's dumb, why would anyone do that". I forgot you got them from a friend for cheap.
It's all good man! I figured that's what you were thinking. I don't think it's to bad of a deal. I was hitting fuel cut before since I was running this tiny turbo at 14.5-15psi. Way past it's effective range of 10psi I believe someone said.
But seriously. but If you got connections for ID1000's cheap though, you should let me know :P


Quote:
Originally Posted by sixshooter View Post
According to my calculations on this site

440cc injectors at ~60psi instead of 43.5psi flow 516cc
BSFC of .60
Duty cycle of .85 which is maximum safe level
=278 gross engine HP
15% drivetrain loss
=236 WHP
Quote:
Originally Posted by thenuge26 View Post
Yeah I did a bit of math earlier but didn't post it. To get 300BHP out of the 440s, he needs 80ish PSI of fuel pressure.
Oh okay cool cool, thanks guys. I don't think I'll hit 300hp with the MSM turbo though but with the EFR, it's going to be so easy.
I've been keeping watch on Trackspeed/Savington's kit their putting together that's going to use the EFR series. I had to long since hush up in that thread though since everyone hates getting email updates on it when it's just some nub asking a question that's been answered 15 times. Or when some dude went off about people posting a picture of shut up and take my money. I was one so ehh :P
Impuls is offline   Reply With Quote
Old 03-21-2013, 11:15 PM   #64
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Haha me too. I have hardly touched my car yet, because I am waiting for the latest and greatest to come out. I want a megasquirt so I can start learning to tune, but I feel like I'll be disappointed if I don't wait for Reverant's Enhanced MS3. The TSE kit is of course a no brainer vs the cost/complexity of me putting together a DIY EFR kit. Though if it takes too much longer I'll probably see how close Artech can get.
thenuge26 is offline   Reply With Quote
Old 03-21-2013, 11:25 PM   #65
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by thenuge26 View Post
Haha me too. I have hardly touched my car yet, because I am waiting for the latest and greatest to come out. I want a megasquirt so I can start learning to tune, but I feel like I'll be disappointed if I don't wait for Reverant's Enhanced MS3. The TSE kit is of course a no brainer vs the cost/complexity of me putting together a DIY EFR kit. Though if it takes too much longer I'll probably see how close Artech can get.
Yeah I got ms2 and it's been fun to tune. I also want the enhanced ms3 too :P been waiting to justify that tho.
I was looking at Absurd flow stuff the other day I think, but yeah I've heard good things about artech too. Still waiting to see the final TSE kit tho , it sounds so great. I just wish the EFR system was twin scroll and external WG :/ everything I've seen says it's not (except the big snails)
Impuls is offline   Reply With Quote
Old 03-21-2013, 11:41 PM   #66
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Twin scroll is good for turbos that spool poorly, neither of the T2 flanged EFRs need to worry about that.

EWG I couldn't care less about. Added cost and complexity, which are not required when you improve the IWG as much as BW did.

AbsurdFlow's stuff is amazing, but I think TurboTim is done with his manifold building days, at least for the near future.
thenuge26 is offline   Reply With Quote
Old 03-22-2013, 08:46 AM   #67
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by thenuge26 View Post
Twin scroll is good for turbos that spool poorly, neither of the T2 flanged EFRs need to worry about that.

EWG I couldn't care less about. Added cost and complexity, which are not required when you improve the IWG as much as BW did.

AbsurdFlow's stuff is amazing, but I think TurboTim is done with his manifold building days, at least for the near future.
I just thought it'd make the already fast spooling efr spool faster. I don't mind iwg/ewg, but everyone says that an ewg is better for higher boost/ controlling boost levels. Plus they do look really nice haha.

I'll probably stick to iwg tho since its what's offered and to try to stay with some simplicity. The more complicated the more something will break.
Impuls is offline   Reply With Quote
Old 03-22-2013, 11:07 AM   #68
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

When an IWG works well like it does on the efr, its a waste of money and time to do ewg. Its also unnecessary added weight.

Also on a turbo like the 6258, with how quickly it spools, going twin scroll and trying to make it spool even faster you'd probably run into surge because there is a limit to how much air the engine can take at low rpm before its completely choked up and unable to process it. Its not good for the turbo or the motor.

I know on the large 2.5L subie motors I mess with, going from a vf series single scroll (small'ish turbo, on par with the garrett 2860rs) to a twin scroll there is hardly any improvement, because it already spools so fast.
18psi is offline   Reply With Quote
Old 03-22-2013, 11:17 AM   #69
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Besides, if you want a twin-scroll EWG EFR, you just have to dream a bit bigger as far as power numbers go: BorgWarner EFR 7064 Turbo - Full-Race.com

But a twin scroll dual EWG manifold would be
thenuge26 is offline   Reply With Quote
Old 03-22-2013, 05:30 PM   #70
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Haha yeah, I think that 7064 is a bit out of the BPs power range. I'm thinking about going 6758 instead of the 6258 as well.
Thanks for the insight both of you, also something I'm not sure about Is the boost control the efrs have built in? I wonder how megasquirt can deal with it.
Impuls is offline   Reply With Quote
Old 03-22-2013, 06:30 PM   #71
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

The EBC solenoid is built in, but a solenoid is a solenoid so I'm sure MS can control it. I'll wait for someone who actually has one to confirm though.
thenuge26 is offline   Reply With Quote
Old 03-22-2013, 07:26 PM   #72
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Same here, I guess I may of wasted some money since I got a ebc already
Impuls is offline   Reply With Quote
Old 04-04-2013, 10:39 PM   #73
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

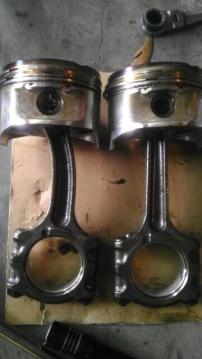

Number 1 rod confirmed.
Attached Thumbnails
A New 99' for you guys-100media95imag1970_zpse9827229.jpg
Impuls is offline   Reply With Quote
Old 04-12-2013, 01:08 AM   #74
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

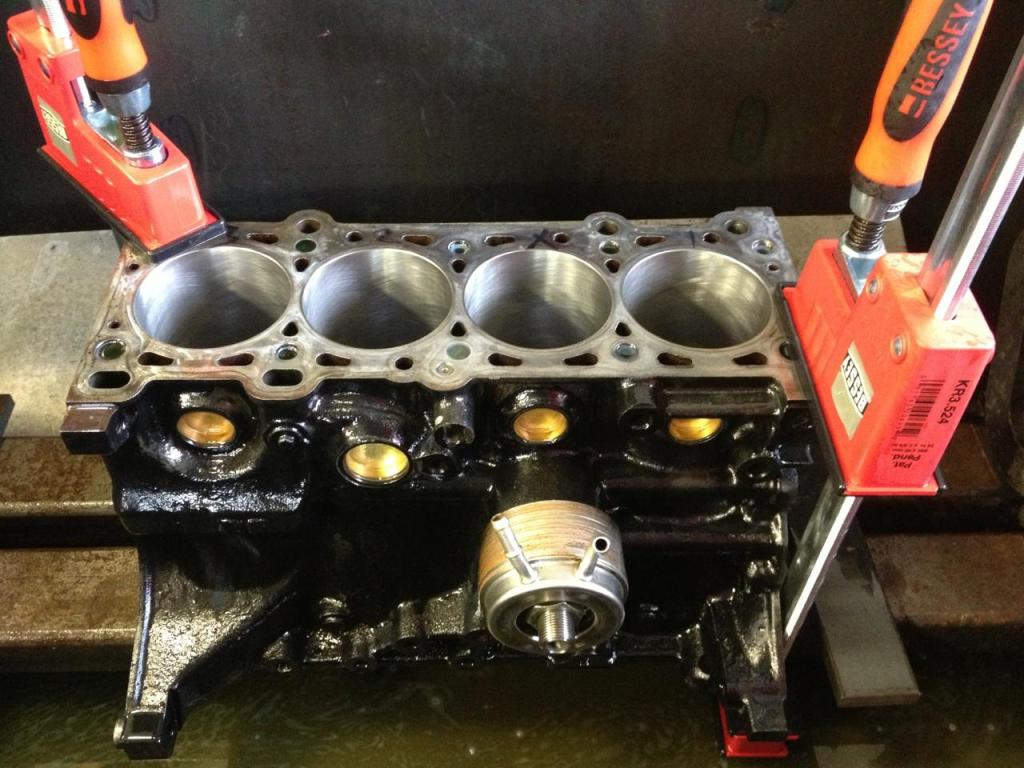

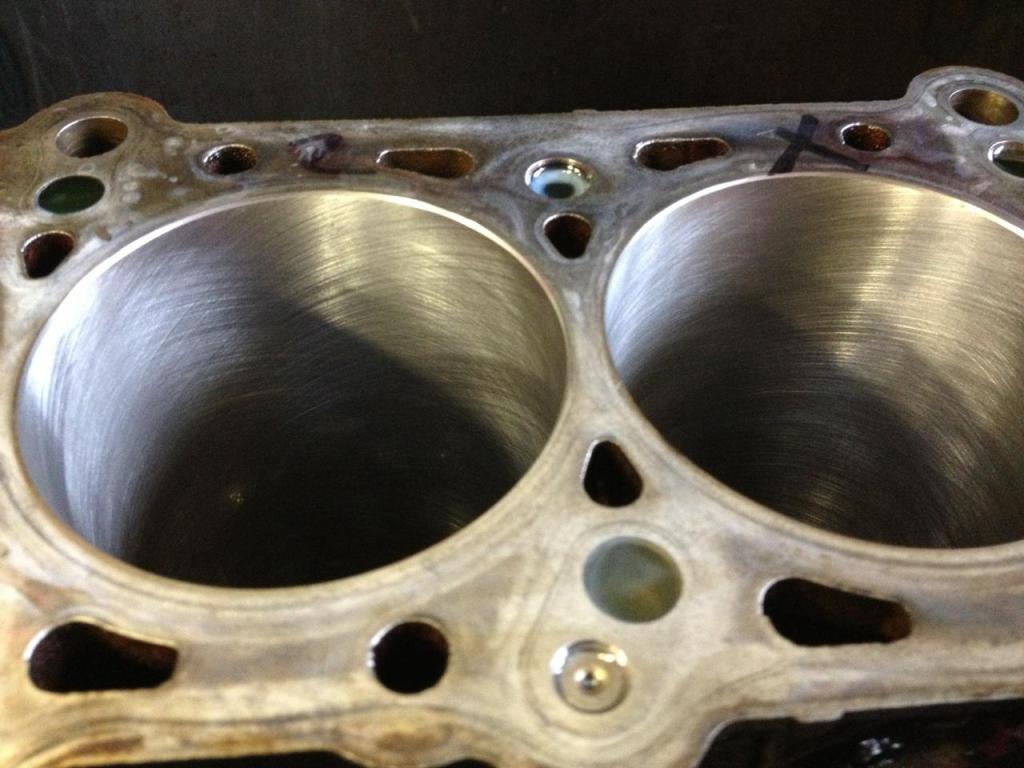

Block back from bore and bone

Attached Thumbnails
A New 99' for you guys-img955451_zps25e786f1.jpg   A New 99' for you guys-img959619_zps0b9f5968.jpg
Impuls is offline   Reply With Quote
Old 04-16-2013, 02:50 PM   #75
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

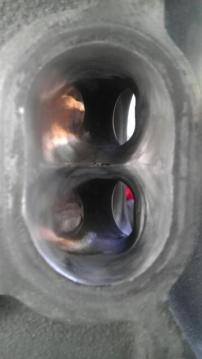

Port work.
Attached Thumbnails
A New 99' for you guys-100media95imag2013_zpse6815575.jpg
Impuls is offline   Reply With Quote
Old 04-18-2013, 01:26 AM   #76
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

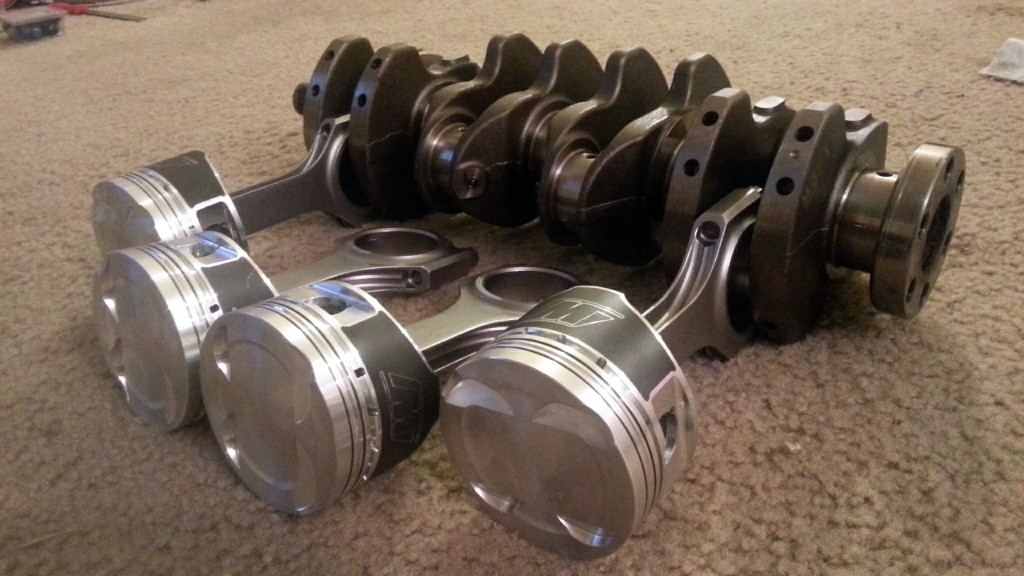

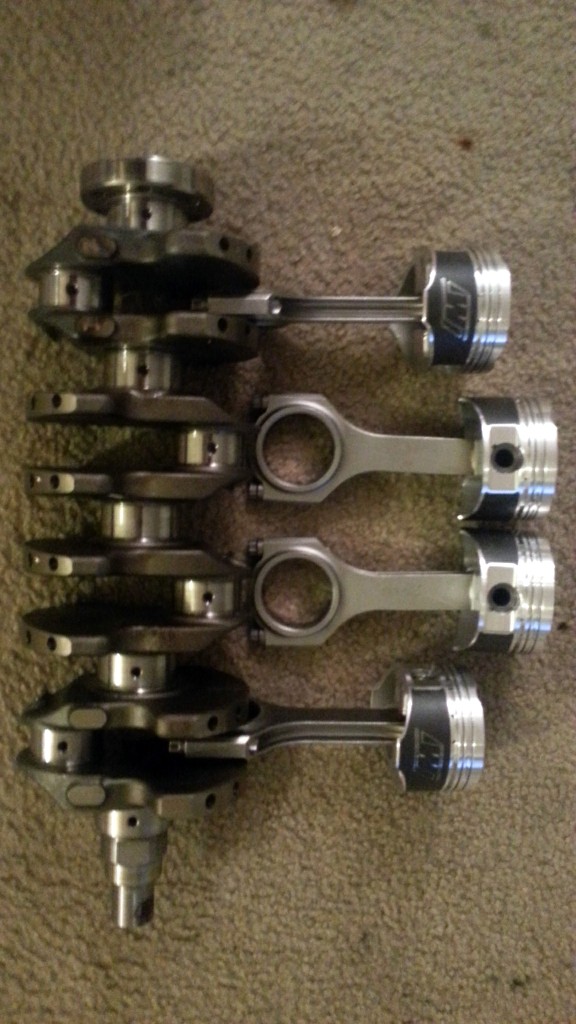

So pretty.

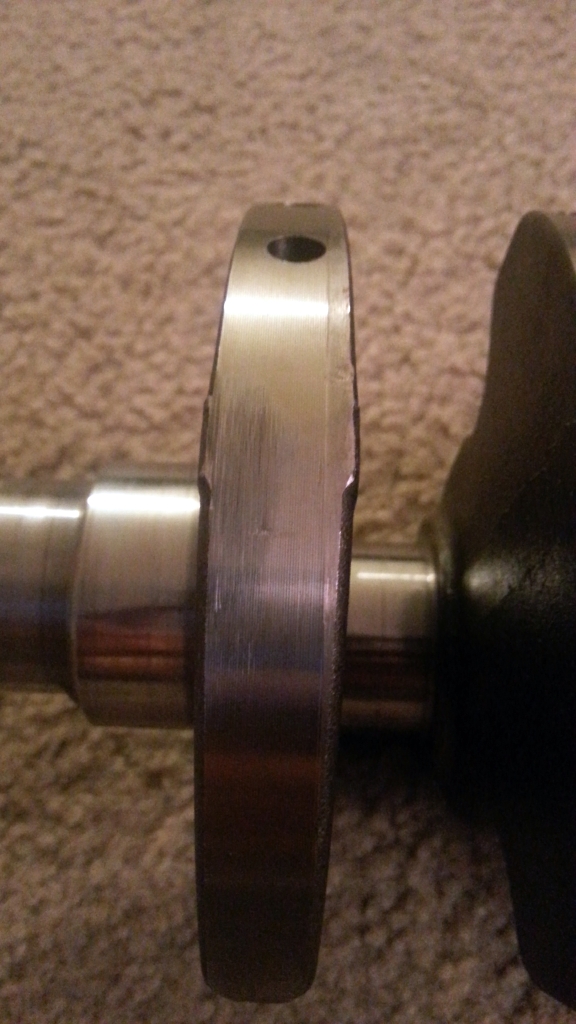

This is what happened to my crank :/
Attached Thumbnails
A New 99' for you guys-c360_2013-04-17-23-40-54-332_zps8d267927.jpg   A New 99' for you guys-c360_2013-04-17-23-37-14-829_zpsd3ebecc7.jpg   A New 99' for you guys-c360_2013-04-17-23-37-53-001_zps15e2e4df.jpg
Impuls is offline   Reply With Quote
