Default New rad + ac, overheating ?

Hey,

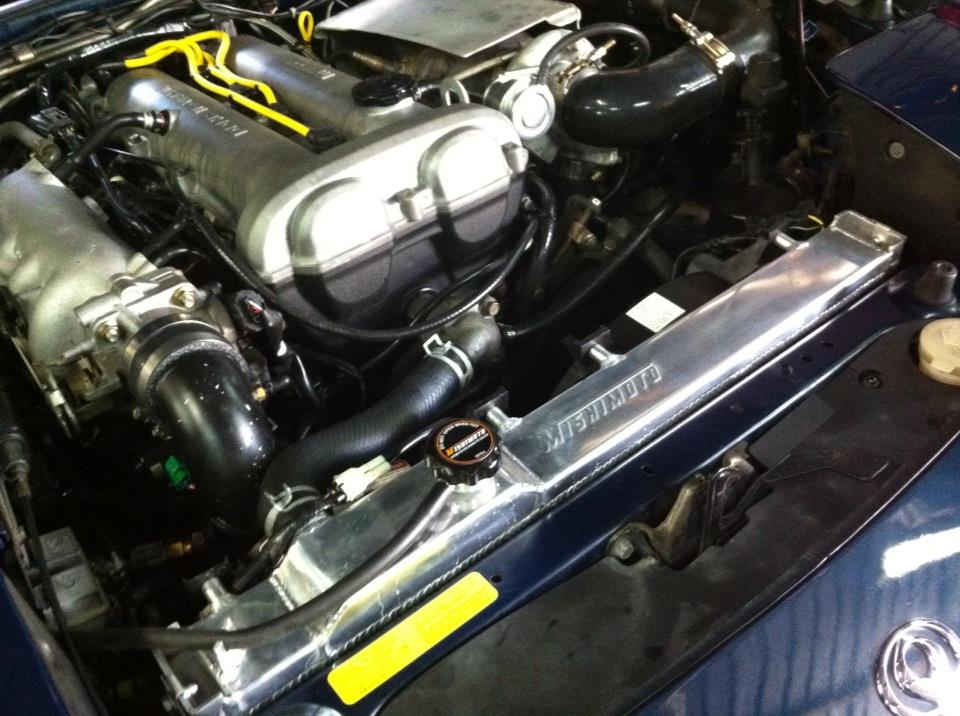

Just installed a new Mishimoto rad in my 97 NA, the old stock rad could not hold boosting with ac on I would see temps up to 240F (115C) and then I would turn off the ac.

Even when driving hard with the stock rad and no ac, it would still overheat.

On the trip home with the new rad I noticed that it would still heat up with ac and boosting but much slower, I got up to 212F (100C).

There is still space between the rad and the body, and there is space between the right fan and the rad.

No coolant is missing.
The fans run together.
Fans turn on @ 194F(90C) and off @ 188F(87C).
Ambient @ 86F(30C)
Got IC.

I'm good ?

Thanks

Attached Thumbnails
New rad + ac, overheating ?-946730_10151827129829719_1327233158_n.jpg
elior77 is offline   Reply With Quote
Old 09-18-2013, 06:08 PM   #2
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

212 is OK.

A coolant reroute would have made a bigger difference and remains a good idea.
hornetball is offline   Reply With Quote
Old 09-18-2013, 06:33 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

most important thing you didn't mention: shrouding
18psi is offline   Reply With Quote
Old 09-18-2013, 06:50 PM   #4
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

No shroud, stock fans.

Reroute as an addition right? Not instead of a rad upgrade ?
elior77 is offline   Reply With Quote
Old 09-18-2013, 06:56 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Quote:
Originally Posted by elior77 View Post
No shroud, stock fans.

Reroute as an addition right? Not instead of a rad upgrade ?
/thread
18psi is offline   Reply With Quote
Old 09-18-2013, 07:00 PM   #6
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Aren't the stock fans on a shroud? They were on my MSM, at least.
concealer404 is offline   Reply With Quote
Old 09-18-2013, 07:01 PM   #7
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

No, just bolted to the rad
elior77 is offline   Reply With Quote
Old 09-18-2013, 07:02 PM   #8
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

What Vlad said (assuming that by no shroud you mean that you've removed or cut big, unsealed holes in the air guide/undertray).

More than likely, had you had decent ducting you would have been fine even with the OEM radiator.

Bigger radiator doesn't hurt anything and a reroute does great things to even out engine temperatures and increase water flow to the radiator (at the expense of water flow to the heater core).

My car is 100% OEM cooling system with ducting in like-new condition and a reroute. I'm cool as a cucumber in 100+ -- including idling in traffic with AC and track days. I do turn the wick down to 5psi for track days though.
hornetball is offline   Reply With Quote
Old 09-18-2013, 07:02 PM   #9
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Ah ok.

Well... i wouldn't be worried about those temps.
concealer404 is offline   Reply With Quote
Old 09-18-2013, 07:08 PM   #10
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

100+C is ok?

I idle @ 90-93C traffic with AC on.

I boost 10-12psi

The stock rad was 3 years old, no way it would hold boost+AC when is is over 30C out side, even without AC it would over hear.
elior77 is offline   Reply With Quote
Old 09-18-2013, 07:08 PM   #11
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Well you just said 212F is what you hit. 212F isn't scary.
concealer404 is offline   Reply With Quote
Old 09-18-2013, 07:09 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

a radiator doesn't hold boost.
and your issue is lack of airflow that is generated by lack of shrouding (and from your description lack of fan shrouds too)

a 3 year old radiator is actually fairly new
18psi is offline   Reply With Quote
Old 09-18-2013, 07:12 PM   #13
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

When I said 100+, I meant it was 40C+ outside. MERICUH!!
hornetball is offline   Reply With Quote
Old 09-18-2013, 07:12 PM   #14
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Quote:
Originally Posted by concealer404 View Post
Well you just said 212F is what you hit. 212F isn't scary.
What is the red line temp ?
At what temp should I set the fans to start?

The rad does not hold boost, but what I mean is that it does not handle the heat @ long boost.
elior77 is offline   Reply With Quote
Old 09-18-2013, 07:15 PM   #15
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

yes it does. over half the people on this site are running the stock radiator which is way way older than 3 years
18psi is offline   Reply With Quote
Old 09-18-2013, 07:16 PM   #16
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by elior77 View Post
What is the red line temp ?
At what temp should I set the fans to start?

The rad does not hold boost, but what I mean is that it does not handle the heat @ long boost.
I'm not sure what you mean by "red line temp."

I have my fans set progressively. First one on at 195F, second at 210F or when A/C is on, whichever comes first. Off at 185.
concealer404 is offline   Reply With Quote
Old 09-18-2013, 07:21 PM   #17
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Quote:
Originally Posted by 18psi View Post
yes it does. over half the people on this site are running the stock radiator which is way way older than 3 years
With ac? I find it hard to believe.
The AC condenser is all over the rad.
I know people remove the AC system, then it would be more reasonable.
elior77 is offline   Reply With Quote
Old 09-18-2013, 07:23 PM   #18
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Until this past May, my car had the original factory radiator in it. Cooled just fine despite being 9 years old.

I only replaced it because the tanks were getting green, which is a bad sign.
concealer404 is offline   Reply With Quote
Old 09-18-2013, 07:24 PM   #19
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default



He is literally trying as hard as possible to be in denial and fix everything except the problem.
18psi is offline   Reply With Quote
Old 09-18-2013, 07:31 PM   #20
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

We need pics, please provide

You list temperatures in C horsepower as wbhp and 95RON for fuel, so I'm guessing you are in Europe. What you call a shroud we may call something else.

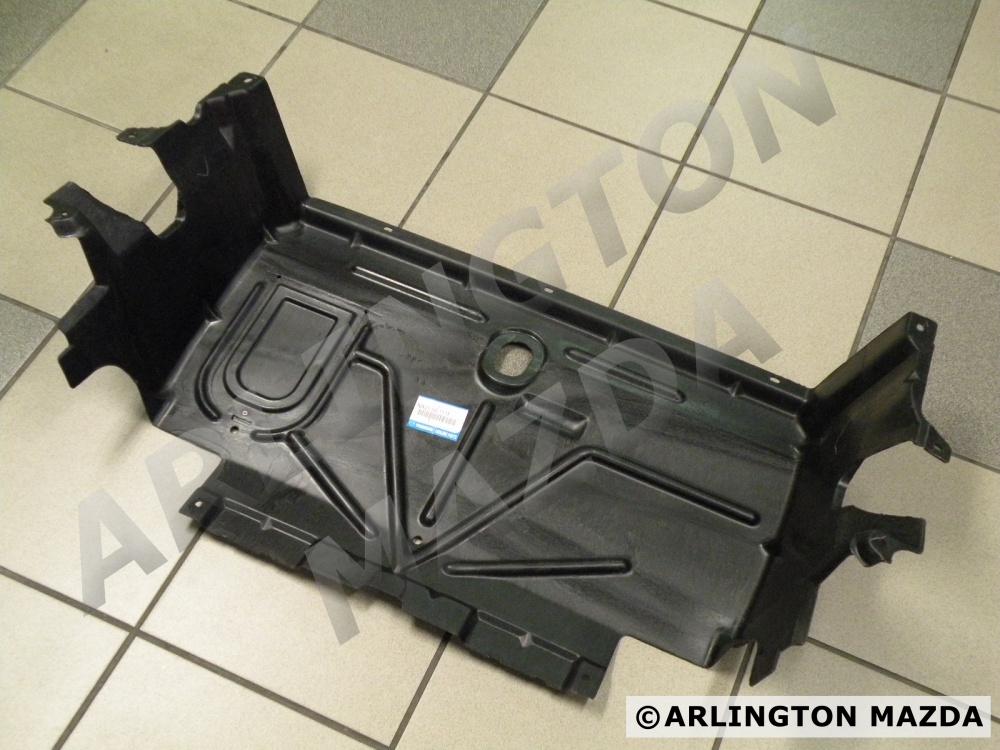

If you removed this thing from your car, put it back on:

Attached Thumbnails
New rad + ac, overheating ?-d2191cfae44e361ea7cf213239965f0e__41353_zoom.jpg
EO2K is offline   Reply With Quote
