Old 01-11-2009, 05:20 PM   #21
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

"TTT"?

Your idea seems fairly sound. The cursed water plug is going to flow less coolant than stock while the thermostat is closed, but it's still an optimum location to be taking the bypass from. I don't see any major problems.
Joe Perez is offline   Reply With Quote
Old 01-11-2009, 05:25 PM   #22
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Joe Perez View Post
"TTT"?

Your idea seems fairly sound. The cursed water plug is going to flow less coolant than stock while the thermostat is closed, but it's still an optimum location to be taking the bypass from. I don't see any major problems.
Let me google that for you

patsmx5 is offline   Reply With Quote
Old 01-11-2009, 05:43 PM   #23
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Oh, **** of with that thing already.
Joe Perez is offline   Reply With Quote
Old 01-11-2009, 05:48 PM   #24
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Joe Perez View Post
Oh, **** off with that thing already.
I couldn't help myself....
patsmx5 is offline   Reply With Quote
Old 01-11-2009, 05:59 PM   #25
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Joe Perez is offline   Reply With Quote
Old 01-11-2009, 08:12 PM   #26
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Thanks Joe! Thats the simplest Reroute there is!

PS: Looks like the Cursed plug can be drilled out a bit for better flow, not that I would need it but with a little more flow its the perfect reroute design.
IcantDo55 is offline   Reply With Quote
Old 01-15-2009, 05:23 PM   #27
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by IcantDo55 View Post
So got my head back from machine shop today and looked at it. I will not have a heater core so how about moving the thermostat to back (like spacerless reroute) and than hoking up the "cursed" water plug to the return line of the heater core that goes back to front of motor. There fore I would have flow and nothing to drill or tap. Seems too easy? What am I missing?


I'll tell me what I'm missing... the ECU temp sensor. Where can I put that.

I'm going to get some black pipe and thread it inline, should be good.

What thread is this plug? I can't find it anywhaere. The green 2 wire sensor.

Thanks!

Last edited by IcantDo55; 01-15-2009 at 05:48 PM.
IcantDo55 is offline   Reply With Quote
Old 01-16-2009, 12:17 AM   #28
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Anyone?
IcantDo55 is offline   Reply With Quote
Old 01-16-2009, 12:36 AM   #29
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

The ECU temp sensor (green two-wire) is M12x1.5
TurboRoach is offline   Reply With Quote
Old 01-16-2009, 12:43 AM   #30
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Better question: Where in the world do you buy metric taps that big? I need one as I need to reinstall my coolant sensor. I drilled and tapped the old hole 3/8 NPT for a GM sensor. And now my gauge inside don't work.
patsmx5 is offline   Reply With Quote
Old 01-16-2009, 01:05 AM   #31
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Quote:
Originally Posted by patsmx5 View Post
Better question: Where in the world do you buy metric taps that big?
I get mine from Al Harrington's Wacky Waving Inflatable Arm-Flailing Tube Man Emporium and Tool Store.

(j/k)

$6.95 from Enco Tools: Enco - Guaranteed Lowest Prices on Machinery, Tools and Shop Supplies
Joe Perez is offline   Reply With Quote
Old 01-16-2009, 01:10 AM   #32
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

My dad thinks he got his in a kit from Home Depot, it's Vermont American. He's had it for quite a while so I don't know if they still carry it.
TurboRoach is offline   Reply With Quote
Old 01-16-2009, 01:10 AM   #33
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Joe Perez View Post
I get mine from Al Harrington's Wacky Waving Inflatable Arm-Flailing Tube Man Emporium and Tool Store.

(j/k)

$6.95 from Enco Tools: Enco - Guaranteed Lowest Prices on Machinery, Tools and Shop Supplies
Two things. One, that's not a tapered piece. And I would think the factory sensor was a tapered fit. IE-pipe tap. Like my GM sensor I installed was 3/8 NPT.

Second, there's no way that 12mm is the correct size. Unless it's a 12mm BPT (maybe?) that when you tap it and screw something in, the ID is 12mm, similar to how pipe taps are rated in the US system.
patsmx5 is offline   Reply With Quote
Old 01-16-2009, 01:15 AM   #34
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

12mm is correct. I took the cover to the hardware store and a 12x1.5 bolt went right in.
TurboRoach is offline   Reply With Quote
Old 01-16-2009, 01:22 AM   #35
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Well maybe my 99's is different it has 3 wires FWIW. I dunno. If it wasn't so damn cold outside I'd go mike it out. It's just laying on the valve cover.
patsmx5 is offline   Reply With Quote
Old 01-16-2009, 12:17 PM   #36
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

The green plug sensor on the 1.6 is prob not tapered, it had a "crush washer" in it to seal. If it was some sort of pipe thread it would not need that. Heading to hardware store....
IcantDo55 is offline   Reply With Quote
Old 01-21-2009, 03:47 PM   #37
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Ok, Do I really need the coolant going to the EGR and the TB? I'm thinking, out the intake to the oil cooler than to the water pump...ok?

Soon I will post a full thread on the "Lemons budge reroute" Its cheep!
IcantDo55 is offline   Reply With Quote
Old 02-16-2009, 09:14 PM   #38
Newb

Join Date: Feb 2009
Posts: 1
Total Cats: 0
Default

Quote:
Originally Posted by IcantDo55 View Post
I'll tell me what I'm missing... the ECU temp sensor. Where can I put that.

I'm going to get some black pipe and thread it inline, should be good.

What thread is this plug? I can't find it anywhaere. The green 2 wire sensor.

Thanks!
The temperature sensor will screw into the threaded hole in the back of the head that is just above the outlet to the oil cooler. Just remove the bolt. See the photo on the link.

http://users.telenet.be/miata/images...rear_plug1.jpg

Frank Devocht's full description of how he did it is here

http://users.telenet.be/miata/englis...nt_reroute.htm
Euen is offline   Reply With Quote
Old 02-17-2009, 03:42 AM   #39
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Euen,

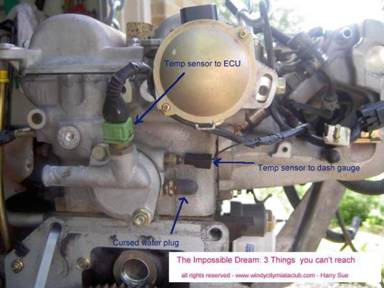

That is the back of a 1.8l. IcantDo55 is doing this on a 1.6l which doesn't have the same ports.
Attached Thumbnails
Off road coolant reroute.-image010.jpg

Last edited by TurboRoach; 02-17-2009 at 03:46 AM. Reason: added a picture
TurboRoach is offline   Reply With Quote
