Default Oil pump failure, pictures of destruction inside...

Do you think I will be able to save the engine block?

Some say yes others no...

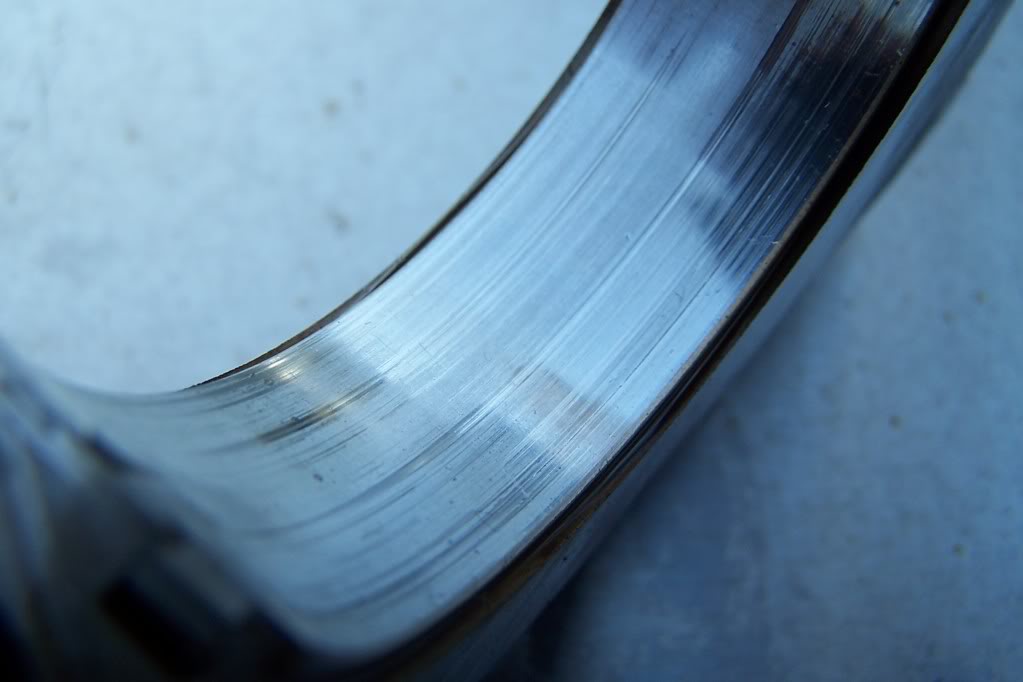

Name:  Crankshaftbearing11.jpg
Views: 23
Size:  50.2 KB

Name:  Crankshaftbearing10.jpg
Views: 22
Size:  87.0 KB

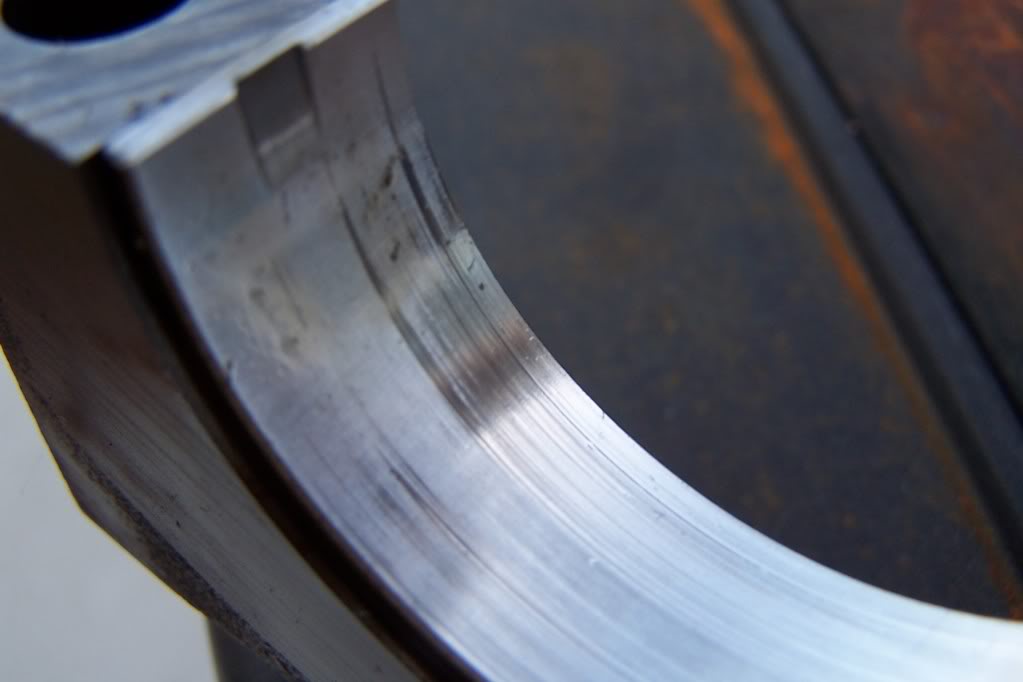

Name:  Crankshaftbearing5.jpg
Views: 20
Size:  41.3 KB

Name:  100_0625e.jpg
Views: 20
Size:  156.2 KB

Name:  100_0633e.jpg
Views: 31
Size:  142.2 KB

Name:  100_0635e.jpg
Views: 82
Size:  135.2 KB

Name:  100_0623.jpg
Views: 22
Size:  191.7 KB
mazpr is offline   Reply With Quote
Old 04-03-2010, 08:48 PM   #2
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

That sucks!
Cspence is offline   Reply With Quote
Old 04-03-2010, 08:59 PM   #3
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,898
Total Cats: 109
Default

THAT scares the **** out of me.
miata2fast is offline   Reply With Quote
Old 04-03-2010, 09:09 PM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Were you using an OEM harmonic balancer or an aftermarket pulley? How much power? What kind of RPM does the motor see regularly? Street or track use?
Savington is online now   Reply With Quote
Old 04-03-2010, 10:14 PM   #5
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

You are the second person asking about the harmonic balancer, I installed an aluminum crank pulley, but it has been there for many years which it would be around 5 by now.

But back then I was naturally aspirated, only been boosted at 15 psi for around 7 months or so. In another forum they have stated the extra vibrations from boosted powa has made the oil pump go south.

Ok, when the motor was swapped from 1.6 to 1.8 around 5 years ago I changed the timing belt, water pump, rod and piston bearings and installed new pistons as I went with a little higher compression. The cylinder head was sent to a machine shop for cleaning, BUT one thing (I know) I did not do was swap the oil pump, so in other words that pump may have had easy more than 160,000 miles on it.

I will rebuild and the stock harmonic balancer will go back to the engine bay, will get rid of the aluminum crank pulley. I think that for stock applications (N/A) it is ok, but for forced induction it is not. Once again it may have just been an old oil pump which finally gave up, but as you say the pulley may have been the cause of it.

I never expected the engine to give up by the oil pump, it was running good at 15 psi with 550cc, [email protected] pistons with 210/220 compression.

I ordered the oil pump, 100 bucks, out of stock so for now the car is on towers and on the way to a new overhauled engine.
mazpr is offline   Reply With Quote
Old 04-03-2010, 10:17 PM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by mazpr View Post

I will rebuild and the stock harmonic balancer will go back to the engine bay, will get rid of the aluminum crank pulley. I think that for stock applications (N/A) it is ok, but for forced induction it is not. Once again it may have just been an old oil pump which finally gave up, but as you say the pulley may have been the cause of it.

Oil pump failures using aluminum non-balancing crank pulleys are pretty well documented. Removing the balancer from the motor is NOT a good idea.
Savington is online now   Reply With Quote
Old 04-03-2010, 10:43 PM   #7
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

as said, aluminum pulleys do nothing good at all. invest in a ati damper

i wouldnt think that your motor is junk, unless you did damage to the crank or somehow cracked the block. even so you could have the crank ground .010 under. your gonna need to pull the motor and tear in down. get eveything clean pull all the oil galley plugs like the pressed in ones of the ends of the block and get all the metal out. and your gonna need to have your crank polished if not ground like i said. and all new rings and bearings.
ctdrftna is offline   Reply With Quote
Old 04-03-2010, 11:57 PM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

If it didn't run much I'd easily trust it after a complete strip, very very good cleaning, and rebuild. Consider billet oil pump gears, your OEM replacement you just bought may not even come with gears? No idea. What it definitely won't do is keep this from happening for another 160,000 miles. It was the power, not the mileage that did this. And your lack of harmonic balancing.
curly is offline   Reply With Quote
Old 04-03-2010, 11:58 PM   #9
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

What am I looking at with that picture of the rod? Is it bent?

Your bearing probably look like mine do. In my brand new engine. That's fucked up. :(
Faeflora is offline   Reply With Quote
Old 04-04-2010, 12:19 AM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

Thanks everyone for your feedback, will use the aluminum pulley for shotgun clay shooting, LOL.

I am still crying, my engine died!
mazpr is offline   Reply With Quote
Old 04-04-2010, 01:02 AM   #11
Senior Member
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

This would be a good a time as any to upgrade to a better oil pump. I saw some gears in the for sale section just the other day. Might be a good time to jump on them.

Have a great day,
Jared
Jfornachon is offline   Reply With Quote
Old 04-04-2010, 02:28 AM   #12
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

Quote:
Originally Posted by miata2fast View Post
THAT scares the **** out of me.
Thats what I was thinking as I scrolled down.
turotufas is offline   Reply With Quote
Old 04-04-2010, 02:52 PM   #13
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Indianapolis, IN
Posts: 758
Total Cats: 5
Default

Quote:
Originally Posted by faeflora View Post
What am I looking at with that picture of the rod? Is it bent?

Your bearing probably look like mine do. In my brand new engine. That's fucked up. :(
Looks like a crack in the block at the top of the pic.
boileralum is offline   Reply With Quote
Old 04-04-2010, 03:57 PM   #14
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

looks like a casting parting line to me
ctdrftna is offline   Reply With Quote
Old 04-04-2010, 04:43 PM   #15
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Indianapolis, IN
Posts: 758
Total Cats: 5
Default

Quote:
Originally Posted by ctdrftna View Post
looks like a casting parting line to me
I think you may be right. Looks like it sticks out at the very top, not in.
boileralum is offline   Reply With Quote
Old 04-04-2010, 08:12 PM   #16
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

Its casting, but one of the rods looks bent to me.


At least one person has seen the same thing, I posted the pic to see if someone would bring the subject and it did...



I am still waiting for the oil pump, brand new special order, will install the stock harmonic balancere.
mazpr is offline   Reply With Quote
Old 04-04-2010, 09:03 PM   #17
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Ok, well if the rod is bent that's normal.
Faeflora is offline   Reply With Quote
Old 04-04-2010, 09:47 PM   #18
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

yeah dude do yourself a favor and get some cheap belfab or what ever rods might as well while the sucker is open i wouldn't trust the stockers unless i absolutley had to.
magnamx-5 is offline   Reply With Quote
Old 04-05-2010, 02:28 PM   #19
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

I got owned big time because of my stupidty, the stcok pulley will be back and on the meantime doa complete overhaul.

The only thing is I never ever thought it would just blow up the oil pump, c'mmon give me some slack, the damn engine just died, LOL.
mazpr is offline   Reply With Quote
Old 04-07-2010, 10:04 PM   #20
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

Which Belfab rods should I buy? I did a search and found a few threads but not a for sale thread.


If I buy them is it just put them in and thats it? Or tdo I have to take the crank to a machine shop for clearances?
