Default Oil pump screws: I hate them

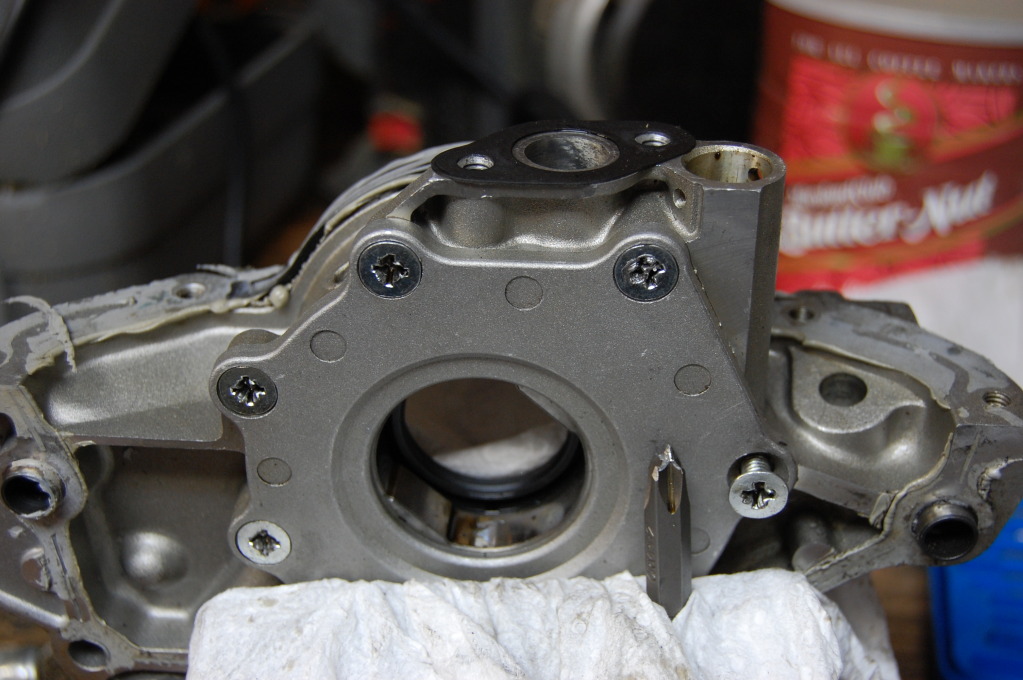

This is with one of those impact screwdrivers from the local autoparts store. What do?
Attached Thumbnails
Oil pump screws: I hate them-dsc_0685.jpg
Bryce is offline   Reply With Quote
Old 10-17-2011, 11:23 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Bryce View Post


This is with one of those impact screwdrivers from the local autoparts store. What do?
Cry.
shuiend is offline   Reply With Quote
Old 10-17-2011, 11:24 PM   #3
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

weld 1/4 nuts the them, use wrench on nuts.
RyanRaduechel is offline   Reply With Quote
Old 10-17-2011, 11:28 PM   #4
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Lots of heat. Then push, twist, and pray.
flounder is offline   Reply With Quote
Old 10-17-2011, 11:30 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

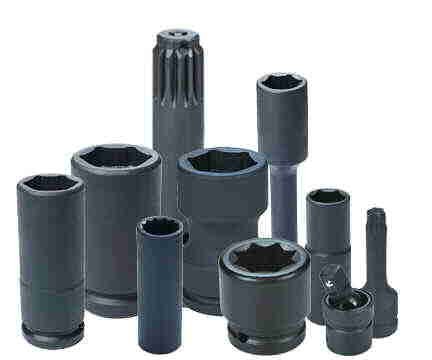

Use a real impact tip, should be darker color, like the impact sockets:


Make sure the tip is fatty and fits in the head nice and tight. Don't ***** smack it like Fae. Attach Hustler's 5lb nuts to the end of a stick and hit it like a man. (aka use a 5lb sledge).

Also realize if you can't get the nice tips, you might be wasting 5 brand new tips, one on each screw.
Attached Thumbnails
Oil pump screws: I hate them-pneumatic_impact_sockets_and_nut_runners.jpg
curly is offline   Reply With Quote
Old 10-17-2011, 11:33 PM   #6
Junior Member
iTrader: (1)

Join Date: Apr 2010
Location: On, Canada
Posts: 81
Total Cats: 1
Default

i have the same issue with those screws that hold on rotors and when that happens i use a cold chisel and a hammer and one good tap and they come free.

Kris.
uavjeep is offline   Reply With Quote
Old 10-17-2011, 11:33 PM   #7
Junior Member
iTrader: (5)

Join Date: May 2009
Location: Gay Area, CA
Posts: 220
Total Cats: 6
Default

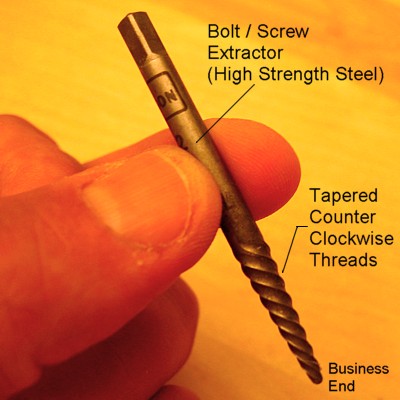

^^ That + new screws.

(The cheap-*** Harbor Freight kit worked getting broken 10mm bolt out of cylinder head.)
Attached Thumbnails
Oil pump screws: I hate them-screw_extractor.jpg
Import Al is offline   Reply With Quote
Old 10-18-2011, 12:07 AM   #8
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by curly View Post
Use a real impact tip, should be darker color, like the impact sockets:


Make sure the tip is fatty and fits in the head nice and tight. Don't ***** smack it like Fae. Attach Hustler's 5lb nuts to the end of a stick and hit it like a man. (aka use a 5lb sledge).

Also realize if you can't get the nice tips, you might be wasting 5 brand new tips, one on each screw.
I got a proper darker bit and it decided it was going to round out the screws even more. I also have a nice swelling spot on my hand after I hit it with the sledgehammer.

Quote:
Originally Posted by RyanRaduechel View Post
weld 1/4 nuts the them, use wrench on nuts.
This is next. Probably tomorrow though. I need a drink.
Bryce is offline   Reply With Quote
Old 10-18-2011, 12:31 AM   #9
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Just drill the heads off. Flat head cap screws are cake to drill out. Obviously clean everything VERY thoroughly afterward.
vehicular is offline   Reply With Quote
Old 10-18-2011, 12:40 AM   #10
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,332
Default

Quote:
Originally Posted by Import Al View Post
devil-spawn extractor
**** those things.

Buy a reverse drillbit and be amazed at how well it works.

I will never even attempt to use an EZ-out - those things are harder than any drill bit I own. I would much rather just drill the head off whatever bolt broke, then extract it easily with a set of pliers once the preload is off the threads.
Savington is offline   Reply With Quote
Old 10-18-2011, 12:42 AM   #11
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Like Curly suggested, the proper tip with a small sledge is what I've used in the past on tricky screws as well.

Once you start rounding them out, its over.
Vashthestampede is offline   Reply With Quote
Old 10-18-2011, 01:15 AM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by Import Al View Post
(the most brittle piece of metal ever forged in the fires of hell)
The tip of one of those is now permanently embedded in the head of my '92, surrounded by the remains of one of the two bolts that used to hold the lower thermostat housing in place.

Honestly, I don't think I have ever successfully removed a stuck fastener with one of those.

For the ones already rounded, my money here is on carefully drilling the heads off of the screws, removing the cover, and then using a vise-grip on the part that's left. That said, I have in the past been successful with the technique already mentioned, vis-a-vis a proper impact bit and a sledge. The secret is to hit the tool with the hammer- hitting your hand with it does not help get the screw out.
Joe Perez is offline   Reply With Quote
Old 10-18-2011, 01:21 AM   #13
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

Quote:
Originally Posted by Joe Perez View Post
hitting your hand with it does not help get the screw out.
And will make a preacher cuss in front of his mother.
vehicular is offline   Reply With Quote
Old 10-18-2011, 03:54 AM   #14
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

+1 for reverse drill bit. Or use a drift punch to smash the mangled bits flat to the heads again and get manly with it and wack it like a wife. Just remember all the mornings waffles weren't ready and get angry. Sometimes some heat helps.
TorqueZombie is offline   Reply With Quote
Old 10-18-2011, 10:35 PM   #15
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

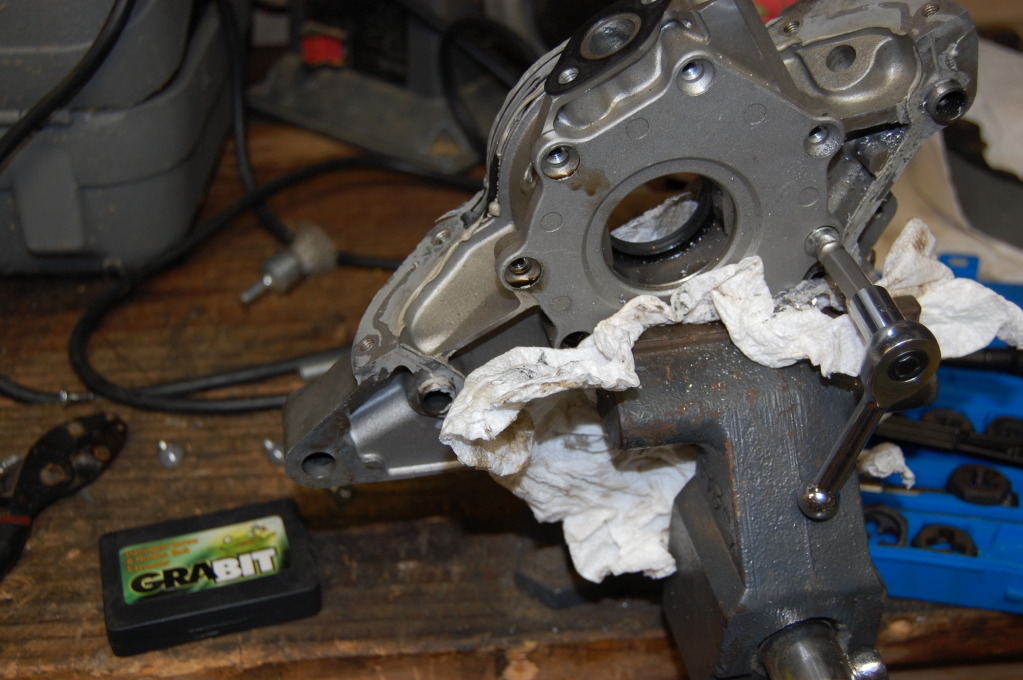

This may be my preferred method of removing oil pump screws now, even if the cross pattern is perfectly intact.

1: Drill a hole deep enough that so that you almost sever the head of the screw from the shank. I used a 15/64" Left hand drill bit. (Sadly, the bit didn't catch and magically remove any of the screws on it's own.)

2: Use largest screw extractor of your Grabit set with a small gearless socket wrench.

3: Pie.


I found that once the majority of the screw head was removed, it's structural integrity was compromised enough that I felt comfortable with the amount of torque required to break it loose using the extractor.

Has anybody sourced a Torx replacement for these screws?
Attached Thumbnails
Oil pump screws: I hate them-dsc_0686.jpg
Bryce is offline   Reply With Quote
Old 10-19-2011, 01:22 PM   #16
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

Quote:
Originally Posted by Bryce View Post

Has anybody sourced a Torx replacement for these screws?
I got mine from McMaster Carr, its been awhile so I don't remember the pitch, size, or length. But here: http://www.mcmaster.com/#socket-head-cap-screws/=ek6aux
RyanRaduechel is offline   Reply With Quote
Old 10-22-2011, 05:55 PM   #17
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Heat always works.
