Default Painting Valve Cover Advice Technique

Along with my COP converion, the valve cover is getting painted... and I'm pretty set on what I want, just looking for the BEST method.

This thread was great and was the inspiration for this idea:
https://www.miataturbo.net/forum/showthread.php?t=11601

I love the black crinkle finish, so that's what I want. I spent about an hour with a wire brush and some SimpleGreen hitting the whole thing real good... then some 400grit wet. I've stopped well short of "polishing" it, so it's still got some texture to it, which I think will help whatever I spray on bond a little better.

So, what's the BEST way to spray this thing. I don't mind doing it RIGHT, so please don't just say "don't bother prepping, just hit it" cause I want it to last forever.

I was thinking of a ceramic primer of some sort for heat... maybe 2 light coats of that, and then a layer of the crinkle... then maybe a top coat of some sort, like a flat-black hi-temp... whatcha think is the BEST way to get my valve cover to look like this and last forever:

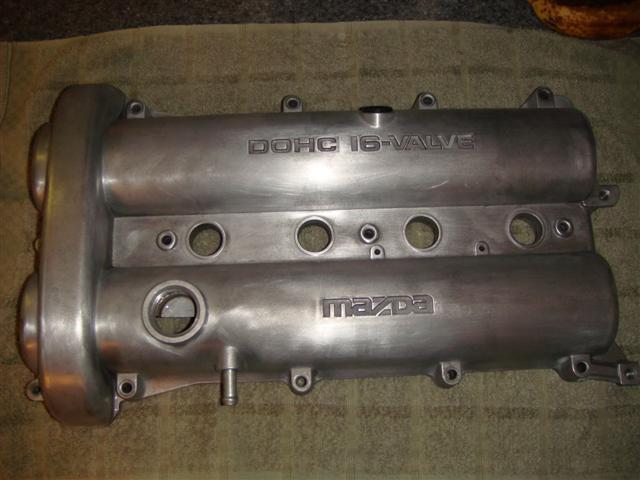

My valve cover currently drying:
Attached Thumbnails
Painting Valve Cover Advice Technique-dsc01090-small-.jpg
samnavy is offline   Reply With Quote
Old 03-26-2008, 07:46 PM   #2
Junior Member

Join Date: Oct 2004
Location: Leicestershire, UK
Posts: 57
Total Cats: 0
Default

I just flatted mine back and de-greased it and gave it a few coats of BBQ paint - worked fine for 3 years so far with no problems!

lwindridge is offline   Reply With Quote
Old 03-26-2008, 07:50 PM   #3
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

That photo sucks... and that post is exactly what I didn't want to hear.
Please, just post if you know how to get me a perfect crinkle.

EDIT: That photo is better and it looks good, but still not what I want. On a side note, how did you do the lettering?

Last edited by samnavy; 03-26-2008 at 08:01 PM.
samnavy is offline   Reply With Quote
Old 03-26-2008, 08:04 PM   #4
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

paint the letters last and use painters tape with some newspaper to shield off the rest of the valve cover. thats what i did on my previous car.
Marc D is offline   Reply With Quote
Old 03-26-2008, 08:14 PM   #5
Junior Member

Join Date: Oct 2004
Location: Leicestershire, UK
Posts: 57
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
EDIT: That photo is better and it looks good, but still not what I want. On a side note, how did you do the lettering?
Lettering was done with a syringe loaded with red paint - it's not perfect though but you can't tell unless you're close up.

From seeing ones done in the same way as I did mine the crinkle paint will sit perfectly on a base coat of normal high temp paint and you can give it a coat of high temp lacquer over the top to give it some protection.
lwindridge is offline   Reply With Quote
Old 03-26-2008, 08:20 PM   #6
Senior Member
iTrader: (12)

Join Date: Nov 2005
Location: Murfreesboro, TN
Posts: 596
Total Cats: 3
Default

I bead blasted mine, then shot it with black crinkle. No primer needed and it has held up great.

sbrian2 is offline   Reply With Quote
Old 03-26-2008, 08:20 PM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

http://racecoated.com/index.htm

durable and attractive. but sorry, not diy.
y8s is offline   Reply With Quote
Old 03-26-2008, 08:29 PM   #8
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

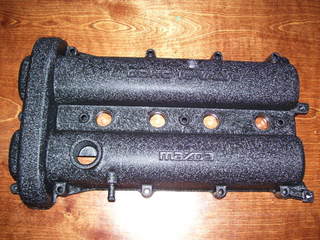

I bead blasted this one, but it's not necessary. Cleaned it with mineral spirits. Then i gave it two coats of Rustoleum Professional Series Primer. Let that dry an hour I think, then 3 light coats, one every 15 minutes of black wrinkle finish. Two coats would fit my taste better, but this one turned out fine. Sold it to someone on mt.net a while back.


Name:  valvecover3.jpg
Views: 265
Size:  98.7 KB

Name:  valvecover1.jpg
Views: 36
Size:  23.7 KB
patsmx5 is offline   Reply With Quote
Old 03-26-2008, 08:33 PM   #9
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: San Diego CA
Posts: 399
Total Cats: 0
Default

i wrinkle painted mine too, came out great and holds up to anything..that stuff is beastly! absolutely a pain and near impossible to get off even with aircraft stripper.

i had to use a chisel and tons of stripper to finally get most of it off, then lots of sand paper.
teknikscian is offline   Reply With Quote
Old 03-26-2008, 09:33 PM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Ben is offline   Reply With Quote
Old 03-26-2008, 09:43 PM   #11
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

Look for VHT Wrinkle paint. I got mine off Ebay since I couldn't find it locally, came up to about $10 per can. It actually calls for no primer, so you don't have to worry about finding a ceramic primer. You have control over the final finish too, if you heat it after paint the wrinkles will be nice, tight and deep, or if you prefer a duller wrinkle effect you can just let it dry on its own.

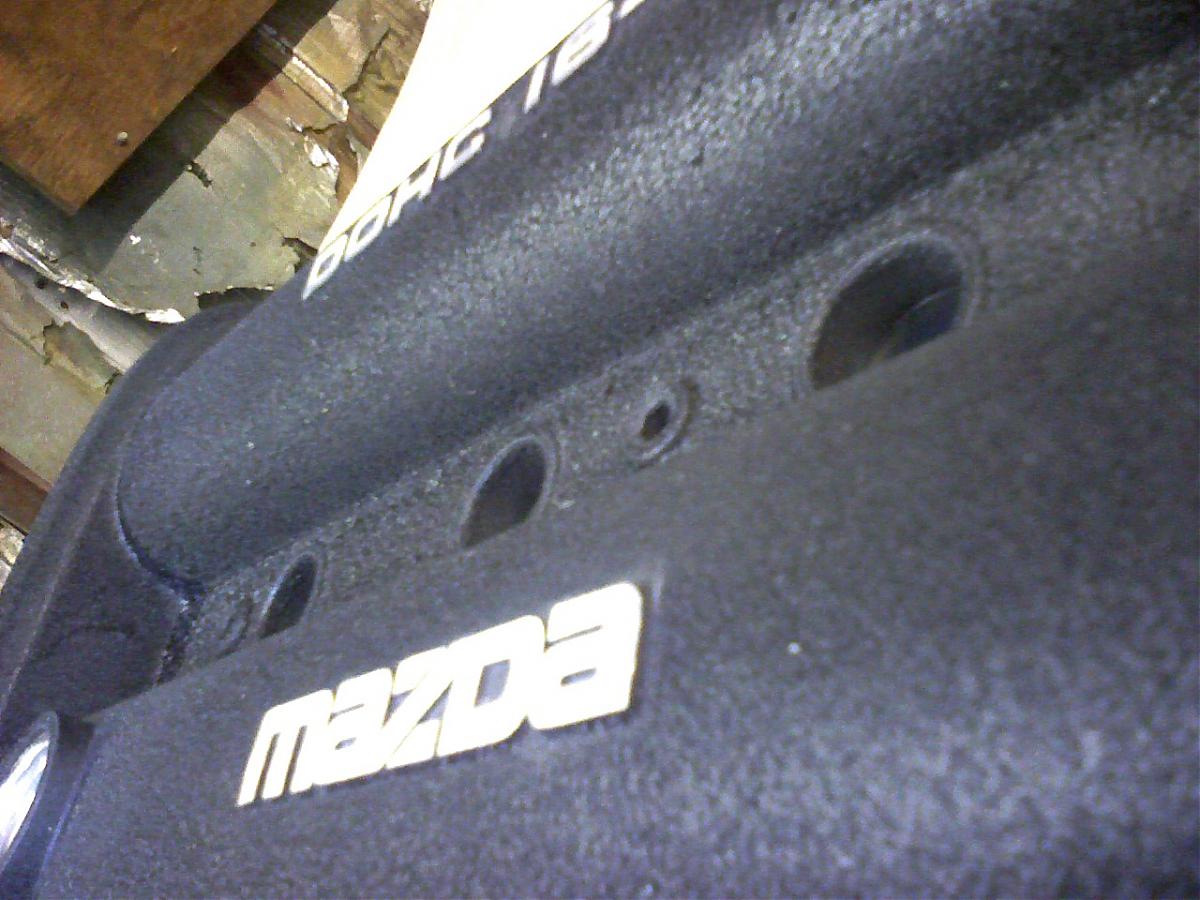

Sorry this is kinda a big picture but this is the VHT paint when heated with spot lights while drying. I degreased it, bead blasted it, then layed on the paint in three thick layers.
Attached Thumbnails
Painting Valve Cover Advice Technique-pic-0527.jpg
ApexOnYou is offline   Reply With Quote
Old 03-26-2008, 10:03 PM   #12
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Brian's looks the business... I like Ben's too, but that's a lot of work when others say just clean it and spray it. Who the hell has a bead blaster at home???

Pats, yours looks too wrinkly, like RhinoLiner... still trying to decide on the perfect look, so far Brian is winning.

Thanks for all the photos and thanks Ben for the thread link.
samnavy is offline   Reply With Quote
Old 03-26-2008, 10:08 PM   #13
I'm Miserable!

Join Date: Mar 2008
Location: Aston, PA
Posts: 8
Total Cats: 0
Default

You can also block off the letters with vaseline before painting and then wipe off with q-tips when the paint is still wet and then polish the letters with a demel to get the desired effect.
agentorangemen is offline   Reply With Quote
Old 03-26-2008, 10:11 PM   #14
Senior Member

Join Date: Nov 2005
Location: Baltimore Maryland
Posts: 1,010
Total Cats: 8
Default

I reccomend that you force dry the wrinkle for the best/most even effect
airbrush1 is offline   Reply With Quote
Old 03-26-2008, 10:20 PM   #15
Junior Member
iTrader: (9)

Join Date: Apr 2007
Location: Hanover, MA
Posts: 237
Total Cats: 0
Default

When I sprayed mine with Krylon Wrinkle paint the finish was uneven so I used a heat gun to dry it. Heat lamps also work good.

Pseudosport is offline   Reply With Quote
Old 03-26-2008, 10:50 PM   #16
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

I've been looking for an excuse to buy a heatgun... trip to NorthernTool might be in order. I'm really getting excited about this thing. I've never really done anything to the car for "looks" before except keep it clean... but a valve-cover done right really looks ****.
samnavy is offline   Reply With Quote
Old 03-26-2008, 10:58 PM   #17
Senior Member
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

where do u guys buy ur wrinkle paint? online? or in a store?

stores near me ( auto zone, advanced auto, walmart, home depot)
none of them carry that kind of paint
urgaynknowit is offline   Reply With Quote
Old 03-26-2008, 11:02 PM   #18
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Pretty sure lowes has it.
cjernigan is offline   Reply With Quote
Old 03-26-2008, 11:05 PM   #19
Senior Member
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
Pretty sure lowes has it.
crap, lowes is far away
urgaynknowit is offline   Reply With Quote
Old 03-26-2008, 11:16 PM   #20
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Home depot and Ace might have it.
