Quote:

Originally Posted by falcon

You think it would work with a head unit? mine is just currently held in place with the metal tabs you can bend up on the head unit it self. How thick is the panel and are they 52mm gauge holes?

Can you PM me a photo? And i'm going to go measure the height of my head unit to make sure it will work. If you can do me a favor and measure the distance from the far left of the left gauge hole and the far right of the right gauge hole as well as the diameter of the hole (I assume 52mm) that would help me figure out if it would work and if it does I'll buy it.

They are made out of .040" steel. They are 52mm holes and I wanna say there is like 3/16" between them (So approximatly 6.5" from far left to far right). I can double check the spacing for you tomorrow.

Pic from my build thread:
https://www.miataturbo.net/showthrea...ht=cspence%27s
DSC03244.jpg?t=1238626472

Jun 6, 2010 | 10:32 PM

#22

falcon

Thread Starter

Elite Member

iTrader: (13)

Joined: Dec 2009

Posts: 2,499

Total Cats: 16

lol... I clicked the link on your sig and I'm about 6 pages into it. I like your build. I saw that pic as well. If you are able to do that for me that would be awesome. And if it looks like it will work I'll send payment tommorow.

Jun 6, 2010 | 11:37 PM

#23

mikeflys1

Junior Member

iTrader: (2)

Joined: Nov 2006

Posts: 359

Total Cats: 0

From: N/A

Jun 7, 2010 | 12:06 AM

#24

WonTon

Elite Member

iTrader: (17)

Joined: Apr 2009

Posts: 2,799

Total Cats: 1

From: Atlanta, GA

Quote:

Originally Posted by y8s

needs moar NB

probably similar to ScottFW but I got mine from uhhh hell I forget.

did that gauge come with that sun shade?

Jun 7, 2010 | 10:10 AM

#25

y8s

DEI liberal femininity

iTrader: (8)

Joined: Jun 2005

Posts: 19,338

Total Cats: 574

From: Fake Virginia

Quote:

Originally Posted by WonTon

did that gauge come with that sun shade?

add on accessory. I thought it complimented the gauge hood and made sense with the convertible top.

Jun 7, 2010 | 07:02 PM

#26

Cspence

Elite Member

iTrader: (11)

Joined: Jun 2007

Posts: 2,065

Total Cats: 1

From: Meriden, CT

Quote:

Originally Posted by falcon

I measured just now and it is 6-3/4" from the edge of one opening to the edge of the other.....You do realize what I ment was that you could simple cut the material between the gauge openings to make the slot right? I don't have any plans to make any more of these, just trying to clean out the garage.

Jun 7, 2010 | 08:40 PM

#27

falcon

Thread Starter

Elite Member

iTrader: (13)

Joined: Dec 2009

Posts: 2,499

Total Cats: 16

Yes, I know I can cut it. I just wanted to make sure the hole wasn't too large already.

PM me, I'll take it.

-Aaron

Jun 7, 2010 | 08:47 PM

#28

Cococarbine3

Senior Member

iTrader: (1)

Joined: Jul 2009

Posts: 601

Total Cats: 0

From: Batavia, IL

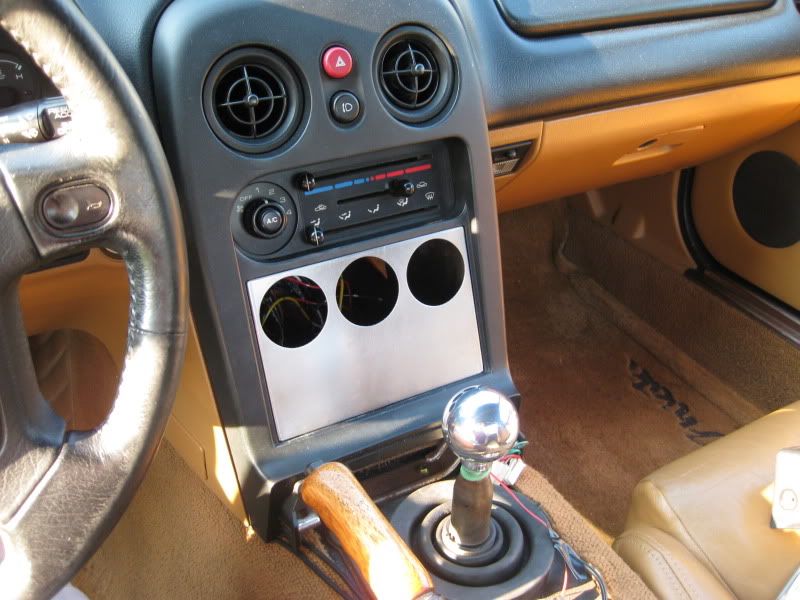

Cspence panel here... before gauges and paint.

Name: Picture009.jpg
Views: 464
Size: 98.6 KB

Jun 7, 2010 | 08:48 PM

#29

Cspence

Elite Member

iTrader: (11)

Joined: Jun 2007

Posts: 2,065

Total Cats: 1

From: Meriden, CT

Any after gauge pics?!

Jun 7, 2010 | 09:12 PM

#30

Cococarbine3

Senior Member

iTrader: (1)

Joined: Jul 2009

Posts: 601

Total Cats: 0

From: Batavia, IL

Lol no sorry, that was just a reference picture for falcon. I am working on a different setup now

Jun 8, 2010 | 12:41 PM

#31

revlimiter

Senior Member

iTrader: (1)

Joined: Jan 2009

Posts: 518

Total Cats: 95

From: ABQ, NM

Just an ABS plate with some holes in it. The real work was shaving down the angle rings so that all 3 gauges still fit in a DIN-sized area behind the plastic panel.
