Default PushToStart keyless ignition finally happening.

so i've always been fantasizing about a push to start feature on any car..even before they were "cool"

anyways, i finally got the ***** to do one on my miata. i am going for full key-less ignition.
to the point that the keylock from the steering column is coming out and i will only need the key to open the doors.
this is a "track car" not a daily and will be mostly parked and garaged anyways.

the final product will not have the labels...although i've been thinking of adding labels from a label maker...and someone offered to do laser cutting..but i dunno yet.
this plate seems fairly easy to do and the wiring is straightforward. i'll see if there is enough interest and ask to see of one can get a laser cut piece that would be much better to install..if price is right i may go that route.
for now, it is ALL DIY

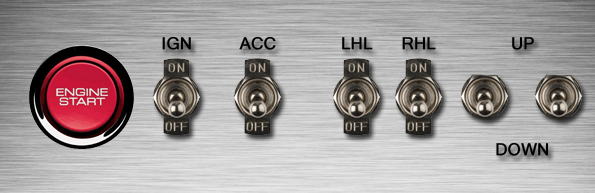

so here is a template of what i envision the outcome to be:


after seeing some online i thought this was the best approach. cheapest too.

there will be two ON-OFF switches to control Ignition and Accessories, one Push to start, and two ON-OFF-ON switches to control the windows. plus one ON-OFF-ON to contorl the pop-up lights.

i had the idea of doing independent up down siwtches for each headlight..but need to figure out the wiring first.

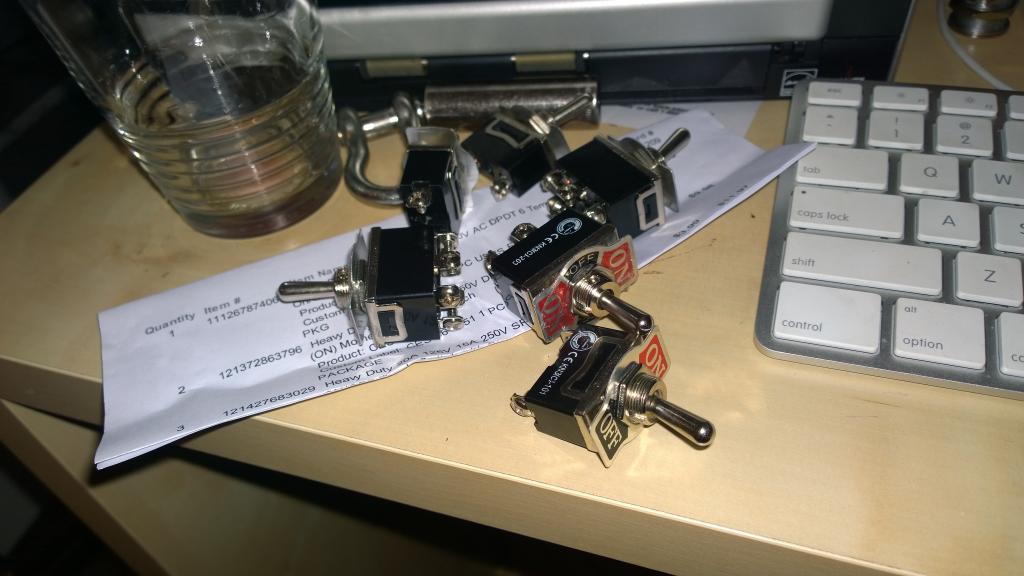

so i went online and bought the necessary hardware:

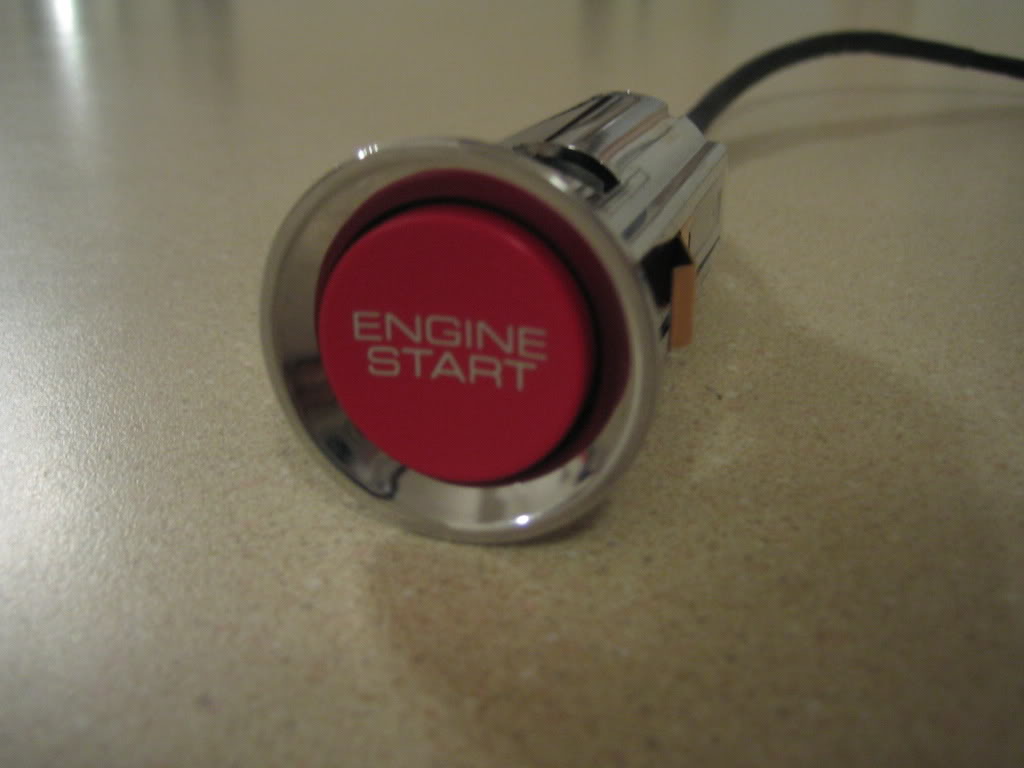

plus the push start i'll show later but it is basically the s2k push start switch and pigtail

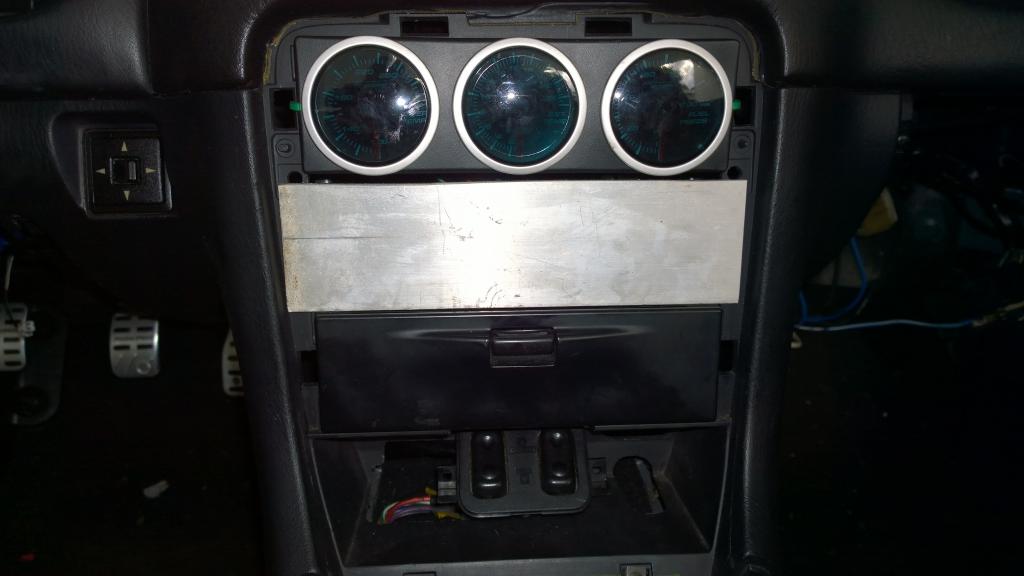

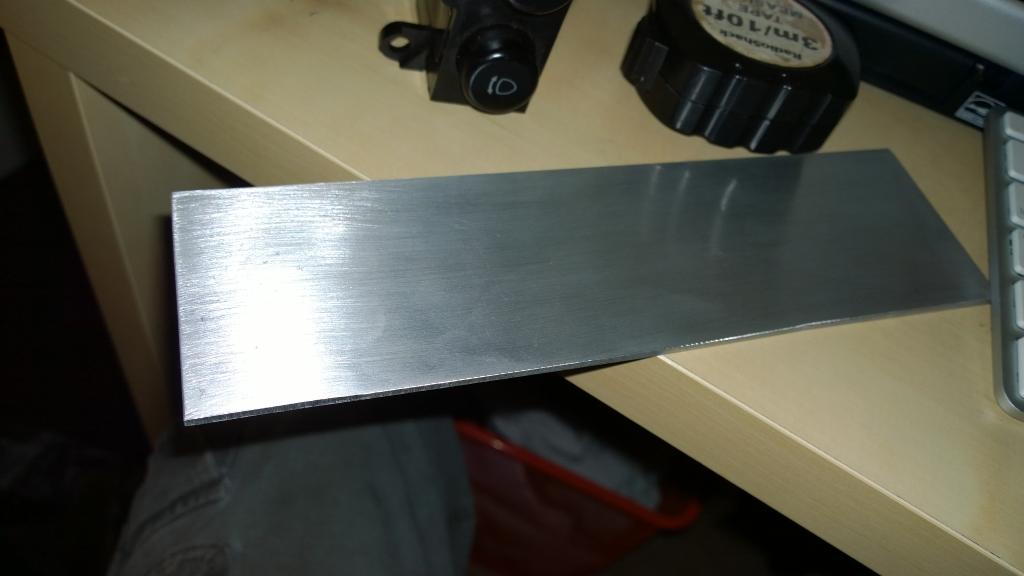

this is my platform.

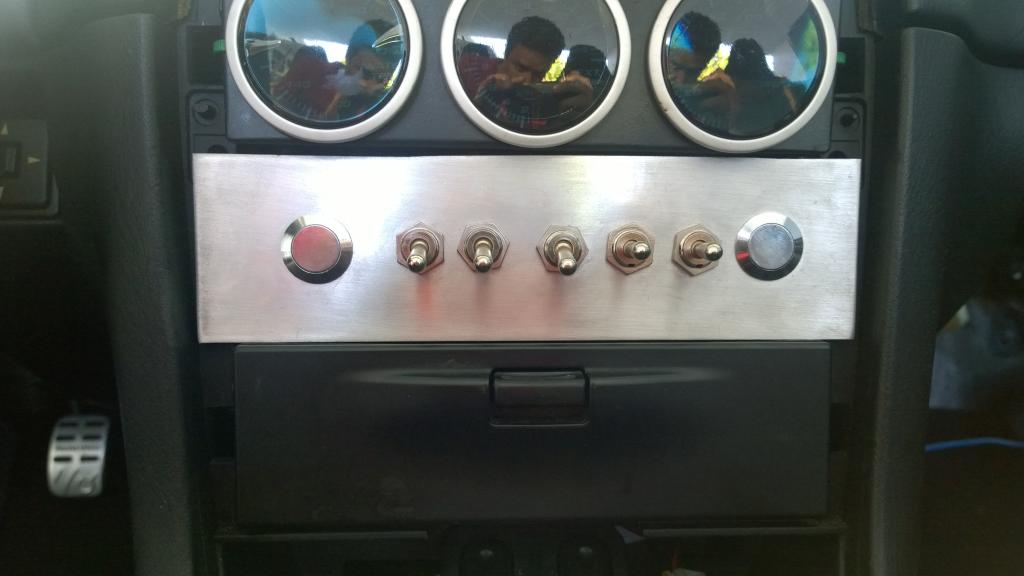

and this is all holes drilled and switches installed.
still need to do wiring.

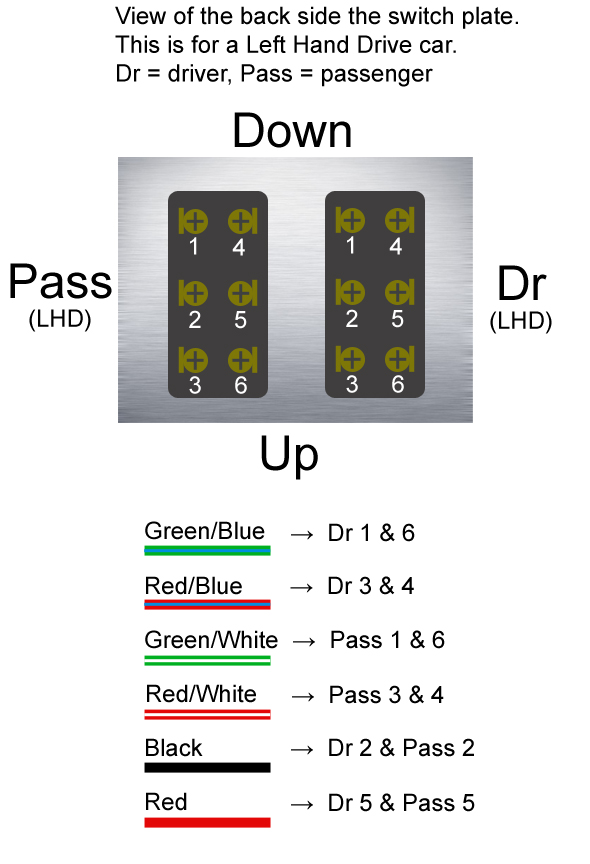

i will be using this schematic to do the window siwtches

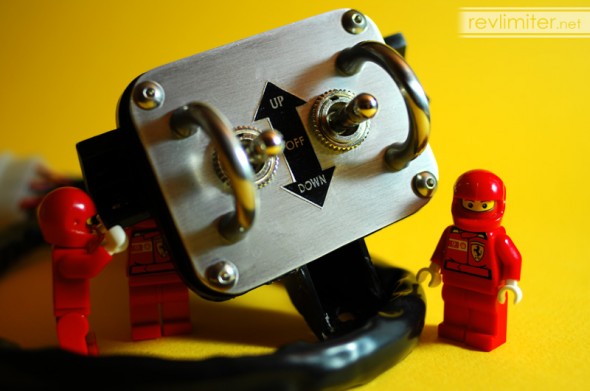

got the idea from this site: Custom Retro Electric Window Switches revlimiter.net
as they are using somehting similar to replace the stock switches for toggle switches


i'll be working today on the wiring and installation of the push start button.

more to come.
Attached Thumbnails
PushToStart keyless ignition finally happening.-lightswitch_zpsea02a1bd.png   PushToStart keyless ignition finally happening.-wp_20140915_002_zps7db47980.jpg   PushToStart keyless ignition finally happening.-wp_20140907_003_zps01b1b1a5.jpg   PushToStart keyless ignition finally happening.-wp_20140907_002_zps3e79da02.jpg   PushToStart keyless ignition finally happening.-wp_20140915_004_zps70bfb1e9.jpg

PushToStart keyless ignition finally happening.-windowswitch.jpg   PushToStart keyless ignition finally happening.-dsc_0347-590x391.jpg   PushToStart keyless ignition finally happening.-img_3891.jpg
Alejo_NIN is offline   Reply With Quote
Old 09-19-2014, 03:54 PM   #2
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

will be following this. Looks like a fun project.
cyotani is offline   Reply With Quote
Old 09-19-2014, 03:55 PM   #3
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by cyotani View Post
will be following this. Looks like a fun project.

PS: I'm not an admin.
concealer404 is offline   Reply With Quote
Old 09-19-2014, 04:01 PM   #4
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Cool stuff. I'd be interested to see the ignition schematic if you have one. My key is horrible to start the car. I assume it's a copy of a copy of a copy and sometimes take a minute of giggling to get it to turn. I've thought about doing something similar but I need someone to hold my hand on stuff like that. Just have to be sure not to fix the car up too much so nobody wants to steal it.
pdexta is offline   Reply With Quote
Old 09-19-2014, 04:46 PM   #5
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by concealer404 View Post
PS: I'm not an admin.
Lol, that's you from my sig? I didn't connect the dots. What the green screen name on CR mean? I thought it was extra funny because a CR admin was admitting how hopeless the users on that forum were. But I guess that's not the case but they are still hopeless nonetheless
cyotani is offline   Reply With Quote
Old 09-19-2014, 04:47 PM   #6
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

Quote:
Originally Posted by cyotani View Post
huh?

The quote in your sig.


I'm just a mod.
concealer404 is offline   Reply With Quote
Old 09-19-2014, 04:53 PM   #7
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by concealer404 View Post
The quote in your sig.


I'm just a mod.
what's the difference? I've been banned there for selling car parts I thought that quote was funny tho.

PS: sorry OP for off topicness
cyotani is offline   Reply With Quote
Old 09-19-2014, 05:22 PM   #8
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

Quote:
Originally Posted by pdexta View Post
Cool stuff. I'd be interested to see the ignition schematic if you have one. My key is horrible to start the car. I assume it's a copy of a copy of a copy and sometimes take a minute of giggling to get it to turn. I've thought about doing something similar but I need someone to hold my hand on stuff like that. Just have to be sure not to fix the car up too much so nobody wants to steal it.
the ignition schematic is easy.

i'm working on a write up.
Alejo_NIN is offline   Reply With Quote
Old 09-19-2014, 06:13 PM   #9
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

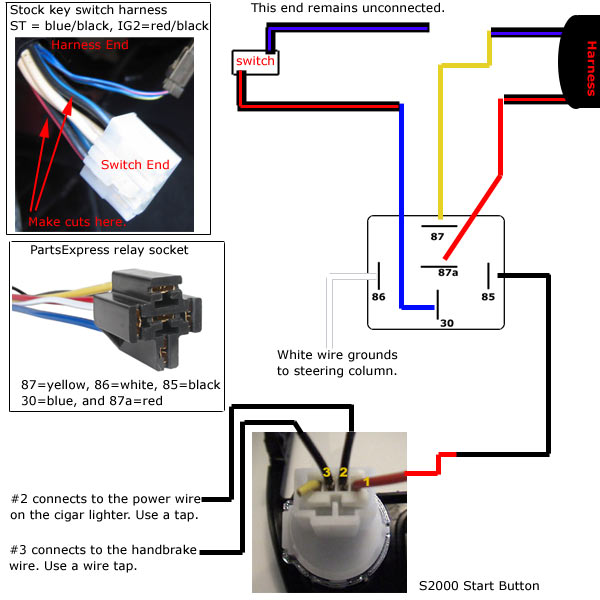

There ya go. One ignition schematic courtesy of a page that's been on the internet since 2001.
revlimiter.net - S2000 Starter Button (90-97 Version)

And as for the extra IGN and ACC switches, you could just put the switches in the middle and see what happens. But a high current SPST relay on both would probably be better.
Attached Thumbnails
PushToStart keyless ignition finally happening.-button0.jpg
revlimiter is offline   Reply With Quote
Old 09-19-2014, 07:09 PM   #10
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

nice!
i am copying your design :P

but thats why it is available...right?
Alejo_NIN is offline   Reply With Quote
Old 09-19-2014, 08:12 PM   #11
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

Well... yeah! That's why it's out there. I have no interest in making start button kits.

If you wanted a panel cut up, I might be able to help you. If you're not happy with your own efforts at the end of the project and want one made up, let me know.
revlimiter is offline   Reply With Quote
Old 09-22-2014, 12:42 PM   #12
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

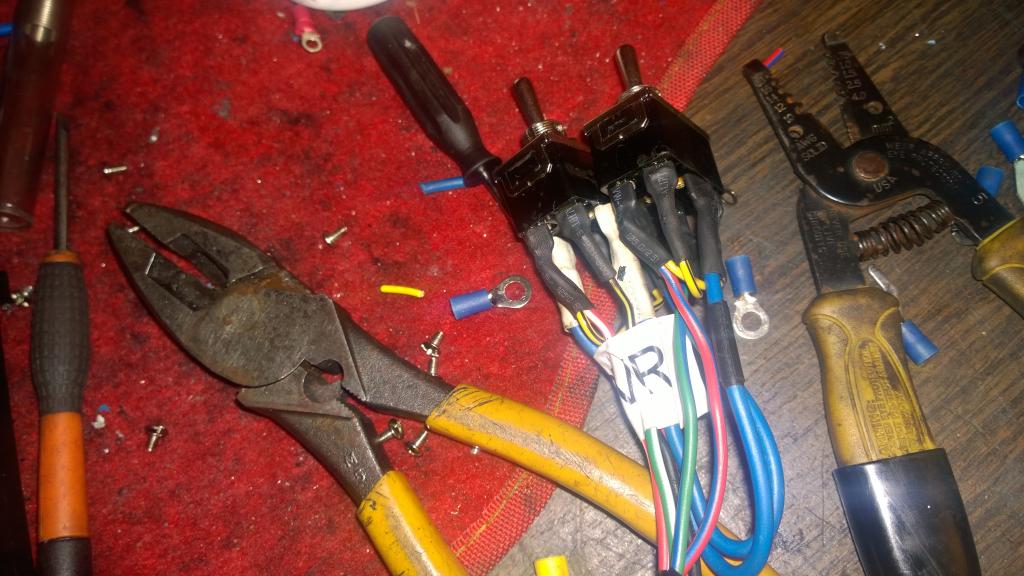

wired up the window switches, they work perfect

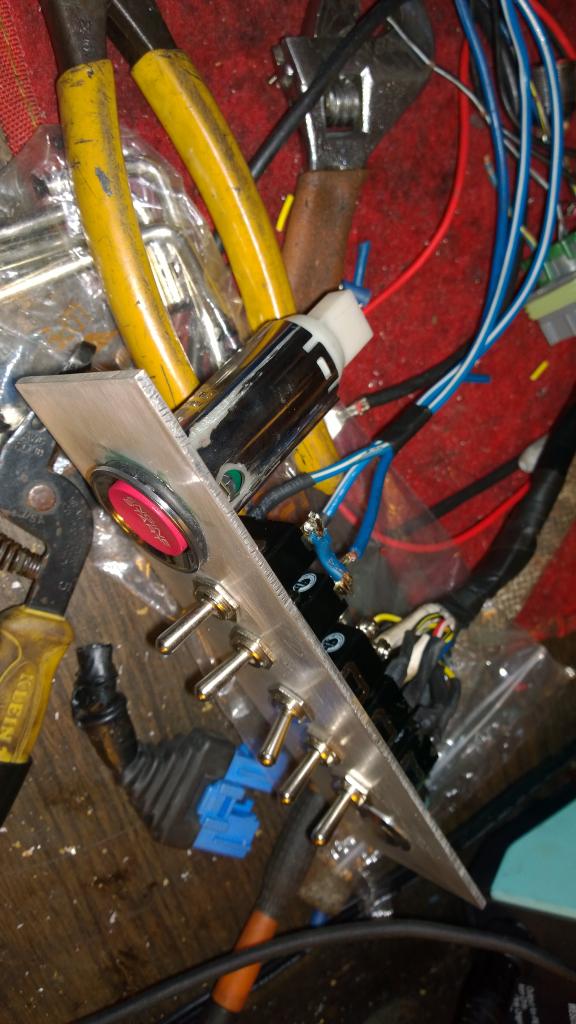

wired up ACC and IGN switches

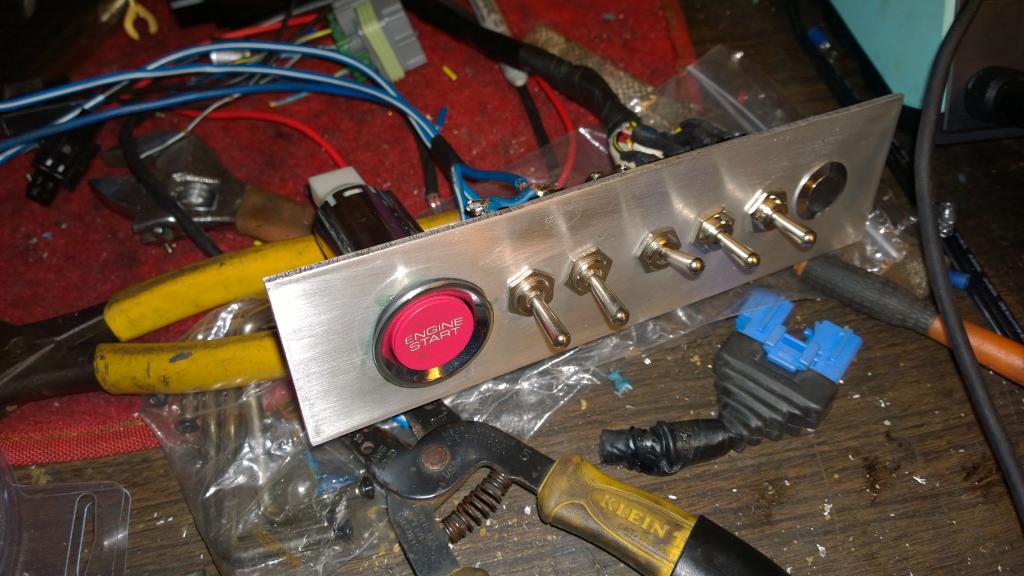

completed piece

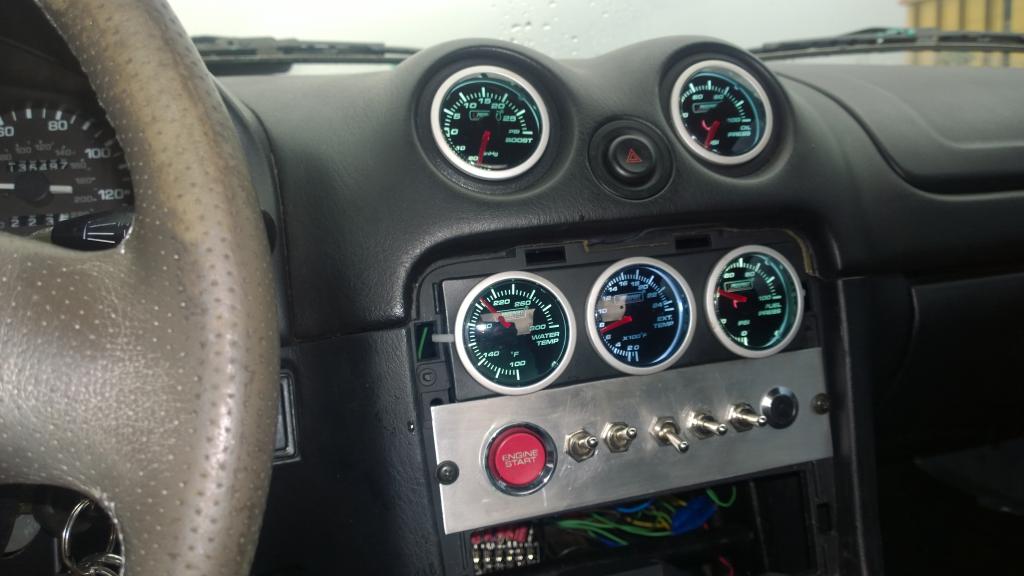

finished


it works so awesome
car starts right up...
Attached Thumbnails
PushToStart keyless ignition finally happening.-wp_20140919_002_zps9aea83be.jpg   PushToStart keyless ignition finally happening.-wp_20140920_001_zpsc7ce70af.jpg   PushToStart keyless ignition finally happening.-wp_20140920_002_zps6d4355dc.jpg   PushToStart keyless ignition finally happening.-wp_20140920_008_zps004565aa.jpg
Alejo_NIN is offline   Reply With Quote
Old 09-22-2014, 05:01 PM   #13
Junior Member
iTrader: (2)

Join Date: Apr 2013
Location: Bryan, TX
Posts: 149
Total Cats: 7
Default

Awesome, need to do it on my Mazdaspeed6.
Code Monkey is offline   Reply With Quote
Old 09-23-2014, 03:27 PM   #14
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

Looks great!
revlimiter is offline   Reply With Quote
Old 09-23-2014, 07:52 PM   #15
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

Quote:
Originally Posted by revlimiter View Post
Looks great!
means a lot coming from Mr Perfectionist himself :P
seriously.
Alejo_NIN is offline   Reply With Quote
Old 10-08-2014, 01:42 AM   #16
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Thanks for posting that window switch wiring diagram! I just finished mine and that diagram made it the most straight forward wiring job i've ever done.
cyotani is offline   Reply With Quote
Old 10-08-2014, 03:30 PM   #17
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

all of this is getting redone..at least the faceplate..it will be bigger covering the whole radio plus going headless audio unit....will be sick
