Default radiator mounting

Hi guys,

I finally got the replacement for my Godspeed radiator that had a crack. Is mounting the radiator titled for better air flow or for space saving? With the GS radiator tilted I don't have much clearance on the bottom where the AC lines are. I was thinking of mounting it vertically for more space.

Thanks,

t.t.
trito is offline   Reply With Quote
Old 03-13-2008, 06:08 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

No reason to tilt it unless you are having trouble making it fit or you're routing your IC pipes over it.
cjernigan is offline   Reply With Quote
Old 03-13-2008, 06:23 PM   #3
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

i would not tilt it unless i had to
Zabac is offline   Reply With Quote
Old 03-13-2008, 06:23 PM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2005
Location: San Jose
Posts: 213
Total Cats: 0
Default

stock is tilted, I want to make it vertical.
trito is offline   Reply With Quote
Old 03-13-2008, 06:43 PM   #5
Senior Member
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

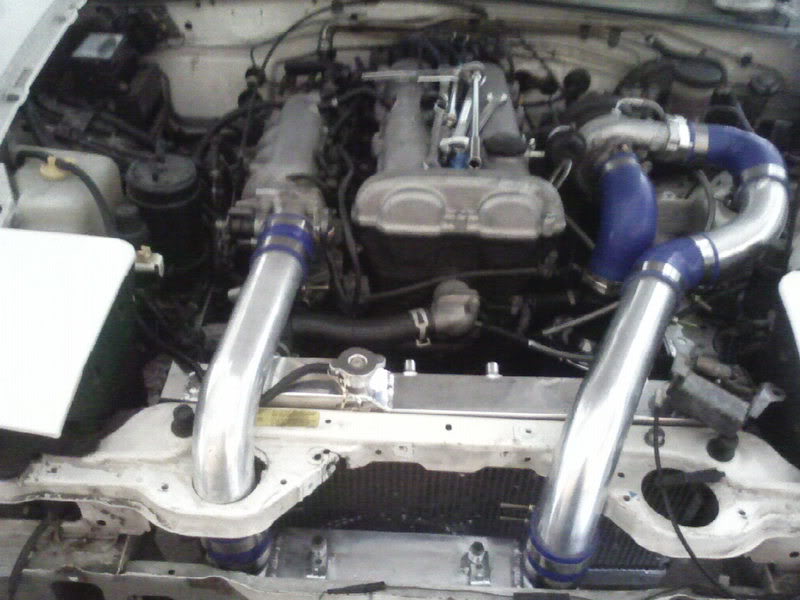

My God speed is on as if it were OEM lol. Just cut up the stock bracket.. it should slide right down.
Name:  fmicdone.jpg
Views: 2
Size:  69.5 KB
PaKMaN is offline   Reply With Quote
Old 03-13-2008, 07:46 PM   #6
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Hey Pakman, what are you using as a hood prop? Did you mount a gas shock?
Atlanta93LE is offline   Reply With Quote
Old 03-13-2008, 07:49 PM   #7
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

i use my gf as a hood prop, works rather well, i always get help if im stuck on the side of the road
j/k
i use a stick that i store behind my seats...
im curious to see what others do as well
Zabac is offline   Reply With Quote
Old 03-13-2008, 08:15 PM   #8
Junior Member

Join Date: Jul 2007
Posts: 107
Total Cats: 0
Default

tilting a radiator is to aid downforce
in tilting the bottom back toward the rear of the car, directs the air up and creates downforce
if you was to tilt the top of the rad towards the rear of the car this would create lift wich isnt good for areodynamics

a radiator mounted vertical will be fine and will cause no problem
madmalc is offline   Reply With Quote
Old 03-13-2008, 09:22 PM   #9
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Quote:
Originally Posted by madmalc View Post
tilting a radiator is to aid downforce
in tilting the bottom back toward the rear of the car, directs the air up and creates downforce
if you was to tilt the top of the rad towards the rear of the car this would create lift wich isnt good for areodynamics

a radiator mounted vertical will be fine and will cause no problem
how do you figure this? i think you may have your thesis reversed, it appears to me that it would be the other way around...but what do i know, i never studied areodynamics
Zabac is offline   Reply With Quote
Old 03-13-2008, 09:31 PM   #10
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

yeah......i don't buy it either. post up some proof, i'm interested in hearing more.
budget racer is offline   Reply With Quote
Old 03-13-2008, 09:42 PM   #11
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by madmalc View Post
tilting a radiator is to aid downforce
in tilting the bottom back toward the rear of the car, directs the air up and creates downforce
if you was to tilt the top of the rad towards the rear of the car this would create lift wich isnt good for areodynamics

a radiator mounted vertical will be fine and will cause no problem
If you're treating the radiator as an airfoil you have issues. Air should flow through a radiator (or any other heat exchanger), not over it...
kotomile is offline   Reply With Quote
Old 03-14-2008, 06:23 PM   #12
Junior Member

Join Date: Jul 2007
Posts: 107
Total Cats: 0
Default

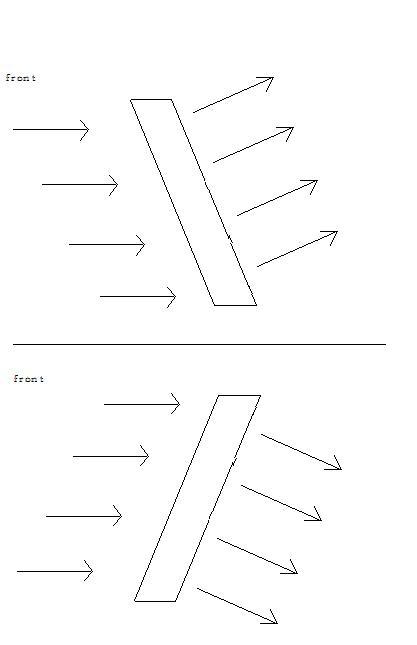

i didn't suggest to use it as a airofoil but from a design point of view this is how it would be viewed

the core of the radiator as air passes through will direct it according to what angle its at

Name:  df.jpg
Views: 3
Size:  15.4 KB
madmalc is offline   Reply With Quote
Old 03-14-2008, 06:37 PM   #13
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

so you are not familiar with the term 'opposite' are you?

tilting the radiator will not direct air, it will deflect air and you will loose some cooling (marginal)
i still believe that your train of thought is incorrect, i can see what you are thinking
think of it this way, aerodynamics of a car increase/decrease surface area in certain places to increase/decrease the speed of the air passing over/under these area which is waht creates downforce/uplift respectively...
a radiator or intercooler for instance, are not areas where air is supposed to pass over, thats why in most cases a radiator/IC are after the bumper cover, not in front of it...
makes sense?
Zabac is offline   Reply With Quote
Old 03-14-2008, 09:53 PM   #14
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

That graphic is missing the HOOD preventing the air from ESCAPING, thereby negating any AERODYNAMIC BENEFIT.
kotomile is offline   Reply With Quote
