Default The radiator thread

Why do I have the original radiator still? Before the hot weather rolls in, I think it's time to replace my 10 year old plastic radiator with something better suited for 3-4 times stock power. I can cruise at 205° on a hot day or 190° at the same speed on a cool day, so I know the this is due.

Considering the BEGi crossflow radiator. There's things I like about it. It should be a superior design. It's made in Texas. It was blessed by the GodFather. It has a big drawback though; it costs nearly $600 after the radiator cap and shipping. That makes it 2-3 times the cost of some of the popular competitors. Ouch!

I'm not totally adverse to spending that kind of money--my car's nice, and I've not been cheap about any of the other mods. Also, I typically prefer paying a little more for an american made product instead of getting something from china. But $600 vs $250 is a pretty glaring difference. What say ye, oh grand repository of wisdom.
__________________
Chief of Floor Sweeping, DIYAutoTune.com & AMP EFI
Crew Chief, Car Owner & Least Valuable Driver, HongNorrthRacing

91 Turbo | 10AE Turbo | 01 Track Rat | #323 Mazda Champcar

Originally Posted by concealer404
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Old 02-09-2010, 08:00 PM
  #2
Elite Member
iTrader: (7)

SKMetalworks's Avatar

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,731
Total Cats: 4
Default

I just recently got my CX racing radiator and although i havent put it to the test the all aluminum body sure is far better than stock.
SKMetalworks is offline
Old 02-09-2010, 08:10 PM
  #3
Junior Member

crnrhrd's Avatar

Join Date: Jun 2007
Location: Lenexa, KS
Posts: 129
Total Cats: 0
Default

I know I would never spend $600 on a radiator, spent $210 shipped for my godspeed with high flow fans off of ebay.
crnrhrd is offline
Old 02-09-2010, 08:20 PM
  #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 14,179
Total Cats: 1,130
Default

Originally Posted by Ben
Also, I typically prefer paying a little more for an american made product instead of getting something from china. But $600 vs $250 is a pretty glaring difference. What say ye, oh grand repository of wisdom.
Although I'll never buy our cars, I'm growing more and more fond of the whole "made in America" thing. I'm a machinist and seeing some of the crap coming out of China and work we're loosing to them is depressing. However I had no choice because of my budget and bought my Mishimoto. It's great, as everyone else will say, but not perfect. Sav reached the limit of his fairly easily on the track. But you don't track yours, do you? I'd say the chineese ones are perfect for you, but if you must buy American, there's only a few options. Isn't that radiatorbarn.com nonexistant? Koyo is American.
curly is offline
Old 02-09-2010, 08:22 PM
  #5
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,659
Total Cats: 134
Default

No doubt a godspeed (chinese et all) radiator is better than a stock radiator. I'm more interested in knowing if a BEGi crossflow is better than a chinese radiator, in a real world environment.

I am not terribly worried about $350 extra in the course of $10,000--if there is reason to spend it. I'm not rich, but I don't believe in cheaping out. If the BEGi item is notably better, I will buy it. I prefer American made stuff.

My last miata got a Griffin radiator. More expensive than one from china, but it was beautiful and made in America. Had some very minor fitment issues--wasn't a big deal, just worth mentioning. The BEGi crossflow isn't terribly more expensive than another Griffin.
__________________
Chief of Floor Sweeping, DIYAutoTune.com & AMP EFI
Crew Chief, Car Owner & Least Valuable Driver, HongNorrthRacing

91 Turbo | 10AE Turbo | 01 Track Rat | #323 Mazda Champcar

Originally Posted by concealer404
Buy an MSPNP Pro, you'll feel better.
Ben is offline
Old 02-09-2010, 09:31 PM
  #6
Elite Member
iTrader: (30)

levnubhin's Avatar

Join Date: Aug 2007
Location: Va Beach
Posts: 7,329
Total Cats: 12
Default

The Godspeed and Mishimoto radiators work, on the street and in some track cars and work well. Really not much to improve on. Here in South Florida my Godspeed works perfectly and my temps are perfect. And as for duribility, I believe I was one of the first to try the Godspeed and that was 2+ years ago. It's still going strong.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline
Old 02-09-2010, 10:10 PM
  #7
Junior Member
iTrader: (1)

stranges12712's Avatar

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 431
Total Cats: 2
Default

Originally Posted by levnubhin
The Godspeed and Mishimoto radiators work, on the street and in some track cars and work well. Really not much to improve on. Here in South Florida my Godspeed works perfectly and my temps are perfect. And as for duribility, I believe I was one of the first to try the Godspeed and that was 2+ years ago. It's still going strong.
+1 to that, I have been running mine for about the same time, had to get it epoxyed once cause when i pulled it out in the winter i cut open a fin but other then that i made my own shroud and its been mint!
stranges12712 is offline
Old 02-09-2010, 10:30 PM
  #8
Newb

90GTK450's Avatar

Join Date: Sep 2009
Location: Renton
Posts: 32
Total Cats: 0
Default

I have wanted the Springfield Dyno , but I didn't want to spend that much at the time need other parts more that a radiator. So I put in a Mishimoto the fit was ok. But you get what you pay for. So far it is working fine , soon to be track tested. If I do up grade it will be the Springfield $599. I think it the best one out there.
90GTK450 is offline
Old 02-09-2010, 11:20 PM
  #9
Former Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,442
Total Cats: 2,099
Default

We've been fiddling with a couple of prototype radiators. One single-row triple-pass radiator, one dual-row triple-pass. Radiator caps on the low-pressure (driver's) side, like they should be. Made in the USA as well. PM me for specific price info ($500 range).

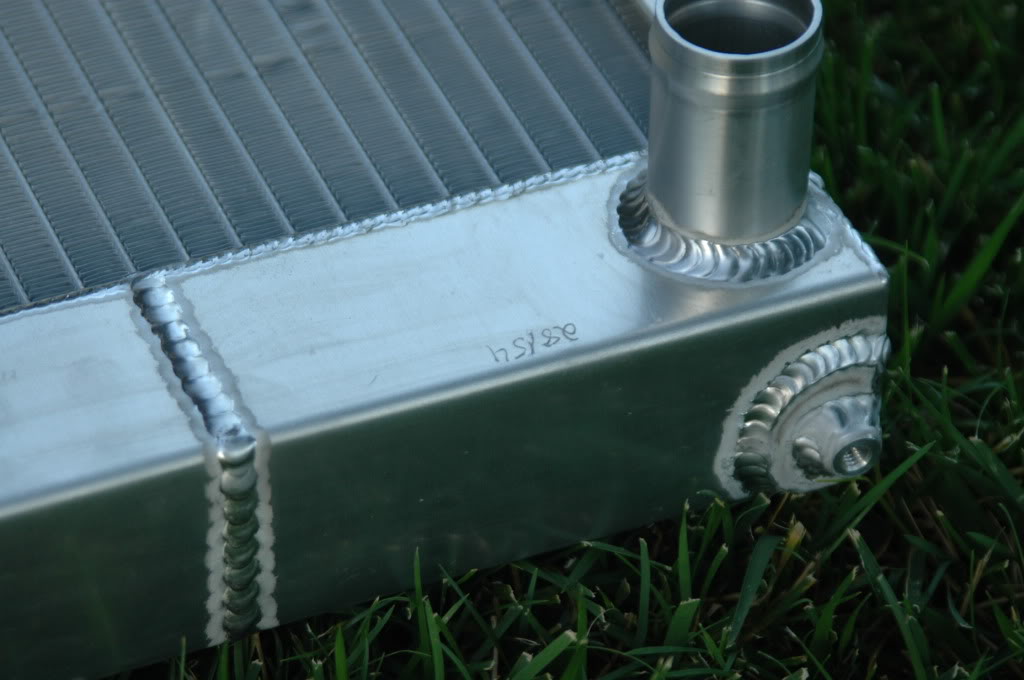

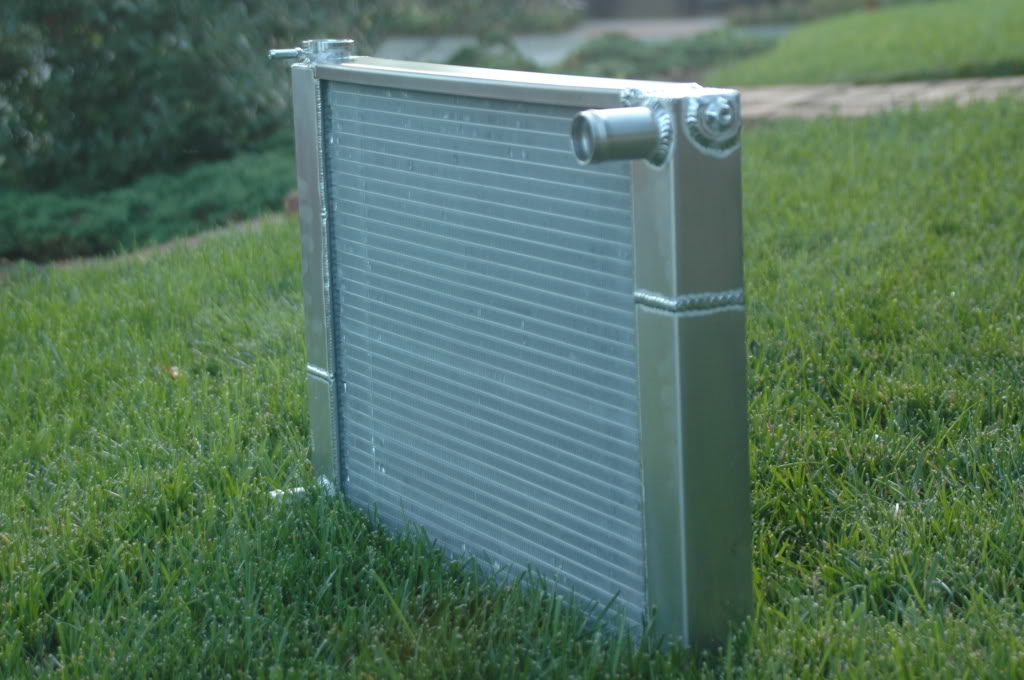

All of these photos are of the single-row, the dual-row is identical except for thickness.

Name:  DSC_9470.jpg
Views: 116
Size:  137.5 KB

Name:  DSC_9464.jpg
Views: 118
Size:  101.9 KB

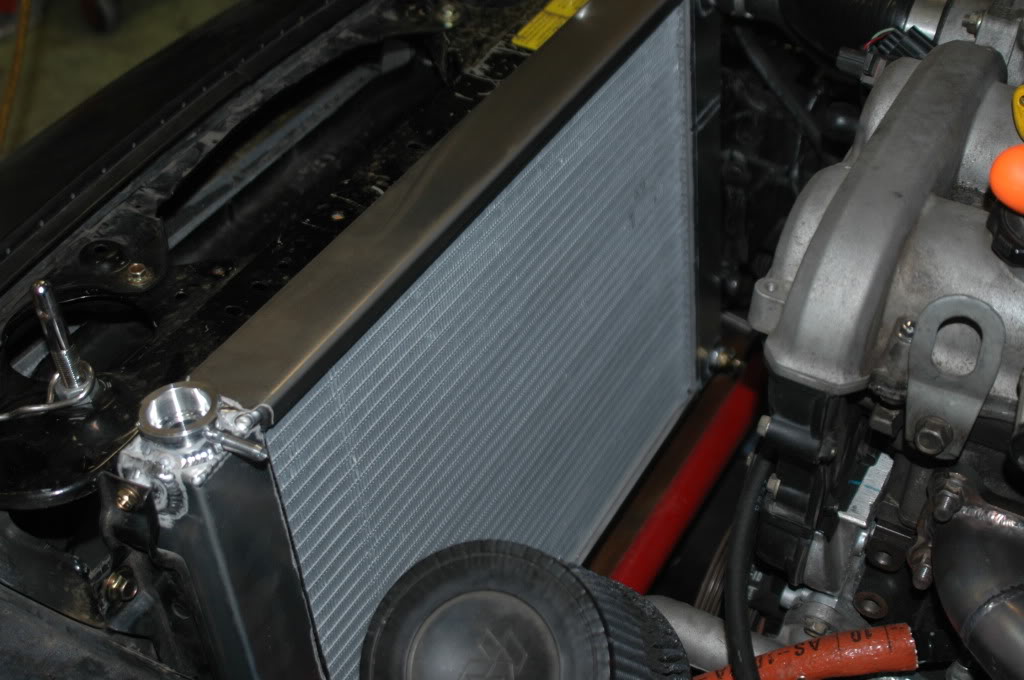

Single row installed:
Name:  DSC_9471.jpg
Views: 120
Size:  123.7 KB

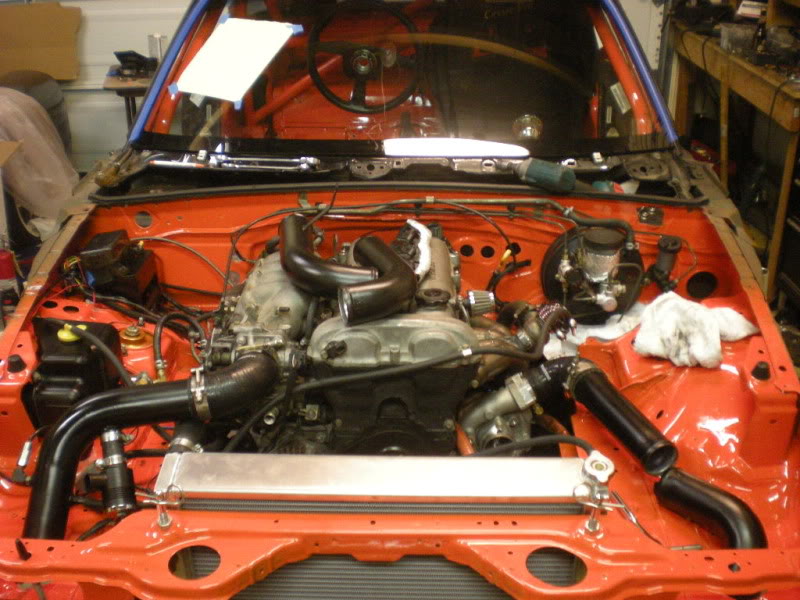

Dual row installed:
Name:  DSCN1786.jpg
Views: 128
Size:  138.3 KB
Savington is offline
Old 02-10-2010, 12:03 AM
  #10
:(
iTrader: (7)

magnamx-5's Avatar

Join Date: Jul 2006
Location: nowhere
Posts: 8,255
Total Cats: 4
Default

damn thats hot is that an inhouse production from emilio?
magnamx-5 is offline
Old 02-10-2010, 12:15 AM
  #11
Junior Member
iTrader: (1)

stranges12712's Avatar

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 431
Total Cats: 2
Default

HOLY **** that dual row is huge.
stranges12712 is offline
Old 02-10-2010, 01:46 AM
  #12
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 7,325
Total Cats: 2,377
Default

Originally Posted by manginamx-5
damn thats hot is that an inhouse production from emilio?
I wish. Been on my To Do list forever but he beat me to it. That is a Trackspeed Engineering product straight up. My only input is to request a 37mm version to save weight.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.31 SNR
emilio700 is offline
Old 02-10-2010, 02:37 AM
  #13
Elite Member
iTrader: (15)

thesnowboarder's Avatar

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,034
Total Cats: 5
Default

Originally Posted by Savington
We've been fiddling with a couple of prototype radiators. One single-row triple-pass radiator, one dual-row triple-pass. Radiator caps on the low-pressure (driver's) side, like they should be. Made in the USA as well. PM me for specific price info ($500 range).
Can you guys get some fan mounts welded onto these bad boys?
thesnowboarder is offline
Old 02-10-2010, 02:50 AM
  #14
Former Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,442
Total Cats: 2,099
Default

We can do fan mounts for both OEM fans but it adds ~$65 to the price tag. They are designed as race radiators, so we suggest using high-flow fans and shrouds vs. the OEM pieces. We can place a set of 4 bungs for attaching a shroud or a single 12-14" high-flow fan for ~$35.
Savington is offline
Old 02-17-2010, 02:22 PM
  #15
Junior Member

marinerblue92's Avatar

Join Date: Apr 2009
Location: Philadelphia, Pa
Posts: 68
Total Cats: 0
Default

No problems with my Mishi rad. Tracked the car and all.

Originally Posted by curly
Koyo is American.
I thought Koyo rads were made in Indonesia? I don't think they are made in the states to be honest.
marinerblue92 is offline
Old 02-17-2010, 03:08 PM
  #16
Junior Member
iTrader: (6)

2k6750's Avatar

Join Date: Aug 2009
Location: Naples FL
Posts: 226
Total Cats: 0
Default

I had my Koyo radiator in mine with my greddy kit non intercooled for a while in South Florida. No problems. Does anybody know what size the drain bolt is for the Koyo aluminum radiator? I have one in there that drips right now.
2k6750 is offline
