Default Re-bushing lower shock bushes....on teh cheap!

If you were paying attention in my "shock nuts suck nuts" thread you would remember that i am planning on rebushing my lower shock mounts.

I MAY still try the boat roller thing but whilst browsing energy suspensions site i spotted some hour glass shaped bushings. I checked summit at they were only $3.39 a pair so i orderd 2 pairs of 5/8 ID and 3/4ID bushes

After checking the bilsten metal insert fits loosley in the 3/4" ID bushings. I am not sure if i trust this

They fit! I was able to press just the lone bushing in by hand with some effort and vaseline :gay:. I can see that the hourglass shape on the outer of the bushing doesnt not match the smallest ID on the shock as there is some minor "collapsing" at the center of the bushing.

I will report back later on this week once i get the metal inserts in there.

Summit part numbers
5/8" ID black bushes ENS-9-8107G
3/4" ID black bushes ENS-9-8108G

5/8" ID red bushes ENS-9-8107R
3/4" ID red bushes ENS-9-8108R

(i've painted my bilsteins black)

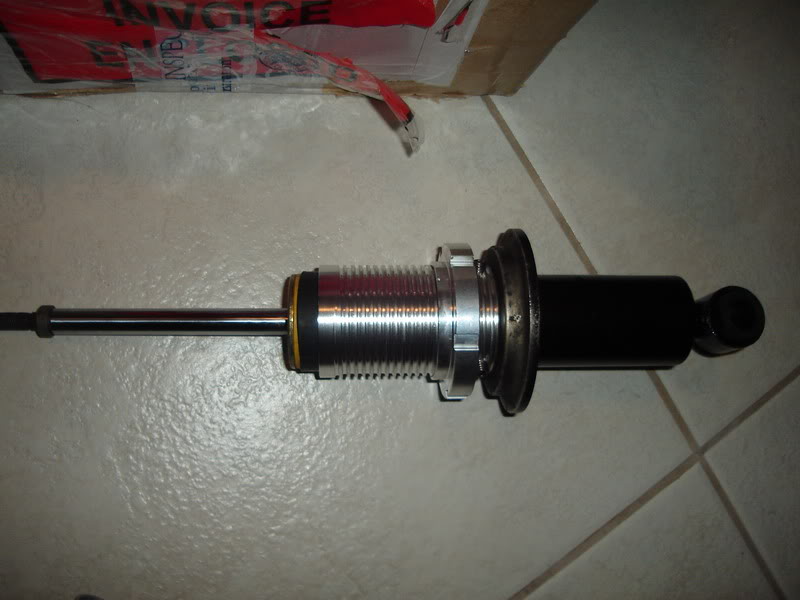

Name:  DSC00358.jpg
Views: 4
Size:  54.7 KB

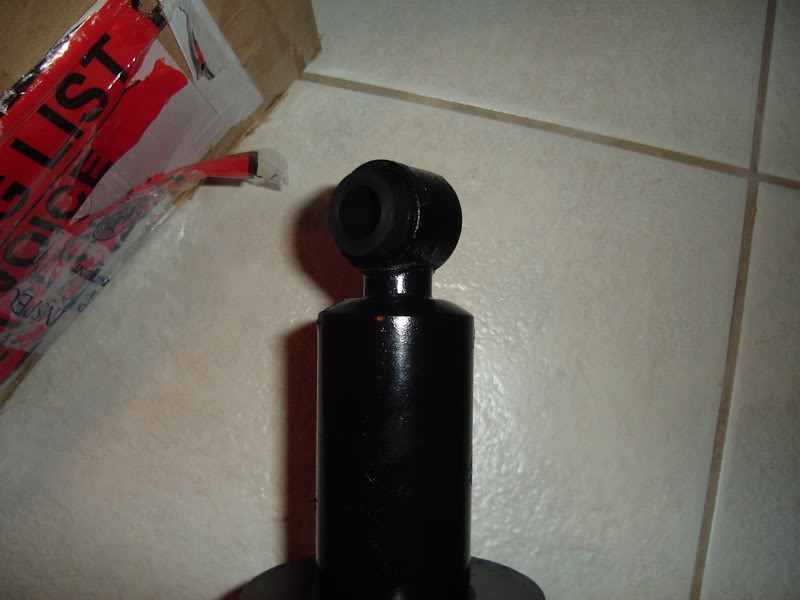

Name:  DSC00359.jpg
Views: 4
Size:  45.8 KB
Sirnixalot is offline   Reply With Quote
Old 08-16-2006, 11:19 PM   #2
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

lubed up the stock inserts and used thme in the 5/8 bushings. I cannot press these in by hand anymore so im getting my cousin to do it at work.

Can't wait to get my FCM mounts so i can put everything on the car
Sirnixalot is offline   Reply With Quote
Old 08-21-2006, 03:54 PM   #3
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

my fatcats have arrived and i will be installing them on the bilsteins tonight

I have to take everything to my cousins shop to get the lower bushes pressed in but i should have them back on the car by the weekend

will post pix later
Sirnixalot is offline   Reply With Quote
Old 08-21-2006, 09:51 PM   #4
Junior Member
Thread Starter

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

and here are some of the assembled pix!

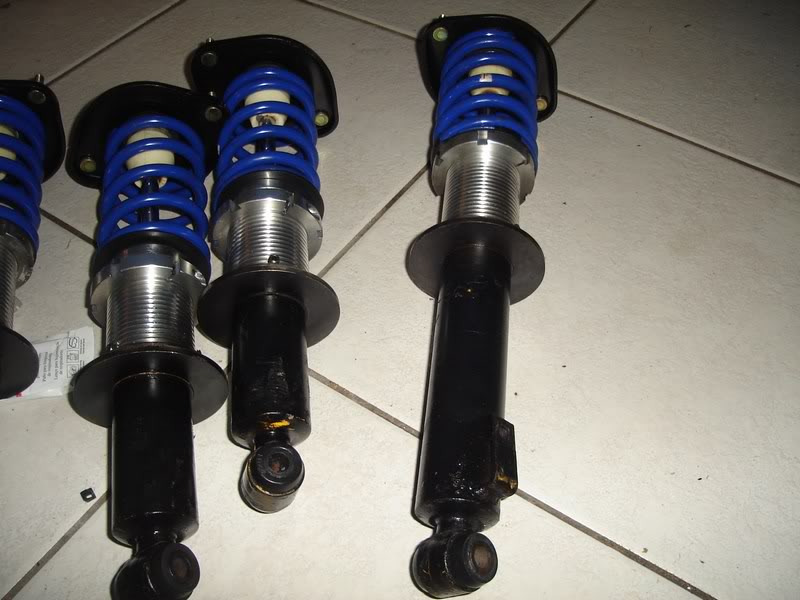

Name:  mini-DSC00364.jpg
Views: 4
Size:  64.1 KB

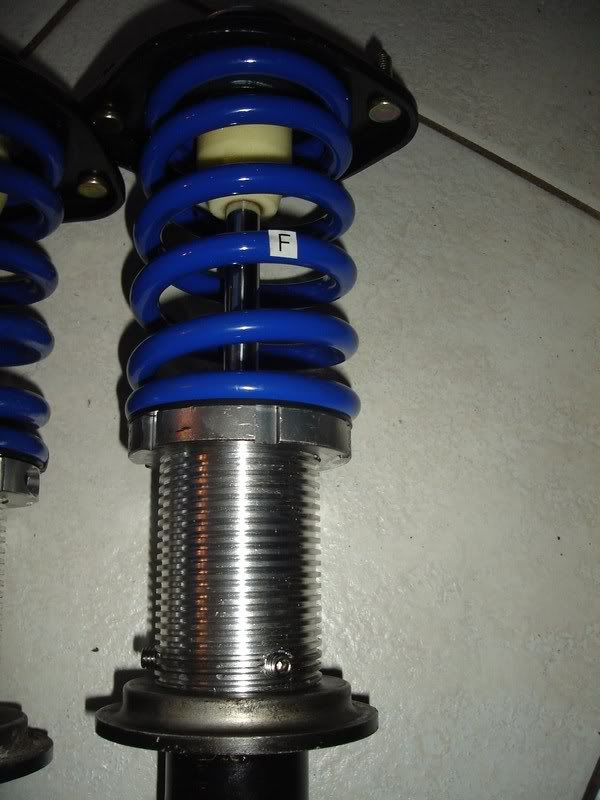

Name:  mini-DSC00365.jpg
Views: 4
Size:  60.9 KB

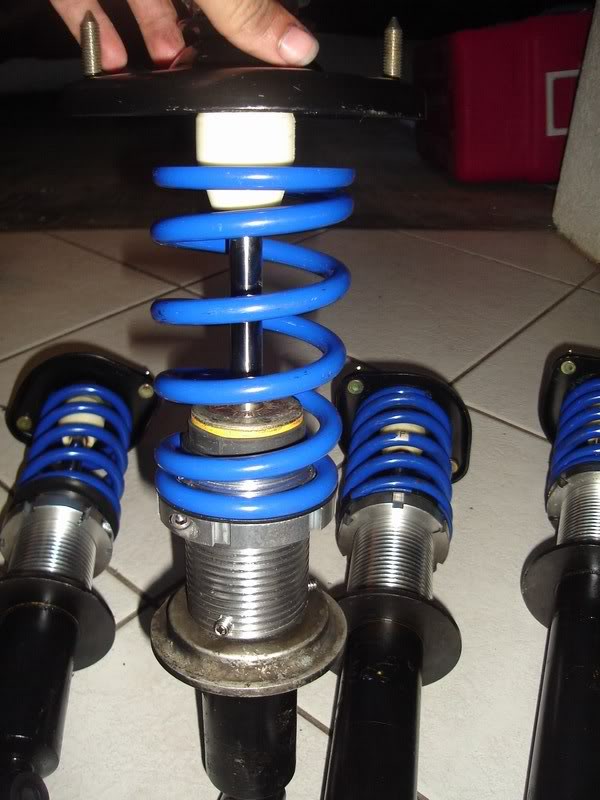

Name:  mini-DSC00367.jpg
Views: 5
Size:  66.8 KB

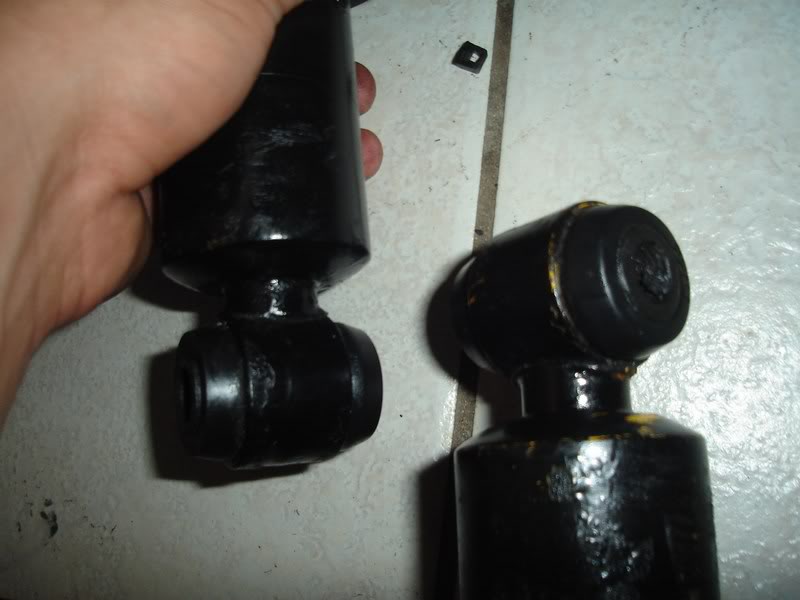

Name:  mini-DSC00368.jpg
Views: 4
Size:  44.1 KB

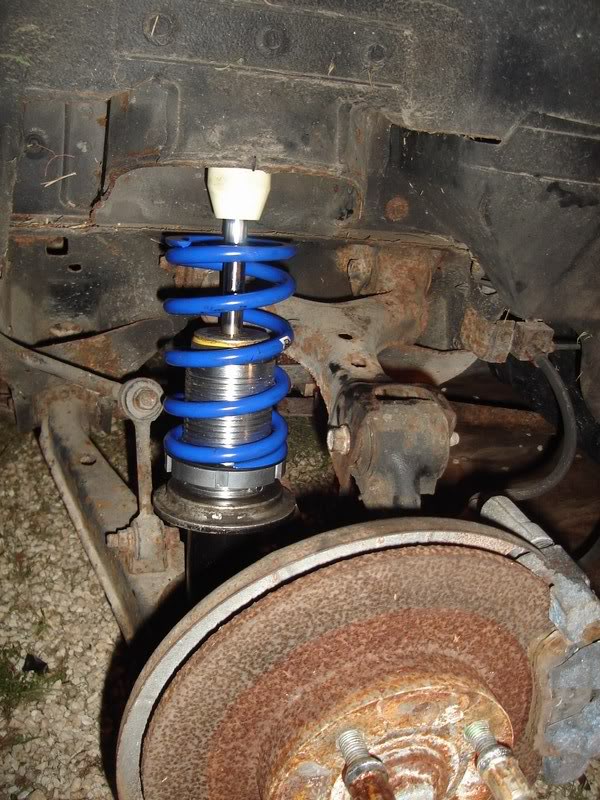

Name:  mini-DSC00369.jpg
Views: 5
Size:  117.0 KB
Sirnixalot is offline   Reply With Quote
