Real Men of Genius - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



General Miata Chat A place to talk about anything Miata

Reply



LinkBack Thread Tools
Old 03-26-2009, 10:05 PM   #1
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default Real Men of Genius

So today I completed the install of the new built engine in the car to the point where I could crank the engine. No spark or fuel yet (ECU not installed) but I could crank the motor and check for oil pressure.

I started by cranking the engine for about 20-30 seconds with no oil pressure. I let it rest to keep from stressing the battery and starter, then tried again. Still no dice. It was taking longer than I liked to get the pump primed. I did not like the idea of starting the engine (with the ECU in) and having it idle with no oil pressure until the pump finally primed. Plus, I did not want to start it at all until I knew the oil system was working. I have some money in this motor and do not want to take any chances.

So I pulled the turbo oil feed line to check for flow there in case the sending unit was bad. Cranking the motor some more still produced no pressure, or oil at the turbo hose. Damn... At this point, I had cranked about 2 minutes total with no pressure, which seemed to be a long time, and was starting to get concerned. But how could I get that pump primed without continuing to crank the crap out of a 'dry' motor?


*cue the Budweiser ad music*
Reeeeeaaaallll Men of GeeeeeeennniiiiUUUuuuUUSSSSSSS....

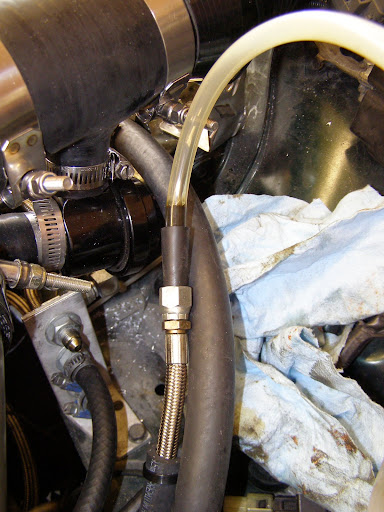

So what if I use the turbo feed hose to suck oil into the pump? And what if I use my Mighty Vac and a nozzle fitting to attach it to the AN fitting and create a vacuum? Or better yet, what if I use the Shop Vac to create the vacuum rather than pumping the Mighty Vac for an hour?

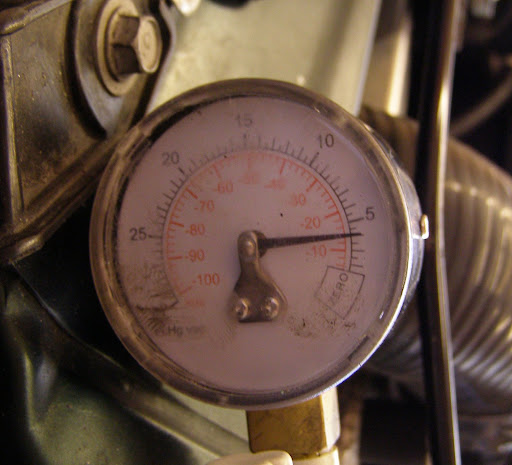

With the Shop Vac running and the Mighty Vac gauge reading -4 in Hg, I cranked the motor again, and this time, after just a few seconds, viola, OIL PRESSURE! LOTS OF IT!


*Bud ad music*
Mr. Shopvacboostedmightyvacengineoilpumpprimingsuction device Guyyyyyyy!


I'll bet you were all waiting for the fail part
ZX-Tex is offline   Reply With Quote
Old 03-26-2009, 10:09 PM   #2
Junior Member
iTrader: (1)

Join Date: Mar 2007
Location: South Florida
Posts: 491
Total Cats: -1
Default

I like it, very good idea!
mrtonyg is offline   Reply With Quote
Old 03-26-2009, 10:50 PM   #3
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

dude, totally real men of genius worthy....
TonyV is offline   Reply With Quote
Old 03-26-2009, 11:13 PM   #4
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 03-26-2009, 11:17 PM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

18psi is offline   Reply With Quote
Old 03-26-2009, 11:18 PM   #6
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Very cool!
RotorNutFD3S is offline   Reply With Quote
Old 03-26-2009, 11:49 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

mr prime a built motor with a shop-vac guy...
hustler is offline   Reply With Quote
Old 03-26-2009, 11:55 PM   #8
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I thought you guys might get a kick out of this
ZX-Tex is offline   Reply With Quote
Old 03-27-2009, 12:09 AM   #9
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Today we salute you, Mr. Shop Vac oil primer guy.

Mr. Miata with a shop vac primer guy!

1 minute without oil, fine. 2 minutes, hang on a sec - what if I..?

*Got* to think of something!

Never afraid of duct tape, you fearlessly rigged a vacuum cleaner to your crankcase.

Man I love some duct tape!

So party on ZX-Tex. In a world of dry bearings, you turned the absence of air into the presence of oil.

Mr. Miata with a shop vac primer guy...
kotomile is offline   Reply With Quote
Old 03-27-2009, 12:18 AM   #10
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

You are a men!
rccote is offline   Reply With Quote
Old 03-27-2009, 12:20 AM   #11
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by kotomile View Post
Today we salute you, Mr. Shop Vac oil primer guy.

Mr. Miata with a shop vac primer guy!

1 minute without oil, fine. 2 minutes, hang on a sec - what if I..?

*Got* to think of something!

Never afraid of duct tape, you fearlessly rigged a vacuum cleaner to your crankcase.

Man I love some duct tape!

So party on ZX-Tex. In a world of dry bearings, you turned the absence of air into the presence of oil.

Mr. Miata with a shop vac primer guy...

LOL!

Really, I was waiting for the FAIL in the OP.
Stein is offline   Reply With Quote
Old 03-27-2009, 01:02 AM   #12
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Priceless!
elesjuan is offline   Reply With Quote
Old 03-27-2009, 01:07 AM   #13
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by kotomile View Post
Today we salute you, Mr. Shop Vac oil primer guy.

Mr. Miata with a shop vac primer guy!

1 minute without oil, fine. 2 minutes, hang on a sec - what if I..?

*Got* to think of something!

Never afraid of duct tape, you fearlessly rigged a vacuum cleaner to your crankcase.

Man I love some duct tape!

So party on ZX-Tex. In a world of dry bearings, you turned the absence of air into the presence of oil.

Mr. Miata with a shop vac primer guy...

I can just hear the announcer's and singer's voices from the commercial as I read that text. Freaking perfect! HA!
"...you turned the absence of air into the presence of oil"
ZX-Tex is offline   Reply With Quote
Old 03-27-2009, 02:23 AM   #14
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by kotomile View Post
Today we salute you, Mr. Shop Vac oil primer guy.

Mr. Miata with a shop vac primer guy!

1 minute without oil, fine. 2 minutes, hang on a sec - what if I..?

*Got* to think of something!

Never afraid of duct tape, you fearlessly rigged a vacuum cleaner to your crankcase.

Man I love some duct tape!

So party on ZX-Tex. In a world of dry bearings, you turned the absence of air into the presence of oil.

Mr. Miata with a shop vac primer guy...
******' A, that is the absolute best.

I could hear them singing it to a "t" as well.

You get this month's "More awesome than a rocket propelled chainsaw launcher post" award.

gospeed81 is offline   Reply With Quote
Old 03-27-2009, 10:12 AM   #15
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

kotomile is offline   Reply With Quote
Old 03-27-2009, 10:56 AM   #16
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Effin' A Well Told......
Who would have thought....that's getting **** done right there!
Machismo is offline   Reply With Quote
Old 03-27-2009, 11:33 AM   #17
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

This is something that would have failed miserably if i attempted it but you, your so full of WIN
leatherface24 is offline   Reply With Quote
Old 03-27-2009, 11:58 AM   #18
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Talk about reinventing the bicycle.
Saml01 is offline   Reply With Quote
Old 04-12-2009, 12:21 AM   #19
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Any duplication of previous approaches was strictly accidental.
I also 'invented' dry ice bombs when I was about 12. At least I thought I had invented them, until later on the internet revealed several others that knew about this as well.

For those who do not know what a dry ice bomb is
dry_ice + 3_liter_soda_bottle + a_little_water = BOOOOOOOM!!!!!
ZX-Tex is offline   Reply With Quote
Old 04-19-2009, 04:23 PM   #20
Elite Member
Thread Starter
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

An update... After removing the engine to replace the bad oil pump pressure relief valve (see this thread) I reinstalled the engine today. Though it still took some cranking, the pump eventually primed on its own, much faster this time. I did remove the plugs so the engine would turn over faster.
ZX-Tex is offline   Reply With Quote
