Default Repair a wideband cable?

I bought an Innovate wideband kit from a buddy. I got it for a really good deal because his dog chewed on some of the wiring.

Is it possible to repair this cable? It looks like it's got a bare copper wire and some metal sheathing [shielding?]. I know I can get spares from Innovate, but I want to try to fix it if I can.

Here are a few really shitty pics of the damage:

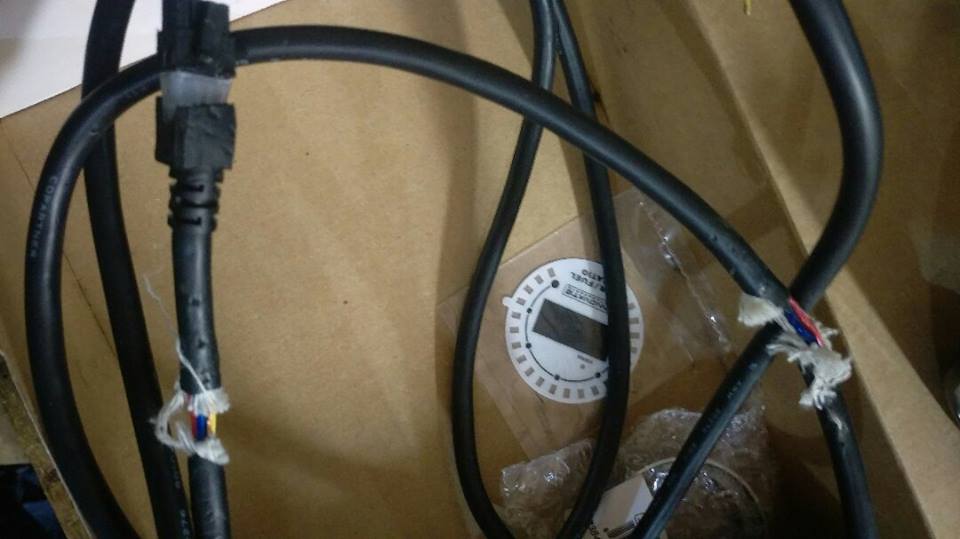

Name:  wb1_zpsl8pkyfsq.jpg
Views: 1
Size:  50.5 KB

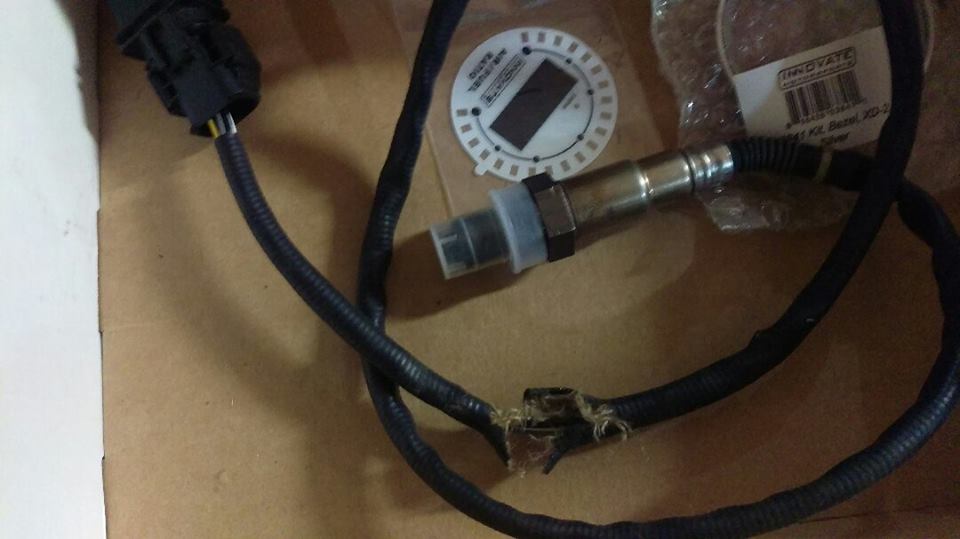

Name:  wb2_zpsomyvds6z.jpg
Views: 1
Size:  51.3 KB

On further inspection, the only damaged part seems to be the insulation and that metal sheath.
RedHeadMetalHead is offline   Reply With Quote
Old 03-20-2017, 12:34 AM   #2
Junior Member
Join Date: Jun 2013
Posts: 89
Total Cats: -15

The sensor should be replaced regardless. They fail and use stainless wire that's a PIA to solder.

The wires on the controller can be spliced without issue, just do a good job and it will last as long as any other LC1.
