Default Replace Fake Oil Pressure Gauge on NB

More coming on this post. Sorry, short on time. This is a dual oil temp/pressure gauge install in OEM location

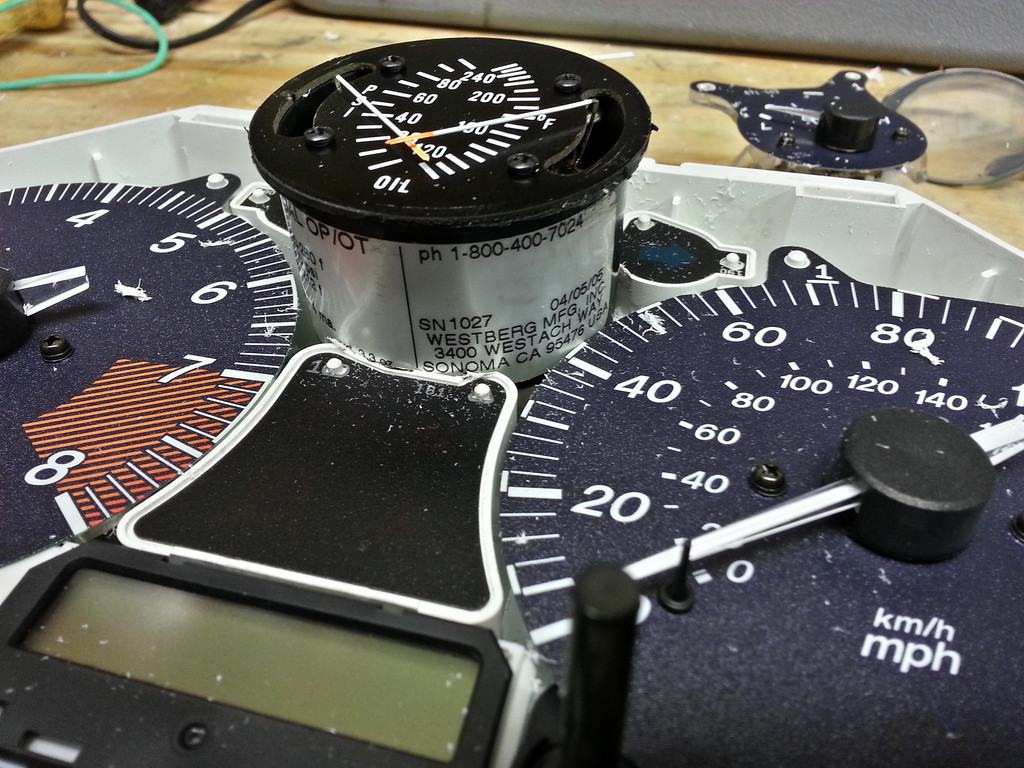

Aborted Attempt to fit Whole Gauge.

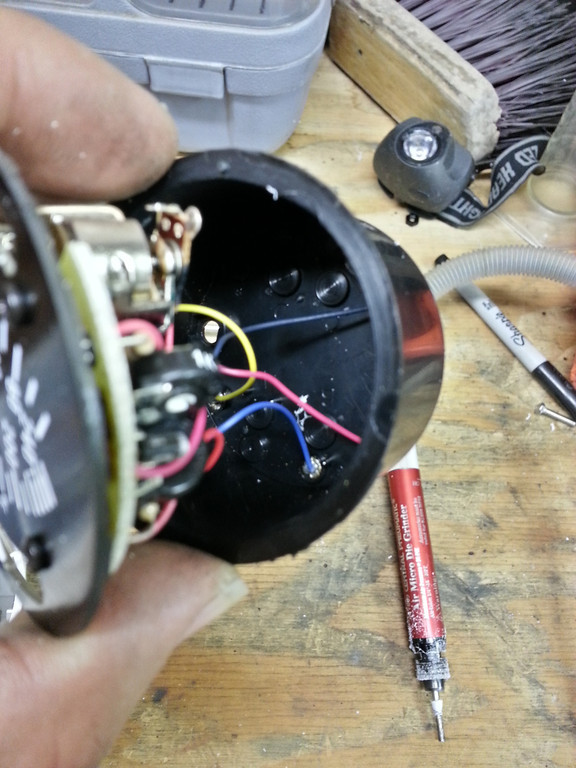

Spooky, telling myself it'll be ok to desolder gauge:

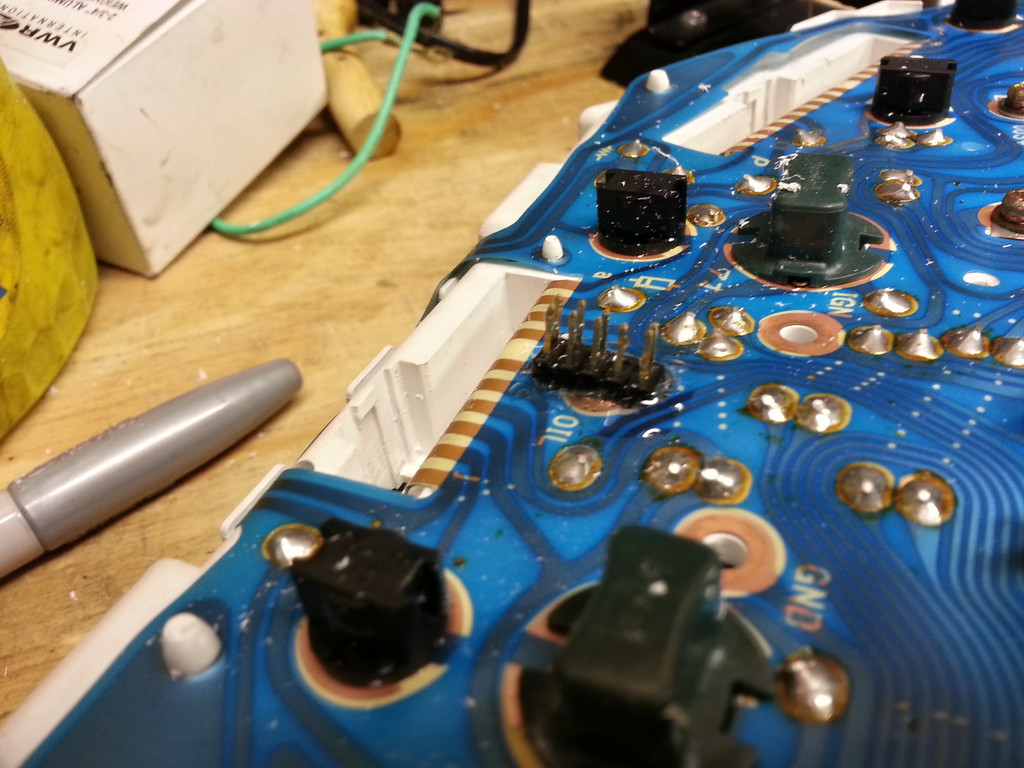

Soldered once internal wires to a dual row header from my leftover PnP kits:

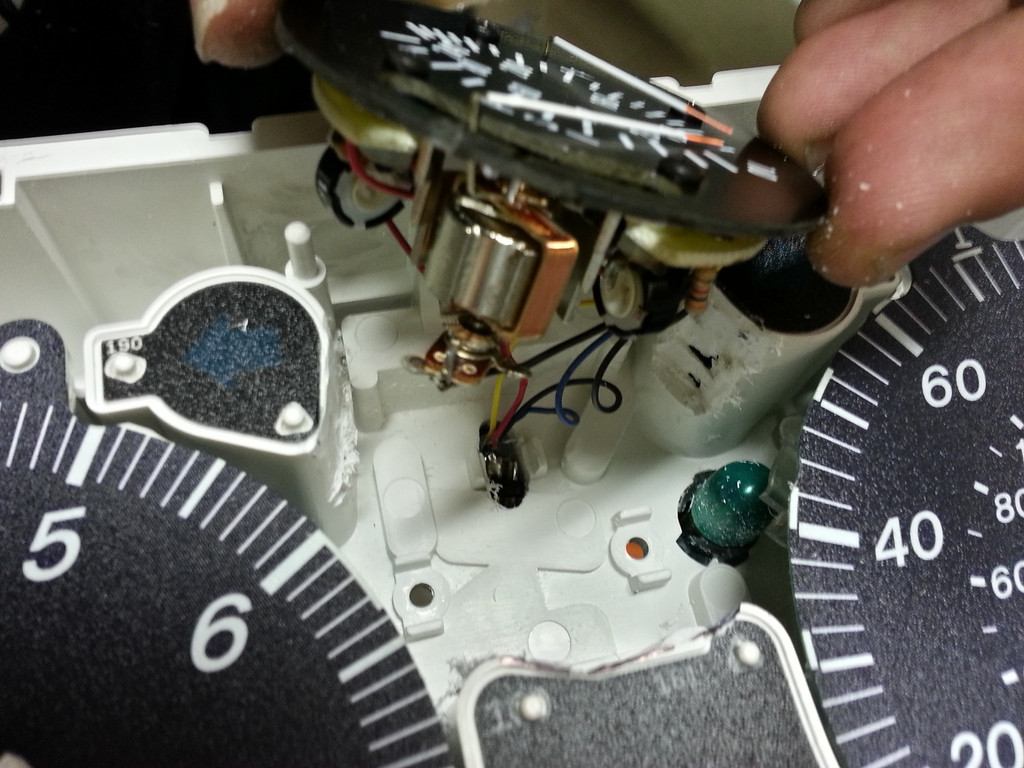

Gauge basically in place:


Backside with connector harbor-freight-epoxied in place:

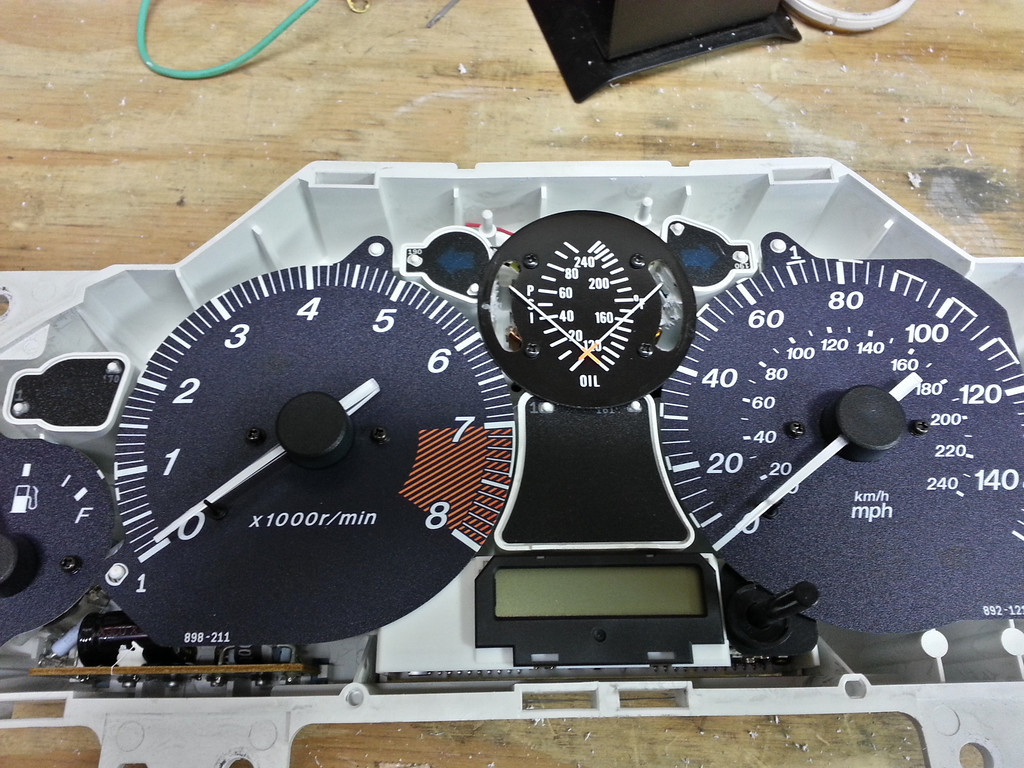

Close to final product. Lighting it not worked out yet and I may put original gauge's cover over needle bases.



This took some milling of the back of the black plastic bezel, simple dremel stuff. Of course I forgot to write down which wires do what, so I know which two are which needles (by putting ohm meter across and watching them move) but I'm not 100% sure which is power and which is ground. Perhaps asking the manufacturer will yield useful info, otherwise I can likely see through the front if I remove bezel again.

Gauge is a lightweight dual model sold by Westach. I'd always wanted to put my boost gauge there, and when I finally worked up the nerve to do it, I found I was running more boost than the 16 psi gauge would display. HA!

It might not be a PERFECT match but I think it'll be quite good. Next up: LED indicator lights so I can run more channels off the 'logic level' outputs on my MS3.
-Abe.

P.S. More/higher res pics at: Dual Oil Temp/Press In Dash - AbeFM's Photos
Attached Thumbnails
Replace Fake Oil Pressure Gauge on NB-20130712_155350_hdr-xl.jpg   Replace Fake Oil Pressure Gauge on NB-20130712_160205_hdr-xl.jpg   Replace Fake Oil Pressure Gauge on NB-20130712_161221_hdr-xl.jpg   Replace Fake Oil Pressure Gauge on NB-20130712_170659_hdr-xl.jpg   Replace Fake Oil Pressure Gauge on NB-20130712_165517_hdr-xl.jpg

Replace Fake Oil Pressure Gauge on NB-20130712_171633_hdr-xl.jpg   Replace Fake Oil Pressure Gauge on NB-20130712_181915-xl.jpg
AbeFM is offline   Reply With Quote
Old 07-13-2013, 04:08 AM   #2
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Doesn't look to bad. Glad I'm not the only one fiddling with oil gauges. Whats the plan for the LEDs?
TorqueZombie is offline   Reply With Quote
Old 07-14-2013, 04:59 AM   #3
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Heh. Nice Av.

There isn't one. I know, I'm a bad person. But in the process of rewiring whole car, getting serial coms working with a computer I've yet to even install, upgrading fuel pump wiring, adding EBC, VVT, etc.... yeah, it's taking a back seat. But when I put the cover over the needle ends, I think I'll pervert the OEM lighting into shining through the holes.
AbeFM is offline   Reply With Quote
Old 07-14-2013, 05:00 AM   #4
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Oh, you don't mean LED lighting of the gauge. Sorry. Um, just check engine, knock, low oil pressure, etc etc. I mean, idiot lights are way better than gauges - hopefully I'll have both.
AbeFM is offline   Reply With Quote
Old 07-16-2013, 06:53 PM   #5
Newb

Join Date: Sep 2008
Posts: 6
Total Cats: 0
Default Part Number?

Looks very good. What was the part number for the gauge?
ptrawles is offline   Reply With Quote
Old 07-16-2013, 09:36 PM   #6
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Oh goodness, I have no idea. Just check out Westach. They are alright guys, sent me free parts when I was having troubles. They have all kinds of interesting stuff and I got the gauge a decade ago. They did have a slick 4-way EGT which I thought was cute, if not useful.
AbeFM is offline   Reply With Quote
Old 07-19-2013, 03:05 PM   #7
18T
Newb

Join Date: Jul 2013
Location: Clarendon Hills, IL
Posts: 19
Total Cats: 0
Default

What size is that gauge? 2 inch?
18T is offline   Reply With Quote
Old 07-20-2013, 12:26 PM   #8
Elite Member
Thread Starter
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

2 1/4 I believe. 2" would fit much better. :-)
