Question Roll Bar Connected to Windsheild

I am swapping roll bars with the person who purchased my old Miata (they didnít like the diagonal) and I plan on powder coating it before reinstalling (black). While researching things to do while bar is out, I have come across a few pictures of Miata's with a couple additional braces running centered from the top of the roll bar to the top of the windshield. I have a few questions:
  1. Will this help noticeably with vehicle rigidity? I have no qualms about adding 10 lbs of metal to alleviate some of the body flex. I was looking into door bars, frog arms, and frame rails. How would it compare to these?
  2. Is this something that must be done with the bar in the vehicle? It doesnít make sense to powder coat the roll bar if this job is done after the bar is installed (mismatching coloring with new bracing/welds). Does the soft top fit back on? Is it welded or bolted to the top or bottom of the windshield frame?
  3. I currently run in SSM in my local SCCA auto-x region. I know the frame rails and other braces would bump me out of that class, but would this?
  4. Does anyone have any opinions after having this done to their car? Regrets, things to do differently? Cost? Pictures?
My car: 97 with Old School Sebring and additional this and thatís. It is my DD during the summer and the wife and I like to take a couple three day weekend road trips with it. I plan on attending a track day or two at Miller Motorsports Park this summer. Drive to auto-x events, which I do for fun. I am not top 10 pax competitive (mostly among friends).
UI Vandal is offline   Reply With Quote
Old 03-22-2010, 05:17 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

yes
yes
yes
1-guy with a mariner blue car
hustler is offline   Reply With Quote
Old 03-22-2010, 05:19 PM   #3
Newb
Thread Starter

Join Date: Jun 2008
Location: Ammon, ID
Posts: 17
Total Cats: 0
Default

Thank you for the quick reply, but was looking for a bit more detail.
UI Vandal is offline   Reply With Quote
Old 03-22-2010, 05:21 PM   #4
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Quote:
Originally Posted by hustler View Post
yes
yes
yes
1-guy with a mariner blue car
Flipsidecustoms

Watch your noggin if you plan to drive on the street....thats the only reason I'm not going to cage my car....

MiataExteriorandInterior004.jpg?t=1238889705

MiataExteriorandInterior006.jpg?t=1238889642

MiataExteriorandInterior011.jpg?t=1238889755

MiataExteriorandInterior013.jpg?t=1238889808[/QUOTE]
Cspence is offline   Reply With Quote
Old 03-22-2010, 06:26 PM   #5
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

That's very badass!
elesjuan is offline   Reply With Quote
Old 03-22-2010, 07:09 PM   #6
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Looks cool as hell, but I just know I'd take a hacksaw to it the first time I smacked my head on it.
rleete is offline   Reply With Quote
Old 03-22-2010, 08:19 PM   #7
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: Louisville, KY
Posts: 232
Total Cats: 0
Default

You're going to put a big moment on those welds for the top bar if you ever do roll it over. There isn't much strength in the windshield and it will still want to crush. Seems like a good chance the top bar would break too.
AutoFreak57 is offline   Reply With Quote
Old 03-22-2010, 08:43 PM   #8
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by AutoFreak57 View Post
You're going to put a big moment on those welds for the top bar if you ever do roll it over. There isn't much strength in the windshield and it will still want to crush. Seems like a good chance the top bar would break too.
I highly doubt that. Since its boxed in there is a far less chance of total collapse. The load will be distributed across the roll bar and the windshield. Only way its breaking is if it gets thrown off a building (as long as it has a full strength weld)
SKMetalworks is offline   Reply With Quote
Old 03-22-2010, 09:26 PM   #9
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Maybe if there was a hoop welded alongside the windshieldframe where this bar would connect. Make it real close to the frame and remove the trim pieces so you can get it welded in properly. This will allow you to still use the latches and it wont be so intrusive. Then you're only a few pieces of tubing and some doorbars away from a full cage.
Oscar is offline   Reply With Quote
Old 03-22-2010, 09:51 PM   #10
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

i agree... thats just going to add a point load to the middle of the windshield frame and crumble the windsheild.
shlammed is offline   Reply With Quote
Old 03-22-2010, 10:06 PM   #11
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

I was planning on doing this to my car as well! mainly to get rid of the vibrating of the window thingy (that **** annoys the **** out of me when the top is down!
WonTon is offline   Reply With Quote
Old 03-22-2010, 10:21 PM   #12
Junior Member
iTrader: (1)

Join Date: Sep 2007
Location: Nor-Cal
Posts: 78
Total Cats: 3
Default

Quote:
Originally Posted by shlammed View Post
i agree... thats just going to add a point load to the middle of the windshield frame and crumble the windshield.
+1 Looks like the worst designed roll bar I've ever seen; but what do I know, I thought building a splitter from plywood sounded like a good idea.
1drum is offline   Reply With Quote
Old 03-22-2010, 10:43 PM   #13
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

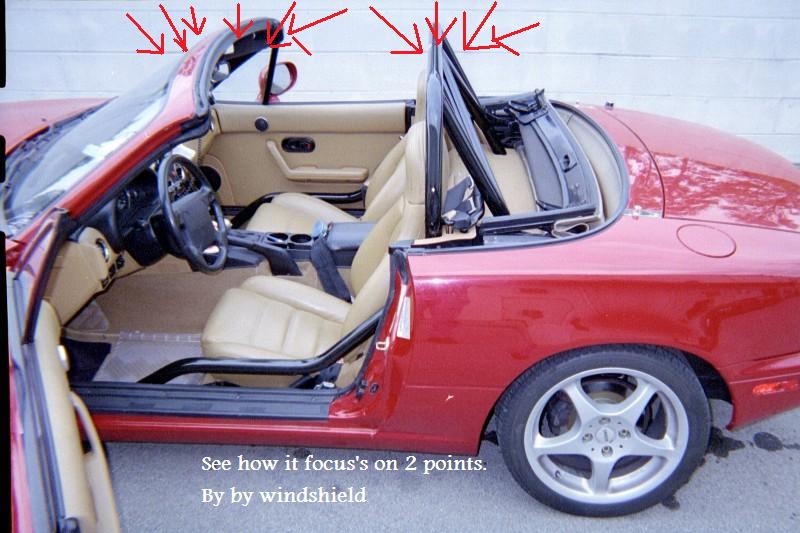

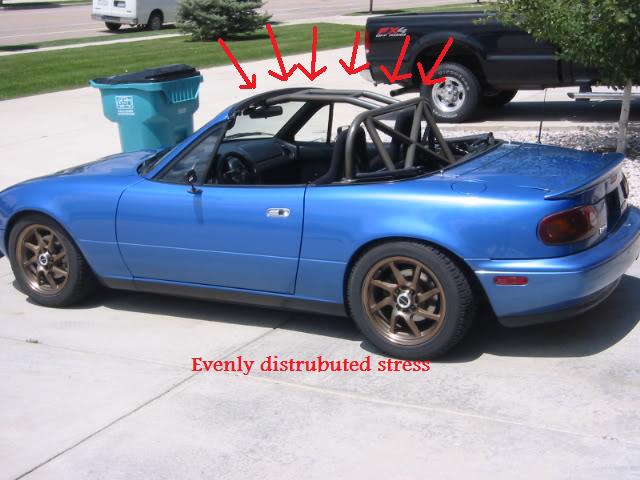

Examine the first picture

Then examine the second


I agree there is a better design but its far better then just a roll bar.
Attached Thumbnails
Roll Bar Connected to Windsheild-miataexteriorandinterior004.jpg   Roll Bar Connected to Windsheild-miata-6-point.jpg
SKMetalworks is offline   Reply With Quote
Old 03-22-2010, 11:10 PM   #14
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

What door bars are those in the red car? ^
dgmorr is offline   Reply With Quote
Old 03-22-2010, 11:15 PM   #15
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Quote:
Originally Posted by dgmorr View Post
What door bars are those in the red car? ^
Kirk Racing.
RotorNutFD3S is offline   Reply With Quote
Old 03-22-2010, 11:23 PM   #16
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I can't see how in a roll over those bars wouldn't just fold down into the cabin. That would be a really bad day if those bars came down onto your shoulder.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-22-2010, 11:26 PM   #17
Junior Member
iTrader: (1)

Join Date: Sep 2007
Location: Nor-Cal
Posts: 78
Total Cats: 3
Default

Quote:
Originally Posted by SKMetalworks View Post
Examine the first picture

Then examine the second


I agree there is a better design but its far better then just a roll bar.
To me it looks like an unsuccessful attempt to bridge the gap between roll bar and roll cage. It may work better than I think; but I don't like it and would rather just have a well designed roll bar.
1drum is offline   Reply With Quote
Old 03-22-2010, 11:34 PM   #18
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,895
Total Cats: 109
Default

Quote:
Originally Posted by levnubhin View Post
I can't see how in a roll over those bars wouldn't just fold down into the cabin. That would be a really bad day if those bars came down onto your shoulder.
I agree. In a mild roll over, I could see it working. but in a catostrophic crash, those bars could be curtains to the driver. They could literally spear the driver. I would never put that in my car, unless there were test results that would prove it was beneficial and safe. Assuming that system is safe is ridiculous.
miata2fast is offline   Reply With Quote
Old 03-23-2010, 02:18 AM   #19
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

That setup looks like it would cost as much as a full cage.
Sparetire is offline   Reply With Quote
Old 03-25-2010, 06:38 PM   #20
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: Louisville, KY
Posts: 232
Total Cats: 0
Default

I don't completely agree with your stress analysis of it. Any force in the connecting bar will get brought back straight to either the windshield or the roll bar. It is still the same basic scenario. It might add a little strength, but if the car rolls, the windshield is still collapsing.
AutoFreak57 is offline   Reply With Quote
