Old 03-16-2009, 09:23 PM   #21
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

I'm budgeting to toss an LS2 or LS3 into mine next year... by then the price of the motors will be a bit lower.

The only cons I can come up with are:
1) Have to cut the rear fenders and install flares for wider tires which means significant suspension tuning to avoid pooching the handling.

2) Lack of torsional rigidity. My plan on that one is some carefully thought out and welded in place bracing. Since I plan on using it 50% or more on the street I'm not a huge fan of putting a cage in it. If I go the cage route I'll probably be rocking zero roof and racing buckets mounted straight on the floor board to give me as much head clearance as possible.

3) Questionable strength of the CTS-V diff. I've heard different opinions on the strength and longevity of these diffs. I want to keep IRS so options are limited. The CTS-V seems like the lightest offering.
Arkmage is offline   Reply With Quote
Old 03-17-2009, 02:35 PM   #22
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

I've done the turbo thing with many of my cars so I wanted something different. An LS lugging around 6th on the highway getting 30 mpg, instant torque everywhere, Fully tunable/flashable stock ECU retaining factory sensors to handle changes in temp, altitude, etc to keep the car running, revving and idling like stock at all times, the fun of putting the car together (though that's wearing on me right now), abundance of LSX parts from any part source, be it boneyards, Jegs, Summit, or the local autparts store.

LSXs are proven performers AND have good longevity. 100k+ easy peasy miles without the car ever breaking a sweat making 350+ to the wheels.

And they're still pretty rare, so it's simply going to be cool getting in the car and going for a joy ride or a simple top down cruise.

Frank
fmowry is offline   Reply With Quote
Old 03-17-2009, 02:47 PM   #23
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Fayetteville NC
Posts: 828
Total Cats: 0
Default

I'd probably do an aluminum LS 1 vs a LS2 or 3. You can easily get 400hp to the wheels on an LS1, which is plenty for the miata. More if you want to play with heads cams and intakes. LS1s are cheaper, more used parts availible. I'd also advise you get on a few domestic car sites and get aquited. You can pick up some really cheap used parts. If I decided to go that route, I'd probably do a 408 cu.
msydnor is offline   Reply With Quote
Old 03-17-2009, 02:50 PM   #24
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

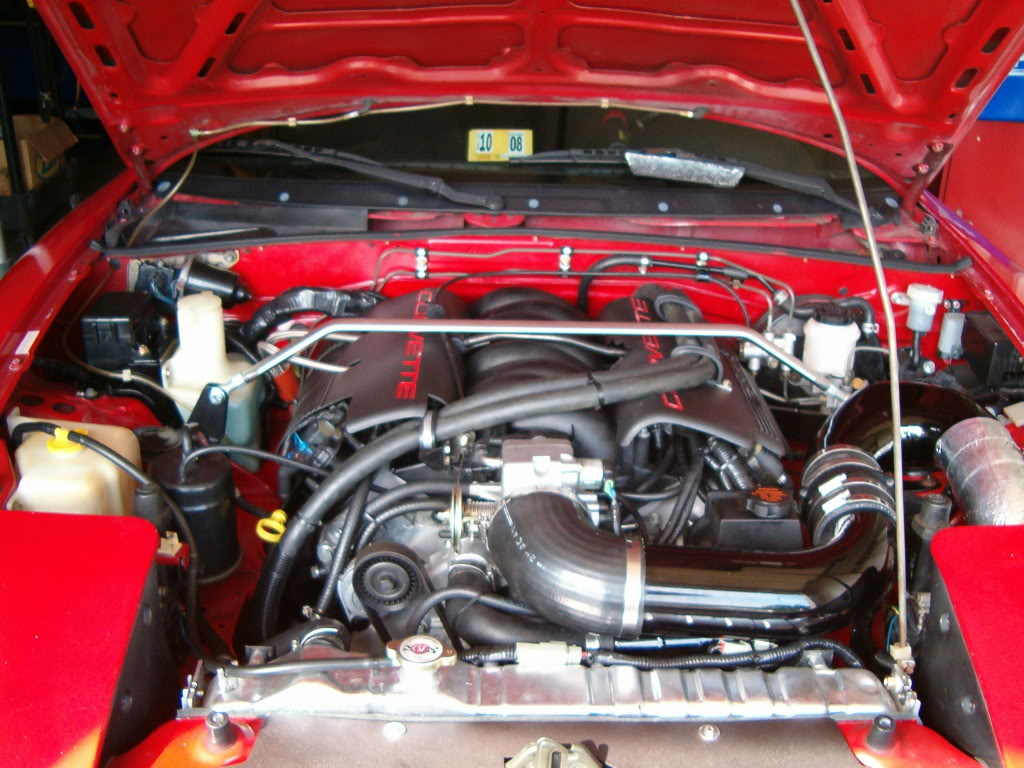

I just want this.

Name:  HPIM0897.jpg
Views: 16
Size:  139.6 KB
cjernigan is offline   Reply With Quote
Old 03-17-2009, 02:55 PM   #25
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
I just want this.

Drool.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-17-2009, 03:06 PM   #26
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

^it does seem right at home in there....
TonyV is offline   Reply With Quote
Old 03-17-2009, 03:09 PM   #27
Junior Member
iTrader: (1)

Join Date: Jul 2007
Location: Johannesburg, South Africa
Posts: 109
Total Cats: 0
Default

I got two miata (mx5 to me)
one getting a turbo and one with a supercharged V8
the v8 is way better than I ever imagined
but the costs can skyrocket

I took one 94 jdm spec Eunos roadster
fitted a Toyota 1uzfe 4.0 32valve v8, with manual 5 speed
added an opcon autorotor supercharger aka kenne belle
megasquirt ecu / lc1 wideband
ford 8.8 rear
ferrari f355 calipers
tein coil overs
msd dis4 ignition
walbro fuel pump
twin 3inch zorsts with h pipe
cobra fia approved seats
sparco steering wheel

man is it fun
instant torque from the lights
the noise is insane
ripped out power steering / aircon from the engine bay and aircon from under the dash

I keep postponing the turbo build cause the v8 is so awesome and better than i ever could of imagined !! I am sorry i stripped so much out of the v8 i miss the creature comforts there is more than enough power to lug everything around ! my goal is mid tens from this setup

and to stiffen the car up I did some basic seam welding on the inner door area
you actually cant believe the difference that makes !

do it - get the boss frog / flyin miata kit and you set
[IMG][/IMG]
3barboost is offline   Reply With Quote
Old 03-17-2009, 04:11 PM   #28
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

again, it just seems like a nice neat fit...even with the blower
TonyV is offline   Reply With Quote
Old 03-17-2009, 07:33 PM   #29
Junior Member
iTrader: (1)

Join Date: Feb 2009
Posts: 128
Total Cats: 0
Default

Do it. The reliability alone with more hp and torque is great. Think about it, a non-turbo car, then slapping a turbo and seeing all the problems people have with them. With the V8, only thing you need to worry about is getting it in there and wiring it up right. It's not like the LS engines weigh a ton and the power to weight ratio will be zilch.
BarrigaNA is offline   Reply With Quote
Old 03-18-2009, 02:45 AM   #30
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by 3barboost View Post

I took one 94 jdm spec Eunos roadster
fitted a Toyota 1uzfe 4.0 32valve v8, with manual 5 speed
added an opcon autorotor supercharger aka kenne belle
megasquirt ecu / lc1 wideband
ford 8.8 rear
ferrari f355 calipers

lol, what?
cardriverx is offline   Reply With Quote
Old 03-19-2009, 03:35 PM   #31
Senior Member
iTrader: (21)

Join Date: May 2008
Location: San Antonio
Posts: 712
Total Cats: 16
Default

My buddy just finished his a few months ago...he constantly hounds me to throw this turbo "crap" out the window and put a real motor in. He also races spec miatas so he's not your average V8 lover. I personally think that he's going to need some serious brakes to go a long with the engine once he learns to drive it. I think the CTS diff will hold up fine. If you track the LS, be sure and do something about your oiling (i.e. accusump) or it will be short lived!
rlogan is offline   Reply With Quote
Old 03-19-2009, 06:14 PM   #32
Junior Member
iTrader: (1)

Join Date: Feb 2009
Posts: 128
Total Cats: 0
Default

Just thought about it for a day or two, you can go to GM, buy a brand new LSx engine with a harness and throw it in. Yes it's more money that way but it's brand new from the factory. They even have the LS3 motor with a pre-programmed ECU for their "hot" engine they sell. mmmmmm.

Only real question is which company to go with for the mounting kit. I am interested in the Boss Frog one.

The rear end though, ugh...2K+ for the shafts...****.
BarrigaNA is offline   Reply With Quote
Old 03-19-2009, 11:22 PM   #33
Junior Member

Join Date: Aug 2008
Location: MD/DE/PA
Posts: 337
Total Cats: 0
Default

The Boss Frog one seems more simple, although the FM one offers a favorable mounting location (more rearward) and thus weight distribution.

As an aside, the idea of a cracked, public knowledge, relatively powerful and easy to tune ECU makes me all happy inside.
the_man is offline   Reply With Quote
Old 03-23-2009, 07:26 AM   #34
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Quote:
Originally Posted by the_man View Post
The Boss Frog one seems more simple, although the FM one offers a favorable mounting location (more rearward) and thus weight distribution.

As an aside, the idea of a cracked, public knowledge, relatively powerful and easy to tune ECU makes me all happy inside.
Feel free to drop by and check out (help with) my swap. I'm just south of Baltimore. v8roadsters kit is in, motor is in, trans, rear and axles are in. I need to finish up wiring and hang the muffler.

Frank
fmowry is offline   Reply With Quote
Old 03-23-2009, 12:51 PM   #35
Junior Member

Join Date: Aug 2008
Location: MD/DE/PA
Posts: 337
Total Cats: 0
Default

I'm hoping to see it at the NE Dyno Day- doubtful I can find time between now and then, as much as I'd like to.
the_man is offline   Reply With Quote
Old 09-20-2009, 02:10 PM   #36
Newb

MX5.7's Avatar

Join Date: Jun 2009
Posts: 10
Total Cats: 0
Default

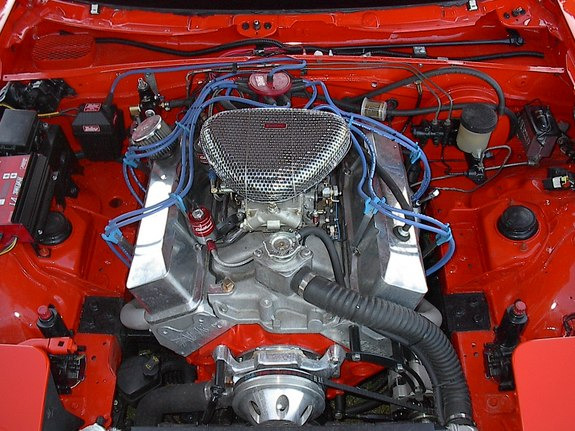

I think you should do both, turbo an LS1! I built a SBC miata and love it, but I also think that it is much more comendable to get the same power out of an engine 1/3 the size. If I was to do it over I would go LS.
Attached Images
File Type: bmp large.bmp (727.4 KB, 335 views)

Last edited by MX5.7; 09-20-2009 at 02:26 PM.
MX5.7 is offline   Reply With Quote
Old 09-20-2009, 02:35 PM   #37
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by MX5.7 View Post
I think you should do both, turbo an LS1! I built a SBC miata and love it, but I also think that it is much more comendable to get the same power out of an engine 1/3 the size. If I was to do it over I would go LS.
Dude!

Please go to meet n' greet section and start a thread introducing yourself and your Monster Miata please.

I saw you say it's a 10.7s car in the other thread...have to see more.
gospeed81 is offline   Reply With Quote
Old 09-20-2009, 03:35 PM   #38
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by MX5.7 View Post
I think you should do both, turbo an LS1! I built a SBC miata and love it, but I also think that it is much more comendable to get the same power out of an engine 1/3 the size. If I was to do it over I would go LS.
thats hella clean man you running a t56?
magnamx-5 is offline   Reply With Quote
Old 09-20-2009, 05:12 PM   #39
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

What is the weight distribution after the swap?
hustler is offline   Reply With Quote
Old 09-20-2009, 06:47 PM   #40
Newb

MX5.7's Avatar

Join Date: Jun 2009
Posts: 10
Total Cats: 0
Default

The original weight of the stock miata was 2230 lbs. It now weighs 2620 lbs. (1420 front / 1200 rear) 54% front / 46% rear.
MX5.7 is offline   Reply With Quote
